A General EM-Based Channel Model for Reconfigurable Antenna Systems

Chen Xu , Xianghao Yu This is my paper

Pith reviewed 2026-05-08 10:36 UTC · model grok-4.3

classification 📡 eess.SP cs.ITmath.IT
keywords reconfigurable antenna systemselectromagnetic channel modelspherical vector wave expansionantenna orientationchannel gain6G wirelessfluid antennasmovable antennas
0
0 comments X

The pith

An electromagnetic channel model based on spherical vector wave expansion captures how reconfigurable antenna position and orientation affect channel gain.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Reconfigurable antenna systems such as fluid and movable antennas can adapt their configuration to improve wireless links in future networks. Current models often ignore polarization, restrict themselves to particular antenna types, or use overly simple assumptions about how configuration changes affect signals. The paper develops a general model using spherical vector wave expansion that directly incorporates antenna position and orientation into the channel gain calculation. Comparisons with commercial simulation tools confirm the model's predictions match observed behavior. Analysis with the model further shows that dynamically tuning antenna orientation can raise achievable data rates by as much as 70 percent relative to fixed-antenna setups.

Core claim

The authors propose a general EM-based channel model grounded in spherical vector wave expansion. This model expresses channel gain in terms of antenna position and orientation effects on radiation, propagation, and reception, without type-specific approximations. It applies to diverse reconfigurable antenna systems and is validated by close agreement with commercial electromagnetic simulation software. The model further reveals that antenna orientation is a governing factor in communication performance, with dynamic orientation adjustment delivering up to 70 percent higher achievable rates than fixed configurations.

What carries the argument

Spherical vector wave expansion of electromagnetic fields, which represents the interaction between transmit and receive antennas in a way that directly encodes position and orientation dependence on channel gain.

If this is right

  • Reconfigurable antenna designs can now be evaluated for performance gains from orientation changes before hardware implementation.
  • Resource allocation and beamforming algorithms for sixth-generation systems must incorporate orientation as a controllable variable to reach predicted rates.
  • Polarization effects can no longer be neglected in channel modeling when antennas are allowed to rotate or move.
  • System-level simulations using the model will show larger performance margins for fluid and movable antennas than earlier simplified models predicted.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The model could be combined with real-time feedback loops to enable adaptive orientation control that responds to changing propagation conditions.
  • Extensions to multi-antenna arrays would allow joint optimization of position, orientation, and polarization across multiple elements.
  • Integration with existing ray-tracing or geometry-based stochastic models could produce hybrid tools that retain accuracy while scaling to large networks.

Load-bearing premise

The spherical vector wave expansion supplies an accurate and sufficiently general representation of electromagnetic interactions for diverse reconfigurable antenna systems without needing antenna-type-specific adjustments.

What would settle it

Direct measurements of channel gain in a physical reconfigurable antenna testbed at multiple orientations that deviate substantially from the model's predicted values would falsify the model's claimed generality and accuracy.

Figures

Figures reproduced from arXiv: 2604.22264 by Chen Xu, Xianghao Yu.

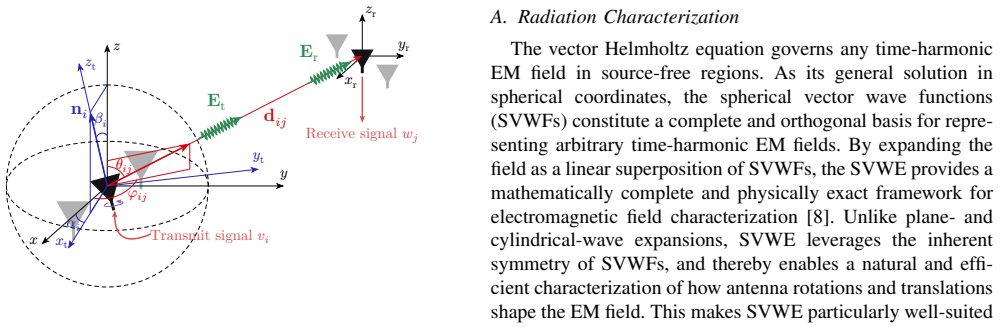

Figure 1
Figure 1. Figure 1: Illustration of the channel model between the view at source ↗

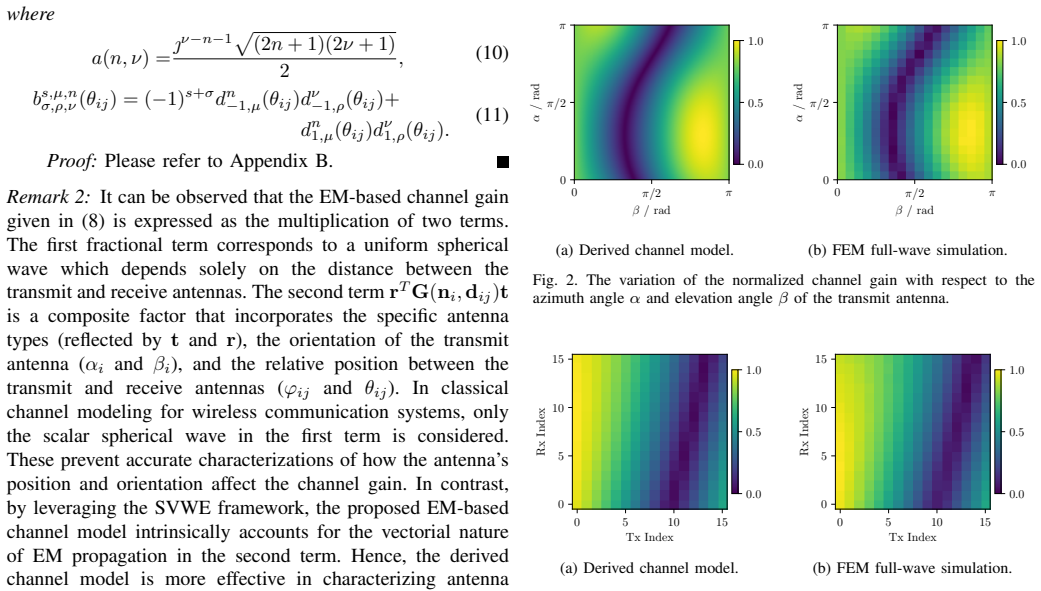

Figure 3
Figure 3. Figure 3: The normalized channel gain of the considered 16 × 16 RAS-enabled MIMO system. both the transmit and receive antenna arrays are aligned along the positive x-axis, with their first elements located at O and P, respectively. Furthermore, to highlight the reconfigurability of the transmit array, we set the elevation and azimuth angles of the i-th transmit antenna to βi = 5i ◦ and αi = 90◦ , respectively view at source ↗

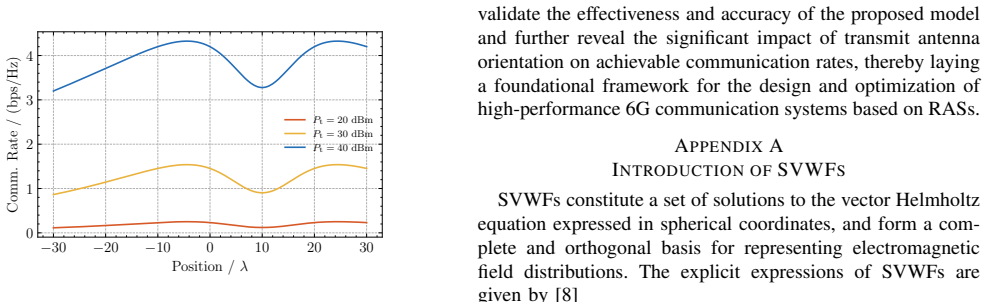

Figure 4
Figure 4. Figure 4: The achievable communication rate versus transmit antenna position view at source ↗

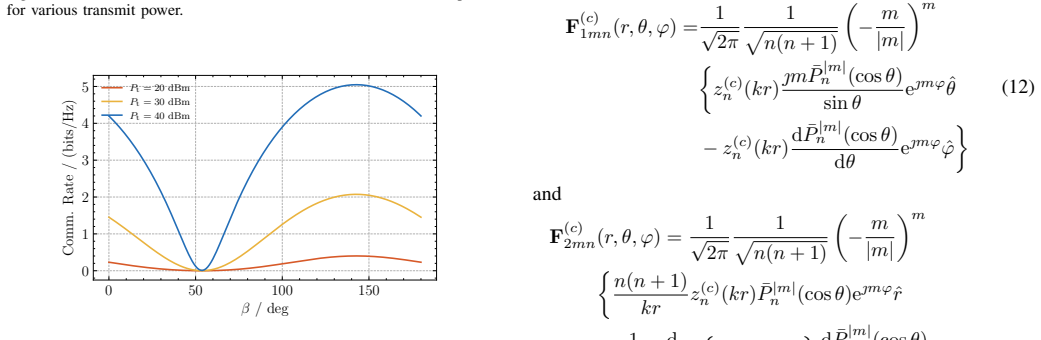

Figure 5
Figure 5. Figure 5: The achievable communication rate versus transmit antenna orientation view at source ↗
read the original abstract

Reconfigurable antenna systems (RASs), such as fluid antennas and movable antennas, are poised to play a pivotal role in sixth-generation (6G) systems by dynamically adapting the antenna elements for system performance enhancement. However, unlocking their full potential requires channel models that accurately capture the influence of antenna configurations on the radiation, propagation, and reception of signals. Existing channel models suffer from several limitations, such as neglecting polarization effects, being restricted to specific antenna types, or relying on oversimplified assumptions. In this paper, we propose a general electromagnetic (EM)-based channel model grounded in spherical vector wave expansion (SVWE). The proposed EM-based channel model captures the impact of antenna position and orientation on the channel gain, thereby making it particularly well-suited for RASs. The effectiveness and accuracy are validated through comparisons with commercial simulation software, demonstrating excellent agreement in predicted channel gains. Moreover, it is shown that antenna orientation is a critical factor governing communication performance, and that dynamically adjusting the antenna orientation yields up to 70% improvement in achievable communication rate compared to a fixed-antenna configuration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a general electromagnetic (EM)-based channel model for reconfigurable antenna systems (RASs) such as fluid and movable antennas, grounded in spherical vector wave expansion (SVWE). It claims the model captures the effects of antenna position and orientation on channel gain (including polarization), is validated via comparisons to commercial simulation software with excellent agreement, and demonstrates that dynamic orientation adjustment can yield up to 70% improvement in achievable rate versus fixed-antenna baselines.

Significance. If the model is shown to be general without type-specific approximations or post-hoc adjustments, it would address key limitations in existing RAS channel models (neglect of polarization, restriction to specific antenna types, oversimplified assumptions) and provide a practical tool for 6G system design. The reported rate gains underscore the value of configuration-aware modeling, but the significance hinges on verifiable generality across rigid and deformable RAS cases.

major comments (2)
  1. [Abstract and validation section] Abstract and validation section: the claim of 'excellent agreement' with commercial simulation software lacks any quantitative metrics (e.g., RMSE, maximum relative error, number of test cases, or exclusion criteria), error bars, or breakdown by RAS type (rigid reorientation vs. fluid deformation); without these, the accuracy and generality assertions cannot be assessed.
  2. [Model derivation (presumed §III)] Model derivation (presumed §III): the SVWE formulation appears to treat antennas as fixed radiators whose coefficients are only translated/rotated for position/orientation changes; for fluid antennas with continuous shape deformation, the current distribution and thus the vector spherical wave coefficients must be recomputed from updated boundary conditions. If the derivation does not include this recomputation step, the 'general' claim without type-specific approximations is undermined, consistent with the stress-test concern.
minor comments (2)
  1. [Abstract] The 70% rate improvement is stated without specifying the underlying parameters (SNR, distance, number of elements, or exact optimization method), limiting interpretability of the performance claim.
  2. Notation for the SVWE coefficients and their transformation under orientation changes should be defined explicitly with an equation reference to avoid ambiguity in the channel gain expression.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough and constructive review of our manuscript. The comments highlight important aspects for improving the clarity and rigor of our claims regarding the model's validation and generality. We address each major comment point by point below and will make the corresponding revisions.

read point-by-point responses

  1. Referee: [Abstract and validation section] Abstract and validation section: the claim of 'excellent agreement' with commercial simulation software lacks any quantitative metrics (e.g., RMSE, maximum relative error, number of test cases, or exclusion criteria), error bars, or breakdown by RAS type (rigid reorientation vs. fluid deformation); without these, the accuracy and generality assertions cannot be assessed.

    Authors: We agree that the validation section would benefit from quantitative metrics to substantiate the 'excellent agreement' claim. In the revised manuscript, we will include RMSE and maximum relative error values for the comparisons against commercial simulation software. We will also report the number of test cases, any exclusion criteria applied, and add error bars to the relevant figures. Additionally, we will provide a breakdown of results by RAS type, separating rigid reorientation cases from fluid deformation cases, to more clearly support the assertions of accuracy and generality. revision: yes

  2. Referee: [Model derivation (presumed §III)] Model derivation (presumed §III): the SVWE formulation appears to treat antennas as fixed radiators whose coefficients are only translated/rotated for position/orientation changes; for fluid antennas with continuous shape deformation, the current distribution and thus the vector spherical wave coefficients must be recomputed from updated boundary conditions. If the derivation does not include this recomputation step, the 'general' claim without type-specific approximations is undermined, consistent with the stress-test concern.

    Authors: We appreciate this observation on the model's handling of different RAS types. The SVWE framework is intended to be general, with the coefficients representing the antenna's radiation for a given configuration; for fluid antennas, this requires recomputing the coefficients from the updated current distribution and boundary conditions due to shape deformation. While the current derivation emphasizes translation and rotation for position and orientation (applicable to movable and orientable antennas), we acknowledge that the manuscript does not explicitly detail the recomputation procedure for continuous deformations. We will revise the model derivation section to include this step, clarifying how updated boundary conditions are incorporated for fluid antennas to reinforce the generality without type-specific approximations. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation grounded in standard SVWE

full rationale

The paper grounds its channel model in the established spherical vector wave expansion (SVWE), a standard electromagnetic technique for field representation that is independent of the present work. Position and orientation effects on channel gain follow directly from translating/rotating the SVWE coefficients, with accuracy confirmed by external commercial software comparisons rather than internal fitting. No self-definitional equations, fitted inputs relabeled as predictions, or load-bearing self-citations appear in the derivation chain. The reported rate improvements are downstream applications of the model, not tautological restatements of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, preventing identification of specific free parameters, axioms, or invented entities. The approach relies on the established spherical vector wave expansion from prior literature without introducing new postulated entities in the summary provided.
