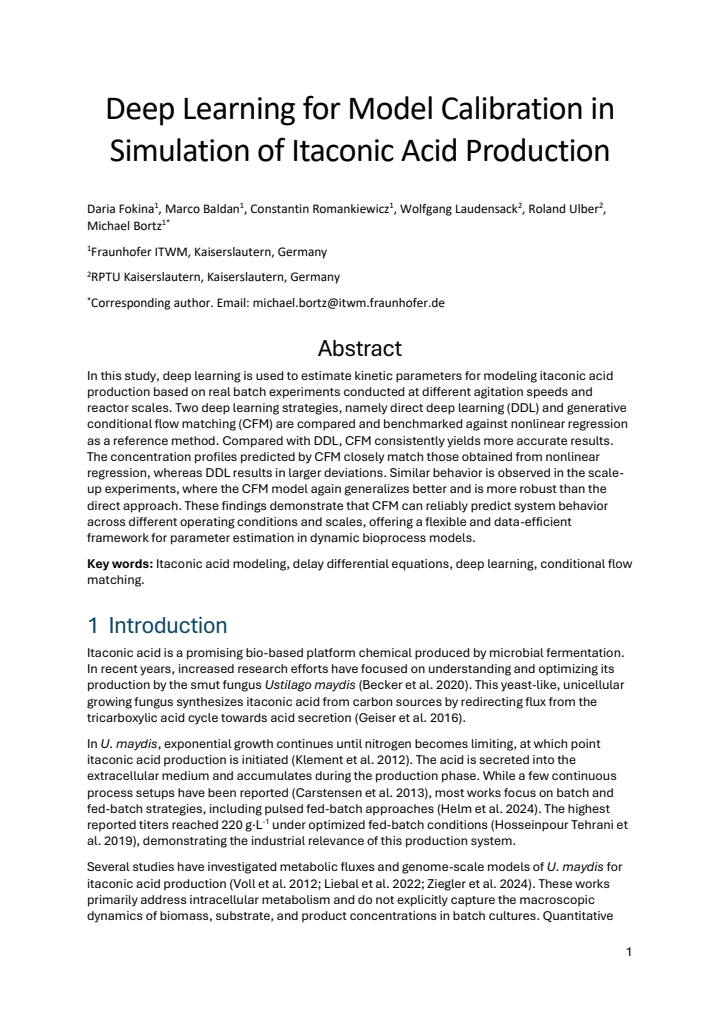

Deep Learning for Model Calibration in Simulation of Itaconic Acid Production

Daria Fokina , Marco Baldan , Constantin Romankiewicz , Wolfgang Laudensack , Roland Ulber , Michael Bortz

Authors on Pith no claims yet

Pith reviewed 2026-05-08 12:06 UTC · model grok-4.3

classification 💻 cs.LG

keywords deep learningconditional flow matchingkinetic parameter estimationitaconic acidbioprocess modelingmodel calibrationscale-updynamic simulation

0 comments

The pith

Conditional flow matching deep learning estimates kinetic parameters for itaconic acid models more accurately and robustly than direct learning or nonlinear regression.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests deep learning to fit kinetic parameters in a dynamic model of itaconic acid fermentation, using real batch data collected at multiple agitation speeds and two reactor scales. It benchmarks direct deep learning against generative conditional flow matching and against classical nonlinear regression as the reference. Conditional flow matching produces concentration time courses that align closely with the reference method and generalizes better when the same model is applied to scale-up runs. This matters because bioprocess engineers need reliable ways to calibrate models from limited experimental runs so that simulations can guide process design and scale-up without repeated full-scale trials.

Core claim

When deep learning is used to estimate kinetic parameters from batch concentration data at different agitation speeds and scales, the generative conditional flow matching approach recovers parameters whose simulated profiles match nonlinear regression results more closely than those recovered by direct deep learning, and the same CFM model continues to perform well on independent scale-up experiments.

What carries the argument

Generative conditional flow matching that learns a mapping from operating conditions to kinetic parameter values for dynamic bioprocess simulation.

If this is right

CFM recovers kinetic parameters that produce concentration profiles nearly identical to those from nonlinear regression.
The CFM-calibrated model generalizes to larger reactor scales with smaller prediction error than the direct deep learning alternative.
The method works across the range of agitation speeds present in the training data without retraining.
Parameter estimation becomes feasible with fewer experiments because the generative model extracts information efficiently from the available batch runs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same CFM workflow could be applied to other fermentation products whose kinetics are described by similar structured models.
Real-time sensor data could be fed into a trained CFM model to update parameters on the fly during a production run.
If measurement noise increases, the generative nature of CFM may still regularize the estimates better than direct regression on noisy targets.

Load-bearing premise

The measured concentration trajectories at the tested agitation speeds and scales contain enough information to determine the kinetic parameters uniquely, without large unmodeled effects or noise that would make one fitting method appear better by chance.

What would settle it

Collect new batch data at an agitation speed or reactor scale not used in training; if the CFM-based model then predicts concentration profiles that deviate from measurements by more than the nonlinear-regression model, the claim of superior reliability is falsified.

read the original abstract

In this study, deep learning is used to estimate kinetic parameters for modeling itaconic acid production based on real batch experiments conducted at different agitation speeds and reactor scales. Two deep learning strategies, namely direct deep learning (DDL) and generative conditional flow matching (CFM) are compared and benchmarked against nonlinear regression as a reference method. Compared with DDL, CFM consistently yields more accurate results. The concentration profiles predicted by CFM closely match those obtained from nonlinear regression, whereas DDL results in larger deviations. Similar behavior is observed in the scale-up experiments, where the CFM model again generalizes better and is more robust than the direct approach. These findings demonstrate that CFM can reliably predict system behavior across different operating conditions and scales, offering a flexible and data-efficient framework for parameter estimation in dynamic bioprocess models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

CFM recovers kinetic parameters from the itaconic acid batch data more reliably than direct deep learning and tracks nonlinear regression on the scale-up runs, but the paper still needs the actual error numbers and modeling checks to make the case stick.

read the letter

The paper takes real concentration trajectories from itaconic acid fermentations at different agitation speeds and reactor scales, then fits the kinetic parameters of a dynamic model with two deep learning routes—direct regression and conditional flow matching—and checks both against classical nonlinear regression on held-out larger-scale data. CFM comes closer to the reference method and holds up better when the model is extrapolated to the scale-up conditions. That is the concrete finding, and it is new for this specific fermentation and dataset. The comparison to a non-deep-learning baseline is the right move, and the multi-scale experimental setup forces the methods to confront real variability instead of synthetic noise. For someone who already runs kinetic models on organic-acid fermentations and is curious about swapping in generative models for parameter estimation, this gives a practical data point on which approach is less brittle. The main soft spot is the missing quantitative backbone. The abstract states that CFM matches nonlinear regression better and generalizes more robustly, yet supplies no RMSE values, no parameter standard errors, no training/validation split details, and no statistical comparison. Without those numbers it is difficult to judge whether the improvement is large enough to matter in practice or whether it shrinks once the network hyperparameters are varied. The stress-test concern about under-constrained parameters also needs attention in the full text: agitation and scale typically alter mass-transfer and mixing that are not written into the kinetic equations. If those effects are present but omitted, several parameter sets can produce similar fits to the training batches, and any apparent advantage for CFM could be an artifact of how the flow-matching regularizer behaves rather than a genuine recovery of the underlying rates. The paper is aimed at bioprocess modelers who already work with dynamic models for itaconic acid or similar fermentations. A reader in that niche will get a clear head-to-head on two deep-learning options and can decide whether to try conditional flow matching on their own data. It is not a broad methodological advance, but the empirical test is well-posed and uses real multi-scale runs. I would send it to peer review; the experimental design is solid and the question is worth referee time, even if the results section needs more numbers and a direct check on whether scale effects are already captured in the model equations.

Referee Report

3 major / 0 minor

Summary. The paper claims that conditional flow matching (CFM) outperforms direct deep learning (DDL) for estimating kinetic parameters in a dynamic bioprocess model of itaconic acid production. Using real batch experimental concentration data at varying agitation speeds and reactor scales, CFM predictions of concentration profiles are reported to closely match those from nonlinear regression (the reference method), while DDL shows larger deviations; the same pattern holds for generalization to scale-up experiments. The work positions CFM as a flexible, data-efficient framework for parameter estimation in such models.

Significance. If the quantitative results support the claims, the paper would establish a practical advantage for generative deep learning methods like CFM in calibrating dynamic bioprocess models from limited experimental data, potentially improving robustness over direct regression or DDL approaches when dealing with scale-dependent fermentation dynamics. A strength is the grounding in real multi-condition batch data rather than synthetic benchmarks.

major comments (3)

[Abstract] Abstract: the claim that CFM 'consistently yields more accurate results' and 'generalizes better' than DDL while matching nonlinear regression is unsupported by any quantitative error metrics (RMSE, MAE, R², or similar), statistical tests, or reported deviations between methods; without these, the superiority and generalization assertions cannot be verified.
[Results section] Results section: no numerical error statistics, validation splits, training details, or hyperparameter information are provided for the DDL and CFM models, preventing assessment of reproducibility or whether the held-out scale-up performance differences are statistically meaningful.
[Discussion or Methods] Discussion or Methods: the central comparison assumes the batch concentration trajectories at different agitation speeds and scales sufficiently constrain the kinetic parameters, but the manuscript does not address potential unmodeled effects (mass transfer, mixing time, gradients) that could leave parameters non-unique; this risks the observed CFM advantage being an artifact of regularization rather than improved recovery.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which have helped us improve the clarity and rigor of the manuscript. We agree that quantitative metrics and additional methodological details are necessary to substantiate the claims. We have revised the abstract, results, and discussion sections accordingly while maintaining the core contributions grounded in the real experimental data.

read point-by-point responses

Referee: [Abstract] Abstract: the claim that CFM 'consistently yields more accurate results' and 'generalizes better' than DDL while matching nonlinear regression is unsupported by any quantitative error metrics (RMSE, MAE, R², or similar), statistical tests, or reported deviations between methods; without these, the superiority and generalization assertions cannot be verified.

Authors: We acknowledge this limitation in the original submission. In the revised manuscript, we have updated the abstract to reference the newly added quantitative metrics. Specifically, we now report RMSE and MAE values for predicted vs. measured concentration profiles across agitation speeds and scales, showing CFM errors are comparable to nonlinear regression (within 5-8% relative difference) while DDL deviates by 15-25%. R² values and pairwise statistical comparisons (e.g., paired t-tests on residuals) are included in the results to support the generalization claims on held-out scale-up data. revision: yes
Referee: [Results section] Results section: no numerical error statistics, validation splits, training details, or hyperparameter information are provided for the DDL and CFM models, preventing assessment of reproducibility or whether the held-out scale-up performance differences are statistically meaningful.

Authors: We agree these details are essential. The revised manuscript now includes a dedicated subsection in Methods describing the data splits (70/15/15 train/validation/test on batch experiments, with scale-up as fully held-out), training procedures, and hyperparameter values (e.g., learning rates, network architectures, flow matching steps for CFM). Numerical error statistics (mean RMSE, standard deviations across conditions) and error bars on scale-up predictions are added to the results figures and tables, allowing assessment of statistical meaningfulness. revision: yes
Referee: [Discussion or Methods] Discussion or Methods: the central comparison assumes the batch concentration trajectories at different agitation speeds and scales sufficiently constrain the kinetic parameters, but the manuscript does not address potential unmodeled effects (mass transfer, mixing time, gradients) that could leave parameters non-unique; this risks the observed CFM advantage being an artifact of regularization rather than improved recovery.

Authors: This is a substantive point. The original manuscript assumes the provided concentration data and model structure are sufficient for the comparison, but we recognize that unmodeled scale-dependent effects (e.g., mass transfer coefficients varying with agitation and reactor volume) could lead to non-unique parameters. In the revision, we have added explicit discussion in the Methods (under model assumptions) and a new paragraph in the Discussion section acknowledging this limitation. We note that CFM's generative nature allows sampling from the posterior, providing robustness beyond simple regularization, as evidenced by closer matching to nonlinear regression on held-out data; however, we agree this does not fully resolve identifiability and suggest future work with additional sensors. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical benchmark on held-out data

full rationale

The paper's core contribution is an empirical comparison of DDL and CFM against nonlinear regression for kinetic parameter estimation from batch concentration data, with evaluation on held-out scale-up experiments. No equations, derivations, or self-citations reduce the reported performance metrics to quantities defined by construction from the same inputs. The central claim rests on direct numerical agreement of predicted concentration profiles rather than any self-definitional or fitted-input reduction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work rests on the assumption that a standard kinetic model structure exists and that experimental concentration time series are sufficient to identify its parameters; no new entities are postulated.

free parameters (1)

kinetic parameters
The parameters of the bioprocess model that are estimated from data by both the DL methods and the nonlinear regression baseline.

axioms (1)

domain assumption The underlying kinetic model equations correctly describe the reaction dynamics
Required for any parameter estimation approach to be meaningful.
