arxiv: 2604.22526 · v1 · submitted 2026-04-24 · 💻 cs.RO

Information-Theoretic Geometry Optimization and Physics-Aware Learning for Calibration-Free Magnetic Localization

Wenxuan Xie , Yuelin Zhang , Qingpeng Ding , Jianghua Chen , Jiewen Tan , Jiwei Shan , Shing Shin Cheng This is my paper

Pith reviewed 2026-05-08 11:23 UTC · model grok-4.3

classification 💻 cs.RO
keywords magnetic localizationsensor geometry optimizationFisher information matrixphysics-informed neural networkcalibration-free estimationpermanent magnet trackingsim-to-real transfermedical intervention guidance
0
0 comments X

The pith

Staggered sensor arrays selected via Fisher information plus a physics-aware network enable calibration-free magnet localization at 1.84 mm accuracy and over 270 Hz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to improve wireless localization of permanent magnets for occlusion-free medical guidance by fixing two linked problems: weak observability from standard planar sensor layouts and the mismatch between simulated and real sensor data. It first applies the Fisher Information Matrix to compare array geometries and identifies a staggered split-array layout that delivers markedly better observability while staying practical to deploy. On top of this layout the authors introduce Phy-GAANet, a network trained exclusively on hardware-aware synthetic data that adds physics-informed features to model sensor saturation and geometry-aware attention to keep vector field structure intact across layers. Real-world tests show the combined system reaches 1.84 mm position error and 3.18 degree orientation error while running faster than 270 Hz and avoiding the large outliers that plague both classical solvers and plain convolutional networks.

Core claim

The central claim is that an FIM-guided staggered split-array geometry supplies a stronger observability foundation than conventional planar arrays, and that Phy-GAANet—by embedding Physics-Informed Features for saturation effects and Geometry-Aware Attention to preserve cross-layer magnetic vector structure—can be trained wholly on synthetic data yet generalize directly to real sensors, yielding state-of-the-art accuracy and outlier rejection without any calibration step.

What carries the argument

The Fisher Information Matrix framework for quantifying geometry-induced observability together with the Phy-GAANet architecture that injects Physics-Informed Features and Geometry-Aware Attention.

If this is right

  • The staggered split-array topology improves observability for practical external sensor deployments.
  • Phy-GAANet bridges the sim-to-real gap, allowing fully synthetic training for calibration-free operation.
  • The method reduces both position and orientation errors below those of Levenberg-Marquardt solvers and generic convolutional baselines.
  • Robustness is maintained in near-field boundary regions where classical methods produce catastrophic outliers.
  • The FIM analysis supplies a reusable design framework for sensor geometries in other magnetic localization systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same FIM-plus-physics-net pattern could be tested on other magnetic or electromagnetic tracking problems where sensor placement is constrained.
  • Removing the calibration step may lower the engineering effort needed to move such systems from lab prototypes into clinical settings.
  • The geometry-optimization step could be repeated for different magnet strengths or room-scale environments to produce task-specific array layouts.

Load-bearing premise

Hardware-aware synthetic data plus the physics-informed features and geometry-aware attention close the simulation-to-reality gap so the network works on real sensors without any calibration.

What would settle it

Real experiments in which the network either requires explicit calibration steps or produces position errors well above 1.84 mm in the same test conditions would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.22526 by Jianghua Chen, Jiewen Tan, Jiwei Shan, Qingpeng Ding, Shing Shin Cheng, Wenxuan Xie, Yuelin Zhang.

Figure 1
Figure 1. Figure 1: Schematic representation of the 5-DOF localization system view at source ↗
Figure 2

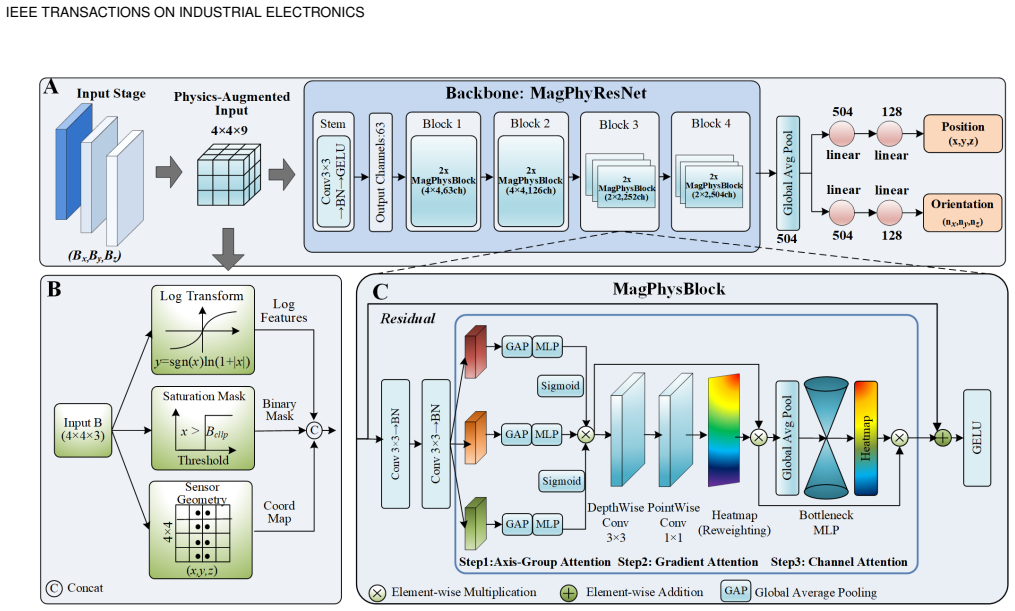

Figure 2. Figure 2: Overall architecture of the proposed Phy-GAANet. view at source ↗
Figure 3

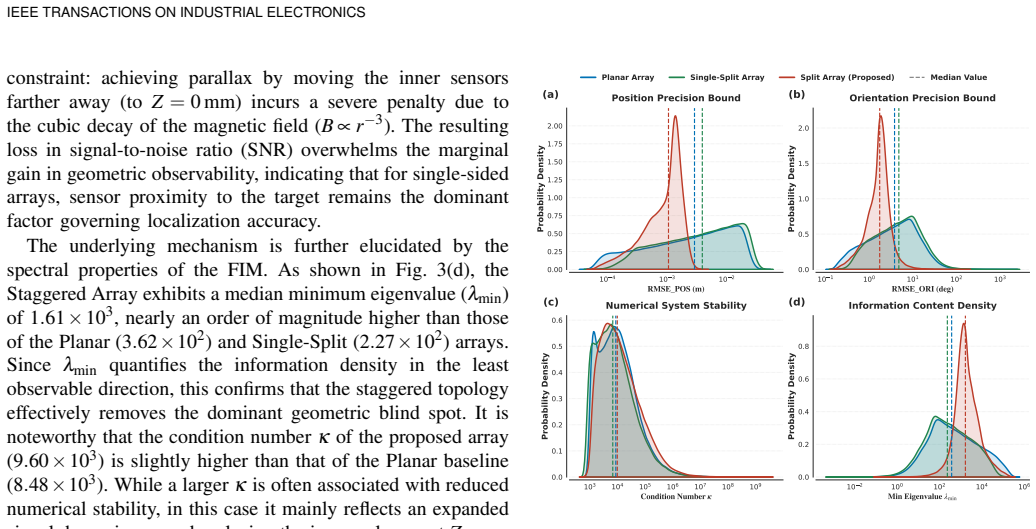

Figure 3. Figure 3: Comparative evaluation of Fisher Information-based observabil view at source ↗
Figure 5

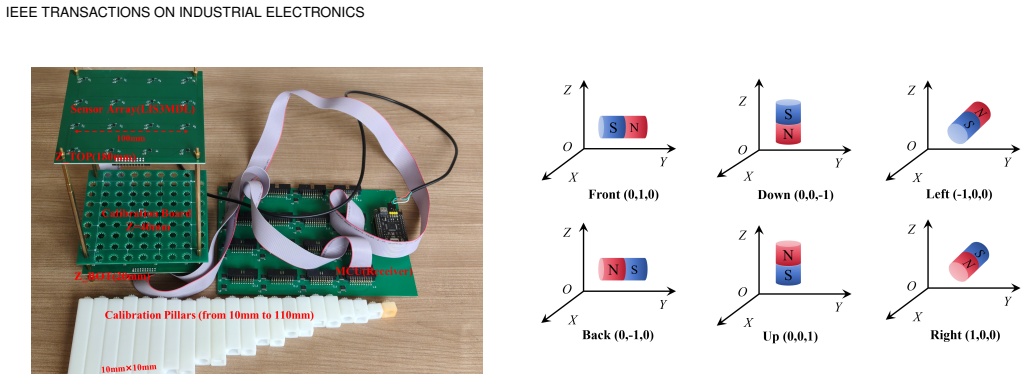

Figure 5. Figure 5: The six magnet orientations used for data acquisition. The view at source ↗
Figure 6
Figure 6. Figure 6: Layer-wise localization error distribution along the view at source ↗
Figure 7

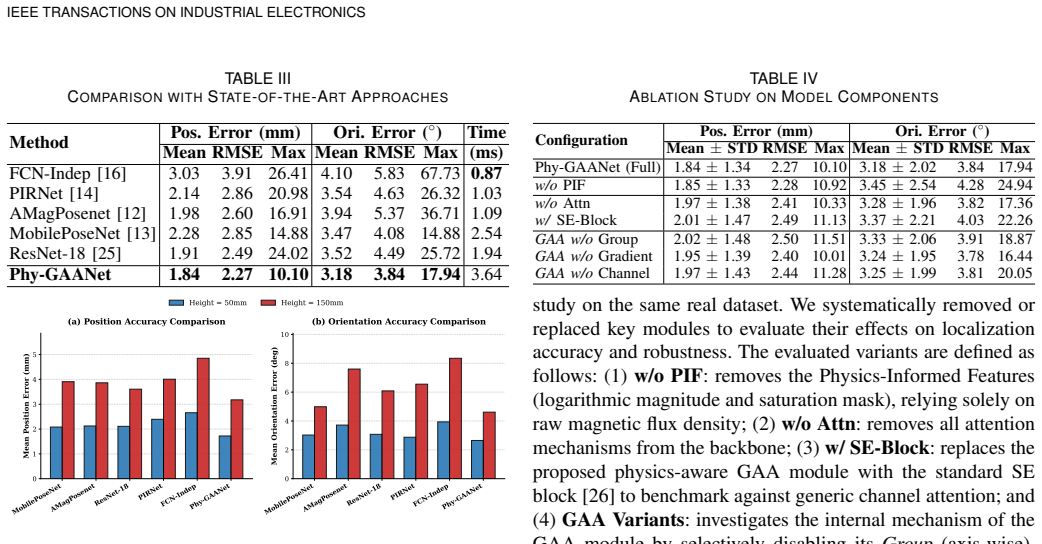

Figure 7. Figure 7: Performance comparison at the critical boundary heights view at source ↗
Figure 8

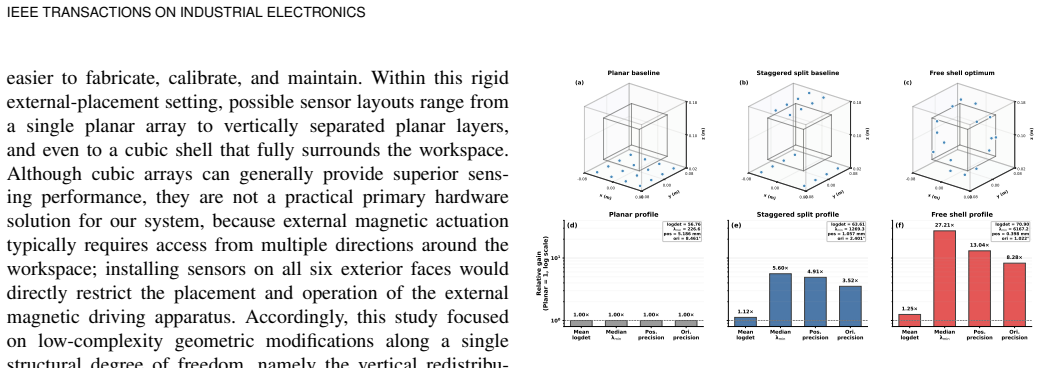

Figure 8. Figure 8: Top row: comparison of three rigid external sensor layouts, view at source ↗

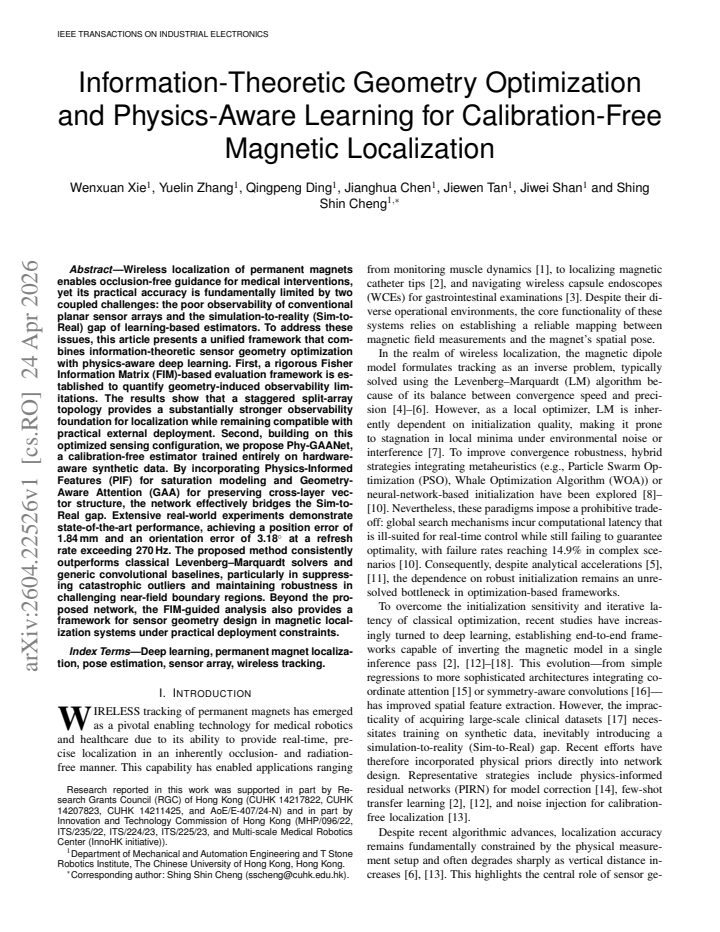

read the original abstract

Wireless localization of permanent magnets enables occlusion-free guidance for medical interventions, yet its practical accuracy is fundamentally limited by two coupled challenges: the poor observability of conventional planar sensor arrays and the simulation-to-reality (Sim-to-Real) gap of learning-based estimators. To address these issues, this article presents a unified framework that combines information-theoretic sensor geometry optimization with physics-aware deep learning. First, a rigorous Fisher Information Matrix (FIM)-based evaluation framework is established to quantify geometry-induced observability limitations. The results show that a staggered split-array topology provides a substantially stronger observability foundation for localization while remaining compatible with practical external deployment. Second, building on this optimized sensing configuration, we propose Phy-GAANet, a calibration-free estimator trained entirely on hardware-aware synthetic data. By incorporating Physics-Informed Features (PIF) for saturation modeling and Geometry-Aware Attention (GAA) for preserving cross-layer vector structure, the network effectively bridges the Sim-to-Real gap. Extensive real-world experiments demonstrate state-of-the-art performance, achieving a position error of 1.84 mm and an orientation error of 3.18 degrees at a refresh rate exceeding 270 Hz. The proposed method consistently outperforms classical Levenberg--Marquardt solvers and generic convolutional baselines, particularly in suppressing catastrophic outliers and maintaining robustness in challenging near-field boundary regions. Beyond the proposed network, the FIM-guided analysis also provides a framework for sensor geometry design in magnetic localization systems under practical deployment constraints.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims a unified framework for calibration-free magnetic localization of permanent magnets that combines Fisher Information Matrix (FIM)-based sensor geometry optimization—yielding a staggered split-array topology—with a physics-aware neural network (Phy-GAANet). The network incorporates Physics-Informed Features (PIF) for saturation modeling and Geometry-Aware Attention (GAA) for vector structure preservation, is trained exclusively on hardware-aware synthetic data, and is reported to achieve 1.84 mm position error and 3.18° orientation error at >270 Hz on real hardware while outperforming Levenberg-Marquardt solvers and generic convolutional baselines, especially in near-field regions.

Significance. If the Sim-to-Real generalization holds, the work would advance practical occlusion-free magnetic tracking for medical interventions by removing calibration requirements and delivering high accuracy at real-time rates. The FIM-guided geometry analysis is analytically sound and supplies a reusable framework for observability-driven sensor design under deployment constraints. The physics-aware architectural elements provide a concrete example of embedding domain knowledge to mitigate distributional shift in learned estimators.

major comments (3)
  1. [Real-world experiments] Real-world experiments section: the reported mean position (1.84 mm) and orientation (3.18°) errors are presented without standard deviations, error bars, or trial exclusion criteria. This omission prevents assessment of statistical reliability and consistency of the claimed robustness gains over the Levenberg-Marquardt baseline, especially in the near-field boundary regions highlighted as a key advantage.
  2. [Phy-GAANet] Phy-GAANet architecture and training description: no ablation studies isolate the individual contributions of Physics-Informed Features (PIF) and Geometry-Aware Attention (GAA) versus the hardware-aware synthetic data generation alone. Without these controls, it remains unclear whether the Sim-to-Real gap is closed by the proposed inductive biases or by other unstated factors in the data pipeline.
  3. [Training protocol] Training protocol subsection: the manuscript lacks a complete description of hyperparameter selection, data augmentation details beyond saturation modeling, network initialization, and any filtering applied to synthetic or real samples. These omissions are load-bearing for reproducing the calibration-free claim and verifying that the network has not overfit to simulation artifacts.
minor comments (2)
  1. [Abstract] The abstract and introduction would benefit from an explicit statement of the magnet and sensor hardware specifications (e.g., magnet strength, sensor model, sampling rate) to allow readers to contextualize the 270 Hz refresh rate and error magnitudes.
  2. [FIM analysis] Consider adding a table in the FIM analysis section that directly compares observability metrics (e.g., determinant or trace of the FIM) for the proposed staggered split-array versus standard planar and other candidate geometries.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for the thorough review and valuable suggestions. We have revised the manuscript to address all major comments, as detailed in the point-by-point responses below.

read point-by-point responses

  1. Referee: [Real-world experiments] Real-world experiments section: the reported mean position (1.84 mm) and orientation (3.18°) errors are presented without standard deviations, error bars, or trial exclusion criteria. This omission prevents assessment of statistical reliability and consistency of the claimed robustness gains over the Levenberg-Marquardt baseline, especially in the near-field boundary regions highlighted as a key advantage.

    Authors: We agree that standard deviations, error bars, and trial criteria are necessary to evaluate statistical reliability. In the revised manuscript, we have added standard deviations to the reported mean errors, included error bars in the relevant figures and tables, and clarified that all trials were retained with no exclusions applied. These changes enable direct assessment of consistency and robustness gains relative to the Levenberg-Marquardt baseline, particularly in near-field regions. revision: yes

  2. Referee: [Phy-GAANet] Phy-GAANet architecture and training description: no ablation studies isolate the individual contributions of Physics-Informed Features (PIF) and Geometry-Aware Attention (GAA) versus the hardware-aware synthetic data generation alone. Without these controls, it remains unclear whether the Sim-to-Real gap is closed by the proposed inductive biases or by other unstated factors in the data pipeline.

    Authors: We acknowledge the value of ablation studies for isolating contributions. We have added a new ablation subsection to the revised manuscript that removes PIF and GAA individually while keeping the hardware-aware synthetic data fixed. The results demonstrate that both components improve Sim-to-Real performance beyond the data pipeline alone, with the full model showing clear gains in position and orientation accuracy. revision: yes

  3. Referee: [Training protocol] Training protocol subsection: the manuscript lacks a complete description of hyperparameter selection, data augmentation details beyond saturation modeling, network initialization, and any filtering applied to synthetic or real samples. These omissions are load-bearing for reproducing the calibration-free claim and verifying that the network has not overfit to simulation artifacts.

    Authors: We agree that a complete training protocol description is required for reproducibility. The revised Training Protocol subsection now details hyperparameter selection via cross-validation, full data augmentation procedures (including noise and rotation augmentations beyond saturation modeling), network initialization method, and filtering criteria applied to both synthetic and real samples. These additions support verification that the network has not overfit to simulation artifacts and strengthen the calibration-free claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity; FIM optimization and real-world validation are independent of fitted inputs

full rationale

The paper derives sensor geometry via an explicit FIM observability analysis and trains the network on synthetic data generated from that geometry plus explicit saturation modeling. Central claims rest on physical hardware experiments (1.84 mm / 3.18° errors) that serve as an external benchmark rather than a tautological re-expression of the training distribution. No equation or step reduces by construction to its own inputs, and no load-bearing premise collapses to a self-citation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 3 invented entities

The central claims rest on the unstated assumption that a dipole-based magnetic model plus hardware-specific noise injection in synthetic data is representative enough for zero-shot real-world transfer, plus the introduction of two new network modules whose effectiveness is asserted rather than derived from first principles.

axioms (1)
  • domain assumption Magnetic dipole model plus hardware-specific effects suffice to generate synthetic training data that transfers to real sensors without calibration.
    Implicit in the hardware-aware synthetic data pipeline and the claim of calibration-free operation.
invented entities (3)
  • Phy-GAANet no independent evidence
    purpose: Calibration-free estimator bridging Sim-to-Real gap
    New neural architecture proposed for the task.
  • Physics-Informed Features (PIF) no independent evidence
    purpose: Saturation modeling in magnetic measurements
    Custom feature set added to network input.
  • Geometry-Aware Attention (GAA) no independent evidence
    purpose: Preserving cross-layer vector structure from sensor geometry
    Attention mechanism tailored to the problem.

pith-pipeline@v0.9.0 · 5591 in / 1437 out tokens · 72278 ms · 2026-05-08T11:23:53.833130+00:00 · methodology
