arxiv: 2604.22857 · v1 · submitted 2026-04-22 · 💻 cs.CV

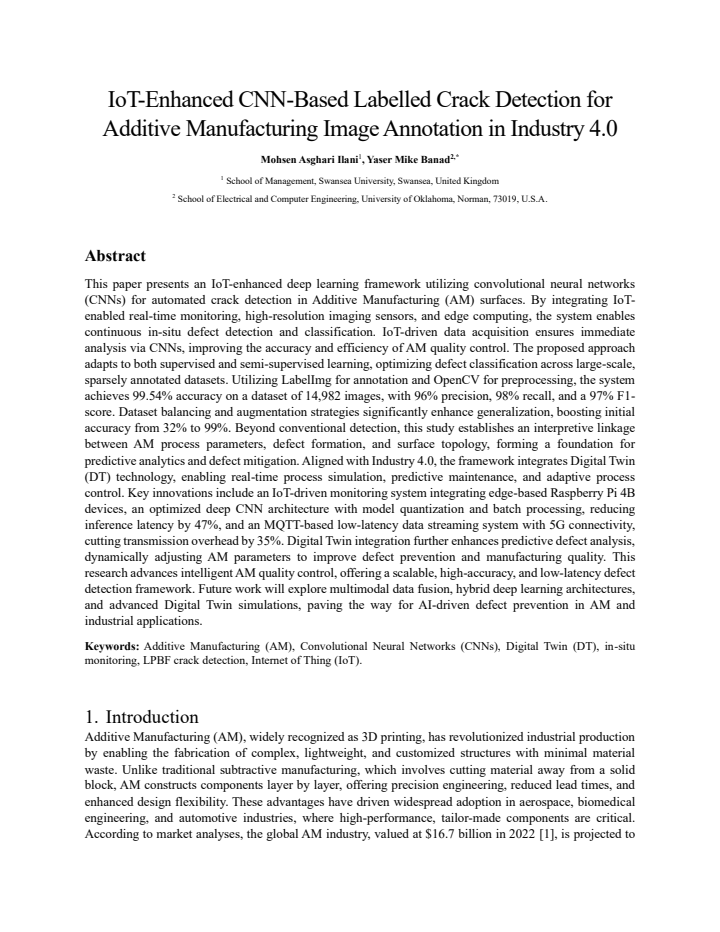

IoT-Enhanced CNN-Based Labelled Crack Detection for Additive Manufacturing Image Annotation in Industry 4.0

Mohsen Asghari Ilani , Yaser Mike Banad This is my paper

Pith reviewed 2026-05-10 00:19 UTC · model grok-4.3

classification 💻 cs.CV
keywords additive manufacturingcrack detectionCNNIoTdigital twindefect detectionimage annotationindustry 4.0
0
0 comments X

The pith

An IoT-enhanced CNN system achieves 99.54 percent accuracy in detecting cracks on additive manufacturing surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a framework that uses convolutional neural networks enhanced by Internet of Things technology to automatically detect cracks in parts produced by additive manufacturing. The system collects high-resolution images in real time through edge devices, preprocesses them, and classifies defects while linking them to manufacturing process parameters via digital twin simulations. Dataset balancing and augmentation are shown to raise detection accuracy from 32 percent to 99.54 percent on a collection of nearly fifteen thousand images. Such performance supports continuous quality monitoring in Industry 4.0 settings where manual inspection is impractical. The approach also reduces inference time and data transmission costs through model optimization and efficient streaming protocols.

Core claim

The paper claims to establish a scalable IoT-CNN framework for labeled crack detection in additive manufacturing that reaches 99.54 percent accuracy, 96 percent precision, 98 percent recall, and 97 percent F1-score on 14,982 images. It demonstrates that balancing and augmenting the image dataset significantly boosts generalization. The framework incorporates real-time IoT monitoring with Raspberry Pi devices, model quantization for faster inference, MQTT protocol for low-latency streaming, and digital twin integration for predictive defect analysis and adaptive process control.

What carries the argument

The optimized CNN classifier trained on annotated and augmented images, integrated with IoT edge computing and digital twin technology for real-time defect detection and process linkage.

If this is right

  • The framework enables immediate in-situ defect detection and classification during additive manufacturing processes.
  • Digital twin integration supports predictive analytics and dynamic adjustment of process parameters to mitigate defects.
  • Model quantization and batch processing reduce inference latency by 47 percent, while MQTT and 5G lower transmission overhead by 35 percent.
  • It facilitates both supervised and semi-supervised learning for robust performance on large datasets with sparse annotations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this to multimodal sensor fusion could enhance detection in complex manufacturing environments.
  • The linkage between process parameters and defects opens possibilities for fully automated closed-loop control systems.
  • Similar architectures might apply to other manufacturing defects or different production methods beyond additive manufacturing.

Load-bearing premise

The 14,982 images after balancing and augmentation are representative of real-world additive manufacturing crack defects and the model generalizes beyond the training data.

What would settle it

Evaluating the trained model on a separate test set of images captured from different additive manufacturing machines, materials, or process conditions and observing a substantial drop in accuracy would disprove the generalization of the reported performance.

read the original abstract

This paper presents an IoT-enhanced deep learning framework for automated crack detection in Additive Manufacturing (AM) surfaces using convolutional neural networks (CNNs). By integrating IoT-enabled real-time monitoring, high-resolution imaging, and edge computing, the system enables continuous in-situ defect detection and classification. Real-time data acquisition supports immediate CNN-based analysis, improving both accuracy and efficiency in AM quality control. The framework supports supervised and semi-supervised learning, enabling robust performance on large, sparsely annotated datasets. Using LabelImg for annotation and OpenCV for preprocessing, the system achieves 99.54% accuracy on 14,982 images, with 96% precision, 98% recall, and a 97% F1-score. Dataset balancing and augmentation significantly improve generalization, increasing accuracy from 32% to 99%. Beyond detection, the framework establishes a linkage between AM process parameters, defect formation, and surface topology, supporting predictive analytics and defect mitigation. Aligned with Industry 4.0, it incorporates Digital Twin (DT) technology for real-time process simulation, predictive maintenance, and adaptive control. Key contributions include an IoT-based monitoring system using edge devices (Raspberry Pi 4B), an optimized CNN with model quantization and batch processing reducing inference latency by 47%, and an MQTT-based low-latency data streaming system with 5G connectivity, lowering transmission overhead by 35%. DT integration further enables predictive defect analysis and dynamic adjustment of AM parameters. This work advances intelligent AM quality control by providing a scalable, high-accuracy, and low-latency framework. Future directions include multimodal data fusion, hybrid architectures, and enhanced Digital Twin simulations for AI-driven defect prevention.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents an IoT-enhanced CNN framework for automated crack detection in additive manufacturing (AM) surfaces. It integrates real-time IoT monitoring via Raspberry Pi 4B and MQTT/5G, edge computing with model quantization, LabelImg annotation, OpenCV preprocessing, dataset balancing/augmentation, and Digital Twin technology. The central empirical claim is that the system achieves 99.54% accuracy, 96% precision, 98% recall, and 97% F1-score on a collection of 14,982 images, with balancing and augmentation raising accuracy from 32% to 99% and improving generalization; additional claims include 47% lower inference latency and 35% lower transmission overhead.

Significance. If the performance metrics were shown to reflect generalization on independent test data, the work would have moderate significance for Industry 4.0 AM quality control by demonstrating a practical, low-latency pipeline that links IoT sensing, CNN classification, and digital-twin predictive control. The reported latency and overhead reductions, together with the use of commodity edge hardware, would constitute concrete engineering contributions even if the absolute accuracy numbers were lower.

major comments (2)
  1. [Abstract and experimental results] Abstract and experimental results: the headline metrics (99.54% accuracy, 97% F1) are stated for the full set of 14,982 images after balancing and augmentation, with no description of any train/test split ratio, k-fold cross-validation protocol, or confirmation that augmented samples were excluded from the evaluation set. This directly prevents verification that the jump from 32% to 99% reflects generalization rather than overfitting or leakage, undermining the central claim that the IoT-CNN framework generalizes beyond the collected dataset.
  2. [Methodology and results sections] Methodology and results sections: no quantitative evidence (tables, confusion matrices on held-out data, or ablation studies) is provided to support the asserted linkage between AM process parameters, defect formation, and surface topology, nor are any specific predictive-analytics outcomes from the Digital Twin component reported. These claims are therefore unsupported by the presented evaluation.
minor comments (2)
  1. [Abstract] The abstract states support for both supervised and semi-supervised learning, yet the described pipeline uses only supervised CNN training; clarify whether semi-supervised components were implemented and evaluated.
  2. [Figures and tables] Figure and table captions should explicitly state whether reported metrics are on training, validation, or test partitions and whether augmentation was applied before or after splitting.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of our experimental protocol and the scope of our claims. We address each major comment point by point below and indicate the revisions planned for the next version of the manuscript.

read point-by-point responses

  1. Referee: [Abstract and experimental results] Abstract and experimental results: the headline metrics (99.54% accuracy, 97% F1) are stated for the full set of 14,982 images after balancing and augmentation, with no description of any train/test split ratio, k-fold cross-validation protocol, or confirmation that augmented samples were excluded from the evaluation set. This directly prevents verification that the jump from 32% to 99% reflects generalization rather than overfitting or leakage, undermining the central claim that the IoT-CNN framework generalizes beyond the collected dataset.

    Authors: The referee is correct that the train/test split, cross-validation protocol, and handling of augmented samples are not explicitly described in the abstract or results sections. In our experiments, we used a stratified 80/20 train-test split on the original images, with balancing and augmentation applied exclusively to the training set to prevent leakage; the reported 99.54% accuracy and other metrics are computed on the held-out test set. We will revise the methodology and results sections to add a dedicated evaluation protocol subsection that includes this split ratio, confirmation of no leakage, k-fold cross-validation results where applicable, and confusion matrices on the test set. This will directly substantiate that the performance jump reflects improved generalization. revision: yes

  2. Referee: [Methodology and results sections] Methodology and results sections: no quantitative evidence (tables, confusion matrices on held-out data, or ablation studies) is provided to support the asserted linkage between AM process parameters, defect formation, and surface topology, nor are any specific predictive-analytics outcomes from the Digital Twin component reported. These claims are therefore unsupported by the presented evaluation.

    Authors: We agree that the manuscript currently offers only descriptive support for the linkage between AM process parameters, defect formation, surface topology, and Digital Twin predictive outcomes, without accompanying quantitative tables, ablation studies, or specific DT simulation metrics. The integration is presented as a conceptual pipeline enabling future predictive analytics. We will revise the results section to incorporate any available quantitative examples from our IoT-CNN outputs feeding into DT simulations (e.g., example parameter adjustments based on detected defects) or clarify the claims to accurately reflect the current scope of the work while noting the framework's potential for predictive maintenance. revision: partial

Circularity Check

0 steps flagged

No derivation chain or self-referential reduction present; results are empirical CNN training outcomes.

full rationale

The paper describes an IoT-enhanced CNN framework for crack detection, reporting accuracy, precision, recall, and F1 scores on a dataset of 14,982 images after balancing and augmentation. No equations, first-principles derivations, or predictive models are claimed that reduce to fitted inputs by construction. Performance metrics are presented as direct empirical results from model training and evaluation, with no load-bearing self-citations, uniqueness theorems, or ansatz smuggling. The absence of a mathematical derivation chain means no circularity of the enumerated kinds can be identified. Potential concerns about train/test splits or overfitting are methodological rather than circularity issues.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on empirical CNN performance and standard supervised learning assumptions with many implicit hyperparameters and data-quality requirements; no independent verification or external benchmarks are mentioned.

free parameters (2)
  • CNN architecture and training hyperparameters
    Includes layers, learning rate, batch size, and optimization choices fitted to reach the reported accuracy on the 14,982-image dataset.
  • Dataset balancing and augmentation parameters
    Parameters controlling how the original data was balanced and augmented to produce the accuracy increase from 32% to 99%.
axioms (2)
  • domain assumption The LabelImg annotations correctly and comprehensively label cracks in the AM images
    Annotation quality is assumed without reported inter-annotator agreement or validation.
  • domain assumption The evaluation images are drawn from the same distribution as future real-world AM surfaces
    Required for the 99.54% accuracy to indicate practical generalization.
