Benchmarking Open-Source FDK Against Commercial and Iterative Reconstruction Methods for Preclinical Micro-CBCT

Falk L Wiegmann , Nancy L Ford
Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:44 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords micro-CTreconstructionFDKiterative reconstructiondetectability indexbenchmarkingpreclinical imagingspatial resolution
0
0 comments X

The pith

Task-based metrics show vendor micro-CT software underperforms on low-contrast detectability despite leading spatial resolution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper benchmarks an open-source FDK pipeline against vendor software and two iterative methods on identical preclinical micro-CT acquisitions using MTF, NPS, and NPW d'. Single-metric rankings prove misleading because the vendor reaches the highest resolution (MTF10 = 2.96 lp/mm) yet fails the Rose criterion (d' = 3) for 100 HU objects in half-scan mode. ASTRA SIRT delivers the best low-contrast detectability at five times the computation time of FDK, while TIGRE OS-SART at fifty times the cost adds no benefit and shows instability. The comparison matters because it clarifies when the high cost of iterative reconstruction is justified versus when fast analytic methods suffice, and it releases the FDK code as open-source.

Core claim

On identical half-scan acquisitions from a preclinical micro-CT scanner, the vendor reconstruction reaches the highest spatial resolution but fails the Rose criterion (d' = 3) for low-contrast 100 HU objects, whereas ASTRA SIRT iterative reconstruction at default settings delivers superior low-contrast detectability at five times the computation time of analytic FDK; TIGRE OS-SART at fifty times the cost provides no further improvement and is unstable across protocols. For high-contrast tasks all methods perform comparably.

What carries the argument

Task-based image quality assessment using modulation transfer function (MTF), noise power spectrum (NPS), and non-prewhitening detectability index (NPW d') applied to the same raw projection data across four reconstruction algorithms.

If this is right

  • For high-contrast imaging tasks, analytic FDK and all tested methods perform comparably.
  • ASTRA SIRT iterative reconstruction justifies its fivefold increase in computation time for low-contrast preclinical studies.
  • TIGRE OS-SART iterative reconstruction does not justify its fiftyfold cost increase and shows protocol instability.
  • Open-source FDK reconstruction offers a transparent, fast, and integrable baseline for preclinical micro-CT.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Task-specific metrics should replace single-metric comparisons when evaluating reconstruction algorithms for medical imaging.
  • Releasing the FDK code may accelerate development of hybrid analytic-iterative pipelines.
  • This benchmarking approach could be extended to other cone-beam CT modalities in clinical settings.

Load-bearing premise

Default parameter settings for ASTRA SIRT and TIGRE OS-SART constitute a fair and representative comparison without any task-specific tuning.

What would settle it

A re-analysis of the same half-scan projections showing that tuned parameters allow the vendor software or TIGRE OS-SART to reach d' greater than 3 for 100 HU objects while preserving or exceeding the reported MTF10 of 2.96 lp/mm would falsify the claim that ASTRA SIRT is superior for low-contrast tasks.

Figures

Figures reproduced from arXiv: 2604.23047 by Falk L Wiegmann, Nancy L Ford.

Figure 1
Figure 1. Figure 1: Image quality metrics for the half-scan ( view at source ↗
Figure 2
Figure 2. Figure 2: Mouse lung reconstructions displayed in a lung window (C view at source ↗

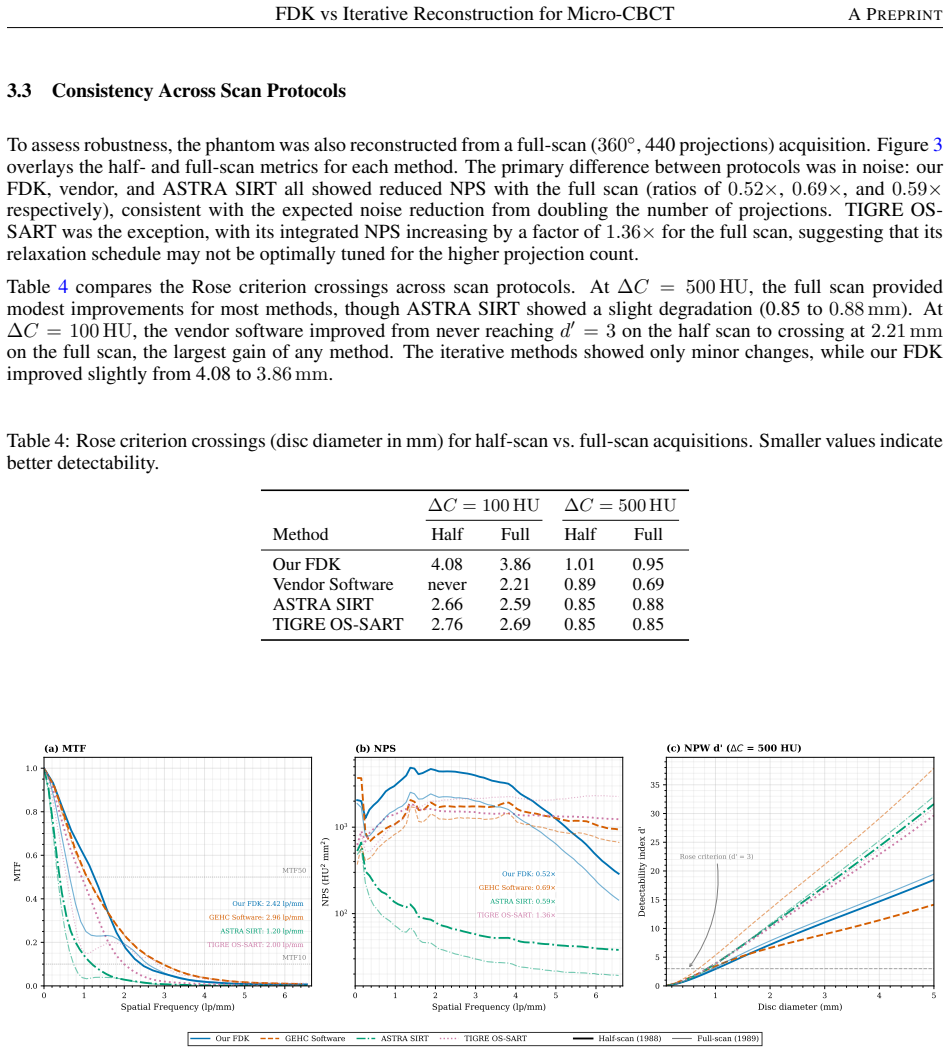

Figure 3
Figure 3. Figure 3: Comparison of image quality metrics between the half-scan ( view at source ↗

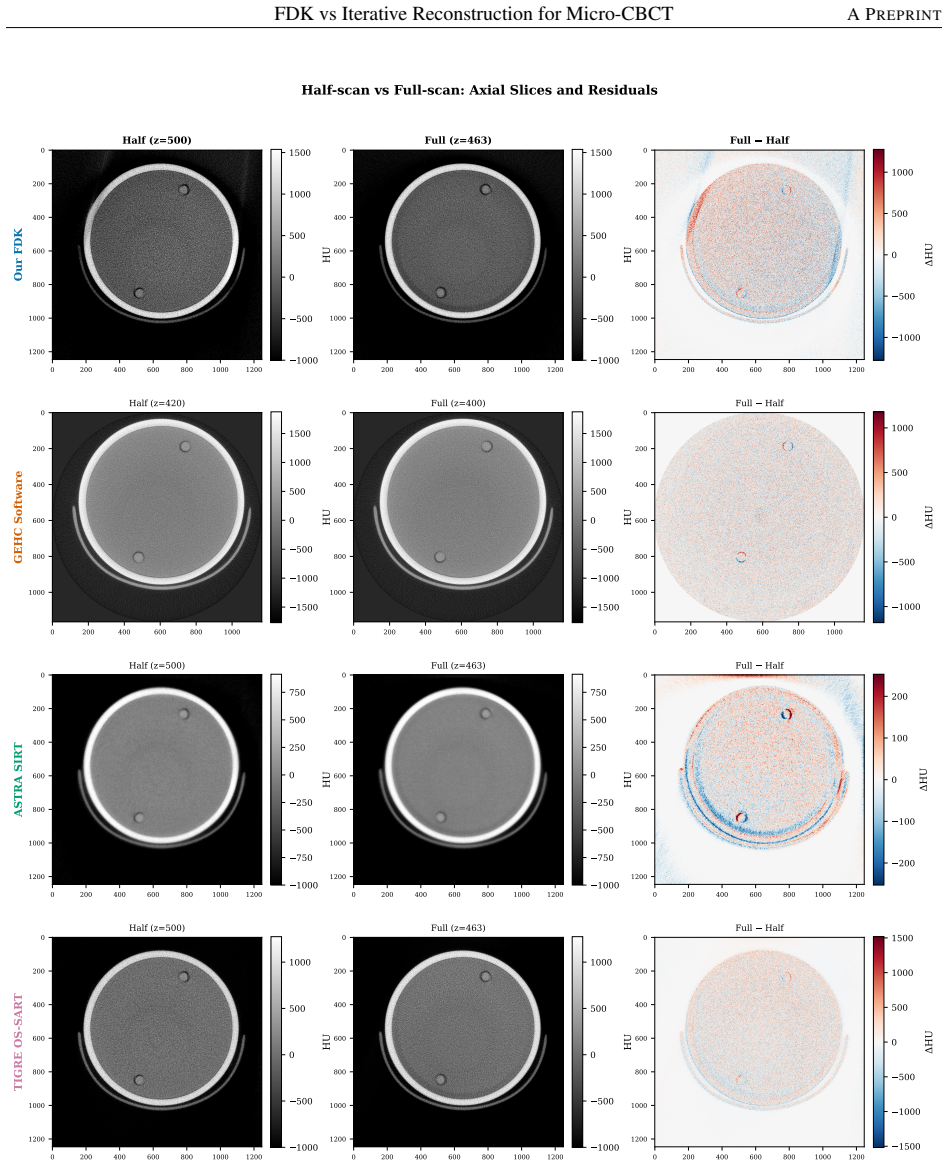

Figure 4
Figure 4. Figure 4: Axial phantom slices from the half-scan (left column), full-scan (centre column), and their difference (right view at source ↗

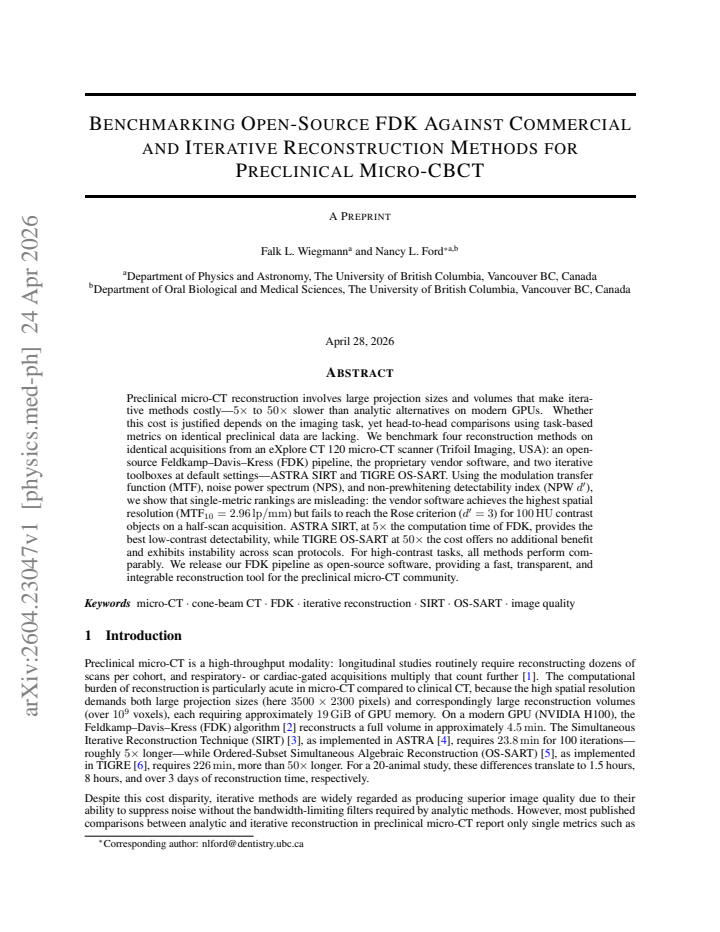

read the original abstract

Preclinical micro-CT reconstruction involves large projection sizes and volumes that make iterative methods costly - 5x to 50x slower than analytic alternatives on modern GPUs. Whether this cost is justified depends on the imaging task, yet head-to-head comparisons using task-based metrics on identical preclinical data are lacking. We benchmark four reconstruction methods on identical acquisitions from an eXplore CT 120 micro-CT scanner (Trifoil Imaging, USA): an open-source Feldkamp-Davis-Kress (FDK) pipeline, the proprietary vendor software, and two iterative toolboxes at default settings - ASTRA SIRT and TIGRE OS-SART. Using the modulation transfer function (MTF), noise power spectrum (NPS), and non-prewhitening detectability index (NPW d'), we show that single-metric rankings are misleading: the vendor software achieves the highest spatial resolution ($\mathrm{MTF}_{10} = 2.96$ lp/mm) but fails to reach the Rose criterion ($d'=3$) for 100 HU contrast objects on a half-scan acquisition. ASTRA SIRT, at 5x the computation time of FDK, provides the best low-contrast detectability, while TIGRE OS-SART at 50x the cost offers no additional benefit and exhibits instability across scan protocols. For high-contrast tasks, all methods perform comparably. We release our FDK pipeline as open-source software, providing a fast, transparent, and integrable reconstruction tool for the preclinical micro-CT community.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript benchmarks an open-source Feldkamp-Davis-Kress (FDK) reconstruction pipeline against proprietary vendor software and two iterative methods (ASTRA SIRT and TIGRE OS-SART) on identical half-scan acquisitions from an eXplore CT 120 preclinical micro-CBCT scanner. Using standard metrics (MTF, NPS, NPW d'), it argues that single-metric rankings are misleading: the vendor achieves the highest spatial resolution (MTF10 = 2.96 lp/mm) but fails the Rose criterion (d' < 3) for 100 HU contrast objects, while ASTRA SIRT delivers the best low-contrast detectability at 5x the computation time of FDK and TIGRE OS-SART at 50x cost provides no benefit and shows instability. The work releases the FDK pipeline as open-source software.

Significance. If the empirical comparisons hold, the paper usefully demonstrates the value of task-based metrics (NPW d') over isolated resolution measures for preclinical micro-CT method selection, where iterative approaches carry high computational cost. The open-source FDK release and use of identical scanner acquisitions are concrete strengths that support reproducibility and community adoption for high-contrast tasks where all methods perform comparably.

major comments (2)
  1. [Methods] Methods: The reliance on 'default settings' for ASTRA SIRT and TIGRE OS-SART is central to the claim that ASTRA provides the best low-contrast detectability at moderate cost while TIGRE offers no benefit. Without listing the exact parameter values (e.g., number of iterations, relaxation factors) or a sensitivity check, it is unclear whether the reported rankings reflect representative performance or an artifact of untuned defaults.
  2. [Results] Results: The assertion that TIGRE OS-SART 'exhibits instability across scan protocols' is load-bearing for dismissing it at 50x cost, yet the text does not quantify instability (e.g., variance in d' or artifact metrics) or name the specific protocols (full-scan vs. half-scan angular ranges) used for this assessment.
minor comments (3)
  1. [Abstract] Abstract and Results: The Rose criterion threshold (d'=3) is invoked without a brief citation or reminder of its derivation for the specific object size and contrast levels tested.
  2. [Figures] Figure captions: Captions for MTF, NPS, and d' plots should explicitly state the contrast levels (e.g., 100 HU), object diameters, and whether half-scan or full-scan data are shown to allow immediate interpretation without cross-referencing the text.
  3. [Methods] The manuscript should clarify in Methods whether any projections were excluded from the identical-acquisition comparisons and what statistical test (if any) was applied to the d' differences.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the constructive comments, which help improve the clarity and reproducibility of our work. We address each major comment below.

read point-by-point responses

  1. Referee: [Methods] Methods: The reliance on 'default settings' for ASTRA SIRT and TIGRE OS-SART is central to the claim that ASTRA provides the best low-contrast detectability at moderate cost while TIGRE offers no benefit. Without listing the exact parameter values (e.g., number of iterations, relaxation factors) or a sensitivity check, it is unclear whether the reported rankings reflect representative performance or an artifact of untuned defaults.

    Authors: We agree that explicit documentation of the parameters is essential for reproducibility. The original manuscript states that defaults were used, but we will revise the Methods section to list the precise default values employed from each toolbox (e.g., iteration counts and relaxation factors as supplied by ASTRA and TIGRE). These defaults represent standard out-of-the-box usage, which aligns with the benchmarking goal of comparing typical user experience rather than optimized performance. A full sensitivity analysis lies outside the scope of the present study, but the reported rankings are consistent with the toolboxes' recommended settings in the literature. revision: yes

  2. Referee: [Results] Results: The assertion that TIGRE OS-SART 'exhibits instability across scan protocols' is load-bearing for dismissing it at 50x cost, yet the text does not quantify instability (e.g., variance in d' or artifact metrics) or name the specific protocols (full-scan vs. half-scan angular ranges) used for this assessment.

    Authors: We accept that additional quantification and protocol specification will strengthen the claim. In the revised manuscript we will explicitly name the protocols (half-scan acquisitions as the primary dataset, with full-scan data used for cross-checks) and provide more detail on the observed instability, including qualitative description of increased streak artifacts and variability in low-contrast regions for TIGRE relative to the other methods. While we did not compute formal variance statistics across repeats in the original analysis, the instability was consistently noted during visual and metric inspection of the reconstructions. revision: partial

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper performs an empirical benchmarking study comparing reconstruction algorithms on identical preclinical micro-CT acquisitions using standard, externally defined metrics (MTF, NPS, NPW d'). No derivation chain, fitted parameters, or equations are present; all results follow directly from applying these metrics to scanner data. No self-citations, ansatzes, or uniqueness claims are invoked to support any central result. The work is self-contained against external benchmarks and qualifies its assumptions explicitly.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical benchmarking study with no mathematical derivations or postulated entities. The claims rest on experimental comparisons using standard metrics (MTF, NPS, d') applied to data from a specific scanner at default settings.
