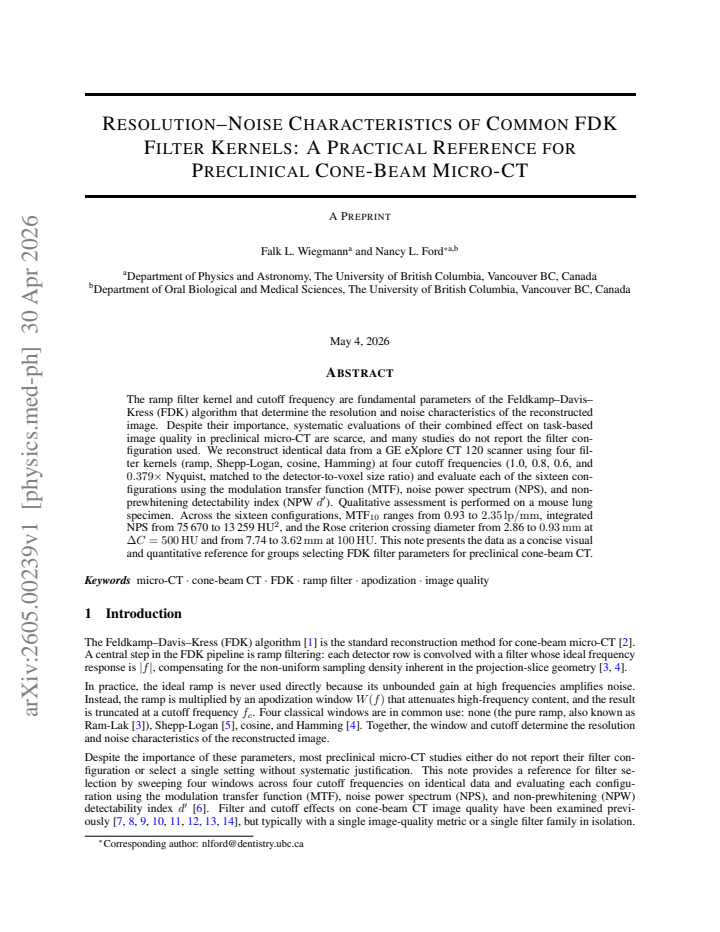

Resolution-Noise Characteristics of Common FDK Filter Kernels: A Practical Reference for Preclinical Cone-Beam Micro-CT

Falk L Wiegmann , Nancy L Ford
Authors on Pith no claims yet

Pith reviewed 2026-05-09 19:31 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords FDK reconstructionmicro-CTfilter kernelsMTFnoise power spectrumcone-beam CTpreclinical imagingimage quality
0
0 comments X

The pith

Sixteen FDK filter configurations in micro-CT produce MTF10 values from 0.93 to 2.35 lp/mm and integrated noise from 75,670 to 13,259 HU squared.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests four common filter kernels at four cutoff frequencies in the FDK algorithm and reconstructs the same cone-beam data sixteen ways. It quantifies the resulting changes in spatial resolution through the modulation transfer function, noise through the noise power spectrum, and detectability through a non-prewhitening index, plus qualitative views of a mouse lung specimen. The measured ranges demonstrate that filter choice can alter the smallest reliably detectable object size by a factor of three at typical contrasts. A reader would use the data as a lookup reference when selecting reconstruction parameters instead of default settings that are rarely justified in published studies.

Core claim

Across the sixteen configurations of ramp, Shepp-Logan, cosine, and Hamming kernels at cutoffs of 1.0, 0.8, 0.6, and 0.379 times Nyquist, MTF10 ranges from 0.93 to 2.35 lp/mm, integrated NPS from 75,670 to 13,259 HU squared, and the Rose criterion crossing diameter from 2.86 to 0.93 mm at 500 HU contrast and from 7.74 to 3.62 mm at 100 HU. The note supplies these values together with example images as a concise visual and quantitative reference for choosing FDK filter parameters in preclinical cone-beam CT.

What carries the argument

The sixteen combinations of four filter kernels and four cutoff frequencies, assessed via MTF, NPS, and NPW d prime on identical data from one scanner and one mouse lung specimen.

If this is right

  • Filter selection can be matched to a target resolution or noise level using the tabulated MTF10 and NPS numbers.
  • The Rose criterion diameters supply practical estimates of the smallest detectable feature size at two common contrast levels.
  • Qualitative differences visible in the mouse lung reconstructions illustrate how the quantitative metrics translate to real specimen images.
  • The data set allows groups to avoid default filter settings and instead pick configurations that balance their specific imaging needs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The reference could encourage labs to report the exact kernel and cutoff used in every micro-CT study, improving reproducibility across publications.
  • Extending the same evaluation to additional scanners would test whether the observed ranges are geometry-dependent or broadly applicable.
  • Task-based metrics beyond NPW d prime could be added in follow-up work to refine filter choice for particular detection problems such as tumor or vessel visualization.

Load-bearing premise

Measurements performed on the GE eXplore CT 120 scanner and a single mouse lung specimen adequately represent the resolution-noise trade-offs needed across the full range of preclinical micro-CT applications and scanner geometries.

What would settle it

Reconstructing the identical raw projections on a different preclinical cone-beam micro-CT scanner, computing the new MTF10 and integrated NPS values for all sixteen configurations, and checking whether they fall outside the reported ranges would show whether the reference holds.

Figures

Figures reproduced from arXiv: 2605.00239 by Falk L Wiegmann, Nancy L Ford.

Figure 1
Figure 1. Figure 1: FDK reconstruction pipeline for short-scan cone-beam micro-CT. The ramp filter step (highlighted) is the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Image quality metrics for all sixteen filter configurations on the image quality phantom (short-scan, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Spatial resolution as a function of filter configuration. (a) MTF curves for all sixteen configurations, with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Mouse lung reconstructions (axial slice) for all sixteen filter configurations, displayed with identical [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
