Ultra-High Dynamic Strength of Additively Manufactured GRX-810 Under Coupled Conditions of High Strain Rate and Elevated Temperature

Naveen Dinujaya , Suhas Eswarappa Prameela This is my paper

Pith reviewed 2026-05-08 07:54 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords GRX-810oxide dispersion strengthenedhigh strain ratedynamic strengththermal softeningadditively manufacturedCrCoNi-based alloyyttria nanoparticles
0
0 comments X

The pith

GRX-810 ODS alloy reaches dynamic strength 2.79 times its quasi-static value at high strain rates and ambient temperature due to nanoscale oxide particles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the high-strain-rate deformation of additively manufactured GRX-810, a CrCoNi-based alloy containing a dense dispersion of yttria nanoparticles, at both room and elevated temperatures. It establishes that the oxides supply extra athermal strengthening at high speeds when the material is cold, producing markedly higher flow stress than either the alloy without oxides or conventional metals. At higher temperatures the same particles trigger softening because their close spacing restricts dislocation motion, elastic stiffness drops, and solute pinning weakens. A sympathetic reader would care because the coupled rate-and-temperature response governs performance in applications such as high-speed impacts or hot structural parts where sudden loads and heat occur together.

Core claim

At high strain rates and ambient temperature, GRX-810 ODS exhibits higher dynamic strength, approximately 2.79 times its quasi-static strength, than both conventional alloys and its non-ODS variant because of the additional athermal strengthening provided by the nanoscale oxide dispersion. At high strain rates and elevated temperatures, GRX-810 ODS undergoes thermal softening. This response is consistent with dislocation confinement associated with the small interparticle spacing of the oxide dispersion, which limits the phonon-drag contribution, together with the temperature-dependent reduction of elastic constants that lowers the athermal strengthening terms, including the oxide-related贡献,

What carries the argument

Nanoscale hexagonal yttria particles that supply athermal strengthening by confining dislocations and modulate thermal softening through interparticle spacing and temperature-dependent elastic and pinning effects.

If this is right

  • The ODS variant delivers substantially higher dynamic strength than the non-ODS variant or conventional alloys at high strain rates and ambient temperature.
  • Thermal softening at elevated temperature arises from limited phonon-drag contribution due to close particle spacing plus lowered elastic constants and reduced solute pinning.
  • The oxide dispersion produces opposite effects at ambient versus high temperature under rapid loading.
  • These coupled behaviors set GRX-810 apart from traditional alloys in environments that combine sudden deformation with heat.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Adjusting oxide particle density through additive manufacturing parameters could shift the temperature threshold where softening begins.
  • The same dislocation-confinement logic may govern rate-temperature response in other oxide-dispersed multi-principal element alloys.
  • Tests at intermediate temperatures would locate the crossover between athermal strengthening and thermal softening.
  • The results could guide simulations of dynamic failure in additively built components exposed to combined high-rate and thermal loads.

Load-bearing premise

Thermal softening is explained by dislocation confinement from small oxide spacing, reduction in elastic constants, and weakened solute pinning, with no major role from other processes such as phase transformations.

What would settle it

An experiment that increases oxide interparticle spacing while holding composition and processing fixed and observes no reduction in the amount of thermal softening would show the proposed mechanisms are incomplete.

Figures

Figures reproduced from arXiv: 2604.23143 by Naveen Dinujaya, Suhas Eswarappa Prameela.

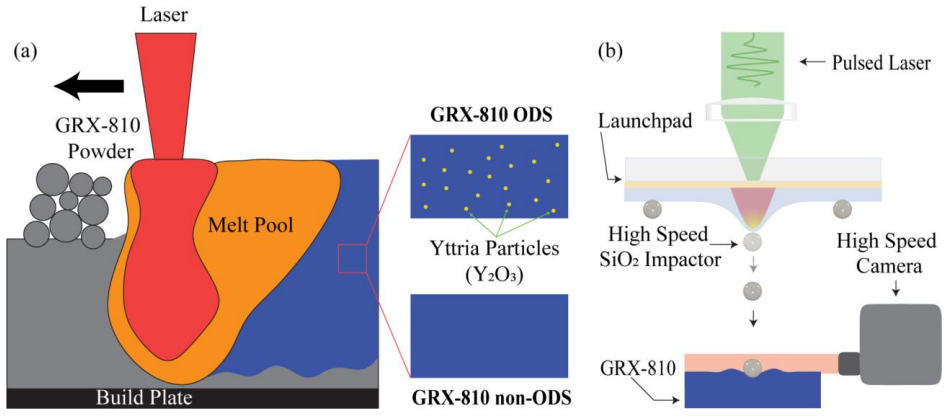

Figure 1
Figure 1. Figure 1: Overview of material fabrication and high strain rate testing. (a) Schematic of the laser powder bed fusion (LPBF) process used to produce GRX-810 in both ODS and non-ODS conditions. (b) Schematic of the laser induced particle impact testing (LIPIT) setup used to probe the dynamic response of GRX-810 under extreme high strain rate loading. Methods The high strain rate impact experiments were carried out us… view at source ↗

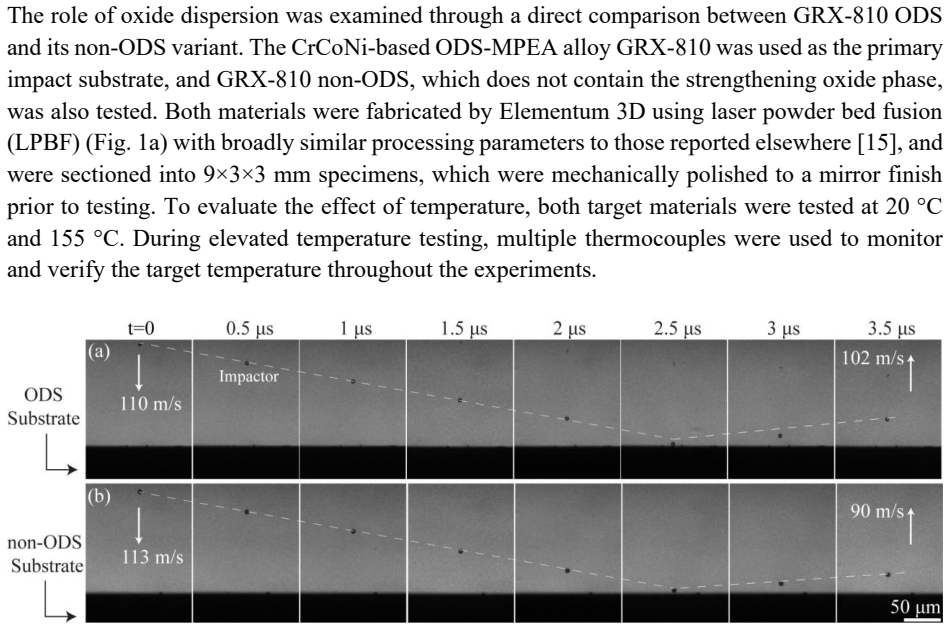

Figure 2
Figure 2. Figure 2: In situ observations of microparticle impact and rebound on GRX-810 substrates at 20 °C. (a) A silica microparticle enters from the top of the field of view at an impact velocity of 110 m/s, strikes the GRX-810 ODS substrate, and rebounds at 102 m/s. (b) A silica microparticle impacts the GRX-810 non-ODS substrate at 113 m/s and rebounds at 90 m/s. The scale bar is the same in all images. Results The contr… view at source ↗

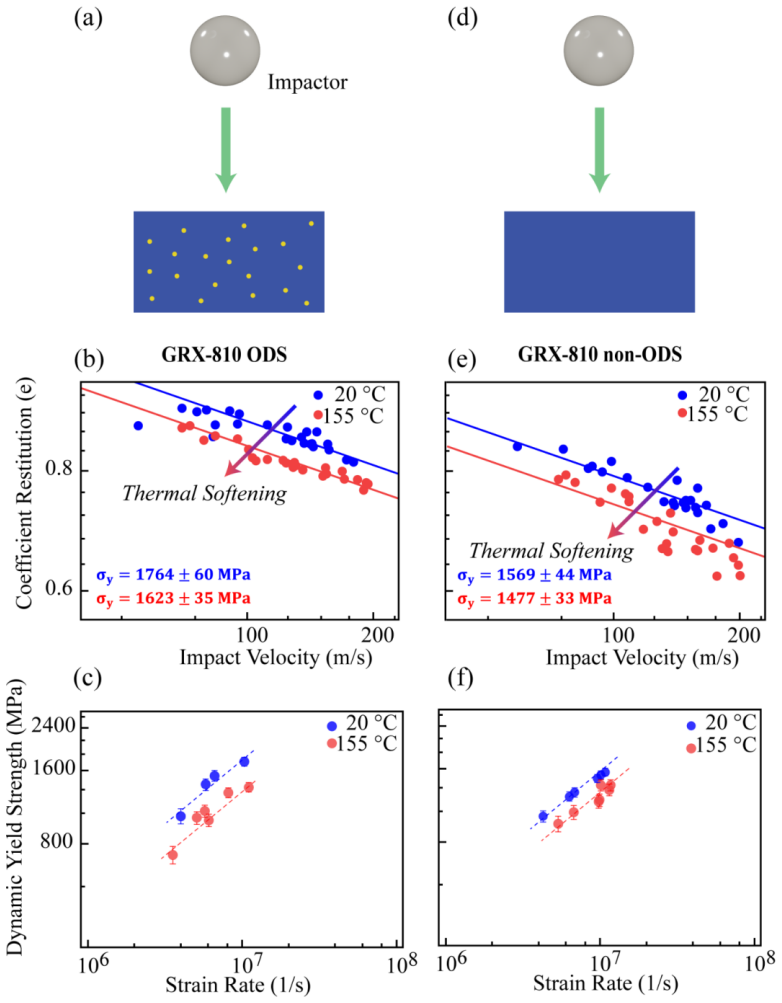

Figure 3
Figure 3. Figure 3: Impact velocity plotted against coefficient of restitution (CoR) on a double-logarithmic scale over the range of impact velocities examined. The solid lines represent fits to the scaling law for ideally plastic impact, with 𝑌𝑑 as the fitting parameter (from Eq.1). (a) and (d) Schematic illustrations of a microparticle accelerating toward the GRX-810 ODS and non-ODS substrates, respectively. (b) CoR curves … view at source ↗

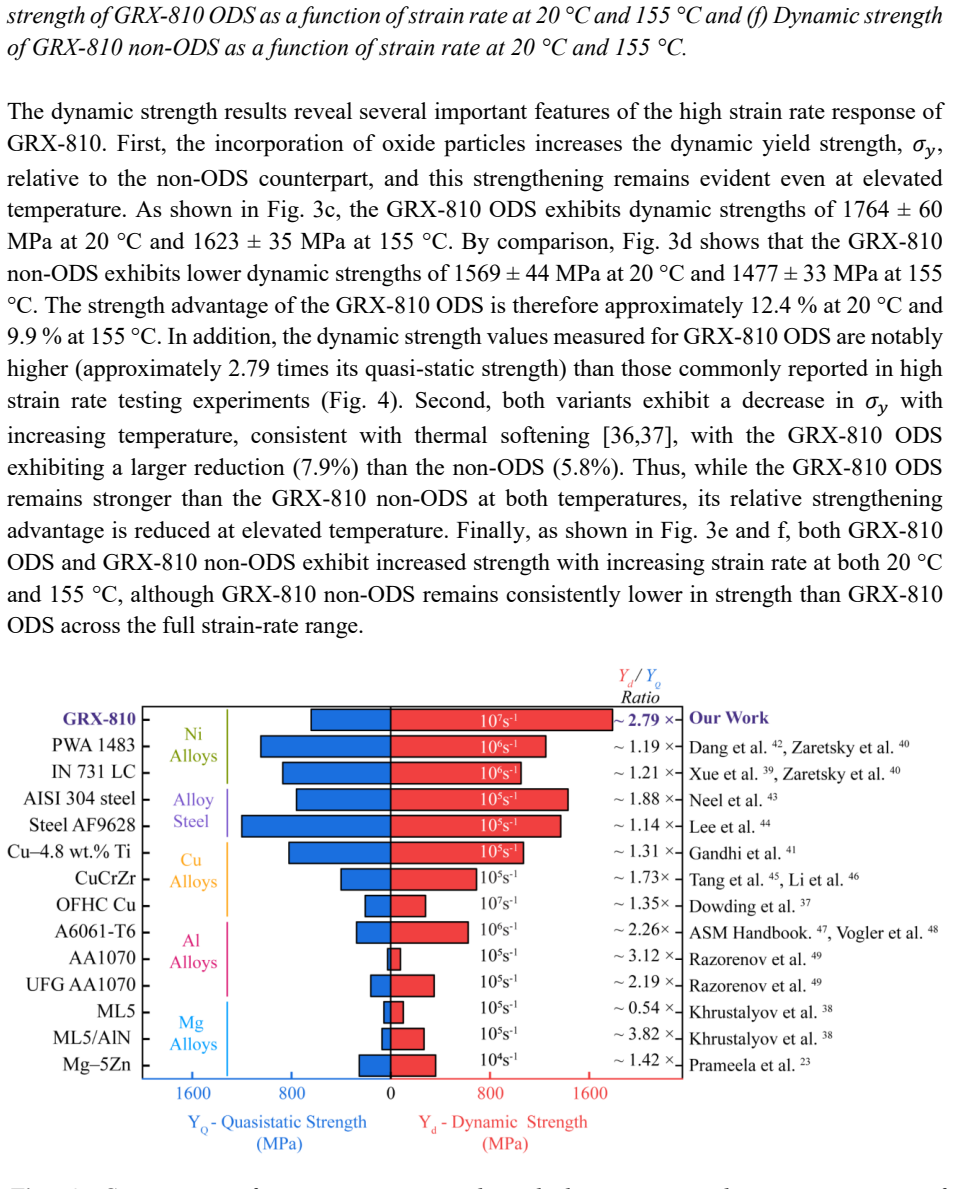

Figure 4
Figure 4. Figure 4: Comparison of quasi static strength and dynamic strength at strain rates of 104 𝑠 −1 − 107 𝑠 1 for various alloys, together with the quasi-static to dynamic strength increment ratio. GRX-810 ODS exhibits the highest absolute strength in the dataset. Its quasi static to view at source ↗

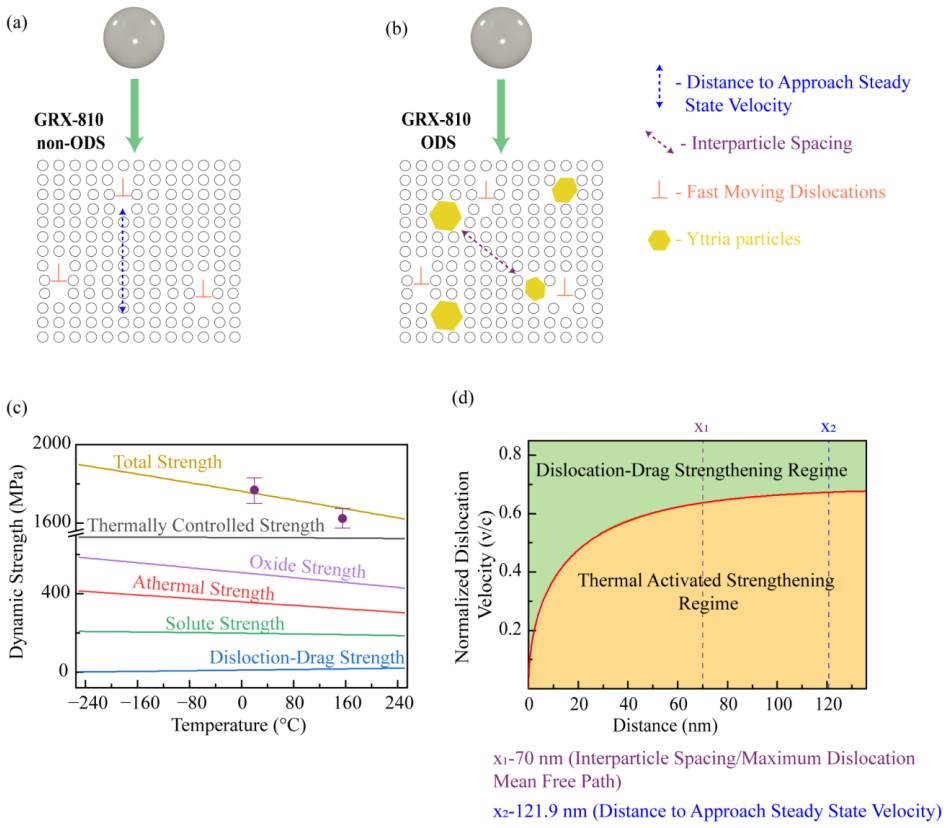

Figure 5
Figure 5. Figure 5: Mechanistic interpretation of oxide dispersion effects on the high strain rate response of GRX-810. (a) Schematic illustration of a microparticle accelerating toward the GRX-810 non￾ODS substrate, showing dislocation motion in the matrix. The dashed blue line indicates the reference uninterrupted glide distance required for a dislocation to approach the steady state dislocation velocity. (b) Schematic illu… view at source ↗

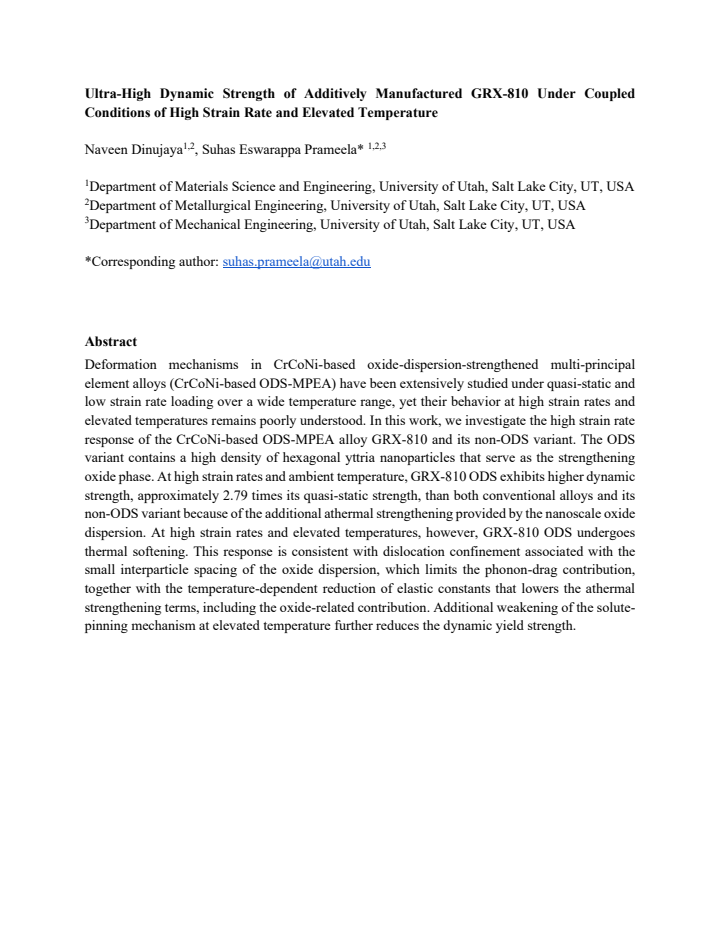

read the original abstract

Deformation mechanisms in CrCoNi-based oxide-dispersion-strengthened multi-principal element alloys (CrCoNi-based ODS-MPEA) have been extensively studied under quasi-static and low strain rate loading over a wide temperature range, yet their behavior at high strain rates and elevated temperatures remains poorly understood. In this work, we investigate the high strain rate response of the CrCoNi-based ODS-MPEA alloy GRX-810 and its non-ODS variant. The ODS variant contains a high density of hexagonal yttria nanoparticles that serve as the strengthening oxide phase. At high strain rates and ambient temperature, GRX-810 ODS exhibits higher dynamic strength, approximately 2.79 times its quasi-static strength, than both conventional alloys and its non-ODS variant because of the additional athermal strengthening provided by the nanoscale oxide dispersion. At high strain rates and elevated temperatures, however, GRX-810 ODS undergoes thermal softening. This response is consistent with dislocation confinement associated with the small interparticle spacing of the oxide dispersion, which limits the phonon-drag contribution, together with the temperature-dependent reduction of elastic constants that lowers the athermal strengthening terms, including the oxide-related contribution. Additional weakening of the solute-pinning mechanism at elevated temperature further reduces the dynamic yield strength.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports experimental results on the high-strain-rate mechanical response of additively manufactured GRX-810, a CrCoNi-based oxide-dispersion-strengthened multi-principal element alloy (ODS-MPEA) containing nanoscale hexagonal yttria particles, together with its non-ODS variant. At ambient temperature the ODS alloy is stated to reach a dynamic strength 2.79 times its quasi-static value, exceeding both conventional alloys and the non-ODS material because of additional athermal strengthening from the oxide dispersion. At elevated temperatures under high strain rates the ODS alloy exhibits thermal softening, which the authors interpret as arising from dislocation confinement imposed by small interparticle spacing (limiting phonon drag), temperature-dependent softening of elastic constants that reduces athermal contributions including the oxide term, and weakening of solute pinning.

Significance. If the reported strength ratio and the mechanistic account of softening are substantiated by the full data set, the work would be significant for the field of extreme-condition materials. It supplies a concrete, quantitative benchmark (2.79× dynamic-to-quasi-static ratio) for ODS-MPEAs and links observed temperature dependence to specific microstructural length scales and temperature-sensitive moduli, thereby offering testable guidance for alloy design in high-speed, high-temperature applications such as turbine components or impact-resistant structures.

major comments (1)
  1. [Abstract] Abstract (final paragraph): the attribution of thermal softening to dislocation confinement from small interparticle spacing, temperature-dependent elastic-constant reduction, and weakened solute pinning is presented as the operative explanation. This interpretation is load-bearing for the paper’s mechanistic narrative, yet the abstract gives no indication that post-test diffraction, microstructural characterization, or surface analysis was performed to exclude phase transformations (known to occur in CrCoNi-based systems) or oxidation. If either alternative contributes measurably, the stated dominance of the three cited mechanisms would not hold.
minor comments (2)
  1. [Abstract] Abstract: the numerical claim of a 2.79-fold strength increase is given without accompanying error bars, number of replicates, or the precise strain-rate and temperature values at which it was measured; these details are required to evaluate the robustness of the central observation.
  2. The manuscript should include a dedicated methods or supplementary section that reports sample dimensions, strain-rate calibration, temperature control, and any post-deformation characterization performed to support the mechanistic discussion.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We address the major comment below and have revised the abstract to improve clarity on the supporting evidence for our mechanistic interpretation.

read point-by-point responses

  1. Referee: [Abstract] Abstract (final paragraph): the attribution of thermal softening to dislocation confinement from small interparticle spacing, temperature-dependent elastic-constant reduction, and weakened solute pinning is presented as the operative explanation. This interpretation is load-bearing for the paper’s mechanistic narrative, yet the abstract gives no indication that post-test diffraction, microstructural characterization, or surface analysis was performed to exclude phase transformations (known to occur in CrCoNi-based systems) or oxidation. If either alternative contributes measurably, the stated dominance of the three cited mechanisms would not hold.

    Authors: We appreciate the referee drawing attention to this aspect of the abstract. The full manuscript already qualifies the explanation as 'consistent with' the three mechanisms (dislocation confinement due to interparticle spacing, temperature-dependent elastic-constant softening, and weakened solute pinning) rather than asserting exclusivity. Post-test XRD and SEM characterization, described in the Methods and Results sections, was performed on the high-strain-rate, elevated-temperature specimens and showed no detectable phase transformations or oxidation products. The observed softening trends align quantitatively with the known temperature dependence of the elastic moduli in CrCoNi-based systems and the expected restriction of phonon-drag and athermal contributions by the oxide dispersion. To make this supporting evidence explicit in the abstract, we have revised the final paragraph to briefly note that post-test microstructural analysis supports the proposed mechanisms by confirming the absence of phase changes or oxidation. This change preserves the abstract's conciseness while addressing the concern directly. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely experimental report with direct observations

full rationale

The paper presents experimental measurements of dynamic strength in GRX-810 ODS alloy under high strain rates and elevated temperatures. The key claim (2.79× quasi-static strength at ambient temperature due to oxide dispersion) is stated as an observed ratio from testing, not derived from any equation or model. The thermal softening explanation is offered as 'consistent with' dislocation confinement, elastic constant reduction, and solute pinning, without any fitted parameters, predictions, self-citations, or mathematical derivations that reduce to inputs by construction. No equations, ansatzes, or uniqueness theorems appear in the provided text. This matches the default case of a self-contained experimental study with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

No free parameters, invented entities, or ad-hoc axioms are introduced; the work rests on standard materials-science domain assumptions about dislocation dynamics and elastic-constant temperature dependence.

axioms (2)
  • domain assumption Dislocation motion is limited by oxide particle spacing and phonon drag is reduced at small interparticle distances.
    Invoked to explain both athermal strengthening at room temperature and thermal softening at elevated temperature.
  • domain assumption Elastic constants decrease with increasing temperature, lowering athermal strengthening contributions.
    Used to account for part of the observed dynamic yield strength reduction.

pith-pipeline@v0.9.0 · 5542 in / 1351 out tokens · 97910 ms · 2026-05-08T07:54:55.047383+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages

  1. [1]

    N. Sun, Z. Mao, X. Zhang, S.N. Tkachev, J.-F. Lin, Hot dense silica glass with ultrahigh elastic moduli, Sci. Rep. 12 (2022) 13946. https://doi.org/10.1038/s41598-022-18062-6

    work page doi:10.1038/s41598-022-18062-6 2022

  2. [2]

    Pabst, E

    W. Pabst, E. Gregorová, ELASTIC PROPERTIES OF SILICA POLYMORPHS – A REVIEW, 57(3) (2013). https://www.ceramics-silikaty.cz/2013/pdf/2013_03_167.pdf

    work page 2013

  3. [3]

    C. Wu, L. Li, C. Thornton, Rebound behaviour of spheres for plastic impacts, Int. J. Impact Eng. 28 (2003) 929–946. https://doi.org/10.1016/S0734-743X(03)00014-9

    work page doi:10.1016/s0734-743x(03)00014-9 2003

  4. [4]

    Wu, L.-Y

    C.-Y. Wu, L.-Y. Li, C. Thornton, Energy dissipation during normal impact of elastic and elastic–plastic spheres, Int. J. Impact Eng. 32 (2005) 593–604. https://doi.org/10.1016/j.ijimpeng.2005.08.007

    work page doi:10.1016/j.ijimpeng.2005.08.007 2005

  5. [5]

    Meyers, Dynamic Behavior of Materials, John Wiley & Sons, 1994

    M.A. Meyers, Dynamic Behavior of Materials, John Wiley & Sons, 1994

    work page 1994

  6. [6]

    Frost, M.F

    H.J. Frost, M.F. Ashby, Deformation-mechanism maps : the plasticity and creep of metals and ceramics, Franklin Book Company, 1995. https://cir.nii.ac.jp/crid/1970586434921629367 (accessed April 15, 2026)

    work page arXiv 1995

  7. [7]

    L. Li, Z. Chen, S. Kuroiwa, M. Ito, K. Kishida, H. Inui, E.P. George, Tensile and compressive plastic deformation behavior of medium-entropy Cr-Co-Ni single crystals from cryogenic to elevated temperatures, Int. J. Plast. 148 (2022) 103144. https://doi.org/10.1016/j.ijplas.2021.103144

    work page doi:10.1016/j.ijplas.2021.103144 2022

  8. [8]

    Dowding, C.A

    I. Dowding, C.A. Schuh, At Extreme Strain Rates, Pure Metals Thermally Harden while Alloys Thermally Soften, Phys. Rev. Lett. 136 (2026) 076101. https://doi.org/10.1103/2mm1-rx7q

    work page doi:10.1103/2mm1-rx7q 2026

  9. [9]

    Tiamiyu, E.L

    A.A. Tiamiyu, E.L. Pang, X. Chen, J.M. LeBeau, K.A. Nelson, C.A. Schuh, Nanotwinning-assisted dynamic recrystallization at high strains and strain rates, Nat. Mater. 21 (2022) 786–794. https://doi.org/10.1038/s41563-022-01250-0

    work page doi:10.1038/s41563-022-01250-0 2022

  10. [10]

    Heczko, A

    M. Heczko, A. Bezold, S. Chattoraj, C.A. Kantzos, A. Dlouhý, T.M. Smith, M.J. Mills, Microstructural origins of high-temperature properties of 3D printable CrCoNi-based ODS multi-principal element alloys, Acta Mater. 309 (2026) 122102. https://doi.org/10.1016/j.actamat.2026.122102

    work page doi:10.1016/j.actamat.2026.122102 2026

  11. [11]

    C. Ye, G. Liu, K. Chen, J. Liu, J. Hu, Y. Yu, Y. Mao, Y. Shen, Unified crystal plasticity model for fcc metals: From quasistatic to shock loading, Phys. Rev. B 107 (2023) 024105. https://doi.org/10.1103/PhysRevB.107.024105. 11

    work page doi:10.1103/physrevb.107.024105 2023

  12. [12]

    H. Fan, Q. Wang, J.A. El-Awady, D. Raabe, M. Zaiser, Strain rate dependency of dislocation plasticity, Nat. Commun. 12 (2021) 1845. https://doi.org/10.1038/s41467-021- 21939-1

    work page doi:10.1038/s41467-021- 2021

  13. [13]

    Borasi, S.E

    L. Borasi, S.E. Kooi, C.A. Schuh, Crossing from thermally activated to drag-controlled plasticity in mild steel as strain rate increases, Acta Mater. 310 (2026) 122120. https://doi.org/10.1016/j.actamat.2026.122120

    work page doi:10.1016/j.actamat.2026.122120 2026

  14. [14]

    Wulf, High strain rate compression of titanium and some titanium alloys, Int

    G.L. Wulf, High strain rate compression of titanium and some titanium alloys, Int. J. Mech. Sci. 21 (1979) 713–718. https://doi.org/10.1016/0020-7403(79)90051-1

    work page doi:10.1016/0020-7403(79)90051-1 1979

  15. [15]

    Smith, C.A

    T.M. Smith, C.A. Kantzos, N.A. Zarkevich, B.J. Harder, M. Heczko, P.R. Gradl, A.C. Thompson, M.J. Mills, T.P. Gabb, J.W. Lawson, A 3D printable alloy designed for extreme environments, Nature 617 (2023) 513–518. https://doi.org/10.1038/s41586-023-05893-0

    work page doi:10.1038/s41586-023-05893-0 2023

  16. [16]

    Y. Ma, Y. Li, M. Ou, K. Hou, X. Hao, M. Wang, A review on microstructural stability regulation in nickel-based superalloys: synergistic effects of alloying elements and phase stability optimization, J. Mater. Sci. 60 (2025) 9024–9067. https://doi.org/10.1007/s10853- 025-10965-9

    work page doi:10.1007/s10853- 2025

  17. [17]

    Follansbee, J.C

    P.S. Follansbee, J.C. Huang, G.T. Gray, Low-temperature and high-strain-rate deformation of nickel and nickel-carbon alloys and analysis of the constitutive behavior according to an internal state variable model, Acta Metall. Mater. 38 (1990) 1241–1254. https://doi.org/10.1016/0956-7151(90)90195-M

    work page doi:10.1016/0956-7151(90)90195-m 1990

  18. [18]

    Labusch, A Statistical Theory of Solid Solution Hardening, Phys

    R. Labusch, A Statistical Theory of Solid Solution Hardening, Phys. Status Solidi B 41 (1970) 659–669. https://doi.org/10.1002/pssb.19700410221

    work page doi:10.1002/pssb.19700410221 1970

  19. [19]

    Fleischer, Substitutional solution hardening, Acta Metallurgica 11 (1963) 203 –209

    R.L. Fleischer, Substitutional solution hardening, Acta Metall. 11 (1963) 203–209. https://doi.org/10.1016/0001-6160(63)90213-X

    work page doi:10.1016/0001-6160(63)90213-x 1963

  20. [20]

    Smith, C.A

    T.M. Smith, C.A. Kantzos, B.J. Harder, A. Bezold, M. Heczko, J. Miao, G. Plummer, M.I. Mendelev, A.C. Thompson, B.J. Puleo, A.J. Whitt, A. Stark, S. Neumeier, T.P. Gabb, J.W. Lawson, M.J. Mills, P.R. Gradl, The mechanisms underlying the enhanced high- temperature properties of GRX-810, Nat. Commun. 17 (2025) 963. https://doi.org/10.1038/s41467-025-67687-4

    work page doi:10.1038/s41467-025-67687-4 2025

  21. [21]

    Rasooli, M

    N. Rasooli, M. Daly, Searching for evidence of strengthening from short-range order in the CrCoNi medium entropy alloy, Scr. Mater. 271 (2026) 116997. https://doi.org/10.1016/j.scriptamat.2025.116997

    work page doi:10.1016/j.scriptamat.2025.116997 2026

  22. [22]

    Schneider, E.P

    M. Schneider, E.P. George, T.J. Manescau, T. Záležák, J. Hunfeld, A. Dlouhý, G. Eggeler, G. Laplanche, Analysis of strengthening due to grain boundaries and annealing twin boundaries in the CrCoNi medium-entropy alloy, Int. J. Plast. 124 (2020) 155–169. https://doi.org/10.1016/j.ijplas.2019.08.009

    work page doi:10.1016/j.ijplas.2019.08.009 2020

  23. [23]

    https://www.carpentertechnology.com/hubfs/PDFs/20250513--GRX- 810_Addtional_NASA_Data.pdf

    GRX-810 NASA Developed Data Sheet, NASA / Carpenter Technology, 2025. https://www.carpentertechnology.com/hubfs/PDFs/20250513--GRX- 810_Addtional_NASA_Data.pdf

    work page arXiv 2025

  24. [24]

    Laplanche, P

    G. Laplanche, P. Gadaud, C. Bärsch, K. Demtröder, C. Reinhart, J. Schreuer, E.P. George, Elastic moduli and thermal expansion coefficients of medium-entropy subsystems of the CrMnFeCoNi high-entropy alloy, J. Alloys Compd. 746 (2018) 244–255. https://doi.org/10.1016/j.jallcom.2018.02.251

    work page doi:10.1016/j.jallcom.2018.02.251 2018

  25. [25]

    Dowding, C.A

    I. Dowding, C.A. Schuh, Metals strengthen with increasing temperature at extreme strain rates, Nature 630 (2024) 91–95. https://doi.org/10.1038/s41586-024-07420-1

    work page doi:10.1038/s41586-024-07420-1 2024
