arxiv: 2604.23268 · v1 · submitted 2026-04-25 · 💻 cs.CV · eess.IV

LatentBurst: A Fast and Efficient Multi Frame Super-Resolution for Hexadeca-Bayer Pattern CIS images

Sangwook Baek , Vin Van Duong , Karam Park , Pilkyu Park This is my paper

Pith reviewed 2026-05-08 08:44 UTC · model grok-4.3

classification 💻 cs.CV eess.IV

keywords multi-frame super-resolutionhexadeca-Bayer patternburst image fusionlatent feature alignmentmobile super-resolutionknowledge distillationoptical flow estimationCIS sensor imaging

0 comments p. Extension

The pith

LatentBurst performs multi-frame super-resolution on hexadeca-Bayer burst images by aligning and fusing features in latent space.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents LatentBurst, a network that jointly handles demosaicing, denoising, fusion, and super-resolution for sequences of hexadeca-Bayer pattern images captured by contact image sensors. It addresses three practical problems: the wide spacing between same-color pixels in this pattern makes interpolation difficult, large motions between frames produce misalignment artifacts, and the whole pipeline must run fast enough for mobile hardware. The method uses a pyramid structure to align and merge information at multiple scales inside the latent feature space, an efficient UNet backbone, and two-stage knowledge distillation with a fine-tuned optical flow estimator to close the gap between synthetic and real data. If the approach works as claimed, mobile devices could produce sharper, cleaner high-resolution output from short burst captures without the usual blur or ghosting.

Core claim

LatentBurst is a novel MFSR network containing a pyramid align-and-fusion module operating on latent features to manage large motion, an efficient UNet-based architecture for mobile deployment, and a combination of fine-tuned optical flow estimation with two-step knowledge distillation that reduces domain gap between training data and real hexadeca-Bayer burst captures.

What carries the argument

Pyramid alignment and fusion performed directly in latent feature space, which aligns multi-frame information across scales before merging to suppress motion-induced misalignment.

If this is right

End-to-end processing that combines demosaicing, denoising, fusion, and super-resolution in one pass for hexadeca-Bayer sensors.
Real-time operation on mobile hardware through the lightweight UNet backbone.
Reduced ghosting and blurring when fusing frames taken under significant motion.
Lower domain gap between synthetic training data and actual device captures via the two-step distillation.
Improved interpolation of the sparse hexadeca-Bayer color pattern compared with standard Bayer methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The latent pyramid fusion strategy could be tested on other non-Bayer color filter arrays that also have large same-color spacing.
If the alignment generalizes, the same latent-space approach might improve burst processing for video sequences rather than stills.
Mobile camera pipelines could adopt the efficient UNet and distillation recipe to upgrade existing burst modes without extra hardware.
Quantitative gains on public burst datasets would indicate whether the method transfers beyond the authors' specific CIS sensor.

Load-bearing premise

That alignment and fusion inside the latent pyramid, together with the distillation steps, will remove misalignment artifacts and domain gaps in real burst captures without creating new distortions.

What would settle it

Side-by-side visual or metric comparison on real-world hexadeca-Bayer burst sequences containing large object or camera motion that shows LatentBurst output with more ghosting or lower detail than a conventional alignment baseline.

Figures

Figures reproduced from arXiv: 2604.23268 by Karam Park, Pilkyu Park, Sangwook Baek, Vin Van Duong.

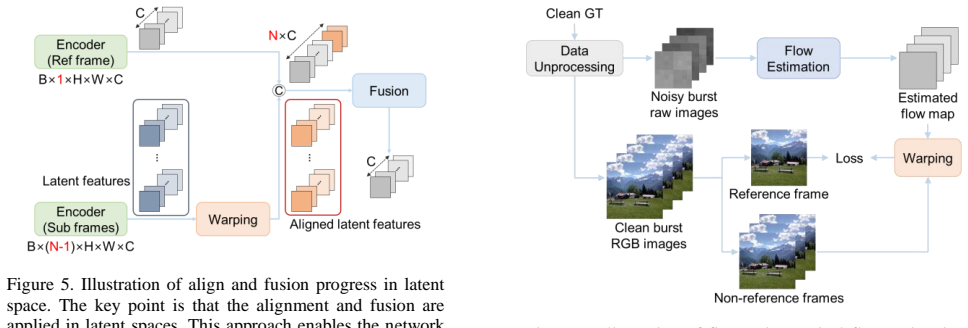

**Figure 6.** Figure 6: Illustration of fine-tuning optical flow estimation network. Our proposed network employs a fine-tuned optical flow estimation based on unsupervised learning to predict pixel-level motion for burst hexadeca Bayer CFA images. This approach effectively minimizes artifacts resulting from misalignments between the reference frame and other frames in the sequence view at source ↗

read the original abstract

This paper introduces a novel multi frame super-resolution network (MFSR) for burst hexadeca Bayer pattern Contact Image Sensor (CIS) images, which includes demosaicing, denoising, multi-frame fusion, and super-resolution. Designing a high-quality reconstruction network poses several challenges as follows: 1) Unlike the Bayer color filter array (CFA) pattern, it is hard to interpolate hexadeca-Bayer pattern since the pixel distance between the same color groups increases; 2) Due to large object motion and camera movements, the final fusion result usually suffers the misalignment resulting a blurry image or ghosting artifacts; 3) The proposed network should be fast and efficient enough to operate in real-time on mobile devices. To overcome these challenges, we propose a novel network, called LatentBurst, which contains: 1) a pyramid align and fusion approach in latent feature to deal with large motion scenario; 2) an efficient UNet-based structure which can run efficiently on mobile device; 3) fine-tuned optical flow estimation and two-step knowledge distillation to reduce domain-gap more effectively. Experimental results in various scenarios demonstrate the effectiveness of our proposed method compared with other state-of-the-art methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

LatentBurst gives a practical network for hexadeca-Bayer burst SR using latent pyramid fusion and distillation, but the gains rest on unshown experiments.

read the letter

This paper introduces LatentBurst, a network for multi-frame super-resolution on hexadeca-Bayer pattern images from contact image sensors. It handles demosaicing, denoising, fusion, and upscaling in one go, with special attention to mobile constraints. The main novelty is the pyramid-based alignment and fusion done in latent feature space to cope with large motions, combined with an efficient UNet backbone and two-step knowledge distillation after fine-tuning optical flow. These pieces target the increased same-color pixel distances, motion artifacts, and runtime needs that standard approaches struggle with on this sensor type. It does a good job explaining the problem setup and why existing Bayer-focused methods don't transfer directly. The design choices seem driven by the hardware realities rather than just stacking more layers. The soft spots are in the evidence. The abstract claims better results than state-of-the-art but gives no metrics, no ablation breakdowns, and no details on the test sets or baselines. In the full paper, the experiments need to demonstrate clear, reproducible improvements and show that the method avoids creating new issues like color fringing or over-smoothing on real-world bursts with complex motion. This is aimed at researchers and engineers working on mobile camera systems and sensor-specific image reconstruction. Someone building or optimizing on-device burst processing pipelines could get practical ideas from the architecture. It is worth a serious referee because the problem is well-motivated for current hardware and the approach is concrete enough to review on its merits. I recommend putting it through peer review, with the expectation that the authors provide fuller quantitative support and comparisons.

Referee Report

2 major / 0 minor

Summary. The paper proposes LatentBurst, a novel multi-frame super-resolution network for burst hexadeca-Bayer pattern CIS images that performs demosaicing, denoising, fusion, and upsampling. It targets three challenges: difficult interpolation from increased same-color pixel spacing, motion-induced misalignment and ghosting, and the need for real-time mobile efficiency. The architecture includes pyramid-based alignment and fusion in latent feature space, an efficient UNet backbone, fine-tuned optical flow estimation, and two-step knowledge distillation to reduce domain gaps.

Significance. If the empirical results hold, the work would be a practically significant contribution to mobile computational photography by providing an efficient end-to-end solution tailored to hexadeca-Bayer sensors. It directly addresses real-world issues of large motion and domain shift in burst capture without requiring heavy computation, which could improve image quality on resource-constrained devices. As a purely empirical deep-learning design with no formal derivations, parameter-free claims, or machine-checked proofs, its value rests entirely on the strength and reproducibility of the (unshown in the abstract) quantitative comparisons and ablations.

major comments (2)

Abstract: the central claim that 'Experimental results in various scenarios demonstrate the effectiveness of our proposed method compared with other state-of-the-art methods' is asserted without any quantitative metrics (PSNR/SSIM, runtime, memory), ablation studies on the pyramid fusion or distillation components, baseline details, dataset descriptions, or error analysis. This absence is load-bearing for the empirical contribution and prevents assessment of whether the proposed components actually deliver the claimed gains over prior MFSR and demosaicing methods.
Method description (pyramid align and fusion, fine-tuned optical flow, two-step distillation): the text provides only high-level component names without equations, architectural diagrams, loss formulations, or implementation specifics (e.g., how latent-space pyramid levels are constructed, how flow is fine-tuned on hexadeca-Bayer data, or the exact teacher-student distillation schedule). These details are necessary to evaluate whether the approach reliably mitigates misalignment and domain gaps as claimed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to incorporate additional details for clarity and completeness.

read point-by-point responses

Referee: Abstract: the central claim that 'Experimental results in various scenarios demonstrate the effectiveness of our proposed method compared with other state-of-the-art methods' is asserted without any quantitative metrics (PSNR/SSIM, runtime, memory), ablation studies on the pyramid fusion or distillation components, baseline details, dataset descriptions, or error analysis. This absence is load-bearing for the empirical contribution and prevents assessment of whether the proposed components actually deliver the claimed gains over prior MFSR and demosaicing methods.

Authors: We agree that the abstract would benefit from key quantitative highlights to support the claims. The full manuscript includes detailed comparisons with PSNR/SSIM metrics, runtime on mobile devices, ablation studies on pyramid fusion and distillation, baseline methods, and dataset descriptions in Sections 4.1-4.3. We will revise the abstract to include specific results such as average PSNR gains and efficiency metrics while remaining within length constraints. revision: yes
Referee: Method description (pyramid align and fusion, fine-tuned optical flow, two-step distillation): the text provides only high-level component names without equations, architectural diagrams, loss formulations, or implementation specifics (e.g., how latent-space pyramid levels are constructed, how flow is fine-tuned on hexadeca-Bayer data, or the exact teacher-student distillation schedule). These details are necessary to evaluate whether the approach reliably mitigates misalignment and domain gaps as claimed.

Authors: The full manuscript describes the pyramid alignment and fusion in latent space, the efficient UNet, fine-tuned optical flow, and two-step distillation in Section 3, including high-level architecture. We acknowledge that explicit equations, loss formulations, and implementation details (such as pyramid level construction, flow fine-tuning procedure on hexadeca-Bayer data, and distillation schedule) would improve reproducibility. We will add these specifics, along with an architectural diagram, in the revised version. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical network design with no derivations

full rationale

The paper proposes an empirical deep-learning architecture (LatentBurst) for multi-frame super-resolution, demosaicing, and denoising on hexadeca-Bayer burst images. It identifies three practical challenges and describes three corresponding network components (pyramid latent alignment/fusion, efficient UNet backbone, fine-tuned optical flow plus two-step distillation) without any equations, formal derivations, parameter fittings, or mathematical claims. No load-bearing step reduces to a self-definition, fitted input renamed as prediction, or self-citation chain. The argument rests on experimental results and ablations rather than internal consistency proofs, making the derivation chain self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 1 invented entities

The claim rests on empirical effectiveness of proposed modules rather than first-principles derivation; network weights and design choices are the primary fitted elements.

free parameters (1)

Network architecture hyperparameters and weights
Trained parameters of the UNet, alignment, and distillation components tuned to the hexadeca-Bayer domain.

axioms (2)

domain assumption Convolutional networks can learn effective latent-space alignment and fusion for burst images
Invoked in the design of the pyramid align and fusion module.
domain assumption Two-step knowledge distillation reduces domain gap between synthetic and real data
Assumed to enable real-time mobile performance.

invented entities (1)

LatentBurst network no independent evidence
purpose: Perform joint demosaicing, denoising, fusion and super-resolution for hexadeca-Bayer bursts
Newly proposed end-to-end architecture.

pith-pipeline@v0.9.0 · 5527 in / 1356 out tokens · 29280 ms · 2026-05-08T08:44:02.144000+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

34 extracted references · 2 canonical work pages · 1 internal anchor

[1]

Ignatov, N

A. Ignatov, N. Kobyshev, R. Timofte, and K. Vanhoey. DSLR-quality photos on mobile devices with deep convolutional networks. In ICCV, 2017

2017
[2]

M. Kwon, I. Ha, Y. Kim, et al. 0.64 𝜇m 200 MP Stacked CIS with switchable pixel resolution. In Proceedings of the International Image Sensor Workshop, 2023

2023
[3]

Kazmi, E

A. Kazmi, E. Smith, A. Amer,M. Hafez, and A. Solyman . Comparative image analysis of apple and samsung devices: a technical perspective. In EICEEAI, 2023

2023
[4]

Joo and H

J. Joo and H. Alisafaee . Optimization of a mobile phone camera for as-built performance. In Current Develop-ments in Lens Design and Optical Engineering XXI, 2020

2020
[5]

G. Bhat, M. Danelljan, F. Yu, L. Van Gool, and R. Timofte. Deep reparametrization of multi-frame super-resolution and denoising. In ICCV, 2021

2021
[6]

Z. Luo, L. Yu, X. Mo, Y. Li, L. Jia, H. Fan, J. Sun, and S. Liu. EBSR: feature enhanced burst super -resolution with deformable alignment. In CVPRW, 2021

2021
[7]

Z. Luo, Y. Li, S. Cheng, L. Yu, Q. Wu, Z. Wen, H. Fan, J. Sun, and S. Liu. BSRT: Improving burst super -resolution with swin transformer and flow -guided deformable alignment. In CVPRW, 2022

2022
[8]

Dudhane, S

A. Dudhane, S. W. Zamir, S. Khan, F. S. Khan, and M. Yang. Burst image restoration and enhancement. In CVPR, 2022

2022
[9]

Dudhane, S

A. Dudhane, S. W. Zamir, S. Khan, F. S. Khan, and M. Yang. Burstormer: Burst image restoration and enhancement transformer. In CVPR, 2023

2023
[10]

E. Kang, B. Lee, S. Im, and K. H. Jin, BurstM: Deep burst multi-scale SR using fourier space with optical flow. In ECCV, 2024

2024
[11]

I. Kim, S. Song, S. Chang, S. Lim, and K. Guo, Deep image demosaicing for submicron image sensors . Journal of Imaging Science and Technology, 2019

2019
[12]

S. M. A. Sharif, R. A. Naqvi, and M. Biswas, Beyond joint demosaicking and denoising: An image processing pi peline for a pixel-bin image sensor. In CVPRW, 2021

2021
[13]

M. Cho, H. Lee, H. Je, K. Kim, D. Ryu, and A. No. Pynet- q×q: an efficient pynet variant for q×q bayer pattern demosaicing in cmos image sensors. IEEE Access, 2023

2023
[14]

Ignatov, R

A. Ignatov, R. Timofte, S. Liu, et al. Learned smart -phone ISP on mobile GPUs with deep learning, mobile AI & AIM 2022 challenge: report. In ECCV, 2023

2022
[15]

Conde, R

M. Conde, R. Timofte, Z. Lu, et al. NTIRE 2025 challenge on RAW Image Restoration and Super -Resolution. In CVPRW, 2025

2025
[16]

C. Dong, C. C. Loy, K. He, and X. Tang . Image super - resolution using deep convolutional networks. IEEE TPAMI, 2016

2016
[17]

Ranjan and M

A. Ranjan and M. J. Black, Optical flow estimation using a spatial pyramid network. In CVPR, 2017

2017
[18]

CK Chan, X

K. CK Chan, X. Wang, K. Yu, C. Dong, C. C. Loy. Basicvsr: The search for essential components in video super - resolution and beyond. In CVPR, 2021

2021
[19]

W. S. Lai, J. B. Huang , N. Ahuja , M. H. Yang. Deep laplacian pyramid networks for fast and accurate super - resolution. In CVPR, 2017

2017
[20]

Simonyan, A

K. Simonyan, A. Zisserman, Two-stream convoluti-onal networks for action recognition in videos. In NeurIPS, 2014

2014
[21]

Ranjan, M

A. Ranjan, M. J. Black. Optical flow estimation using a spatial pyramid network. In CVPR, 2017

2017
[22]

D. Sun, X. Yang, M. Y. Liu, J. Kautz. Pwc-net: Cnns for optical flow using pyramid, warping, and cost volume. In CVPR, 2018

2018
[23]

Teed and J

Z. Teed and J. Deng. Raft: Recurrent all -pairs field transforms for optical flow. In ECCV, 2020

2020
[24]

Zagoruyko and N

S. Zagoruyko and N. Komodakis, Paying more attention to attention: Improving the performance of convolutional neural networks via attention transfer. In ICLR, 2017

2017
[25]

R. Anil, G. Pereyra, A. Passos, R. Ormandi, G. E. Dahl, and G. E. Hinton. Large scale distributed neural network training through online distillation. arXiv:1804.03235, 2018

work page arXiv 2018
[26]

D. Chen, J. P. Mei, C. Wang, Y. Feng, and C. Chen, Online knowledge distillation with diverse peers. In AAAI, 2020

2020
[27]

Q. Guo, X. Wang, Y. Wu, Z. Yu, D. Liang, X. Hu, and P. Luo, Online knowledge distillation via collaborative learning. In CVPR, 2020

2020
[28]

Chung, S

I. Chung, S. Park, J. Kim, and N. Kwak, Feature -map-level online adversarial knowledge distillation. In ICML, 2020

2020
[29]

S. Du, S. You, X. Li, J. Wu, F. Wang, C. Qian, and C. Zhang, Agree to disagree: Adaptive ensemble knowledge distillation in gradient space. In NeurIPS, 2020

2020
[30]

T. Xue, B. Chen, J. Wu, D. Wei, and W. T. Freeman. Video enhancement with task -oriented flow. Inter-national Journal of Computer Vision, 2019

2019
[31]

Brooks, B

T. Brooks, B. Mildenhall, T. Xue, J. Chen, D. Sharlet, and J. T. Barron, Unprocessing images for learned raw denoising. In CVPR, 2019

2019
[32]

Bychkovsky, S

V. Bychkovsky, S. Paris, E. Chan, and F. Durand. Learning photographic global tonal adjustment with a database of input/output image pairs. In CVPR, 2011

2011
[33]

Decoupled Weight Decay Regularization

I. Loshchilov and F . Hutter. Decoupled weight decay regularization. arXiv:1711.05101, 2017

work page internal anchor Pith review arXiv 2017
[34]

CIE Publication No

CIE, Colorimetry, 3rd edition. CIE Publication No. 15, 2004

2004
