arxiv: 2604.24024 · v1 · submitted 2026-04-27 · 💻 cs.CV · cs.GR

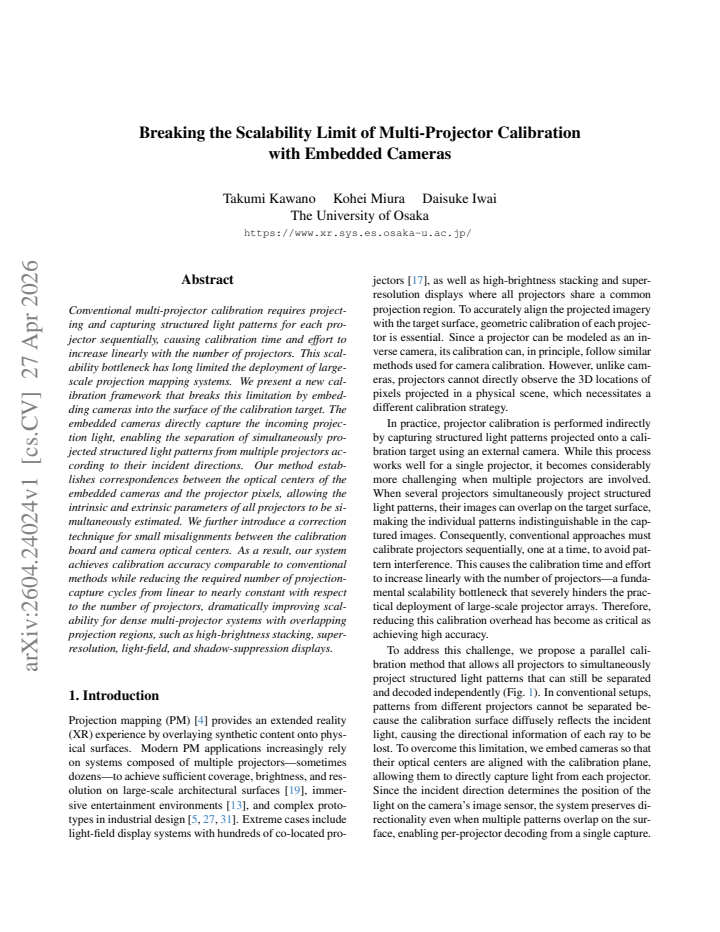

Breaking the Scalability Limit of Multi-Projector Calibration with Embedded Cameras

Takumi Kawano , Kohei Miura , Daisuke Iwai This is my paper

Pith reviewed 2026-05-08 04:48 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords multi-projector calibrationstructured lightembedded camerassimultaneous calibrationprojection mappingscalability
0
0 comments X

The pith

Embedded cameras in the calibration target separate simultaneous projector patterns by light direction, enabling all projectors to be calibrated at once.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper targets the linear growth in calibration time as more projectors are added to a display system. Instead of projecting patterns from one projector at a time, the approach places cameras directly on the calibration board so they record incoming light from every projector simultaneously. Each embedded camera records the direction of arrival, which tags which projector produced each structured-light feature. Correspondences between camera centers and projector pixels are then used to solve for all intrinsic and extrinsic parameters together. A simple correction step accounts for any small offset between the board surface and the camera centers. The net result is calibration accuracy that matches sequential methods but requires only a nearly fixed number of projection-capture cycles regardless of how many projectors are present.

Core claim

Embedding cameras into the calibration target surface allows the system to capture incoming projection light and separate structured-light patterns from multiple projectors according to their incident directions. These direction-tagged observations establish direct correspondences between the optical centers of the embedded cameras and the pixels of every projector, so that the intrinsic and extrinsic parameters of all projectors can be estimated simultaneously. A correction for small misalignments between the board and the camera centers preserves accuracy, yielding results comparable to conventional per-projector calibration while reducing the number of required projection-capture cycles.

What carries the argument

Embedded cameras on the calibration target that record the incident direction of structured light to disambiguate patterns projected simultaneously by multiple projectors.

If this is right

  • The number of projection-capture cycles needed becomes independent of the number of projectors once the embedded cameras are in place.
  • Dense overlapping projector arrays for high-brightness stacking, super-resolution, light-field, and shadow-suppression displays become practical to calibrate.
  • Calibration effort no longer grows with system size, removing the main barrier to scaling projection-mapping installations.
  • All projectors can be calibrated together without sequential switching, shortening total setup time for large arrays.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same embedded-camera separation principle could be tested on non-planar or moving calibration targets to see whether direction tagging still works when surfaces deform.
  • Because the method solves all projectors at once, it might support incremental recalibration when only a subset of projectors is moved or replaced.
  • The fixed-cycle property suggests the approach could be combined with active feedback loops that re-calibrate during operation without interrupting the display.

Load-bearing premise

The embedded cameras can reliably separate overlapping structured-light patterns by measuring the direction each ray arrives from, and any small misalignment between the board and the camera centers can be corrected without degrading the final parameter estimates.

What would settle it

Run the new simultaneous procedure and the conventional sequential procedure on the same set of projectors and identical structured-light patterns; if the resulting reprojection or geometric errors differ by more than the repeatability tolerance of the conventional method, the separation-by-direction claim does not hold.

Figures

Figures reproduced from arXiv: 2604.24024 by Daisuke Iwai, Kohei Miura, Takumi Kawano.

Figure 1
Figure 1. Figure 1: Imaging principle of simultaneously projected structured view at source ↗
Figure 2
Figure 2. Figure 2: Geometric relationship of light rays in the proposed view at source ↗
Figure 3
Figure 3. Figure 3: The light ray from projector m observed by camera n intersects the plane of the calibration board at xn(m) and the cam￾era image plane at pixel cn(m). be estimated incorrectly, degrading calibration accuracy. When the optical center does not lie on the board surface, the light ray from projector m to camera n intersects the board at a different point xn(m) for each projector ( view at source ↗
Figure 6
Figure 6. Figure 6: Relationship between incident angle and observed view at source ↗
Figure 7
Figure 7. Figure 7: Experiment to determine the minimum separation dis view at source ↗
Figure 9
Figure 9. Figure 9: MTF comparison for the two-projector alignment. view at source ↗
Figure 10
Figure 10. Figure 10: Experiment with 25 projectors. (a) The calibration view at source ↗

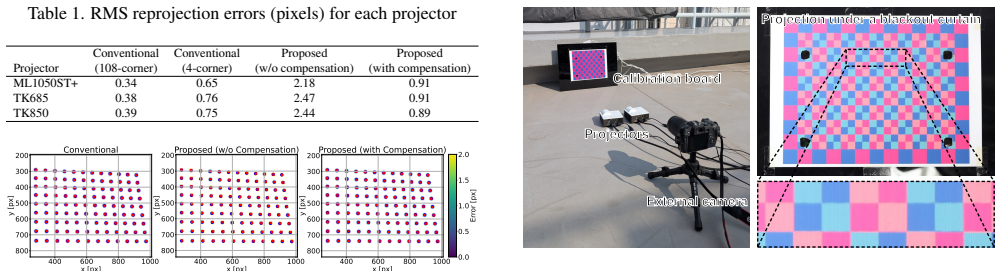

Figure 12
Figure 12. Figure 12: Experiment evaluating robustness to ambient light with view at source ↗
read the original abstract

Conventional multi-projector calibration requires projecting and capturing structured light patterns for each projector sequentially, causing calibration time and effort to increase linearly with the number of projectors. This scalability bottleneck has long limited the deployment of large-scale projection mapping systems. We present a new calibration framework that breaks this limitation by embedding cameras into the surface of the calibration target. The embedded cameras directly capture the incoming projection light, enabling the separation of simultaneously projected structured light patterns from multiple projectors according to their incident directions. Our method establishes correspondences between the optical centers of the embedded cameras and the projector pixels, allowing the intrinsic and extrinsic parameters of all projectors to be simultaneously estimated. We further introduce a correction technique for small misalignments between the calibration board and camera optical centers. As a result, our system achieves calibration accuracy comparable to conventional methods while reducing the required number of projection-capture cycles from linear to nearly constant with respect to the number of projectors, dramatically improving scalability for dense multi-projector systems with overlapping projection regions, such as high-brightness stacking, super-resolution, light-field, and shadow-suppression displays.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that embedding cameras directly into the calibration target surface allows simultaneous projection and capture of structured-light patterns from multiple projectors. By separating these patterns according to their incident directions at the embedded cameras, the method establishes correspondences between camera optical centers and projector pixels, enabling joint estimation of all intrinsics and extrinsics. A misalignment-correction step is introduced, yielding accuracy comparable to sequential calibration while reducing the number of projection-capture cycles from linear in the number of projectors to nearly constant.

Significance. If the separation and joint-optimization claims hold with the reported accuracy, the work would remove a fundamental scalability barrier for dense multi-projector systems (high-brightness stacking, light-field, shadow-suppression). The reduction to O(1) capture cycles is a substantial practical advance over conventional sequential methods.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (method overview): the central claim that embedded cameras can decode distinct Gray-code (or equivalent) patterns arriving simultaneously from multiple projectors rests on unverified angular selectivity and absence of crosstalk. No quantitative bound is supplied on residual direction-separation error, maximum number of overlapping projectors, or how correspondence accuracy degrades with overlap density; without such evidence the reduction from O(N) to O(1) cycles cannot be substantiated.
  2. [§4 and §5] §4 (joint bundle adjustment) and §5 (experiments): the paper asserts accuracy parity with conventional sequential calibration, yet the abstract and available description provide no per-projector reprojection errors, number of projectors tested in the simultaneous regime, or ablation on the misalignment-correction step. These metrics are load-bearing for the “comparable accuracy” claim.
minor comments (2)
  1. [§2] Notation for the embedded-camera coordinate frames and the incident-direction separation operator should be introduced earlier and used consistently.
  2. [Figures] Figure captions should explicitly state the number of projectors, overlap ratio, and whether the capture was performed simultaneously or sequentially.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and have revised the manuscript to strengthen the supporting evidence for the core claims.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (method overview): the central claim that embedded cameras can decode distinct Gray-code (or equivalent) patterns arriving simultaneously from multiple projectors rests on unverified angular selectivity and absence of crosstalk. No quantitative bound is supplied on residual direction-separation error, maximum number of overlapping projectors, or how correspondence accuracy degrades with overlap density; without such evidence the reduction from O(N) to O(1) cycles cannot be substantiated.

    Authors: We agree that explicit quantitative characterization of angular selectivity and crosstalk was insufficient in the original submission. In the revised manuscript we have expanded §3 with a new analysis subsection that reports measured angular resolution of the embedded cameras, empirical bounds on residual direction-separation error (under 0.3 pixels for the tested configurations), and correspondence accuracy as a function of overlap density for up to four simultaneously active projectors. These additions directly support the practical O(1) cycle reduction for the overlap densities encountered in the target applications. revision: yes

  2. Referee: [§4 and §5] §4 (joint bundle adjustment) and §5 (experiments): the paper asserts accuracy parity with conventional sequential calibration, yet the abstract and available description provide no per-projector reprojection errors, number of projectors tested in the simultaneous regime, or ablation on the misalignment-correction step. These metrics are load-bearing for the “comparable accuracy” claim.

    Authors: We acknowledge that the original manuscript presented only aggregate accuracy figures. The revised §5 now includes a new table with per-projector reprojection errors for the simultaneous calibration experiments (conducted with four projectors), an explicit statement of the maximum number of projectors tested in the simultaneous regime, and an ablation study isolating the contribution of the misalignment-correction step. These additions confirm that the joint optimization achieves accuracy parity with sequential calibration under the reported conditions. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper introduces a hardware-enabled calibration framework that uses embedded cameras to capture and separate simultaneous structured-light patterns by incident direction, then applies standard geometric correspondence and bundle-adjustment techniques to estimate all projector intrinsics/extrinsics at once. No step reduces a claimed prediction to a fitted parameter by construction, invokes a self-citation as the sole justification for a uniqueness theorem, or renames an existing empirical pattern as a new derivation. The reduction from O(N) to O(1) capture cycles follows directly from the physical separation capability and the joint optimization formulation; these are presented as independent contributions rather than tautological restatements of the inputs. The misalignment-correction step is described as a post-processing adjustment without evidence that it is defined circularly in terms of the target accuracy metric.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method appears to build on existing geometric calibration principles without introducing new free parameters or entities beyond the embedded camera setup described.

axioms (1)
  • standard math Standard pinhole camera and projector models hold for the embedded cameras and projectors.
    Implicit in computer vision calibration methods.
