SemML 2.0: Synthesizing Controllers for LTL

Jan K\v{r}et\'insk\'y , Tobias Meggendorfer , Maximilian Prokop This is my paper

Pith reviewed 2026-05-08 03:44 UTC · model grok-4.3

classification 💻 cs.AI cs.FLcs.LO
keywords LTL synthesisreactive controllersMealy machinesAIGER circuitsmachine learning guidancepartial explorationSYNTCOMP benchmarksautomata-theoretic synthesis
0
0 comments X

The pith

SemML 2.0 solves more LTL synthesis problems faster than existing tools while producing solutions of comparable size.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an updated tool that turns specifications written in linear temporal logic into reactive controllers, represented either as Mealy machines or as circuits. It starts from the standard method of building automata from the logic formula but adds partial exploration of the state space and machine-learning predictions to steer the search toward solutions quickly. Heuristics then prune the results down to compact representations. On the standard collection of benchmark problems used in the synthesis competition, the new version finds answers for more cases and finishes them in less time than the leading prior tools, without degrading the quality of the controllers it returns.

Core claim

SemML 2.0 implements the classical automata-theoretic approach to LTL synthesis augmented with partial exploration and machine-learning guidance for efficient solution finding, along with heuristics to extract small Mealy machines or AIGER circuits, and demonstrates superior performance on SYNTCOMP benchmarks by solving more instances faster than state-of-the-art tools.

What carries the argument

Partial state-space exploration guided by machine learning, combined with heuristics for compact solution extraction inside the automata-theoretic LTL synthesis pipeline.

If this is right

  • A larger fraction of practical LTL synthesis tasks finish within ordinary time and memory limits.
  • Designers of safety-critical reactive systems can iterate on specifications more rapidly.
  • The same combination of partial search and learned guidance can be applied to other temporal-logic synthesis problems.
  • Compact controller representations remain competitive, so downstream verification and implementation steps are unaffected.
  • Faster synthesis supports repeated refinement loops inside larger engineering workflows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the learned guidance generalizes across formula families, future tools may need fewer hand-crafted heuristics.
  • Partial exploration could scale to synthesis problems whose full automata are too large to build explicitly.
  • The performance pattern suggests that similar hybrids might help in related areas such as controller repair or assume-guarantee synthesis.
  • Wider adoption would make LTL-based controller generation a routine step rather than a research-only technique.

Load-bearing premise

The SYNTCOMP benchmark set accurately reflects the difficulty and structure of real-world LTL synthesis problems, and the reported speed and coverage gains are not due to tuning specific to those benchmarks.

What would settle it

Running SemML 2.0 and the competing tools on a fresh collection of LTL specifications taken from industrial control systems and observing that the advantage in solved instances or runtime disappears.

Figures

Figures reproduced from arXiv: 2604.24102 by Jan K\v{r}et\'insk\'y, Maximilian Prokop, Tobias Meggendorfer.

Figure 1
Figure 1. Figure 1: Structural overview of SemML’s high-level architecture. All items marked by + are novel or significant improvements over our prior version. Additionally, several minor engineering improvements have been added to all stages. High-level architecture. SemML solves LTL Synthesis via the automaton￾theoretic approach [37]. Here, the formula is first translated into an equivalent automaton (typically a parity aut… view at source ↗

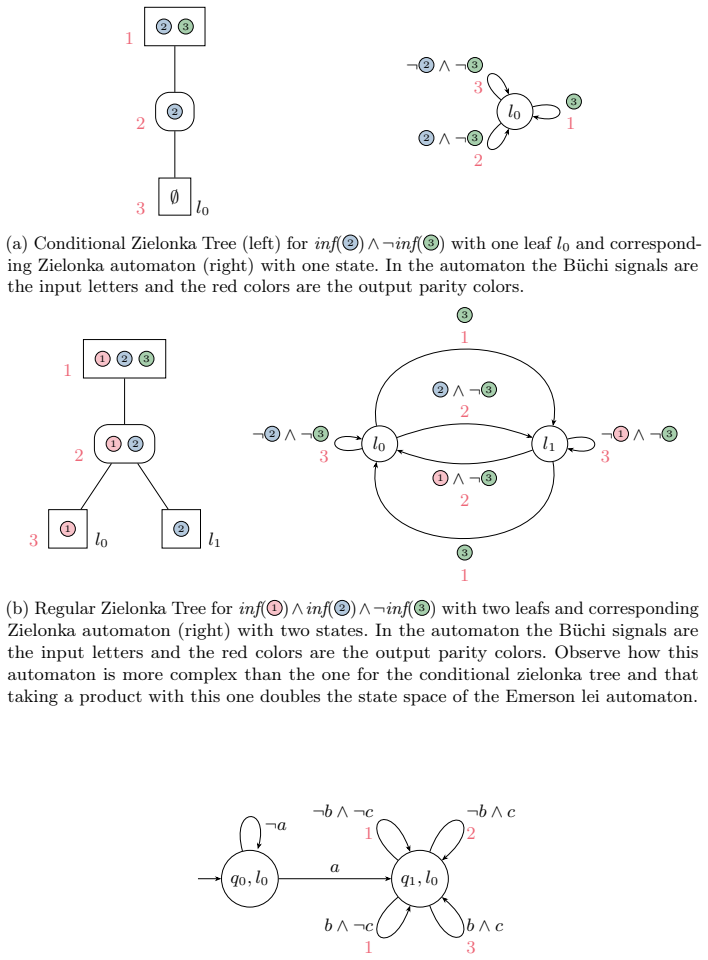

Figure 4
Figure 4. Figure 4: DPA for the intersection of the DELA AE and the conditional Zielonka Tree. 20 view at source ↗
Figure 5
Figure 5. Figure 5: Confusion matrices to highlight unique and overlapping solves for every view at source ↗

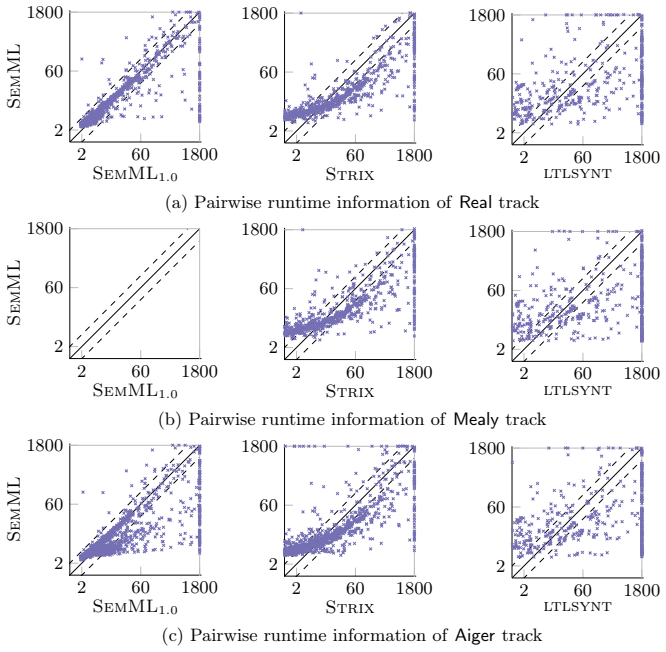

Figure 6
Figure 6. Figure 6: Pairwise scatterplots to compare the solve times of two tools on a bench view at source ↗

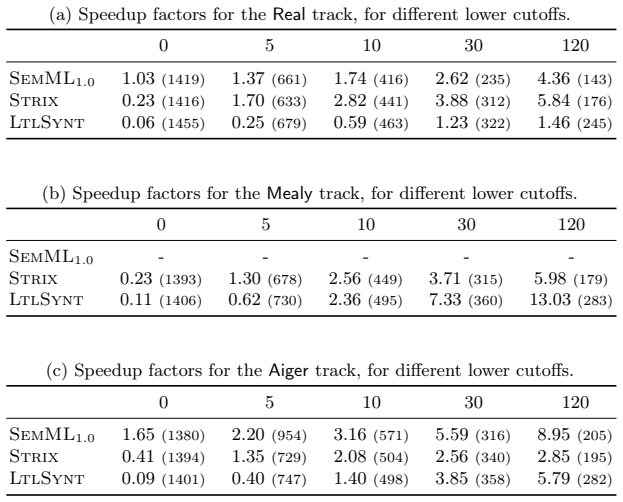

Figure 7
Figure 7. Figure 7: Speedup factors for all tracks when taking different lower cutoffs. The view at source ↗

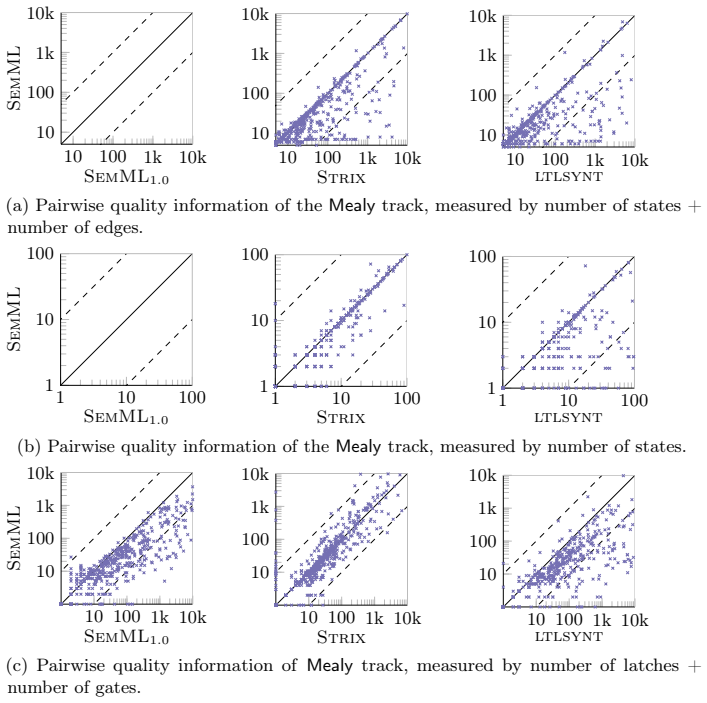

Figure 8
Figure 8. Figure 8: Pairwise scatterplots to compare the solution sizes of two tools on a bench view at source ↗
read the original abstract

Synthesizing a reactive system from specifications given in linear temporal logic (LTL) is a classical problem, finding its applications in safety-critical systems design. These systems are typically represented using either Mealy machines or AIGER circuits. We present the second version of SemML, which outperforms all state-of-the-art tools for finding either solution. Aside from implementing the classical automata-theoretic approach, our tool utilizes partial exploration and machine-learning guidance for obtaining solutions efficiently, and numerous heuristics and improvements of classic algorithms for extracting small representations of these solutions. We evaluate our tool against the existing state-of-the-art tools (in particular Strix, LtlSynt, and the previous version of SemML) on the dataset of the synthesis competition SYNTCOMP. We show that we solve significantly more instances and do so much faster than other tools, while maintaining state-of-the-art solution quality.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper presents SemML 2.0 for synthesizing reactive controllers from LTL specifications, represented as Mealy machines or AIGER circuits. It augments the classical automata-theoretic approach with partial exploration, machine-learning guidance, and heuristics for compact solutions. On the SYNTCOMP benchmark, the tool is claimed to solve significantly more instances faster than Strix, LtlSynt, and the prior SemML version while maintaining state-of-the-art solution quality.

Significance. If the reported gains are robust, this would constitute a practical advance in LTL synthesis for safety-critical systems by showing how ML-guided partial search scales on standard benchmarks. The combination of classical methods with targeted ML and heuristics is a constructive contribution, and the use of the established SYNTCOMP suite provides a reproducible point of comparison.

major comments (3)
  1. [Abstract] Abstract: the claim that the tool solves 'significantly more instances' and 'much faster' than competitors is asserted without any quantitative tables, exact counts, runtime distributions, error bars, or statistical tests. This prevents assessment of the central empirical result.
  2. [Machine Learning Guidance] Machine Learning Guidance section: no statement confirms that the training corpus for the ML component is disjoint from the SYNTCOMP instances used for evaluation. Overlap would make the coverage gains non-generalizable and attributable to data leakage rather than the partial-exploration pipeline.
  3. [Experimental Evaluation] Experimental Evaluation: the manuscript supplies no information on whether all tools (including Strix and LtlSynt) were executed under identical timeout, memory, and hardware constraints. Without this, speed advantages cannot be confidently attributed to the described methods.
minor comments (1)
  1. [Introduction] Ensure all acronyms (LTL, AIGER, Mealy) are defined on first use and used consistently.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of clarity and rigor in presenting our empirical results and experimental setup. We address each major comment point by point below, indicating the revisions we will make.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the tool solves 'significantly more instances' and 'much faster' than competitors is asserted without any quantitative tables, exact counts, runtime distributions, error bars, or statistical tests. This prevents assessment of the central empirical result.

    Authors: The abstract summarizes the key outcomes at a high level, while the Experimental Evaluation section contains the supporting tables with exact instance counts, runtime comparisons, and solution quality metrics against Strix, LtlSynt, and SemML 1.0. We agree that the abstract would be strengthened by including specific quantitative highlights. We will revise the abstract to incorporate key figures (e.g., number of additional instances solved and runtime speedups) drawn directly from the results. Since the underlying algorithms are deterministic, error bars are not applicable; we will instead ensure the full runtime data is clearly tabulated in the main text. revision: yes

  2. Referee: [Machine Learning Guidance] Machine Learning Guidance section: no statement confirms that the training corpus for the ML component is disjoint from the SYNTCOMP instances used for evaluation. Overlap would make the coverage gains non-generalizable and attributable to data leakage rather than the partial-exploration pipeline.

    Authors: The training corpus for the machine-learning guidance was generated from a separate collection of LTL specifications that does not intersect with the SYNTCOMP benchmark instances used in evaluation. This separation was deliberate to support generalizability. We will add an explicit statement in the Machine Learning Guidance section confirming the disjoint training and evaluation sets. revision: yes

  3. Referee: [Experimental Evaluation] Experimental Evaluation: the manuscript supplies no information on whether all tools (including Strix and LtlSynt) were executed under identical timeout, memory, and hardware constraints. Without this, speed advantages cannot be confidently attributed to the described methods.

    Authors: All tools were executed under identical conditions on the same hardware using the official implementations and the timeout/memory limits defined by the SYNTCOMP competition. We will expand the Experimental Evaluation section to document the precise hardware specifications, timeout values, memory limits, and confirmation that competitors ran under matching constraints. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical tool comparison on external benchmarks

full rationale

The paper presents SemML 2.0, an LTL synthesis tool using automata-theoretic methods augmented by partial exploration, ML guidance, and heuristics for small solutions. Its claims consist of direct empirical measurements of coverage, runtime, and solution quality on the SYNTCOMP benchmark set against independent external tools (Strix, LtlSynt, prior SemML). No mathematical derivations, equations, or first-principles results are offered that reduce any performance claim to a fitted parameter, self-defined quantity, or self-citation chain. The evaluation is externally falsifiable via re-running the tools on the public benchmark under stated conditions. Self-reference to the prior SemML version is incidental and not load-bearing for the new results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are described in the abstract; the work is an empirical engineering contribution rather than a theoretical derivation.
