arxiv: 2604.24187 · v1 · submitted 2026-04-27 · 💻 cs.CV

Multivariate Gaussian NeRF for Wide Field-of-View Ultrasound Reconstruction

Patris Valera , Magdalena Wysocki , Felix Duelmer , Mohammad Farid Azampour , Sebastian Herz , Stefan W\"orz , Nassir Navab This is my paper

Pith reviewed 2026-05-08 04:30 UTC · model grok-4.3

classification 💻 cs.CV
keywords ultrasound reconstructionneural radiance fields3D Gaussianswide field-of-viewconvex probesnovel view synthesisanti-aliasingintracardiac echocardiography
0
0 comments X

The pith

Ultra-Wide-NeRF models convex ultrasound beams with anisotropic 3D Gaussians to reduce stitching artifacts and enable continuous novel-view synthesis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Ultra-Wide-NeRF, a neural radiance field variant that reconstructs wide field-of-view 3D ultrasound volumes from convex-probe sweeps. Standard stitching creates visible compounding artifacts and aliasing because resolution changes with depth in diverging beams. The method instead uses distance-dependent convex volumetric sampling together with anisotropic 3D Gaussians to represent the beam geometry explicitly. This produces a continuous tissue representation rather than a fixed voxel grid. The result is relevant for intracardiac echocardiography because it supplies expanded anatomical context useful for navigation and segmentation on both phantom and porcine data.

Core claim

Ultra-Wide-NeRF is a Multivariate 3D Gaussian NeRF-based method for WFoV ultrasound reconstruction. By explicitly modeling the complex beam geometry using distance-dependent convex volumetric sampling and anisotropic 3D Gaussians, the method inherently mitigates compounding artifacts and provides anti-aliasing. It yields a continuous neural representation of the tissue, enabling the synthesis of high-fidelity novel views from arbitrary virtual trajectories.

What carries the argument

Multivariate 3D Gaussian (MVG) NeRF that employs distance-dependent convex volumetric sampling and anisotropic 3D Gaussians to represent the expanding acoustic beams of convex ultrasound probes.

If this is right

  • Compounding artifacts are reduced because beam divergence is modeled rather than approximated after acquisition.
  • Anti-aliasing emerges automatically from the anisotropic Gaussian representation.
  • High-fidelity images can be generated along arbitrary trajectories not present in the original sweeps.
  • Expanded spatial context becomes available for intraoperative navigation in intracardiac echocardiography.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The continuous representation could support direct querying for real-time view synthesis during procedures without re-acquiring data.
  • The same beam-geometry modeling might transfer to other modalities that use diverging fields, such as certain optical or radar systems.
  • Downstream segmentation models could operate directly on the neural field to avoid discrete voxel artifacts.

Load-bearing premise

That the chosen anisotropic 3D Gaussians and convex sampling accurately capture ultrasound beam physics and tissue properties without needing extensive per-dataset tuning or extra priors.

What would settle it

Direct quantitative comparison on the same phantom and porcine sweeps showing no measurable drop in visible stitching lines, aliasing, or improvement in novel-view PSNR when switching from standard compounding to Ultra-Wide-NeRF would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.24187 by Felix Duelmer, Magdalena Wysocki, Mohammad Farid Azampour, Nassir Navab, Patris Valera, Sebastian Herz, Stefan W\"orz.

Figure 1
Figure 1. Figure 1: Overview of the proposed method for unified, WFoV Volume Recon view at source ↗

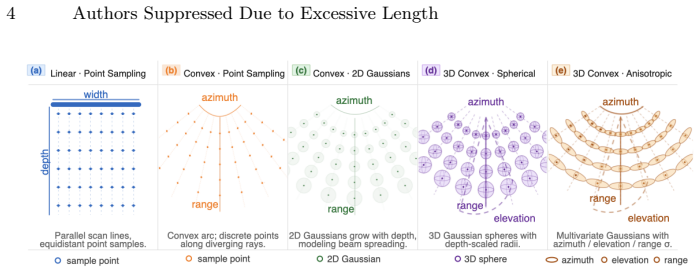

Figure 2
Figure 2. Figure 2: Ultrasound beam sampling strategies. (a) view at source ↗

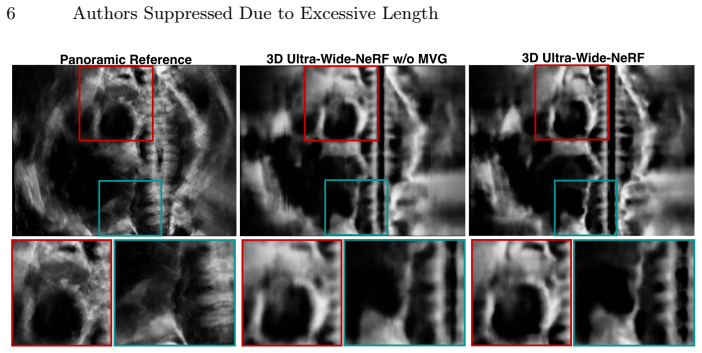

Figure 3
Figure 3. Figure 3: Comparison of WFOV Panoramic ICE Volume Reconstruction using view at source ↗

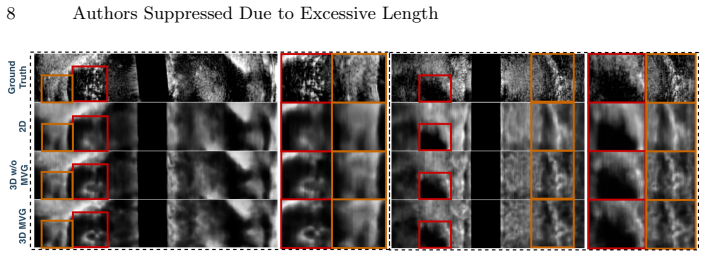

Figure 4
Figure 4. Figure 4: Qualitative comparison of held-out ICE volume reconstruction across view at source ↗
Figure 5
Figure 5. Figure 5: Novel view B-mode synthesis using Ultra-Wide-NeRF. view at source ↗
read the original abstract

Wide Field-of-View (WFoV) reconstruction enhances 3D ultrasound imaging by providing valuable anatomical context for segmentation models and visualization. Clinical ultrasound volumes are predominantly acquired using convex probes, which generate expanding, diverging acoustic beams to maximize anatomical coverage. Stitching these sweeps together traditionally introduces significant compounding artifacts and aliasing due to depth-dependent resolution changes. Here, we introduce Ultra-Wide-NeRF, a Multivariate 3D Gaussian (MVG) NeRF-based method for WFoV ultrasound reconstruction. By explicitly modeling the complex beam geometry using distance-dependent convex volumetric sampling and anisotropic 3D Gaussians, our method inherently mitigates these compounding artifacts and provides anti-aliasing. Beyond simply reconstructing a static 3D grid, our NeRF-based approach yields a continuous neural representation of the tissue, enabling the synthesis of high-fidelity novel views from arbitrary virtual trajectories. We validate Ultra-Wide-NeRF for intracardiac echocardiography on phantom and porcine datasets, demonstrating that our method expands the spatial context important in intraoperative navigation. Code will be open-sourced upon publication.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper introduces Ultra-Wide-NeRF, a Multivariate 3D Gaussian (MVG) NeRF-based method for wide field-of-view (WFoV) ultrasound reconstruction from convex probes. By modeling the beam geometry with distance-dependent convex volumetric sampling and anisotropic 3D Gaussians, it aims to mitigate compounding artifacts and aliasing, while providing a continuous neural representation for novel view synthesis. The method is validated on phantom and porcine intracardiac echocardiography datasets to demonstrate expanded spatial context for intraoperative navigation.

Significance. If the results hold, this work could significantly impact clinical 3D ultrasound imaging by improving reconstruction quality for wide fields of view, which is crucial for providing anatomical context in procedures like intracardiac echocardiography. The continuous representation and anti-aliasing properties represent a step forward from traditional stitching methods. The commitment to open-sourcing the code is a strength for reproducibility in the field.

minor comments (1)
  1. The abstract mentions validation on phantom and porcine datasets but does not specify the quantitative metrics used or the baselines compared against, which would strengthen the presentation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of Ultra-Wide-NeRF, the recognition of its potential clinical impact on wide field-of-view ultrasound reconstruction, and the recommendation for minor revision. We are pleased that the continuous neural representation and anti-aliasing properties were noted as advances over traditional stitching methods.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained modeling choice

full rationale

The abstract and available description present Ultra-Wide-NeRF as a direct modeling extension of NeRF using distance-dependent convex volumetric sampling and anisotropic 3D Gaussians to address ultrasound-specific beam geometry. No equations, fitted parameters renamed as predictions, or self-citation chains are exhibited that reduce the central claim (mitigation of compounding artifacts via explicit geometry modeling) to its own inputs by construction. The approach is described as a design decision that inherently provides anti-aliasing and continuous representation, without load-bearing steps that loop back to fitted data or prior author results as the sole justification. This is the common case of an independent technical contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The claim depends on the domain assumption about beam geometry modeling and the introduction of a new entity without external validation in the abstract.

axioms (1)
  • domain assumption Convex ultrasound probes generate expanding diverging acoustic beams that can be modeled with distance-dependent volumetric sampling.
    Central to the method's ability to mitigate artifacts.
invented entities (1)
  • Multivariate 3D Gaussian (MVG) NeRF no independent evidence
    purpose: To provide a continuous neural representation of ultrasound tissue with anti-aliasing properties.
    Introduced as the core of the new method.
