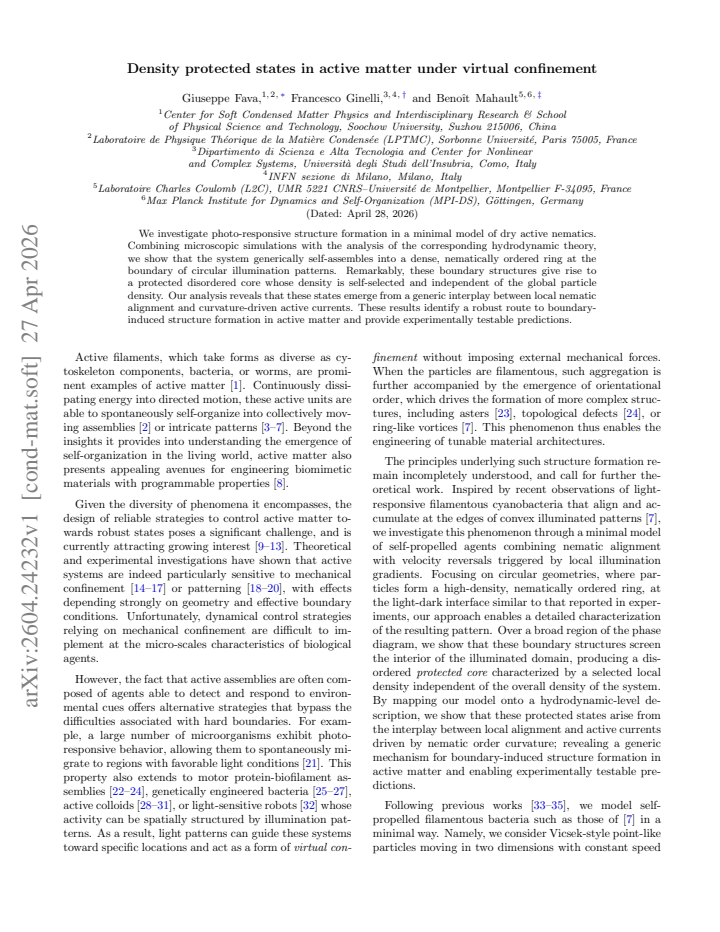

Density protected states in active matter under virtual confinement

Pith reviewed 2026-05-07 17:38 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords active nematicsvirtual confinementdensity protectionboundary ringscurvature-driven currentsphoto-responsivedisordered corenematic order
0
0 comments X

The pith

Dry active nematics under circular virtual confinement self-assemble into dense boundary rings that enclose a disordered core with self-selected density independent of global particle number.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a minimal model of dry active nematics, when placed under circular illumination patterns that create virtual confinement, spontaneously forms a dense nematically ordered ring at the boundary. This ring in turn shields an internal disordered region whose particle density is fixed by the local dynamics and does not change when the overall number of particles is varied. The structures arise because nematic alignment interacts with curvature-induced active flows that sustain the boundary while leaving the core unaffected. A sympathetic reader would care because the result supplies a parameter-free way to create protected internal regions in active systems using only light patterns, without physical walls.

Core claim

In a minimal model of dry active nematics subject to circular illumination patterns that induce virtual confinement, the particles generically form a dense nematically ordered ring at the boundary. This boundary structure encloses a protected disordered core whose density is self-selected by the dynamics and remains independent of the global particle density. The states arise from the generic interplay between local nematic alignment and curvature-driven active currents.

What carries the argument

The interplay between local nematic alignment and curvature-driven active currents within the hydrodynamic description of dry active nematics under spatially modulated activity.

If this is right

  • The density inside the protected core is determined solely by local alignment and flow parameters rather than by the average particle density.
  • Dense ordered rings appear generically at the edges of any circular virtual confinement region once activity exceeds a threshold.
  • The mechanism supplies a robust, boundary-driven route to structure formation that does not require physical walls or external templates.
  • The predictions are directly testable in experiments that use light to control the activity of nematic particles.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same balance of alignment and curvature currents could produce analogous protected regions for non-circular illumination shapes, provided the boundary curvature is sufficient.
  • Varying the radius of the illumination circle should alter the core density in a manner predictable from the curvature term alone.
  • The protected core offers a possible design element for active-matter devices that require stable low-density zones for particle transport or chemical reactions.

Load-bearing premise

The minimal model of dry active nematics together with its hydrodynamic theory captures the essential physics of the photo-responsive system and the observed states are not artifacts of the chosen parameters or simulation method.

What would settle it

A simulation or experiment in which the measured density inside the core increases or decreases when the total particle number is changed, while keeping the illumination pattern fixed, would falsify the self-selection claim.

Figures

Figures reproduced from arXiv: 2604.24232 by Beno\^it Mahault, Francesco Ginelli, Giuseppe Fava.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Experimental ring configuration formed by view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Stationary configurations at fixed global density view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) Radially averaged stationary density profiles for view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Stationary solutions of the continuum model ( view at source ↗
read the original abstract

We investigate photo-responsive structure formation in a minimal model of dry active nematics. Combining microscopic simulations with the analysis of the corresponding hydrodynamic theory, we show that the system generically self-assembles into a dense, nematically ordered ring at the boundary of circular illumination patterns. Remarkably, these boundary structures give rise to a protected disordered core whose density is self-selected and independent of the global particle density. Our analysis reveals that these states emerge from a generic interplay between local nematic alignment and curvature-driven active currents. These results identify a robust route to boundary-induced structure formation in active matter and provide experimentally testable predictions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper investigates photo-responsive structure formation in a minimal model of dry active nematics. Combining microscopic particle simulations with analysis of the corresponding hydrodynamic equations, it shows that circular illumination patterns generically induce a dense, nematically ordered ring at the boundary. This boundary structure encloses a protected disordered core whose density is self-selected by local alignment-curvature balance and remains independent of the global particle density. The states arise from the interplay of nematic ordering and curvature-driven active currents, with experimentally testable predictions.

Significance. If the central result holds, the identification of density-protected disordered cores provides a robust, boundary-induced mechanism for self-organized structure in active matter without physical walls. The combination of simulations and hydrodynamic theory, together with the parameter-independent core density, strengthens the claim and offers clear experimental implications for photo-tunable active systems. The work advances understanding of virtual confinement in active nematics.

major comments (2)
  1. [§4.2, Eq. (15)] §4.2, Eq. (15): the derivation of the core density from the divergence of active currents at the curved boundary assumes a sharp step-function in the photo-response (activity modulation). No robustness analysis is provided for smoothed illumination profiles, which would be required to confirm that the self-selected density remains independent of global particle number when the effective wall is not infinitely sharp.
  2. [§3.3, Fig. 4] §3.3, Fig. 4: the reported core-density independence is shown only for step-like illumination and a fixed range of activity strengths. Additional simulations with continuously varying nematic coupling or smoothed boundaries are needed to establish that the protection against back-diffusion and order penetration holds generically rather than as a feature of the minimal model discretization.
minor comments (2)
  1. The abstract and introduction use 'generically' without quantifying the parameter range over which the states persist; a brief statement of the explored activity and density windows would improve clarity.
  2. Notation for the hydrodynamic fields (e.g., Q-tensor components) is introduced in §2 but not consistently referenced in the simulation section; cross-referencing would aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our work. We address each of the major comments in detail below and have made revisions to the manuscript to strengthen the presentation and address the concerns.

read point-by-point responses
  1. Referee: [§4.2, Eq. (15)] §4.2, Eq. (15): the derivation of the core density from the divergence of active currents at the curved boundary assumes a sharp step-function in the photo-response (activity modulation). No robustness analysis is provided for smoothed illumination profiles, which would be required to confirm that the self-selected density remains independent of global particle number when the effective wall is not infinitely sharp.

    Authors: We agree that the analytical derivation in Eq. (15) assumes a sharp step-function for tractability when computing the divergence of active currents. The underlying mechanism, however, is the local balance between nematic alignment and curvature-induced flows, which remains valid for finite but sharp transitions. We have performed additional particle-based simulations employing smoothed illumination profiles (tanh transitions with widths ranging from 1 to 10 particle diameters). These confirm that the core density stays self-selected and independent of global density provided the transition width remains smaller than the nematic correlation length. The new results and a brief robustness discussion have been added to the revised §4.2, including an extra panel in the associated figure. revision: yes

  2. Referee: [§3.3, Fig. 4] §3.3, Fig. 4: the reported core-density independence is shown only for step-like illumination and a fixed range of activity strengths. Additional simulations with continuously varying nematic coupling or smoothed boundaries are needed to establish that the protection against back-diffusion and order penetration holds generically rather than as a feature of the minimal model discretization.

    Authors: Fig. 4 was chosen to illustrate the canonical step-like case clearly. To address generality, we have carried out further simulations in which the nematic coupling strength is varied continuously over a wide interval and in which the illumination boundary is smoothed. The dense boundary ring continues to protect a disordered core whose density is independent of global particle number, with negligible back-diffusion or order penetration. These extended data and a short discussion of parameter robustness are now included in the revised §3.3 and in an updated version of Fig. 4. revision: yes

Circularity Check

0 steps flagged

No circularity: core density independence emerges from hydrodynamic analysis

full rationale

The paper derives the boundary ring formation and protected disordered core with self-selected density from a combination of microscopic simulations of the minimal dry active nematics model and analysis of the corresponding hydrodynamic equations. The key result—that core density is independent of global particle number—arises from the divergence of active currents at the curved boundary due to the interplay of local nematic alignment and curvature, without reducing to a fitted parameter, self-definition, or load-bearing self-citation. The derivation is self-contained against the model's stated dynamics and does not rename known results or smuggle ansatzes via citation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract; no explicit free parameters, axioms, or invented entities are detailed. The model relies on standard assumptions of dry active nematics.

axioms (1)
  • domain assumption The system is described by a minimal model of dry active nematics without hydrodynamic interactions.
    Explicitly stated in the abstract as the framework used.

pith-pipeline@v0.9.0 · 5393 in / 1405 out tokens · 139262 ms · 2026-05-07T17:38:42.535271+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

46 extracted references · 46 canonical work pages

  1. [1]

    R. G. Winkler and G. Gompper, The physics of active polymers and filaments, J. Chem. Phys.153, 040901 (2020)

  2. [2]

    Schaller, C

    V. Schaller, C. Weber, C. Semmrich, E. Frey, and A. R. Bausch, Polar patterns of driven filaments, Nature467, 73 (2010)

  3. [3]

    F. J. Ndlec, T. Surrey, A. C. Maggs, and S. Leibler, Self- organization of microtubules and motors, Nature389, 305 (1997)

  4. [4]

    Sumino, K

    Y. Sumino, K. H. Nagai, Y. Shitaka, D. Tanaka, K. Yoshikawa, H. Chat´ e, and K. Oiwa, Large-scale vortex lattice emerging from collectively moving microtubules, Nature483, 448 (2012)

  5. [5]

    T. Sugi, H. Ito, M. Nishimura, and K. H. Nagai, C. el- egans collectively forms dynamical networks, Nat. Com- mun.10, 683 (2019)

  6. [6]

    M. K. Faluweki, J. Cammann, M. G. Mazza, and L. Goehring, Active spaghetti: Collective organization in cyanobacteria, Phys. Rev. Lett.131, 158303 (2023)

  7. [7]

    Kurjahn, L

    M. Kurjahn, L. Abbaspour, F. Papenfuß, P. Bittihn, R. Golestanian, B. Mahault, and S. Karpitschka, Collec- tive self-caging of active filaments in virtual confinement, Nat. Commun.15, 9122 (2024)

  8. [8]

    M. J. Bowick, N. Fakhri, M. C. Marchetti, and S. Ra- maswamy, Symmetry, thermodynamics, and topology in active matter, Phys. Rev. X12, 010501 (2022)

  9. [9]

    M. M. Norton, P. Grover, M. F. Hagan, and S. Fraden, Optimal control of active nematics, Phys. Rev. Lett.125, 178005 (2020)

  10. [10]

    S. Liu, S. Shankar, M. C. Marchetti, and Y. Wu, Vis- coelastic control of spatiotemporal order in bacterial ac- tive matter, Nature590, 80 (2021)

  11. [11]

    Shankar, A

    S. Shankar, A. Souslov, M. J. Bowick, M. C. Marchetti, and V. Vitelli, Topological active matter, Nat. Rev. Phys. 4, 380 (2022)

  12. [12]

    Shankar, L

    S. Shankar, L. V. D. Scharrer, M. J. Bowick, and M. C. Marchetti, Design rules for controlling active topological defects, Proc. Natl. Acad. Sci. U.S.A.121, e2400933121 (2024)

  13. [13]

    L. K. Davis, K. Proesmans, and E. Fodor, Active matter under control: Insights from response theory, Phys. Rev. X14, 011012 (2024)

  14. [14]

    Ben Dor, S

    Y. Ben Dor, S. Ro, Y. Kafri, M. Kardar, and J. Tailleur, Disordered boundaries destroy bulk phase separation in scalar active matter, Phys. Rev. E105, 044603 (2022)

  15. [15]

    Codina, B

    J. Codina, B. Mahault, H. Chat´ e, J. Dobnikar, I. Pago- nabarraga, and X.-q. Shi, Small obstacle in a large polar flock, Phys. Rev. Lett.128, 218001 (2022)

  16. [16]

    Lenzini, G

    L. Lenzini, G. Fava, and F. Ginelli, Boundary symmetry breaking of flocking systems, J. Stat. Mech.: Theory Exp. 2024(8), 083210

  17. [17]

    G. Fava, A. Gambassi, and F. Ginelli, Strong Casimir- like Forces in Flocking Active Matter, Phys. Rev. Lett. 133, 148301 (2024)

  18. [18]

    Kaiyrbekov, K

    K. Kaiyrbekov, K. Endresen, K. Sullivan, Z. Zheng, Y. Chen, F. Serra, and B. A. Camley, Migration and di- vision in cell monolayers on substrates with topological defects, Proc. Natl. Acad. Sci. U.S.A.120, e2301197120 (2023)

  19. [19]

    Z. Zhao, Y. Yao, H. Li, Y. Zhao, Y. Wang, H. Zhang, H. Chat´ e, and M. Sano, Integer topological defects reveal antisymmetric forces in active nematics, Phys. Rev. Lett. 133, 268301 (2024). 6

  20. [20]

    Z. Zhao, H. Li, Y. Yao, Y. Zhao, F. Serra, K. Kawaguchi, H. Zhang, and M. Sano, Integer topological defects offer a methodology to quantify and classify active cell mono- layers, Nat. Commun.16, 2452 (2025)

  21. [21]

    Wilde and C

    A. Wilde and C. W. Mullineaux, Light-controlled motil- ity in prokaryotes and the problem of directional light perception, FEMS Microbiol. Rev.41, 900 (2017)

  22. [22]

    Schuppler, F

    M. Schuppler, F. C. Keber, M. Kr¨ oger, and A. R. Bausch, Boundaries steer the contraction of active gels, Nat. Com- mun.7, 13120 (2016)

  23. [23]

    T. D. Ross, H. J. Lee, Z. Qu, R. A. Banks, R. Phillips, and M. Thomson, Controlling organization and forces in active matter through optically defined boundaries, Na- ture572, 224 (2019)

  24. [24]

    Zhang, S

    R. Zhang, S. A. Redford, P. V. Ruijgrok, N. Kumar, A. Mozaffari, S. Zemsky, A. R. Dinner, V. Vitelli, Z. Bryant, M. L. Gardel, and J. J. de Pablo, Spatiotem- poral control of liquid crystal structure and dynamics through activity patterning, Nat. Mater.20, 875 (2021)

  25. [25]

    J. Arlt, V. A. Martinez, A. Dawson, T. Pilizota, and W. C. K. Poon, Painting with light-powered bacteria, Nat. Commun.9, 768 (2018)

  26. [26]

    Frangipane, D

    G. Frangipane, D. Dell’Arciprete, S. Petracchini, C. Maggi, F. Saglimbeni, S. Bianchi, G. Vizsnyiczai, M. L. Bernardini, and R. Di Leonardo, Dynamic density shaping of photokineticE. coli, eLife7, e36608 (2018)

  27. [27]

    Massana-Cid, C

    H. Massana-Cid, C. Maggi, G. Frangipane, and R. Di Leonardo, Rectification and confinement of pho- tokinetic bacteria in an optical feedback loop, Nat. Com- mun.13, 2740 (2022)

  28. [28]

    Lozano, B

    C. Lozano, B. ten Hagen, H. L¨ owen, and C. Bechinger, Phototaxis of synthetic microswimmers in optical land- scapes, Nat. Commun.7, 12828 (2016)

  29. [29]

    N. A. S¨ oker, S. Auschra, V. Holubec, K. Kroy, and F. Ci- chos, How activity landscapes polarize microswimmers without alignment forces, Phys. Rev. Lett.126, 228001 (2021)

  30. [30]

    Alvarez, M

    L. Alvarez, M. A. Fernandez-Rodriguez, A. Alegria, S. Arrese-Igor, K. Zhao, M. Kr¨ oger, and L. Isa, Recon- figurable artificial microswimmers with internal feedback, Nat. Commun.12, 4762 (2021)

  31. [31]

    van Kesteren, L

    S. van Kesteren, L. Alvarez, S. Arrese-Igor, A. Alegria, and L. Isa, Self-propelling colloids with finite state dy- namics, Proc. Natl. Acad. Sci. U.S.A.120, e2213481120 (2023)

  32. [32]

    Mijalkov, A

    M. Mijalkov, A. McDaniel, J. Wehr, and G. Volpe, En- gineering sensorial delay to control phototaxis and emer- gent collective behaviors, Phys. Rev. X6, 011008 (2016)

  33. [33]

    Ginelli, F

    F. Ginelli, F. Peruani, M. B¨ ar, and H. Chat´ e, Large-Scale Collective Properties of Self-Propelled Rods, Phys. Rev. Lett.104, 184502 (2010)

  34. [34]

    Romanczuk, H

    P. Romanczuk, H. Chat´ e, L. Chen, S. Ngo, and J. Toner, Emergent smectic order in simple active particle models, New J. Phys.18, 063015 (2016)

  35. [35]

    Patelli, I

    A. Patelli, I. Djafer-Cherif, I. S. Aranson, E. Bertin, and H. Chat´ e, Understanding dense active nematics from mi- croscopic models, Phys. Rev. Lett.123, 258001 (2019)

  36. [36]

    Chat´ e, Dry aligning dilute active matter, Annu

    H. Chat´ e, Dry aligning dilute active matter, Annu. Rev. Condens. Matter Phys. , 182 (2020)

  37. [37]

    D. D. Risser, Motility in filamentous cyanobacteria, Annu. Rev. Microbiol.79, 69 (2025)

  38. [38]

    At least for the relatively small noise amplitudes consid- ered in this work

  39. [39]

    Ramaswamy, R

    S. Ramaswamy, R. A. Simha, and J. Toner, Active ne- matics on a substrate: Giant number fluctuations and long-time tails, EPL62, 196 (2003)

  40. [40]

    Ramaswamy, The mechanics and statistics of active matter, Annu

    S. Ramaswamy, The mechanics and statistics of active matter, Annu. Rev. Condens. Matter Phys.1, 323 (2010)

  41. [41]

    Peshkov, I

    A. Peshkov, I. S. Aranson, E. Bertin, H. Chat´ e, and F. Ginelli, Nonlinear field equations for aligning self- propelled rods, Phys. Rev. Lett.109, 268701 (2012)

  42. [42]

    Mahault, A

    B. Mahault, A. Patelli, and H. Chat´ e, Deriving hydro- dynamic equations from dry active matter models in three dimensions, J. Stat. Mech.: Theory Exp.2018(9), 093202

  43. [43]

    Bertin, A

    E. Bertin, A. Baskaran, H. Chat´ e, and M. C. Marchetti, Comparison between smoluchowski and boltzmann ap- proaches for self-propelled rods, Phys. Rev. E92, 042141 (2015)

  44. [44]

    P. G. De Gennes and J. Prost,The Physics of Liquid Crystals(Oxford University Press, 1993)

  45. [45]

    Nonvanishing divergence-free radial currents would imply an unphysical particle source or sink at the illuminated disk center

  46. [46]

    F. R. Gantmacher and J. L. Brenner,Applications of the Theory of Matrices(Courier Corporation, 2005). 7 End Matter Appendix A: The no repelling torque limit.—For pa- rameters of the microscopic model considered in the main text, rings form for a small but finite value (≈10 −2) of β. Since the repelling torque strength is an effective pa- rameter not contr...
