An Automatic Ground Collision Avoidance System with Reinforcement Learning

Seyyid Osman Sevgili , Atahan Cilan , Mahir Demir , \"Ozg\"un Can Y\"ur\"utken , \"Umit Can Bekar

Authors on Pith no claims yet

Pith reviewed 2026-05-08 04:07 UTC · model grok-4.3

classification 💻 cs.LG cs.RO

keywords reinforcement learningground collision avoidancejet trainersaerospace safetyterrain queriesautomatic systems

0 comments

The pith

A reinforcement learning agent provides automatic ground collision avoidance for jet trainers using only line-of-sight terrain queries.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an AI-based Automatic Ground Collision Avoidance System for advanced jet trainers. It applies reinforcement learning to train an agent that operates inside a restricted observation space by making line-of-sight queries to a terrain server. The work targets real-time safety improvements where traditional systems face tight timing and data limits. A reader would care because the approach shows how sparse sensor input can still support reliable avoidance in high-stakes flight.

Core claim

The authors design and evaluate an AI-driven AGCAS for advanced jet trainers that solves the collision-avoidance task with reinforcement learning inside a limited observation space, relying on line-of-sight queries to a terrain server to deliver safer and more effective operations.

What carries the argument

A reinforcement learning agent that learns avoidance maneuvers from line-of-sight queries on a terrain server within a constrained observation space.

If this is right

Jet trainers could fly training profiles closer to terrain with lower collision risk.
Avoidance decisions become feasible with far less onboard sensor data than conventional systems require.
The method supports faster reaction times in time-critical low-altitude maneuvers.
Fewer ground collisions become possible during military flight training without adding heavy hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same limited-observation RL pattern could transfer to terrain avoidance on unmanned aircraft or general aviation.
Training entirely in simulation with line-of-sight queries may allow rapid testing across many terrain types before flight trials.
If the agent generalizes, the approach could reduce pilot workload during low-level operations.

Load-bearing premise

That a reinforcement learning agent can acquire reliable collision-avoidance behavior from only limited observations and line-of-sight terrain data.

What would settle it

A test scenario in which the trained agent issues a command that produces a ground collision under conditions where a human pilot or full-state system would avoid it.

Figures

Figures reproduced from arXiv: 2604.24403 by Atahan Cilan, Mahir Demir, \"Ozg\"un Can Y\"ur\"utken, Seyyid Osman Sevgili, \"Umit Can Bekar.

**Figure 1.** Figure 1: Inner working of RL view at source ↗

**Figure 3.** Figure 3: explains the models inputs and outputs. In this work in addition to our previous study called PARS [12], we used extra inputs that is KxK LiDAR points and RADALT points to provide visual consciousness to the agent view at source ↗

**Figure 2.** Figure 2: The reward structure view at source ↗

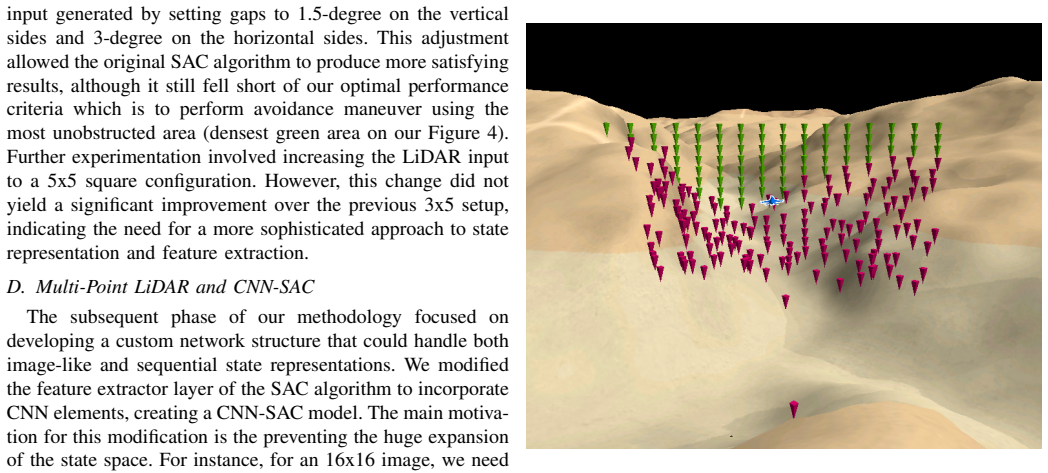

**Figure 4.** Figure 4: 16x16 LiDAR on Terrain view at source ↗

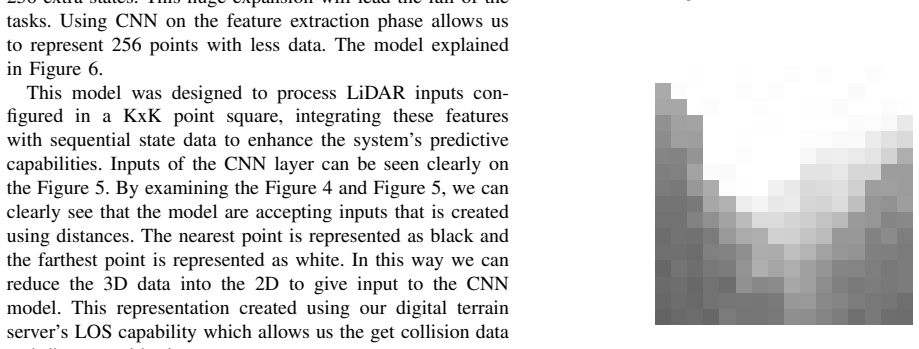

**Figure 5.** Figure 5: 16x16 LiDAR view at source ↗

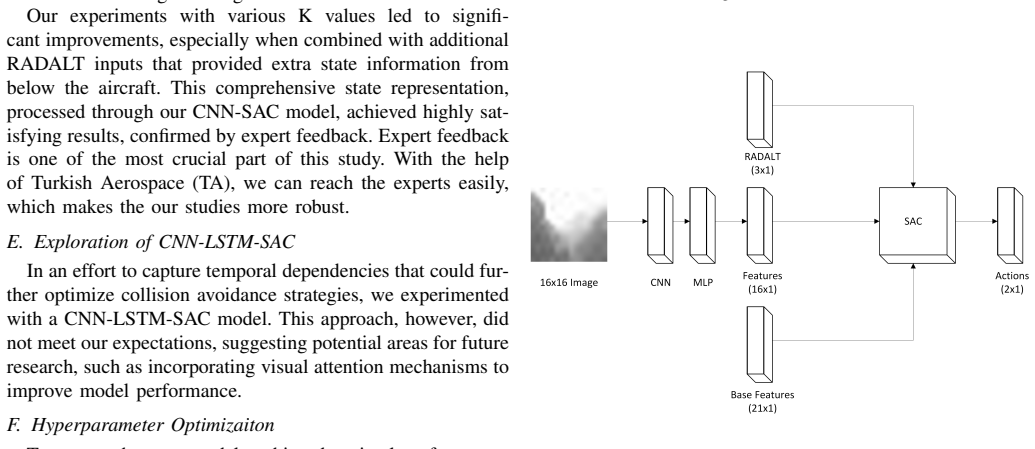

**Figure 6.** Figure 6: CNN-SAC Structure view at source ↗

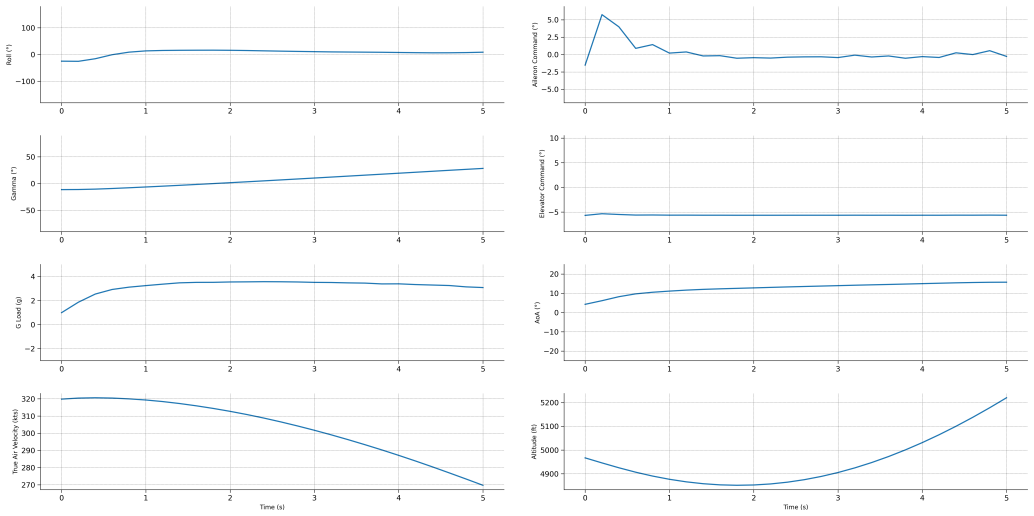

**Figure 7.** Figure 7: Rescue graphs view at source ↗

read the original abstract

This article evaluates an artificial intelligence (AI)-based Automatic Ground Collision Avoidance System (AGCAS) designed for advanced jet trainers to enhance operational effectiveness. In the continuously evolving field of aerospace engineering, the integration of AI is crucial for advancing operations with improved timing constraints and efficiency. Our study explores the design process of an AI-driven AGCAS, specifically tailored for advanced jet trainers, focusing on addressing the AGCAS problem within a limited observation space. The system utilizes line-of-sight queries on a terrain server to ensure precise and efficient collision avoidance. This approach aims to significantly improve the safety and operational capabilities of advanced jet trainers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper frames an RL-based AGCAS for jet trainers using LOS queries but supplies no results, reward details, or validation to show it works.

read the letter

The paper applies reinforcement learning to automatic ground collision avoidance for advanced jet trainers, using line-of-sight distance queries on a terrain server inside a deliberately limited observation space. That is the main contribution on offer. It correctly notes that real aircraft systems often cannot access full state information and that timing constraints matter in training flights. The choice to keep the input lightweight by querying terrain on demand is a practical move that aligns with deployment realities rather than simulation ideals. The focus on jet trainers rather than generic aircraft also shows some domain awareness. Those elements are reasonable and worth noting. The rest of the work stays at the level of design description. No reward function is given, no training procedure or hyperparameters appear, and there are zero performance numbers, success rates, baseline comparisons, or failure-case analyses. Without those, the central claim that the system improves safety and operational capability cannot be checked. The assumption that an RL policy can reliably infer velocity, attitude, and upcoming terrain curvature from LOS history alone is left untested, and the abstract gives no indication that edge cases like steep dives or sensor noise were even considered during training. This makes the soundness low. The paper would interest someone scanning for RL application sketches in aviation safety, but it offers no new technique, no reproducible finding, and nothing solid enough to cite or build on. I would not bring it to a reading group. It does not deserve peer review until experiments and results are added.

Referee Report

2 major / 0 minor

Summary. The manuscript describes the design of an AI-based Automatic Ground Collision Avoidance System (AGCAS) for advanced jet trainers using reinforcement learning. It focuses on solving the AGCAS problem in a limited observation space by employing line-of-sight queries to a terrain server, with the stated aim of improving safety and operational effectiveness.

Significance. If the RL policy can be shown to produce reliable avoidance maneuvers from the restricted state, the work would demonstrate a practical application of RL to a safety-critical aerospace control task. This could reduce reliance on traditional rule-based systems in high-speed jet trainer operations. The approach is motivated by real operational needs, but the absence of any reported results prevents assessment of whether the significance is realized.

major comments (2)

[Abstract] Abstract: The manuscript claims to 'evaluate' the AGCAS yet supplies no performance data, success rates, baseline comparisons, reward function, or episode termination criteria. This leaves the central claim of significantly improved safety without empirical support.
[RL formulation] RL formulation section: The policy relies on a limited observation space consisting of LOS terrain queries; the manuscript provides no analysis showing that this representation is informationally sufficient to infer velocity, attitude rates, wind, or upcoming terrain curvature, nor does it address coverage of edge cases such as steep dives or sensor noise.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and insightful comments on our manuscript describing the RL-based AGCAS design. We address the major comments point-by-point below. Where the feedback identifies gaps in empirical support or analysis, we agree and will incorporate revisions to strengthen the paper.

read point-by-point responses

Referee: [Abstract] Abstract: The manuscript claims to 'evaluate' the AGCAS yet supplies no performance data, success rates, baseline comparisons, reward function, or episode termination criteria. This leaves the central claim of significantly improved safety without empirical support.

Authors: We acknowledge that the abstract refers to evaluation of the AGCAS, yet the current manuscript emphasizes the design process, limited-observation formulation, and LOS terrain queries without providing quantitative results. This is a substantive shortcoming that weakens the safety claims. In the revised version we will add a dedicated evaluation section reporting success rates, baseline comparisons (e.g., against rule-based AGCAS), the explicit reward function, and episode termination criteria, thereby supplying the empirical support the referee correctly notes is missing. revision: yes
Referee: [RL formulation] RL formulation section: The policy relies on a limited observation space consisting of LOS terrain queries; the manuscript provides no analysis showing that this representation is informationally sufficient to infer velocity, attitude rates, wind, or upcoming terrain curvature, nor does it address coverage of edge cases such as steep dives or sensor noise.

Authors: The LOS terrain queries were selected to reflect realistic sensor constraints on jet trainers. While the original submission does not contain a formal sufficiency analysis or explicit treatment of edge cases, the RL agent is trained end-to-end to produce collision-avoidance actions from these partial observations. We agree that additional justification is needed. The revision will include (1) an analysis of how the observation vector permits inference of the required dynamics and (2) targeted experiments or discussion covering steep-dive scenarios and sensor-noise robustness. revision: yes

Circularity Check

0 steps flagged

No circularity detected; no derivations or equations present

full rationale

The manuscript is a descriptive evaluation of an RL-based AGCAS for jet trainers using line-of-sight terrain queries in limited observation space. The abstract and provided text contain no equations, derivations, parameter fittings, or mathematical steps of any kind. No self-definitional reductions, fitted inputs renamed as predictions, or self-citation load-bearing arguments appear. The central claims concern system design and safety improvements, which are empirical and subject to external verification rather than internal logical circularity. This qualifies as a self-contained descriptive paper with score 0 per the guidelines.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no information on free parameters, axioms, or invented entities.

pith-pipeline@v0.9.0 · 5418 in / 906 out tokens · 69277 ms · 2026-05-08T04:07:16.979628+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

15 extracted references · 3 canonical work pages · 1 internal anchor

[1]

Performance specification digital terrain elevation data (dted),

U. Dod, “Performance specification digital terrain elevation data (dted),” tech. rep., Tech. rep., MIL-PRF-89020B, 2000

2000
[2]

Automatic collision avoidance tech- nology (acat),

D. E. Swihart and M. A. Skoog, “Automatic collision avoidance tech- nology (acat),” inUVS 2007, 2007

2007
[3]

Automatic ground collision avoidance system design, integration, & flight test,

D. E. Swihart, A. F. Barfield, E. M. Griffin, R. C. Lehmann, S. C. Whitcomb, B. Flynn, M. A. Skoog, and K. E. Processor, “Automatic ground collision avoidance system design, integration, & flight test,” IEEE Aerospace and Electronic Systems Magazine, vol. 26, no. 5, pp. 4– 11, 2011

2011
[4]

Automatic ground collision avoidance system design for pre-block 40 f-16 configurations,

E. M. Griffin, R. M. Turner, S. C. Whitcomb, D. E. Swihart, J. M. Bier, K. L. Hobbs, and A. C. Burns, “Automatic ground collision avoidance system design for pre-block 40 f-16 configurations,” inAsia-Pacific international symposium on aerospace technology, Citeseer, 2012

2012
[5]

Auto gcas for analog flight control system,

A. Burns, D. Harper, A. F. Barfield, S. Whitcomb, and B. Jurusik, “Auto gcas for analog flight control system,” in2011 IEEE/AIAA 30th Digital Avionics Systems Conference, pp. 8C5–1, IEEE, 2011

2011
[6]

Development of an automatic aircraft collision avoidance system for fighter aircraft,

J. Wadley, S. Jones, D. Stoner, E. Griffin, D. Swihart, K. Hobbs, A. Burns, and J. Bier, “Development of an automatic aircraft collision avoidance system for fighter aircraft,” inAIAA Infotech@ Aerospace (I@ A) Conference, p. 4727, 2013

2013
[7]

Small uav automatic ground collision avoidance system design considerations and flight test results,

P. Sorokowski, M. Skoog, S. Burrows, and S. Thomas, “Small uav automatic ground collision avoidance system design considerations and flight test results,” tech. rep., 2015

2015
[8]

A longitudinal field study of auto-gcas acceptance and trust: First-year results and implications,

N. Ho, G. G. Sadler, L. C. Hoffmann, K. Zemlicka, J. Lyons, W. Fer- gueson, C. Richardson, A. Cacanindin, S. Cals, and M. Wilkins, “A longitudinal field study of auto-gcas acceptance and trust: First-year results and implications,”Journal of Cognitive Engineering and Decision Making, vol. 11, no. 3, pp. 239–251, 2017

2017
[9]

Comparing trust in auto-gcas between experienced and novice air force pilots,

J. B. Lyons, N. T. Ho, A. L. Van Abel, L. C. Hoffmann, G. G. Sadler, W. E. Fergueson, M. A. Grigsby, and M. Wilkins, “Comparing trust in auto-gcas between experienced and novice air force pilots,”ergonomics in design, vol. 25, no. 4, pp. 4–9, 2017

2017
[10]

Reinforcement learning: An introduction,

B. Andrew and S. Richard S, “Reinforcement learning: An introduction,” 2018

2018
[11]

A brief survey of deep reinforcement learning,

K. Arulkumaran, M. P. Deisenroth, M. Brundage, and A. A. Bharath, “A brief survey of deep reinforcement learning,”arXiv preprint arXiv:1708.05866, 2017

work page arXiv 2017
[12]

An aircraft upset recovery system with reinforcement learning

M. Demir, A. Cilan, S. O. Sevgili, O. Yurutken, and U. C. Bekar, “An aircraft upset recovery system with reinforcement learning.”
[13]

Soft Actor-Critic: Off-Policy Maximum Entropy Deep Reinforcement Learning with a Stochastic Actor

T. Haarnoja, A. Zhou, P. Abbeel, and S. Levine, “Soft actor-critic: Off- policy maximum entropy deep reinforcement learning with a stochastic actor,”CoRR, vol. abs/1801.01290, 2018

work page internal anchor Pith review arXiv 2018
[14]

Optuna: A Next-generation Hyperparameter Optimization Framework

T. Akiba, S. Sano, T. Yanase, T. Ohta, and M. Koyama, “Optuna: A next-generation hyperparameter optimization framework,”arXiv preprint arXiv:1907.10902, 2019

work page Pith review arXiv 1907
[15]

An automatic ground collision avoidance system with rein- forcement learning demonstration,

Seyyid, “An automatic ground collision avoidance system with rein- forcement learning demonstration,” 2024. [Online]. Available: https: //www.youtube.com/watch?v=hvrjRkYGzUw. Accessed: May. 4, 2024. Fig. 7. Rescue graphs

2024
