arxiv: 2604.24818 · v1 · submitted 2026-04-27 · 💻 cs.LG

Recognition: unknown

Heterogeneous Variational Inference for Markov Degradation Hazard Models: Discretized Mixture with Interpretable Clusters

Takato Yasuno
Authors on Pith no claims yet

Pith reviewed 2026-05-08 04:15 UTC · model grok-4.3

classification 💻 cs.LG
keywords variational inferencefinite mixture modelssurvival analysisdegradation modelingrisk clusteringMarkov hazard modelsADVIindustrial equipment
0
0 comments X

The pith

8-state discretization combined with ADVI enables stable identification of risk clusters in degradation hazard models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework to overcome instability and slow computation in Bayesian finite mixture models for finding discrete risk clusters in equipment degradation. It centers on an 8-state global percentile discretization that strengthens degradation signals, integrated with 30-dimensional features drawn from statistical trends, continuous health indicators, and PCA-compressed text embeddings. The method adds explicit model selection rules enforcing minimum cluster share, separation, and WAIC criteria, while replacing MCMC sampling with Automatic Differentiation Variational Inference using full-rank covariance. On records from 280 industrial pumps, the approach produces stable, interpretable clusters and shows that the fine discretization is required for mixture stability, with ADVI delivering results comparable to NUTS but in far less time.

Core claim

The paper establishes that fine-grained 8-state discretization is essential for the stability of finite mixture models in survival analysis. When combined with integrated feature engineering, interpretability-enforcing selection rules, and Automatic Differentiation Variational Inference, it enables reliable identification of heterogeneous risk groups in Markov degradation models, as validated on real industrial pump data where ADVI provides stable results far quicker than MCMC methods.

What carries the argument

The 8-state global percentile discretization of degradation states, which amplifies events to support consistent mixture model clustering under ADVI.

If this is right

  • Random effect models produce nearly identical parameter estimates between ADVI and NUTS, confirming ADVI's accuracy with a 15-fold speedup.
  • Finite mixture models can select the optimal number of clusters while maintaining interpretability through constraints on cluster size and separation.
  • ADVI avoids the convergence failures and label switching seen in NUTS for these mixture models.
  • The combination of statistical, continuous, and semantic features provides sufficient signal for stable clustering.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This discretization technique might be applicable to other survival or time-to-event analyses involving heterogeneous populations.
  • The use of text embeddings from inspection records could be extended to incorporate more unstructured data sources in predictive maintenance.
  • If the method generalizes, it could reduce the barrier to deploying mixture-based risk models in industrial settings by lowering computational demands.

Load-bearing premise

The 8-state global percentile discretization and the chosen 30-dimensional feature set preserve the essential degradation signals without introducing artifacts that artificially stabilize the mixture clusters.

What would settle it

A comparison on synthetic degradation data with known true cluster structure, or real data discretized into fewer states, showing unstable or incorrect cluster recovery would falsify the claim that 8 states are essential for stability.

Figures

Figures reproduced from arXiv: 2604.24818 by Takato Yasuno.

Figure 1
Figure 1. Figure 1: Comparison of degradation curves: mc1 NUTS (left, Fig. 1a) vs. mc2 ADVI (right, Fig. 1b). Both view at source ↗

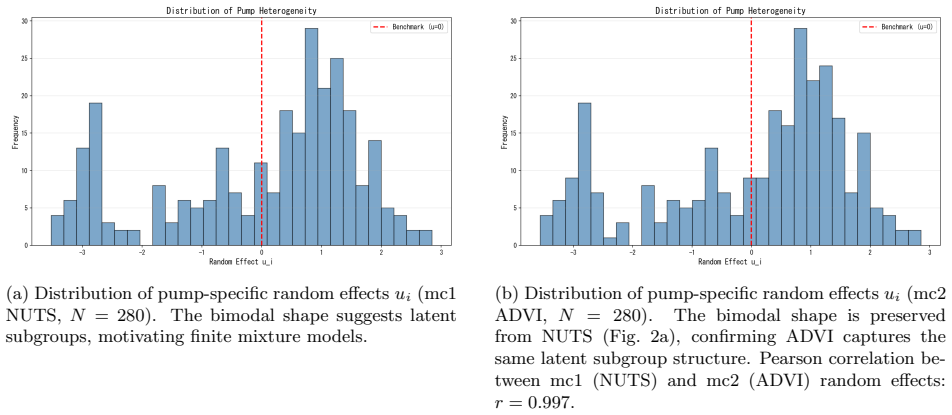

Figure 2
Figure 2. Figure 2: Comparison of random effect distributions: mc1 NUTS (left) vs. mc2 ADVI (right). Both methods view at source ↗

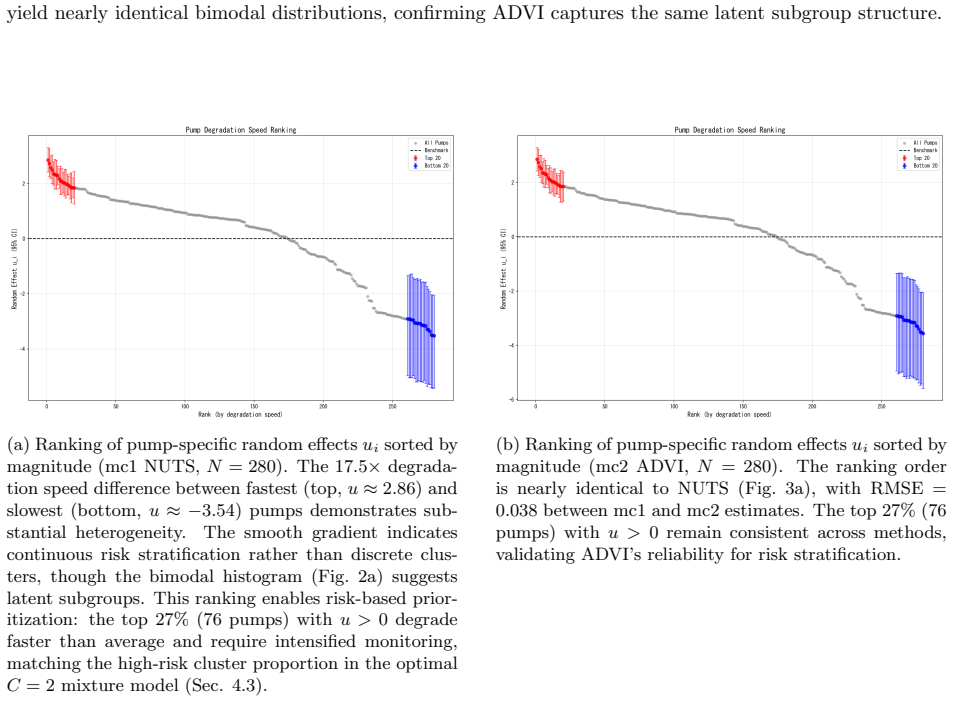

Figure 3
Figure 3. Figure 3: Comparison of pump degradation speed rankings: mc1 NUTS (left) vs. mc2 ADVI (right). Both view at source ↗
Figure 4
Figure 4. Figure 4: mix1 ADVI C = 2 cluster composition. Cluster 1 (low-risk, blue): 204 pumps (72.9%, µ1 = −0.98). Cluster 2 (high-risk, orange): 76 pumps (27.1%, µ2 ≈ 0). Mixture weights: π1 = 59%, π2 = 41% (probabilistic assignment differs from hard assignment due to uncertainty) view at source ↗
Figure 5
Figure 5. Figure 5: Cluster-specific degradation curves (mix1 view at source ↗

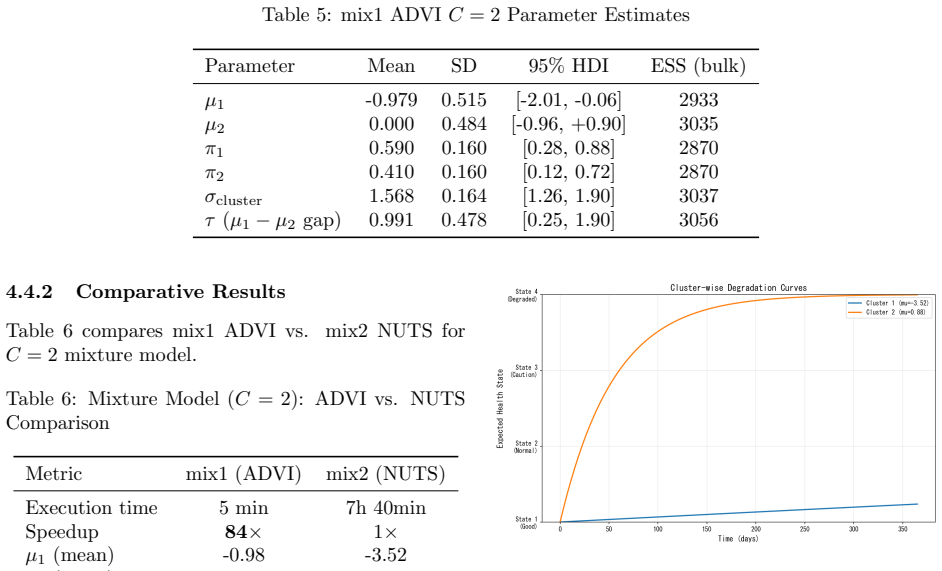

Figure 6
Figure 6. Figure 6: shows mix2 NUTS cluster curves, exhibit￾ing unrealistic extreme degradation rates due to con￾vergence issues. Conclusion: For finite mixture models, ADVI out￾performs NUTS in terms of convergence stability, view at source ↗
read the original abstract

Bayesian finite mixture models can identify discrete risk clusters (low-risk vs. high-risk equipment), but face three critical bottlenecks: (1) insufficient degradation signals from coarse state discretization, (2) unstable cluster identification when data inherently supports fewer clusters than explored, and (3) computational infeasibility of Markov Chain Monte Carlo (MCMC) methods for production deployment (7+ hours per model). We propose a practical framework combining (1) 8-state global percentile discretization that amplifies degradation events, (2) 30-dimensional feature engineering integrating statistical trends (22 features), continuous health indicators, and text embeddings (PCA-compressed to 3 dimensions), (3) interpretable model selection rules enforcing minimum cluster share and separation alongside WAIC, and (4) Automatic Differentiation Variational Inference (ADVI) with full-rank covariance for stable, fast estimation. Applied to 280 industrial pump equipment with 104,703 inspection records, we demonstrate: (1) Random effect models (baseline) show ADVI and NUTS produce nearly identical estimates with 15$\times$ speedup, validating ADVI accuracy. (2) Finite mixture models identify optimal number of clusters with interpretability constraints. (3) NUTS exhibits severe convergence issues and label switching, while ADVI provides stable results in 84$\times$ less time. We contributed that (1) First demonstration that fine-grained state discretization (8-state) is essential for mixture model stability in survival analysis.(2) Comprehensive feature engineering strategy combining statistical, continuous, and semantic signals. (3) Practical interpretability rules preventing overfitting in automated model selection. (4) Empirical evidence that ADVI outperforms NUTS for finite mixture models in terms of convergence, stability, and computational efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes a Bayesian finite mixture modeling framework for Markov degradation hazard models in industrial equipment, specifically applied to 280 pumps with over 100k inspection records. It addresses bottlenecks in cluster identification by introducing an 8-state global percentile discretization to amplify degradation signals, 30-dimensional feature engineering combining statistical trends, health indicators, and PCA-compressed text embeddings, interpretability rules based on minimum cluster share, separation, and WAIC for model selection, and the use of Automatic Differentiation Variational Inference (ADVI) with full-rank covariance for efficient and stable inference. The authors demonstrate that ADVI produces estimates nearly identical to NUTS on baseline random-effect models with a 15x speedup, and provides stable results for finite mixture models in 84x less time while avoiding convergence issues and label switching. They claim this as the first demonstration that fine-grained 8-state discretization is essential for mixture model stability in survival analysis, along with contributions in feature engineering, interpretability rules, and empirical evidence favoring ADVI over NUTS.

Significance. If the central claims hold, this work has practical significance for deploying Bayesian mixture models in reliability engineering and survival analysis, where computational efficiency and interpretability are critical for production use. The validation of ADVI against NUTS on real-world data with 104,703 records provides useful empirical evidence for variational methods in complex models. The emphasis on interpretable model selection rules is a positive aspect that could help prevent overfitting in automated clustering. The comparison showing ADVI's stability advantage is a concrete strength.

major comments (2)
  1. Abstract and Results section: The assertion that 'fine-grained 8-state discretization is essential for mixture model stability' lacks supporting evidence from ablation experiments. No results are presented for alternative discretizations such as 4-state or 16-state, preventing isolation of the discretization's effect from the 30-dimensional features, minimum cluster constraints, or ADVI's covariance structure. This is load-bearing for the central contribution claim.
  2. Methods section on discretization: The global percentile binning approach assumes homogeneous degradation thresholds across heterogeneous pumps. This could artifactually reduce label switching or stabilize clusters without preserving the true degradation signal; sensitivity analyses to alternative binning strategies or pump-specific thresholds are needed to support the necessity of the 8-state choice.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their insightful and constructive comments, which highlight important areas where the manuscript's claims can be strengthened and clarified. We address each major comment point by point below, agreeing with the identified gaps and outlining specific revisions to the text.

read point-by-point responses

  1. Referee: Abstract and Results section: The assertion that 'fine-grained 8-state discretization is essential for mixture model stability' lacks supporting evidence from ablation experiments. No results are presented for alternative discretizations such as 4-state or 16-state, preventing isolation of the discretization's effect from the 30-dimensional features, minimum cluster constraints, or ADVI's covariance structure. This is load-bearing for the central contribution claim.

    Authors: We agree that the assertion of 'essential' is not supported by ablation experiments comparing alternative discretizations, and that this weakens the central contribution claim as currently phrased. The 8-state choice was selected through preliminary tuning to amplify degradation signals in the pump data while preserving interpretability, but no systematic comparisons to 4-state or 16-state variants were conducted or reported. We will revise the abstract, results section, and listed contributions to remove the word 'essential' and instead state that the 8-state global discretization enables stable finite mixture inference in this setting. We will also add a limitations paragraph in the discussion acknowledging the absence of ablation studies on discretization granularity as an area for future work. This constitutes a textual revision to align claims with presented evidence. revision: partial

  2. Referee: Methods section on discretization: The global percentile binning approach assumes homogeneous degradation thresholds across heterogeneous pumps. This could artifactually reduce label switching or stabilize clusters without preserving the true degradation signal; sensitivity analyses to alternative binning strategies or pump-specific thresholds are needed to support the necessity of the 8-state choice.

    Authors: We acknowledge this as a substantive methodological concern. The global percentile binning was chosen to enforce consistent state definitions across the heterogeneous fleet of 280 pumps, enabling comparable cluster interpretations and avoiding the complexity of per-pump thresholds. However, we agree that this assumption could influence apparent stability and that sensitivity to alternatives (e.g., equal-width binning or pump-specific quantiles) would strengthen the justification. We will revise the methods section to provide additional justification for the global approach and add a short sensitivity discussion, either through a limited re-analysis on a data subset or by explicitly framing it as a limitation with suggestions for future investigation. This will be incorporated as a partial revision focused on clarification and caveats. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical application and ADVI-NUTS benchmark are independent

full rationale

The paper defines a concrete framework (8-state global percentile discretization, 30-dimensional engineered features, interpretability constraints plus WAIC for cluster count, ADVI inference) and applies it to 280 pumps with 104703 records. Results consist of direct comparisons between ADVI and NUTS on identical data, showing matching estimates, 15-84x speedups, and stability differences. These benchmarks are external to the modeling choices and not tautological. No equations reduce a claimed result to its own inputs by construction, no self-citations are load-bearing, and no fitted parameters are relabeled as predictions. The '8-state essential' claim is presented as an empirical observation from the chosen setup rather than a derivation that collapses to the inputs.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 0 invented entities

The framework rests on several modeling choices whose justification is empirical rather than derived: the 8-state percentile discretization, the 30-feature construction (22 statistical + continuous + 3 PCA text), the minimum-cluster-share and separation rules, and the assumption that ADVI full-rank covariance adequately approximates the posterior for these mixture models.

free parameters (3)
  • Number of discretization states
    Fixed at 8 global percentiles; chosen to amplify degradation events.
  • Feature dimensionality and PCA compression
    30 features reduced to 3 text dimensions; selection and compression are data-driven.
  • Minimum cluster share and separation thresholds
    Enforced during model selection alongside WAIC; values not stated in abstract.
axioms (2)
  • domain assumption The degradation process can be adequately represented by a finite-state Markov chain after percentile discretization.
    Invoked to justify the 8-state global discretization step.
  • domain assumption ADVI with full-rank covariance yields a posterior approximation sufficiently accurate for cluster identification and hazard estimation.
    Supported by the baseline comparison but not proven for the mixture case.
