High-field magneto-optical imaging of superconducting critical states beyond 10 T using a paramagnetic garnet sensor

Yuto Kinoshita , Masayuki Toyoda , Yoshiaki Kobayashi , Masayuki Itoh , Masashi Tokunaga

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:39 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con physics.ins-det

keywords magneto-optical imagingcritical current densityhigh magnetic fieldsparamagnetic garnetiron-based superconductorflux distributioncritical state

0 comments

The pith

A paramagnetic Nd-garnet indicator enables magneto-optical imaging of superconducting critical states up to 13 T.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a magneto-optical imaging technique using a paramagnetic Nd-garnet sensor to visualize magnetic flux distributions in superconductors under steady fields up to 13 T. This approach allows quantitative reconstruction of the local critical current density Jc across an entire sample area, addressing the limitation of bulk-averaged values from conventional methods. The authors apply it to a Ba(Fe1-xCox)2As2 single crystal at 12 K and 20 K, confirming that the extracted Jc field dependence matches magnetization measurements and demonstrating local current vector mapping. Readers care because it offers spatially resolved data on inhomogeneous current transport, which is essential for both understanding pinning mechanisms and practical high-field applications.

Core claim

We develop a magneto-optical imaging technique employing a paramagnetic Nd-garnet indicator combined with a polarizing microscope system that enables visualization of superconducting critical states in steady magnetic fields up to 13 T. Using this method on a bulk single crystal of Ba(Fe1-xCox)2As2, we image the magnetic flux distribution across the sample and quantitatively reconstruct the spatial distribution of the critical current density Jc. The field dependence of Jc agrees with conventional magnetization measurements, and we convert the field maps into local current-density vectors.

What carries the argument

The paramagnetic Nd-garnet indicator in a polarizing microscope setup, which reports the local magnetic field at the sample surface to enable high-field MOI and subsequent Jc inversion.

If this is right

Spatially resolved Jc maps become available in steady fields above 10 T, revealing local inhomogeneities that bulk averages conceal.
Local current-density vectors can be derived directly from the measured flux distributions.
The extracted Jc field dependence matches independent magnetization data, confirming the reconstruction procedure for the tested geometry and temperatures.
The method supplies a route to study inhomogeneous current transport in superconductors under high magnetic fields.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same indicator approach could be tested on other material classes to map pinning landscapes at fields where transport measurements become difficult.
Temperature sweeps with this imaging could expose how local Jc evolves near the transition temperature in a spatially resolved way.
If the sensor remains linear and non-perturbing at still higher fields, the technique might support routine screening of candidate materials for high-field magnets.

Load-bearing premise

The Nd-garnet indicator reports the local magnetic field at the sample surface without significant perturbation or hysteresis, so that standard inversion from observed B to Jc remains valid at 13 T.

What would settle it

If the Jc(B) curve reconstructed from the magneto-optical images deviates substantially from the Jc(B) obtained via bulk magnetization measurements on the same crystal, or if the garnet exhibits measurable hysteresis in separate calibration runs at high fields, the quantitative validity of the technique collapses.

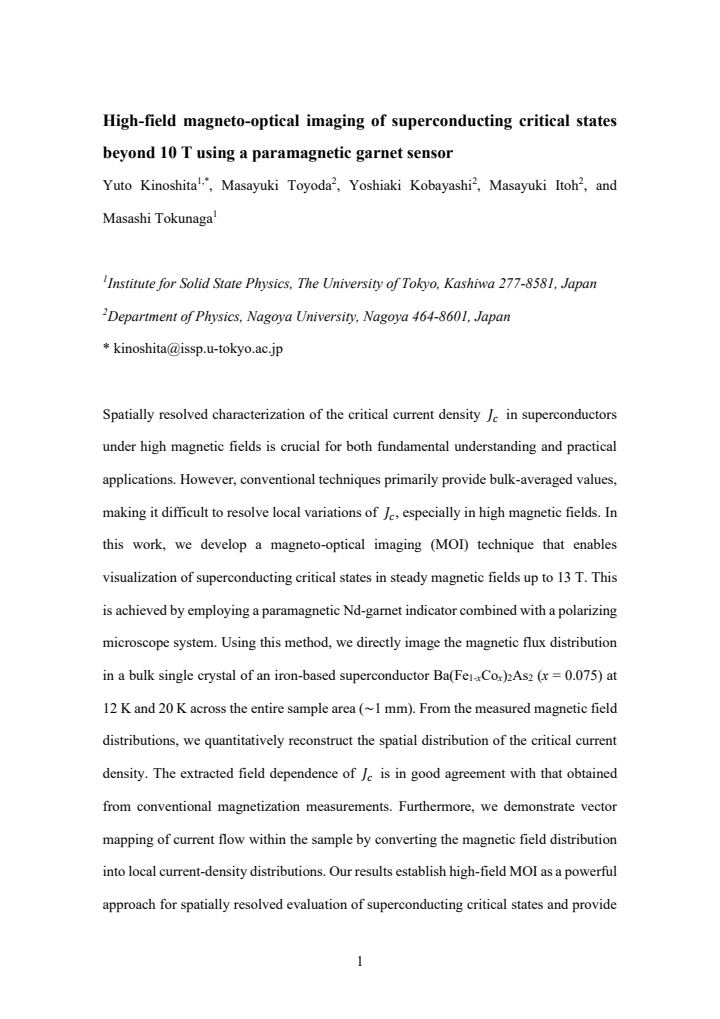

read the original abstract

Spatially resolved characterization of the critical current density Jc in superconductors under high magnetic fields is crucial for both fundamental understanding and practical applications. However, conventional techniques primarily provide bulk-averaged values, making it difficult to resolve local variations of Jc, especially in high magnetic fields. In this work, we develop a magneto-optical imaging (MOI) technique that enables visualization of superconducting critical states in steady magnetic fields up to 13 T. This is achieved by employing a paramagnetic Nd-garnet indicator combined with a polarizing microscope system. Using this method, we directly image the magnetic flux distribution in a bulk single crystal of an iron-based superconductor Ba(Fe1-xCox)2As2 (x = 0.075) at 12 K and 20 K across the entire sample area (approximately 1 mm). From the measured magnetic field distributions, we quantitatively reconstruct the spatial distribution of the critical current density. The extracted field dependence of Jc is in good agreement with that obtained from conventional magnetization measurements. Furthermore, we demonstrate vector mapping of current flow within the sample by converting the magnetic field distribution into local current-density distributions. Our results establish high-field MOI as a powerful approach for spatially resolved evaluation of superconducting critical states and provide a new pathway for investigating inhomogeneous current transport in superconductors under high magnetic fields.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

They've extended steady-field magneto-optical imaging to 13 T with a Nd-garnet sensor and shown that the extracted Jc(B) matches bulk magnetization on the same BaFeCoAs crystal.

read the letter

The main thing this paper delivers is a working high-field MOI setup. They mount a paramagnetic Nd-garnet indicator on a bulk Ba(Fe0.925Co0.075)2As2 crystal, integrate it with a polarizing microscope, and image local flux distributions at 12 K and 20 K up to 13 T. From the images they invert to Jc maps over the full millimeter-scale area and also produce vector current-density maps. The field dependence of the average Jc lines up with conventional magnetization data taken on the identical sample, which is the check that matters most for credibility.

Referee Report

2 major / 3 minor

Summary. The manuscript develops a magneto-optical imaging (MOI) technique employing a paramagnetic Nd-garnet indicator integrated with a polarizing microscope to visualize superconducting critical states in steady fields up to 13 T. Demonstrated on a bulk Ba(Fe_{1-x}Co_x)_2As_2 (x=0.075) single crystal at 12 K and 20 K, the method maps local magnetic flux distributions over the ~1 mm sample area, reconstructs the spatial critical current density J_c via inversion, reports agreement between the extracted J_c(B) and conventional magnetization measurements on the same sample, and converts the data to vector current-density maps.

Significance. If the quantitative accuracy holds, the work provides a valuable spatially resolved probe of J_c inhomogeneities under high fields that complements bulk magnetometry and could enable new studies of vortex pinning and current transport in iron-based and other superconductors. The direct validation against independent magnetization data on the identical crystal is a clear strength, as is the demonstration of vector mapping.

major comments (2)

[Methods] Methods section on sensor calibration: the quantitative conversion from magneto-optical contrast to local B at fields >10 T relies on the assumption that the Nd-garnet response remains linear and hysteresis-free; explicit calibration curves, susceptibility estimates, or in-situ checks against a known reference field at 13 T are needed to support the claim of faithful local-field reporting without perturbation.
[Results] Results on J_c reconstruction (around the inversion step): the standard Biot-Savart inversion under the thin-film approximation is applied to a bulk crystal whose thickness is not stated; the validity of the 2D approximation for a ~1 mm lateral sample at 13 T should be justified by either noting the effective thickness probed or by error estimates from the geometry.

minor comments (3)

[Abstract] Abstract: the composition notation 'Ba(Fe1-xCox)2As2 (x = 0.075)' is clear but should be written consistently with subscripts in the main text for readability.
[Results] The temperatures 12 K and 20 K are used without reference to the sample's T_c or the rationale for these specific values relative to the superconducting transition.
[Figures] Figure captions and image processing pipeline description could be expanded to clarify the spatial resolution achieved and any filtering steps applied before inversion.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of our work and the recommendation for minor revision. We provide point-by-point responses to the major comments below.

read point-by-point responses

Referee: [Methods] Methods section on sensor calibration: the quantitative conversion from magneto-optical contrast to local B at fields >10 T relies on the assumption that the Nd-garnet response remains linear and hysteresis-free; explicit calibration curves, susceptibility estimates, or in-situ checks against a known reference field at 13 T are needed to support the claim of faithful local-field reporting without perturbation.

Authors: We agree with the referee that explicit calibration details are necessary for full validation. In the revised manuscript, we will add the calibration curves for the Nd-garnet sensor, including susceptibility estimates and confirmation of linearity and hysteresis-free behavior up to 13 T, based on measurements with a reference field sensor. revision: yes
Referee: [Results] Results on J_c reconstruction (around the inversion step): the standard Biot-Savart inversion under the thin-film approximation is applied to a bulk crystal whose thickness is not stated; the validity of the 2D approximation for a ~1 mm lateral sample at 13 T should be justified by either noting the effective thickness probed or by error estimates from the geometry.

Authors: We acknowledge that the sample thickness was not stated in the original manuscript. We will include the crystal thickness and provide a justification for the applicability of the thin-film approximation in the J_c reconstruction, along with error estimates derived from the sample geometry and the surface-probing nature of the technique. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental validation against independent magnetization data

full rationale

The manuscript describes an experimental MOI setup using a paramagnetic Nd-garnet sensor to map local B up to 13 T, followed by standard Biot-Savart inversion to obtain Jc(x,y) under the thin-film approximation. The extracted Jc(B) is directly compared to bulk magnetometry on the identical Ba(Fe1-xCox)2As2 crystal, providing external cross-validation. No derivation, ansatz, or uniqueness theorem is invoked that reduces to a fitted parameter or self-citation by construction; the reconstruction pipeline is standard and the sensor linearity is asserted from material properties rather than from the target Jc result itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work is experimental and relies on standard electromagnetic inversion and optical contrast assumptions rather than new postulates.

axioms (1)

standard math Standard Biot-Savart or Ampere-law inversion from surface B to in-plane Jc is accurate for thin samples in perpendicular field geometry.
Invoked when converting measured flux maps to current density distributions.
