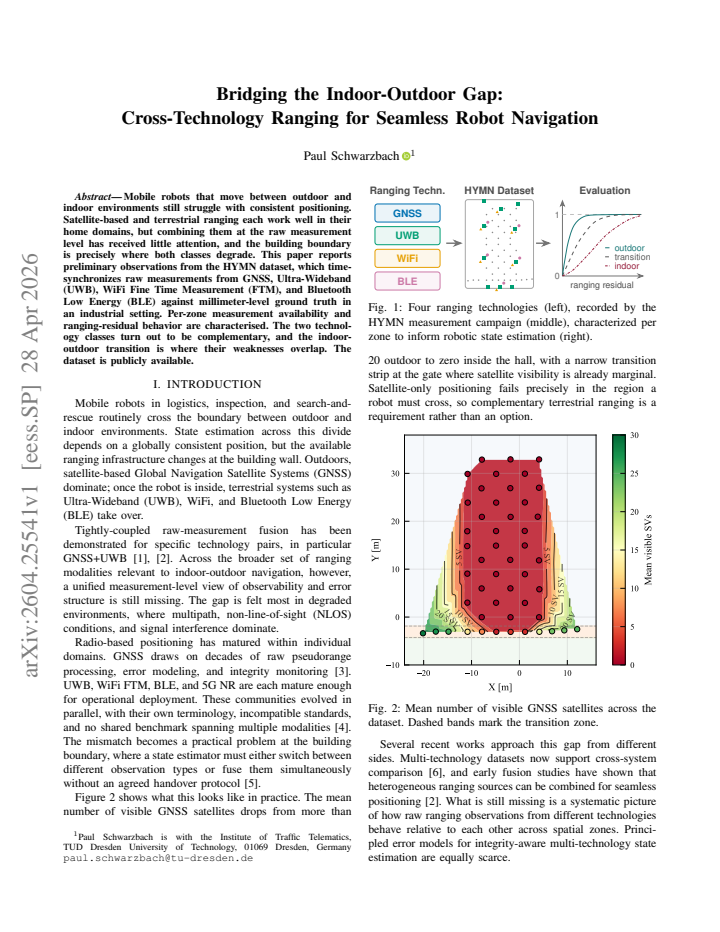

Bridging the Indoor-Outdoor Gap: Cross-Technology Ranging for Seamless Robot Navigation

Paul Schwarzbach

Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:22 UTC · model grok-4.3

classification 📡 eess.SP cs.RO

keywords robot navigationindoor outdoor positioningGNSS rangingUWBWiFi FTMBLEcross technology rangingHYMN dataset

0 comments

The pith

Satellite and terrestrial ranging technologies complement each other for seamless robot navigation across indoor and outdoor environments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to address inconsistent positioning for mobile robots that cross between indoor and outdoor spaces. It presents observations from the HYMN dataset, which synchronizes raw ranging measurements from GNSS, UWB, WiFi FTM, and BLE with millimeter-accurate ground truth in an industrial environment. Characterization of measurement availability and ranging residuals per zone shows that the two technology classes are complementary. Their individual weaknesses coincide at the building boundary. This finding matters for developing hybrid systems that maintain reliable navigation during transitions.

Core claim

The HYMN dataset reveals that satellite-based ranging from GNSS and terrestrial ranging from UWB, WiFi Fine Time Measurement, and BLE are complementary technologies for robot positioning. GNSS works reliably outdoors but struggles indoors, while the terrestrial systems perform better indoors yet have limitations outside. The indoor-outdoor transition is where both classes degrade, making this the key area for cross-technology integration. The paper provides per-zone analysis of availability and residuals and releases the dataset publicly.

What carries the argument

The HYMN dataset of time-synchronized multi-technology raw ranging measurements with high-precision ground truth, enabling per-zone characterization of availability and ranging residuals.

If this is right

Cross-technology fusion at the raw measurement level can bridge positioning gaps at indoor-outdoor transitions.
Environment-specific selection of ranging sources becomes feasible based on per-zone behavior.
Public dataset availability allows other researchers to develop and test fusion algorithms.
Complementary strengths reduce reliance on any single technology for consistent robot operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Navigation software could incorporate transition zone detection to trigger technology switching or weighting.
Similar complementarity may exist in other environments, warranting tests in non-industrial locations.
This could lead to lower-cost robot systems by leveraging widely available GNSS and WiFi infrastructure.
Real-world deployment might benefit from adaptive algorithms that learn from residual patterns.

Load-bearing premise

The industrial setting and measurement conditions in the HYMN dataset are representative enough that the observed complementarity generalizes to other indoor-outdoor robot navigation scenarios.

What would settle it

If measurements in another setting, such as a hospital or urban street, show that the technologies do not complement each other or that weaknesses do not overlap at transitions, the claim would be falsified.

Figures

Figures reproduced from arXiv: 2604.25541 by Paul Schwarzbach.

**Figure 1.** Figure 1: Four ranging technologies (left), recorded by the view at source ↗

**Figure 2.** Figure 2: Mean number of visible GNSS satellites across the view at source ↗

**Figure 1.** Figure 1: The contributions are: • An empirical per-zone (outdoor, transition, indoor) characterization of four time-aligned ranging technologies (GNSS, UWB, WiFi FTM, BLE) against millimeterlevel ground truth, looking at both measurement availability and residual behavior. The indoor-outdoor transition turns out to be the regime in which satellite and terrestrial systems degrade at the same time. • A measuremen… view at source ↗

**Figure 3.** Figure 3: Campaign layout: industrial hall with driveway, zone view at source ↗

**Figure 4.** Figure 4: Per-point observation counts: valid ranges per epoch (UWB, WiFi, BLE) or visible satellites (GNSS). view at source ↗

**Figure 5.** Figure 5: Empirical CDFs of absolute ranging residuals (independent x-axes). Linestyles encode zones and dots mark medians. view at source ↗

**Figure 6.** Figure 6: Kernel-density of ranging residuals per technology and zone (independent x-axes). Dots mark medians. view at source ↗

read the original abstract

Mobile robots that move between outdoor and indoor environments still struggle with consistent positioning. Satellite-based and terrestrial ranging each work well in their home domains, but combining them at the raw measurement level has received little attention, and the building boundary is precisely where both classes degrade. This paper reports preliminary observations from the HYMN dataset, which time-synchronizes raw measurements from GNSS, Ultra-Wideband (UWB), WiFi Fine Time Measurement (FTM), and Bluetooth Low Energy (BLE) against millimeter-level ground truth in an industrial setting. Per-zone measurement availability and ranging-residual behavior are characterised. The two technology classes turn out to be complementary, and the indoor-outdoor transition is where their weaknesses overlap. The dataset is publicly available.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

HYMN is a new synchronized multi-technology ranging dataset at indoor-outdoor boundaries, but the paper stays at preliminary observations without fusion results or broader tests.

read the letter

This paper releases the HYMN dataset of time-synchronized raw measurements from GNSS, UWB, WiFi FTM, and BLE, all referenced to millimeter ground truth in one industrial setting that crosses the indoor-outdoor line. The main value is the data itself. Having everything aligned and public lets other groups try fusion without repeating the collection work, and the per-zone breakdowns of availability and ranging residuals give a direct view of where each technology drops off. That focus on the boundary is practical because most existing datasets stay inside one domain. The characterizations are straightforward and use the high-precision ground truth effectively to show the overlap in weaknesses. The soft spots are clear and expected for a first release. There are no position estimates from combined measurements, no quantitative fusion experiments, no error bars or statistical tests on the observations, and everything comes from a single site. The complementarity claim follows from the data descriptions but rests on limited evidence without further validation or comparison to prior fusion work. This is for people building robot navigation that must handle indoor-outdoor transitions and who need raw multi-tech ranging data to develop or benchmark methods. It is not a methods paper and will not change algorithms on its own. I would send it for peer review. The dataset contribution and the targeted transition-zone collection are real enough to justify referee time, even if the current analysis needs expansion in revision.

Referee Report

2 major / 0 minor

Summary. The manuscript reports preliminary empirical observations from the publicly released HYMN dataset, which time-synchronizes raw ranging measurements from GNSS, UWB, WiFi FTM, and BLE against millimeter-level ground truth in one industrial indoor-outdoor setting. It characterizes per-zone measurement availability and ranging residuals, concluding that satellite-based and terrestrial technologies are complementary with their performance degradations overlapping at transitions.

Significance. If the observed complementarity holds, the work identifies a concrete opportunity for raw-measurement-level fusion to support seamless robot navigation across boundaries. The public dataset release is a clear strength that supports reproducibility and enables follow-on fusion research. The single-setting, observational scope keeps the immediate impact moderate.

major comments (2)

[§4] §4 (per-zone characterizations): measurement availability and ranging-residual results are reported without sample sizes, confidence intervals, or statistical tests, so the evidence for complementarity remains qualitative and the central claim is not fully substantiated.
[§5] §5 (transition-zone discussion): no quantitative metric (e.g., cross-technology error correlation, joint residual distribution, or even a simple fusion simulation) is supplied to demonstrate that weaknesses actually overlap at the indoor-outdoor boundary.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and indicate the planned revisions to the manuscript.

read point-by-point responses

Referee: [§4] §4 (per-zone characterizations): measurement availability and ranging-residual results are reported without sample sizes, confidence intervals, or statistical tests, so the evidence for complementarity remains qualitative and the central claim is not fully substantiated.

Authors: We agree that the per-zone results in §4 would be strengthened by explicit sample sizes and statistical detail. In the revised manuscript we will report the number of measurements per zone and technology, together with 95 % confidence intervals on availability percentages and mean residuals. These additions will provide a more quantitative foundation for the observed complementarity while retaining the observational scope of the work. revision: yes
Referee: [§5] §5 (transition-zone discussion): no quantitative metric (e.g., cross-technology error correlation, joint residual distribution, or even a simple fusion simulation) is supplied to demonstrate that weaknesses actually overlap at the indoor-outdoor boundary.

Authors: The manuscript is limited to preliminary per-technology characterization and does not develop fusion algorithms. We will therefore not add a fusion simulation. To address the request for quantitative evidence of overlapping weaknesses, we will include cross-technology residual correlations and joint residual distributions specifically for the transition zone in the revised §5. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper contains no derivations, predictions, fitted models, or mathematical claims. It reports direct empirical observations of measurement availability and ranging residuals from the HYMN dataset in one industrial setting, with the central statement that the two technology classes are complementary at indoor-outdoor transitions presented as a preliminary finding from the collected data. No load-bearing step reduces by construction to its own inputs, self-citation, or ansatz.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical dataset and observation paper with no mathematical derivations, fitted parameters, or new theoretical entities; claims rest on standard assumptions about ranging measurements and data synchronization.

pith-pipeline@v0.9.0 · 5419 in / 1048 out tokens · 60482 ms · 2026-05-07T15:22:10.335703+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

11 extracted references · 3 canonical work pages · 1 internal anchor

[1]

Enhanced EKF-based time calibration for GNSS/UWB tight integration,

Y . Guo, O. V ouch, S. Zocca, A. Minetto, and F. Dovis, “Enhanced EKF-based time calibration for GNSS/UWB tight integration,”IEEE Sensors Journal, vol. 23, no. 1, pp. 552–566, Jan. 2023

2023
[2]

Multi-technology indoor-outdoor positioning using GNSS, UWB, BLE, WiFi, and 5G NR,

A. Michler, P. Schwarzbach, and O. Michler, “Multi-technology indoor-outdoor positioning using GNSS, UWB, BLE, WiFi, and 5G NR,” in2025 IEEE/ION Position, Location and Navigation Symposium (PLANS). IEEE, 2025

2025
[3]

A survey on cooperative posi- tioning using GNSS measurements,

R. Jin, G. Zhang, L.-T. Hsu, and Y . Hu, “A survey on cooperative posi- tioning using GNSS measurements,”IEEE Transactions on Intelligent V ehicles, vol. 9, no. 11, pp. 7402–7420, Nov. 2024

2024
[4]

Terminology fragmentation of infrastructure cali- bration in radio-based indoor positioning: A systematic review,

P. Schwarzbach, “Terminology fragmentation of infrastructure cali- bration in radio-based indoor positioning: A systematic review,”IEEE Access, vol. 14, pp. 51 603–51 619, 2026

2026
[5]

Paving the way with machine learning for seamless indoor–outdoor positioning: A survey,

M. Mallik, A. K. Panja, and C. Chowdhury, “Paving the way with machine learning for seamless indoor–outdoor positioning: A survey,” Information Fusion, vol. 94, pp. 126–151, Jun. 2023

2023
[6]

Descriptor: A Hybrid Indoor and Indoor-Outdoor Positioning Multi-Technology Dataset (HYMN)

M. Ammad, A. Michler, P. Schwarzbach, J. Ninnemann, H. Ußler, and O. Michler, “Descriptor: A hybrid indoor and indoor-outdoor positioning multi-technology dataset (HYMN),” 2026. [Online]. Available: https://arxiv.org/abs/2604.20349

work page internal anchor Pith review Pith/arXiv arXiv 2026
[7]

Tud-itvs/hymn-dataset,

——, “HYMN: A hybrid multi-technology dataset for indoor and indoor-outdoor positioning,” Zenodo, 2026. [Online]. Available: https://doi.org/10.5281/zenodo.17979434

work page doi:10.5281/zenodo.17979434 2026
[8]

Statistical evaluation and synthetic generation of ultra-wideband distance measurements for indoor positioning systems,

P. Schwarzbach, R. Weber, and O. Michler, “Statistical evaluation and synthetic generation of ultra-wideband distance measurements for indoor positioning systems,”IEEE Sensors Journal, vol. 22, no. 6, pp. 4836–4843, Mar. 2022

2022
[9]

Indoor positioning with Wi-Fi location: A survey of IEEE 802.11mc/az/bk fine timing measurement research,

K. Kosek-Szott, S. Szott, W. Ciezobka, M. Wojnar, K. Rusek, and J. Segev, “Indoor positioning with Wi-Fi location: A survey of IEEE 802.11mc/az/bk fine timing measurement research,”Computer Communications, vol. 247, p. 108400, 2026

2026
[10]

BLE channel sounding: Novel method for enhanced ranging accuracy in vehicle access,

D. Suresh, P. V . Joshi, P. Parandkar, A. Gambhir, and K. M. Sudhar- shan, “BLE channel sounding: Novel method for enhanced ranging accuracy in vehicle access,”IEEE Access, 2025

2025
[11]

Evaluation of grid-based uncertainty propagation for collaborative self-calibration in indoor positioning systems,

P. Schwarzbach and A. Jung, “Evaluation of grid-based uncertainty propagation for collaborative self-calibration in indoor positioning systems,”IEEE Journal of Indoor and Seamless Positioning and Navigation, p. 1–10, 2026. [Online]. Available: http://dx.doi.org/10. 1109/JISPIN.2026.3687458

work page arXiv 2026
