arxiv: 2604.20349 · v1 · submitted 2026-04-22 · 📡 eess.SP

Recognition: unknown

Descriptor: A Hybrid Indoor and Indoor-Outdoor Positioning Multi-Technology Dataset (HYMN)

Muhammad Ammad , Albrecht Michler , Paul Schwarzbach , Jonas Ninnemann , Hagen U{\ss}ler , Oliver Michler
Authors on Pith no claims yet

Pith reviewed 2026-05-10 00:19 UTC · model grok-4.3

classification 📡 eess.SP
keywords multi-technology datasetindoor-outdoor positioningsensor fusionlocalizationUWBBLEWiFiGNSS
0
0 comments X

The pith

The HYMN dataset supplies time-synchronized measurements from five positioning technologies across indoor-outdoor transitions for localization research.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents the HYMN dataset, which gathers data from Ultra-Wideband, Bluetooth Low Energy, WiFi, 5G, and GNSS systems in an industrial hall setting that includes transitions between indoor and outdoor areas. The measurements are time-stamped, each tagged with a unique identifier, and paired with ground truth position information. The dataset is structured to let researchers combine signals from these different systems to maintain continuous location estimates even when moving through environments where individual technologies encounter limitations. It supports tasks such as multi-sensor fingerprinting and cross-technology fusion by showing how heterogeneous signals can complement one another.

Core claim

HYMN is a multi-system and time-synchronized dataset for localization research based on opportunistic signals collected in an indoor-outdoor scenario. It comprises measurement data from five positioning systems including Ultra-Wideband, Bluetooth Low Energy, WiFi, 5G, and GNSS. Each instance carries a unique measurement identifier along with time-stamped observations for the respective systems and the corresponding ground truth information. The dataset enables multi-sensor fingerprinting, cross-technology fusion, and seamless indoor-outdoor positioning by allowing study of how the signals complement each other to overcome limitations such as GNSS degradation indoors or terrestrial systemvari

What carries the argument

The HYMN multi-technology dataset, a collection of time-synchronized measurements from five positioning systems with explicit indoor-outdoor transition coverage and ground truth.

If this is right

  • Multi-sensor fusion methods can examine how GNSS and terrestrial systems complement each other in covered areas.
  • Cross-technology fusion algorithms can be developed and tested directly on the provided synchronized observations.
  • Seamless indoor-outdoor positioning techniques become testable with explicit transition data included.
  • Fingerprinting approaches can exploit the combined observations from all five systems.
  • Researchers can address signal variability in dynamic environments by using the heterogeneous data together.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The dataset could support development of navigation systems that automatically blend or switch among technologies based on current signal conditions.
  • Similar multi-technology collections in urban or vehicular settings might extend the same complementarity approach to other mixed environments.
  • The focus on synchronization points to timing precision as a key requirement for any practical multi-sensor fusion implementation.
  • Adding further technologies or repeated collections over time could increase the dataset's value for long-term robustness studies.

Load-bearing premise

The measurements collected from the different technologies are accurately time-synchronized and the supplied ground truth positions are sufficiently precise for multi-system fusion research.

What would settle it

Independent re-collection of the same scenario that reveals consistent timing offsets between the five systems or ground truth errors exceeding typical positioning accuracy would demonstrate that the dataset cannot reliably support fusion tasks.

Figures

Figures reproduced from arXiv: 2604.20349 by Albrecht Michler, Hagen U{\ss}ler, Jonas Ninnemann, Muhammad Ammad, Oliver Michler, Paul Schwarzbach.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

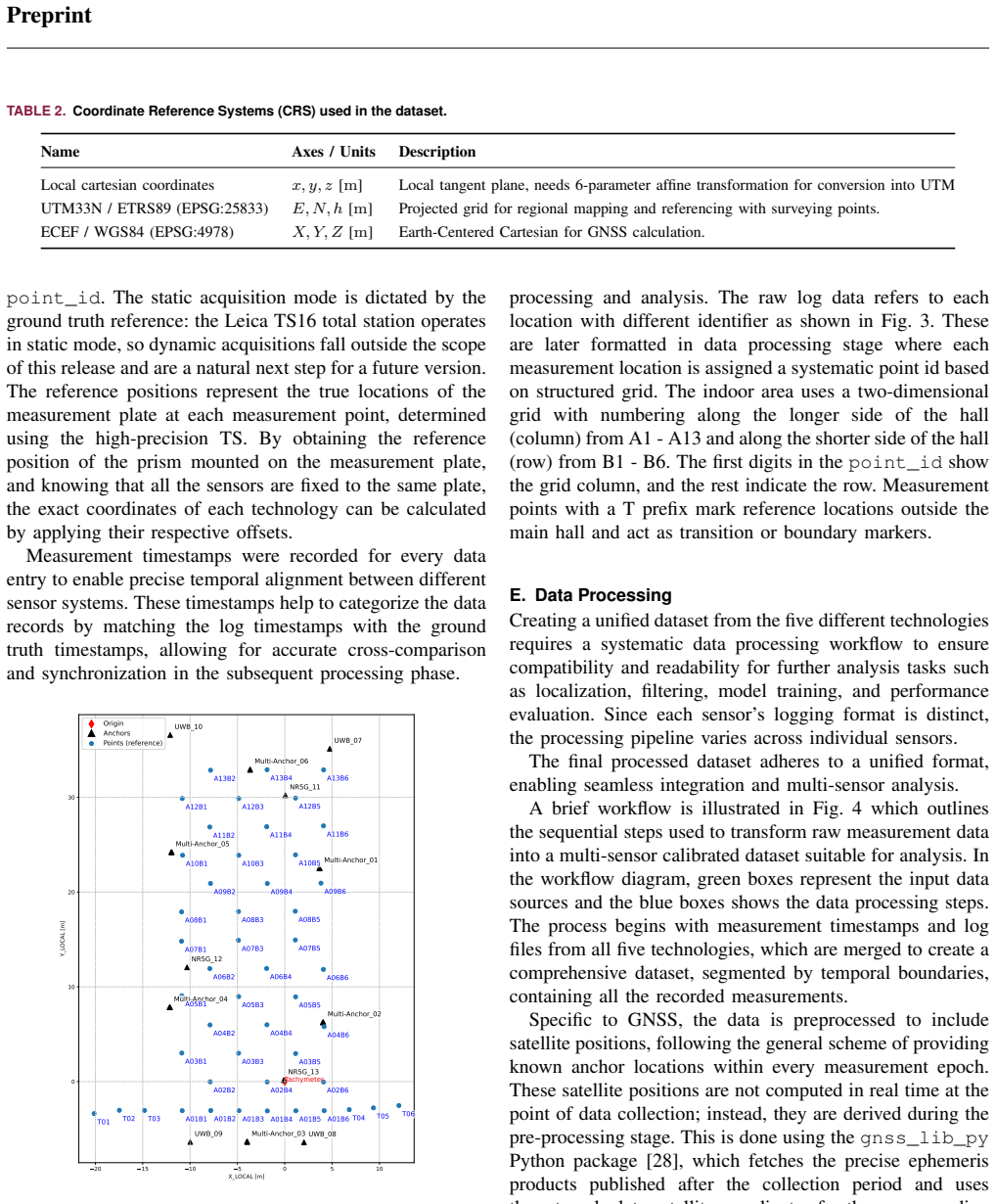

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

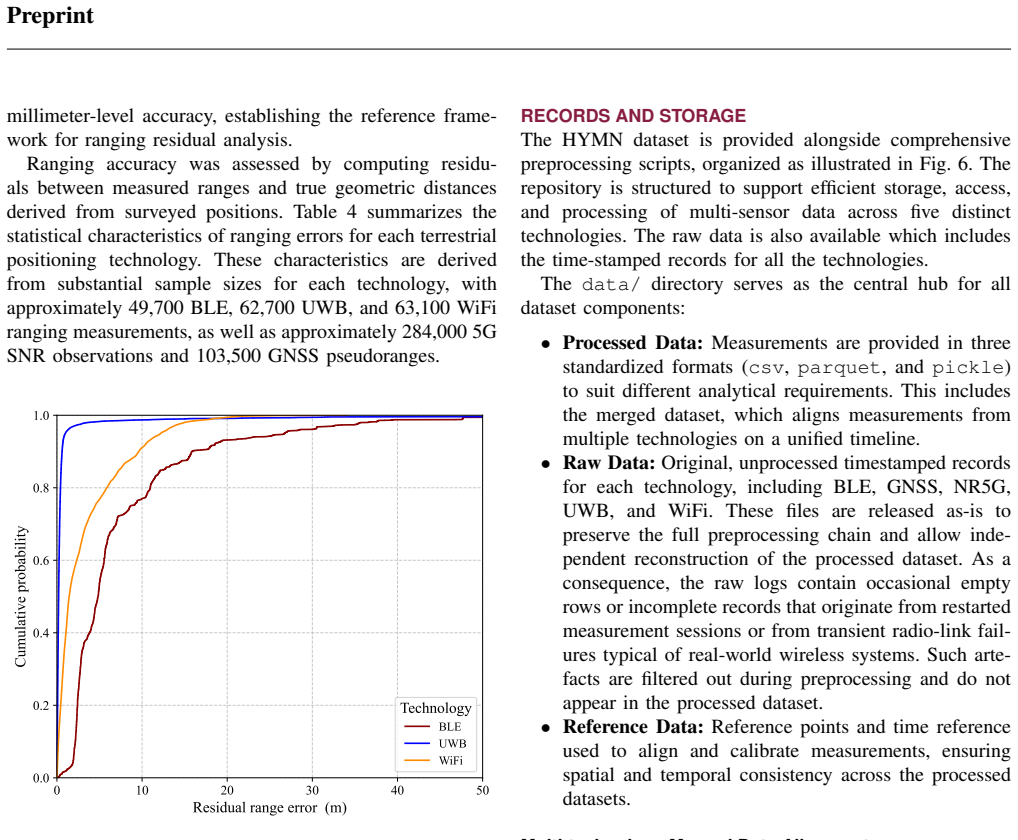

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

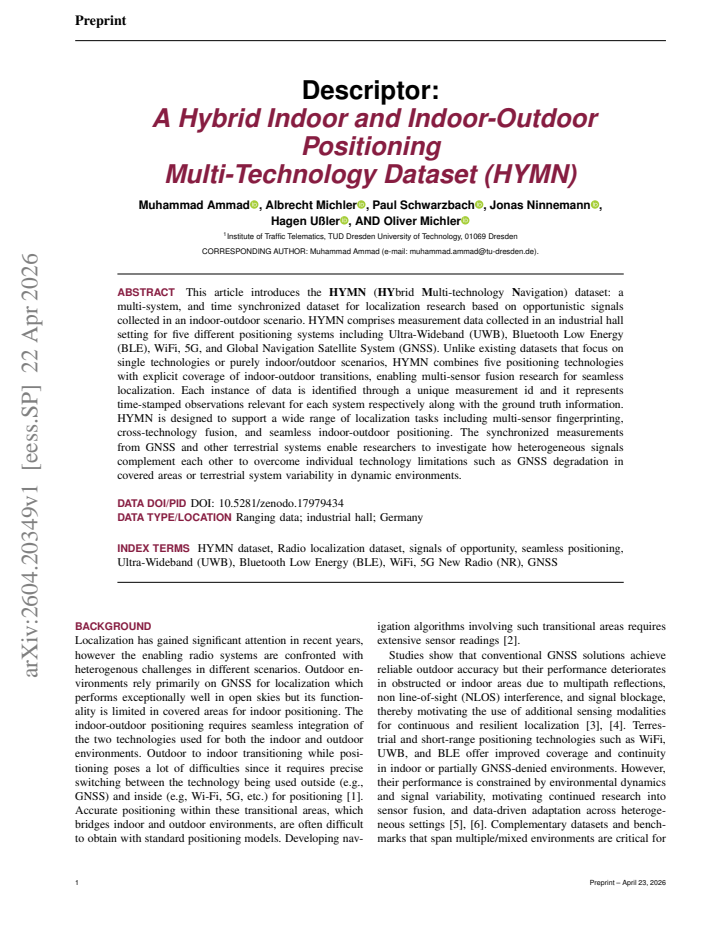

This article introduces the HYMN (HYbrid Multi-technology Navigation) dataset: a multi-system, and time synchronized dataset for localization research based on opportunistic signals collected in an indoor-outdoor scenario. HYMN comprises measurement data collected in an industrial hall setting for five different positioning systems including Ultra-Wideband (UWB), Bluetooth Low Energy (BLE), WiFi, 5G, and Global Navigation Satellite System (GNSS). Unlike existing datasets that focus on single technologies or purely indoor/outdoor scenarios, HYMN combines five positioning technologies with explicit coverage of indoor-outdoor transitions, enabling multi-sensor fusion research for seamless localization. Each instance of data is identified through a unique measurement id and it represents time-stamped observations relevant for each system respectively along with the ground truth information. HYMN is designed to support a wide range of localization tasks including multi-sensor fingerprinting, cross-technology fusion, and seamless indoor-outdoor positioning. The synchronized measurements from GNSS and other terrestrial systems enable researchers to investigate how heterogeneous signals complement each other to overcome individual technology limitations such as GNSS degradation in covered areas or terrestrial system variability in dynamic environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper introduces the HYMN dataset, a multi-technology collection of time-stamped measurements from UWB, BLE, WiFi, 5G, and GNSS collected in an industrial hall with explicit indoor-outdoor transitions, together with ground-truth information, to support multi-sensor fusion, fingerprinting, and seamless indoor-outdoor positioning research.

Significance. If the synchronization and ground-truth accuracy claims hold, the dataset would address a clear gap by supplying heterogeneous signals under realistic transition conditions, enabling reproducible cross-technology fusion studies that single-technology or purely indoor/outdoor datasets cannot support.

major comments (2)
  1. [Abstract] Abstract: the statement that the dataset supplies 'time-stamped observations ... along with the ground truth information' and is 'time synchronized' is not accompanied by any description of the synchronization mechanism (common clock, NTP/PTP, hardware trigger, or post-hoc alignment) or the ground-truth sensor and its reported accuracy. These omissions are load-bearing for the central claim of utility in multi-sensor fusion and seamless localization.
  2. [Abstract] Abstract: no information is given on data-collection procedures, receiver configurations, sampling rates, or quality-control steps (e.g., outlier rejection, multipath mitigation during GNSS outages). Without these, it is impossible to assess whether the measurements are suitable for the advertised research tasks.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. The comments highlight important aspects of clarity in the abstract that we will address through targeted revisions while preserving the paper's focus on the dataset itself.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that the dataset supplies 'time-stamped observations ... along with the ground truth information' and is 'time synchronized' is not accompanied by any description of the synchronization mechanism (common clock, NTP/PTP, hardware trigger, or post-hoc alignment) or the ground-truth sensor and its reported accuracy. These omissions are load-bearing for the central claim of utility in multi-sensor fusion and seamless localization.

    Authors: We agree that the abstract would benefit from a brief reference to the synchronization mechanism and ground-truth accuracy to better support the central claims. The full manuscript describes these in the Data Collection and Ground Truth sections. We will revise the abstract to add a concise clause summarizing the approach and accuracy, with a pointer to the relevant sections for full details. revision: yes

  2. Referee: [Abstract] Abstract: no information is given on data-collection procedures, receiver configurations, sampling rates, or quality-control steps (e.g., outlier rejection, multipath mitigation during GNSS outages). Without these, it is impossible to assess whether the measurements are suitable for the advertised research tasks.

    Authors: We acknowledge that the abstract, due to length constraints, does not include these operational details. The full manuscript provides them in the dedicated Data Acquisition section. We will revise the abstract to include a short statement referencing the methods for collection procedures, configurations, sampling rates, and quality controls, enabling readers to locate the information needed to evaluate suitability for the intended research tasks. revision: yes

Circularity Check

0 steps flagged

No circularity: dataset descriptor with no derivation chain

full rationale

The paper introduces and describes a multi-technology positioning dataset (HYMN) collected in an industrial hall with indoor-outdoor transitions. It contains no equations, no predictions, no fitted parameters, no uniqueness theorems, and no self-citations that bear load on any claimed derivation. All statements are descriptive of the data collection process and intended uses; the central claim (availability of time-stamped multi-system observations plus ground truth) is not derived from prior results within the paper and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a dataset introduction paper rather than a mathematical or theoretical work. No free parameters, axioms, or invented entities are invoked.
