Control Your Queries: Heterogeneous Query Interaction for Camera-Radar Fusion

Jialong Wu , Yihan Wang , Matthias Rottmann
Authors on Pith no claims yet

Pith reviewed 2026-05-07 16:55 UTC · model grok-4.3

classification 💻 cs.CV
keywords camera-radar fusion3D object detectionquery interactionheterogeneous queriesnuScenesautonomous drivingQMixQSwap
0
0 comments X

The pith

ConFusion fuses camera and radar by letting image, radar, and world queries interact directly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a new fusion approach for camera-radar 3D object detection that distributes queries from images, radar returns, and learnable positions in 3D space. These queries then interact through dedicated cross-type attention after sampling and through controlled swapping of feature tokens. The result is improved object initialization, coverage, and evidence consolidation from the two sensors. A reader would care because this yields higher detection accuracy on standard benchmarks while relying on relatively low-cost sensors for autonomous driving.

Core claim

ConFusion introduces heterogeneous query interaction as a fusion paradigm for camera-radar 3D object detection. It combines image queries, radar queries, and learnable world queries distributed in 3D space to improve query initialization and object coverage. Heterogeneous query mixing performs dedicated cross-type attention after feature sampling to consolidate complementary object evidence, while interactive query swap sampling allows related queries to exchange informative feature tokens under attention and geometric constraints. On the nuScenes dataset this produces 59.1 mAP and 65.6 NDS on validation and 61.6 mAP and 67.9 NDS on the test set.

What carries the argument

Heterogeneous query interaction, which mixes image queries, radar queries, and 3D world queries through QMix cross-type attention and QSwap token exchange to consolidate complementary sensor evidence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same query-interaction structure could be adapted to camera-lidar fusion by adding lidar-specific query types.
  • If the attention mechanisms prove robust, the method might reduce the impact of temporary sensor dropouts in real driving.
  • Query swapping under geometric constraints may transfer to other query-based detectors that currently sample features independently.

Load-bearing premise

Cross-type attention after sampling and query swapping will reliably merge useful camera and radar evidence without creating new conflicts or missing objects on unseen scenes or degraded sensors.

What would settle it

Running ConFusion on nuScenes validation scenes with added synthetic radar noise or camera occlusions and measuring whether mAP falls below the best prior method.

Figures

Figures reproduced from arXiv: 2604.25574 by Jialong Wu, Matthias Rottmann, Yihan Wang.

Figure 1
Figure 1. Figure 1: Evolution of camera-3D sensor fusion: (a) input mixing; (b) feature map mixing; (c,d) view at source ↗
Figure 2
Figure 2. Figure 2: Overview of ConFusion. ConFusion first extracts multi-modal feature maps from camera view at source ↗
Figure 3

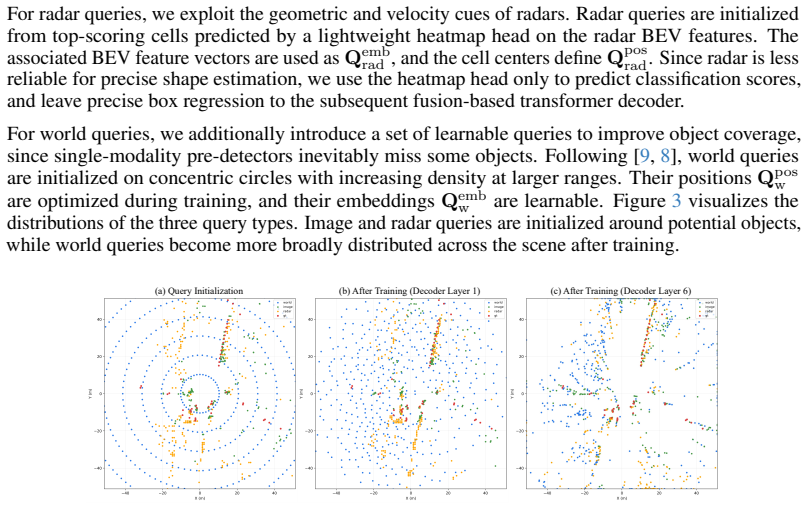

Figure 3. Figure 3: Heterogeneous query initialization and post-training distributions across decoder layers. view at source ↗
Figure 4

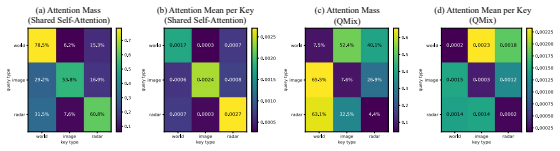

Figure 4. Figure 4: Attention statistics of shared self-attention and QMix across query types. view at source ↗
Figure 5

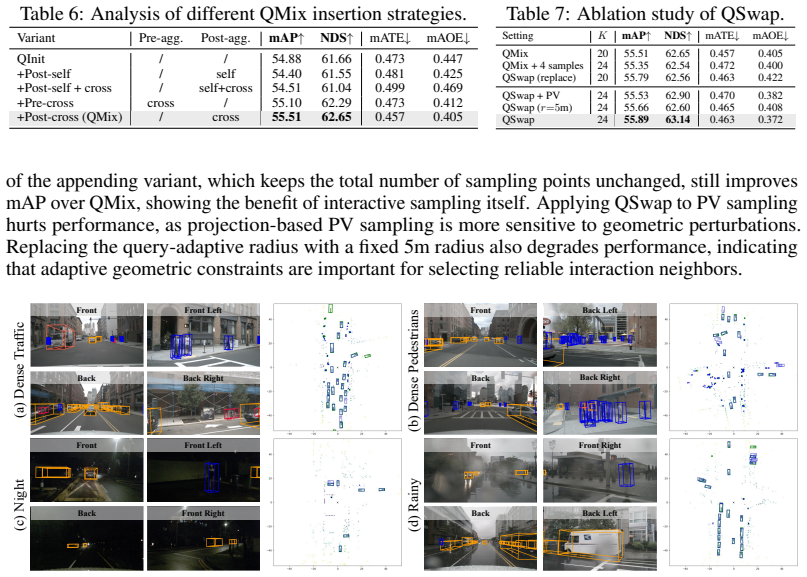

Figure 5. Figure 5: Qualitative results on the nuScenes val set under challenging scenarios. Left: projected 3D detections on multi-view images. Right: BEV radar points, predictions in blue, ground truth in green view at source ↗
Figure 6

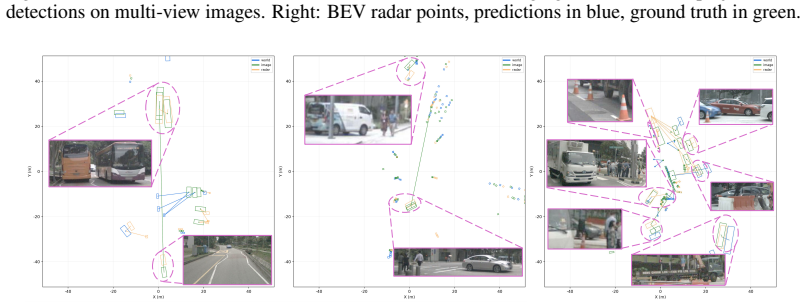

Figure 6. Figure 6: QMix cross-type attention links. High-confidence boxes and their top-2 links are visualized. view at source ↗
read the original abstract

In autonomous driving, camera-radar fusion offers complementary sensing and low deployment cost. Existing methods perform fusion through input mixing, feature map mixing, or query-based feature sampling. We propose a new fusion paradigm, termed heterogeneous query interaction, and present ConFusion, a camera-radar 3D object detector. ConFusion combines image queries, radar queries, and learnable world queries distributed in 3D space to improve query initialization and object coverage. To encourage cross-type interaction among heterogeneous queries, we introduce heterogeneous query mixing (QMix), which performs dedicated cross-type attention after feature sampling to consolidate complementary object evidence. We further propose interactive query swap sampling (QSwap), which improves feature sampling by allowing related queries to exchange informative feature tokens under attention and geometric constraints. Experiments on the nuScenes dataset show that ConFusion achieves state-of-the-art performance, reaching 59.1 mAP and 65.6 NDS on the validation set, and 61.6 mAP and 67.9 NDS on the test set.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper introduces ConFusion, a camera-radar 3D object detector for autonomous driving that uses heterogeneous queries (image queries, radar queries, and learnable world queries) distributed in 3D space. It proposes heterogeneous query mixing (QMix) to perform dedicated cross-type attention after feature sampling for consolidating complementary evidence, and interactive query swap sampling (QSwap) to allow related queries to exchange tokens under attention and geometric constraints. Experiments on nuScenes report state-of-the-art results of 59.1 mAP and 65.6 NDS on validation and 61.6 mAP and 67.9 NDS on test.

Significance. If the reported gains are robustly attributable to the heterogeneous query interaction mechanisms, the work would advance query-based multi-modal fusion by showing how cross-type attention and constrained token exchange can better integrate complementary camera-radar cues than prior mixing or sampling approaches, with potential benefits for low-cost, robust perception systems.

major comments (3)
  1. [Experiments] Experimental results section: The SOTA performance numbers (59.1/65.6 mAP/NDS val, 61.6/67.9 test) are presented without ablation tables, error bars, or multiple-run statistics, which is load-bearing for the central claim that QMix and QSwap drive the improvements over prior query/feature mixing baselines.
  2. [Method] Method description (QMix and QSwap): No evaluation or analysis is provided on whether the cross-type attention and token-exchange mechanisms introduce new failure modes (e.g., attention dilution under sparse radar returns or degraded camera features) on unseen scenes or sensor degradations, undermining confidence that the paradigm reliably consolidates evidence without offsets.
  3. [Implementation] Implementation details: The number, initialization, and optimization of the learnable world queries, along with the specific attention weights and geometric thresholds in QMix/QSwap, are treated as free parameters without sensitivity analysis or ablation, leaving the reproducibility and generality of the reported benchmark gains unclear.
minor comments (1)
  1. [Method] Notation for query types and sampling steps could be clarified with a single diagram or consistent symbols across sections to aid readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We agree that strengthening the experimental validation, discussing potential limitations, and improving implementation transparency will enhance the paper. Below we address each major comment point by point, indicating the revisions we will make.

read point-by-point responses

  1. Referee: [Experiments] Experimental results section: The SOTA performance numbers (59.1/65.6 mAP/NDS val, 61.6/67.9 test) are presented without ablation tables, error bars, or multiple-run statistics, which is load-bearing for the central claim that QMix and QSwap drive the improvements over prior query/feature mixing baselines.

    Authors: We acknowledge that the current version lacks dedicated ablation tables isolating QMix and QSwap and does not report error bars or multi-run statistics. In the revised manuscript we will add a comprehensive ablation study comparing the full ConFusion model against variants without QMix, without QSwap, and against prior query/feature mixing baselines. We will also rerun the main experiments with multiple random seeds and include error bars to demonstrate that the reported gains (59.1 mAP / 65.6 NDS) are stable and attributable to the proposed heterogeneous query interaction mechanisms. revision: yes

  2. Referee: [Method] Method description (QMix and QSwap): No evaluation or analysis is provided on whether the cross-type attention and token-exchange mechanisms introduce new failure modes (e.g., attention dilution under sparse radar returns or degraded camera features) on unseen scenes or sensor degradations, undermining confidence that the paradigm reliably consolidates evidence without offsets.

    Authors: We agree this analysis is important for establishing reliability. While the original submission focused on overall gains, the revised version will include a dedicated limitations subsection. It will discuss potential failure modes such as attention dilution with very sparse radar returns and provide qualitative examples from nuScenes validation scenes where camera features are degraded. We will also note that a full quantitative study on synthetic sensor degradations lies outside the current scope but is a valuable direction for future work. revision: partial

  3. Referee: [Implementation] Implementation details: The number, initialization, and optimization of the learnable world queries, along with the specific attention weights and geometric thresholds in QMix/QSwap, are treated as free parameters without sensitivity analysis or ablation, leaving the reproducibility and generality of the reported benchmark gains unclear.

    Authors: We will expand the implementation details section to address these points. The revision will report sensitivity analysis for the number of learnable world queries (e.g., 100–500) and compare random versus learned initialization. We will also provide ablation results on the attention weights in QMix and the geometric thresholds in QSwap, showing that performance remains stable within reasonable ranges. These additions will improve reproducibility and clarify the generality of the chosen hyperparameters. revision: yes

Circularity Check

0 steps flagged

No circularity detected in method derivation or benchmark claims

full rationale

The paper describes an architectural paradigm (heterogeneous queries + QMix cross-type attention after sampling + QSwap token exchange under constraints) whose components are defined independently of the reported nuScenes mAP/NDS numbers. No equations are shown that would make the performance metrics equivalent to fitted parameters or self-referential definitions inside the paper. The SOTA results are presented as empirical outcomes on an external dataset, not as quantities derived by construction from the model's own inputs or prior self-citations. The derivation chain remains self-contained and externally testable.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The method introduces several architectural choices whose necessity is not derived from first principles: the number and placement of learnable world queries, the exact form of QMix cross-attention, and the geometric constraints inside QSwap. These are treated as design decisions rather than proven requirements.

free parameters (2)
  • number and initialization of learnable world queries
    The paper states that learnable world queries are distributed in 3D space but does not derive their count or placement from data-independent principles.
  • attention weights and geometric thresholds inside QMix and QSwap
    These are learned or hand-tuned parameters that control how queries exchange information.
axioms (1)
  • domain assumption Queries of different modalities can be meaningfully compared after feature sampling
    The heterogeneous mixing step presupposes that image-derived and radar-derived tokens live in a shared embedding space.

pith-pipeline@v0.9.0 · 5481 in / 1291 out tokens · 31698 ms · 2026-05-07T16:55:54.853290+00:00 · methodology
