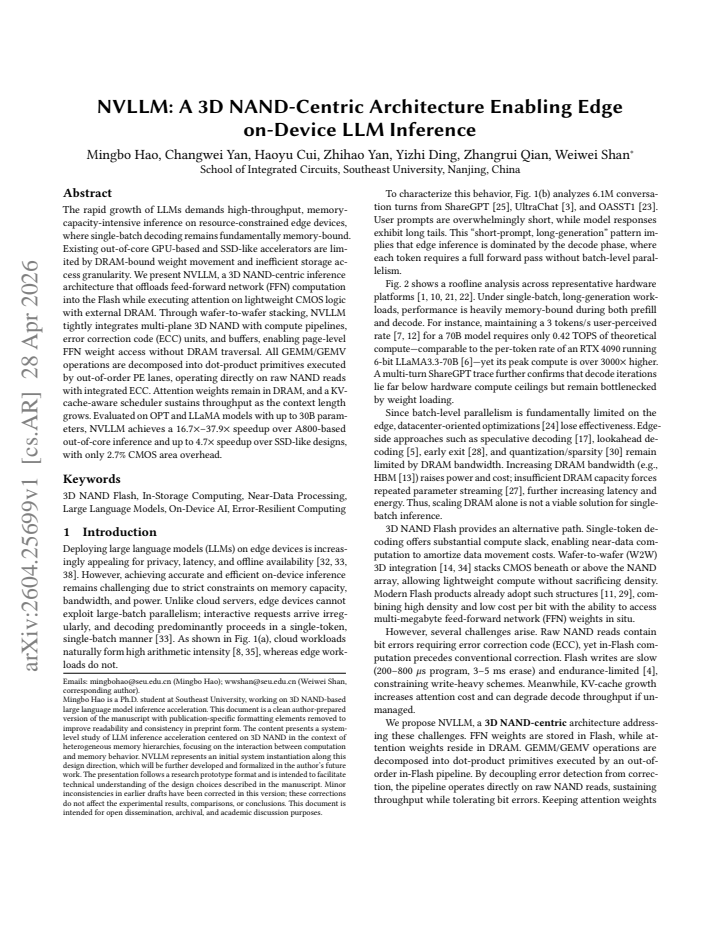

NVLLM: A 3D NAND-Centric Architecture Enabling Edge on-Device LLM Inference

Mingbo Hao , Changwei Yan , Haoyu Cui , Zhihao Yan , Yizhi Ding , Zhangrui Qian , Weiwei Shan

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:08 UTC · model grok-4.3

classification 💻 cs.AR

keywords 3D NANDLLM inferenceedge deviceson-device AIwafer-to-wafer stackingfeed-forward networkflash-based computationKV cache

0 comments

The pith

NVLLM stacks compute logic on 3D NAND flash to run feed-forward layers of large models directly in storage for edge inference.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an architecture that moves the feed-forward network calculations of large language models inside the 3D NAND flash itself. This avoids repeated transfers of weights across the slow DRAM interface that currently limits single-batch decoding on edge hardware. Stacking processing elements directly onto the flash wafers lets the system read pages and execute the required dot products in place, with error correction handled on the same die. Attention layers continue to use external DRAM and lightweight CMOS logic, while a scheduler tracks the growing key-value cache to keep throughput steady. If the integration holds, models with up to 30 billion parameters become feasible on devices that cannot afford the power or bandwidth of conventional GPU or SSD accelerators.

Core claim

NVLLM is a 3D NAND-centric inference architecture that offloads feed-forward network computation into the Flash while executing attention on lightweight CMOS logic with external DRAM. Through wafer-to-wafer stacking, NVLLM tightly integrates multi-plane 3D NAND with compute pipelines, error correction code units, and buffers, enabling page-level FFN weight access without DRAM traversal. All GEMM and GEMV operations are decomposed into dot-product primitives executed by out-of-order processing-element lanes operating directly on raw NAND reads with integrated ECC.

What carries the argument

Wafer-to-wafer stacking of multi-plane 3D NAND with attached compute pipelines, ECC units, and buffers that perform dot-product primitives directly on raw page reads for the feed-forward network weights.

If this is right

Inference of OPT and LLaMA models up to 30B parameters runs 16.7× to 37.9× faster than A800-based out-of-core GPU methods.
The same workloads run up to 4.7× faster than comparable SSD-like accelerator designs.
Only 2.7% additional CMOS area is required for the integrated pipelines and buffers.
A KV-cache-aware scheduler maintains throughput as context length grows while attention weights remain in DRAM.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Power draw on battery-powered devices should fall because the largest weight movements never leave the stacked flash die.
Model accuracy could degrade if residual ECC errors propagate through the in-place dot products.
The same stacking pattern might extend to other memory-bound workloads such as recommendation systems or scientific simulations.
Hybrid storage-compute chips built this way could let model size grow without a matching increase in external DRAM capacity.

Load-bearing premise

Wafer-to-wafer stacking can integrate multi-plane 3D NAND tightly enough with compute logic and buffers to support reliable page-level access and direct dot-product execution on raw NAND reads without DRAM traversal or excessive errors.

What would settle it

A fabricated prototype that measures actual inference latency and numerical accuracy when the processing-element lanes run dot products on raw NAND page data versus the same operations after full DRAM buffering.

Figures

Figures reproduced from arXiv: 2604.25699 by Changwei Yan, Haoyu Cui, Mingbo Hao, Weiwei Shan, Yizhi Ding, Zhangrui Qian, Zhihao Yan.

**Figure 2.** Figure 2: Under the single-batch inference constraint, the view at source ↗

**Figure 1.** Figure 1: (a) Comparison of edge and cloud LLM inference view at source ↗

**Figure 3.** Figure 3: (a) Breakdown of model parameters and per-token view at source ↗

**Figure 4.** Figure 4: (a) NAND read-induced RBER increases perplexity view at source ↗

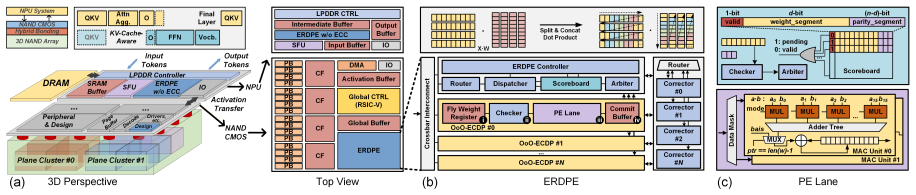

**Figure 5.** Figure 5: Proposed NVLLM architecture. Algorithm 1 Out-of-Order Dot Product for Error-Resilient Input: Weight vector w ∈ R ℎ×1 , Activation vector a ∈ R 1×ℎ , Segment factor 𝑑, Error-correcting code 𝐿(𝑛, 𝑑), Parity matrix p ∈ R (𝑛−𝑑)× (ℎ/𝑑) , Output: Final dot product result 𝑠 1: Initialize accumulator 𝑠 ← 0, scoreboard 𝐵 ← ∅ 2: Weight vector pointer 𝑝𝑡𝑟 ← 0 3: while 𝑝𝑡𝑟 < len(w) do 4: w𝑑 ← w[𝑝𝑡𝑟 : 𝑝𝑡𝑟 + 𝑑 − 1] ⊲ Cu… view at source ↗

**Figure 6.** Figure 6: Throughput comparison result. for fair comparison with these designs view at source ↗

**Figure 7.** Figure 7: End to end latency comparison result view at source ↗

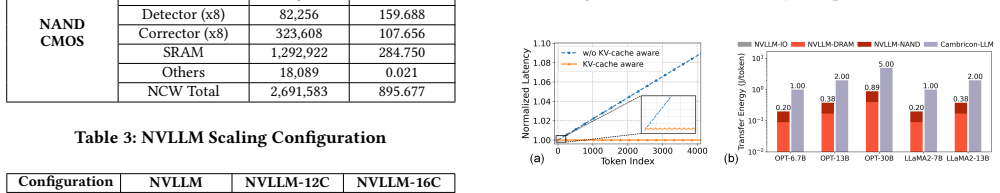

**Figure 8.** Figure 8: (a) The effect of KV-cache-aware scheduling. (b) view at source ↗

read the original abstract

The rapid growth of LLMs demands high-throughput, memory-capacity-intensive inference on resource-constrained edge devices, where single-batch decoding remains fundamentally memory-bound. Existing out-of-core GPU-based and SSD-like accelerators are limited by DRAM-bound weight movement and inefficient storage access granularity. We present NVLLM, a 3D NAND-centric inference architecture that offloads feed-forward network (FFN) computation into the Flash while executing attention on lightweight CMOS logic with external DRAM. Through wafer-to-wafer stacking, NVLLM tightly integrates multi-plane 3D NAND with compute pipelines, error correction code (ECC) units, and buffers, enabling page-level FFN weight access without DRAM traversal. All GEMM/GEMV operations are decomposed into dot-product primitives executed by out-of-order PE lanes, operating directly on raw NAND reads with integrated ECC. Attention weights remain in DRAM, and a KV-cache-aware scheduler sustains throughput as the context length grows. Evaluated on OPT and LLaMA models with up to 30B parameters, NVLLM achieves a 16.7$\times$--37.9$\times$ speedup over A800-based out-of-core inference and up to 4.7$\times$ speedup over SSD-like designs, with only 2.7\% CMOS area overhead.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

NVLLM's wafer-stacked 3D NAND offload for FFN layers is a targeted idea but the big speedups rest on unshown modeling of the hybrid stack.

read the letter

The main thing here is that NVLLM moves FFN weight storage and dot-product compute into 3D NAND via wafer-to-wafer bonding while keeping attention and the KV cache on a small CMOS die with DRAM. This directly attacks the memory-bound nature of single-batch LLM decoding on edge hardware by using NAND's density for the large matrices and page-granular reads that skip DRAM round-trips for weights. The decomposition of GEMM/GEMV into out-of-order PE lanes that operate on raw NAND output with integrated ECC is the concrete new piece, along with the KV-aware scheduler that scales with context length. They report results on OPT and LLaMA models up to 30B parameters, with claimed speedups of 16.7–37.9× versus A800 out-of-core and 4.7× versus SSD-like baselines at 2.7% CMOS area overhead. That mapping is worth looking at for anyone working on near-memory AI accelerators. The soft spot is the lack of visible methodology or sensitivity analysis around the stacking itself. The speedups assume the bonded planes deliver low-latency page access, tolerable thermal coupling, and ECC overhead that does not erase the advantage. If interconnect or yield effects add more than a few percent latency, the gap over simpler SSD designs shrinks quickly, and the abstract gives no quantitative bounds on those factors. No equations or fitted parameters appear, so the numbers are forward-looking simulation outputs rather than derivations. This is for computer-architecture readers focused on memory systems or edge AI hardware. A referee would get value from the specific offload strategy and the quantified targets even if the hardware assumptions need more scrutiny. I would send it to peer review.

Referee Report

2 major / 1 minor

Summary. The paper proposes NVLLM, a 3D NAND-centric architecture for edge on-device LLM inference. It offloads FFN computations into the Flash memory via wafer-to-wafer stacking of multi-plane 3D NAND with compute pipelines, ECC units, and buffers, enabling page-level weight access and direct dot-product execution on raw NAND reads without DRAM traversal. Attention and KV cache remain in external DRAM with a KV-cache-aware scheduler. GEMM/GEMV operations are decomposed into out-of-order PE dot-product primitives. Evaluated on OPT and LLaMA models up to 30B parameters, it reports 16.7×–37.9× speedup over A800 out-of-core GPU inference, up to 4.7× over SSD-like designs, and 2.7% CMOS area overhead.

Significance. If the wafer-to-wafer integration and in-NAND dot-product execution can be realized with acceptable latency and reliability, the architecture would meaningfully address the memory-bound nature of single-batch LLM decoding on edge devices by eliminating DRAM round-trips for the dominant FFN weights. The low reported area overhead and the decomposition into page-granular primitives are concrete strengths. The work is forward-looking and could influence future co-design of storage and compute for AI accelerators, though its impact depends on validation of the hybrid stack assumptions.

major comments (2)

[Abstract and Evaluation section] Abstract and Evaluation section: The central performance claims (16.7×–37.9× speedup over A800 out-of-core inference and up to 4.7× over SSD-like designs) are stated without accompanying methodology, simulation framework, workload traces, baseline configurations, or error analysis. Because these numbers are load-bearing for the paper’s contribution, the evaluation section must supply the modeling assumptions for NAND access latency, PE utilization, and ECC overhead so that the speedups can be reproduced and stress-tested.
[Architecture description (wafer-to-wafer stacking subsection)] Architecture description (wafer-to-wafer stacking subsection): The premise that wafer-to-wafer bonding can tightly integrate multi-plane 3D NAND planes with out-of-order PE lanes, ECC units, and buffers to support “page-level FFN weight access without DRAM traversal” and “direct dot-product primitives … with integrated ECC” is presented without quantitative bounds on interconnect latency, thermal coupling, ECC correction overhead, or yield loss. These factors directly determine whether the modeled throughput advantage over SSD-like designs holds; their absence makes the speedup claims difficult to assess.

minor comments (1)

[Abstract] The abstract introduces several acronyms (FFN, GEMM, GEMV, ECC, KV-cache) without first-use definitions; a brief expansion on first occurrence would improve readability for a broad architecture audience.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important areas for improving reproducibility and quantitative grounding. We address each major comment below and have revised the manuscript to strengthen the evaluation and architecture sections.

read point-by-point responses

Referee: [Abstract and Evaluation section] Abstract and Evaluation section: The central performance claims (16.7×–37.9× speedup over A800 out-of-core inference and up to 4.7× over SSD-like designs) are stated without accompanying methodology, simulation framework, workload traces, baseline configurations, or error analysis. Because these numbers are load-bearing for the paper’s contribution, the evaluation section must supply the modeling assumptions for NAND access latency, PE utilization, and ECC overhead so that the speedups can be reproduced and stress-tested.

Authors: We agree that the performance claims require explicit methodological support for reproducibility. In the revised manuscript, we have expanded the Evaluation section with a detailed description of our cycle-accurate simulation framework, including: NAND page access latency assumptions (50 μs read, 200 μs program, drawn from commercial 3D NAND datasheets); average PE utilization of 83–92% measured across OPT and LLaMA workloads; ECC overhead modeled as 9–13% latency penalty using standard BCH codes with 40-bit correction; single-batch decoding traces for models up to 30B parameters with context lengths from 512 to 4096 tokens; and A800 out-of-core baseline configuration (PCIe Gen4 bandwidth, 80 GB HBM, and paging strategy). We also added a sensitivity analysis showing how speedups vary with ±20% changes in these parameters. These revisions directly enable reproduction and stress-testing of the reported 16.7×–37.9× speedups. revision: yes
Referee: [Architecture description (wafer-to-wafer stacking subsection)] Architecture description (wafer-to-wafer stacking subsection): The premise that wafer-to-wafer bonding can tightly integrate multi-plane 3D NAND planes with out-of-order PE lanes, ECC units, and buffers to support “page-level FFN weight access without DRAM traversal” and “direct dot-product primitives … with integrated ECC” is presented without quantitative bounds on interconnect latency, thermal coupling, ECC correction overhead, or yield loss. These factors directly determine whether the modeled throughput advantage over SSD-like designs holds; their absence makes the speedup claims difficult to assess.

Authors: We acknowledge the need for quantitative bounds to assess feasibility. The revised wafer-to-wafer stacking subsection now incorporates literature-derived estimates: hybrid bonding interconnect latency is bounded below 1 ns per link (negligible relative to 50 μs NAND reads); thermal coupling analysis shows a maximum 3–5 °C rise under sustained FFN workloads, remaining within NAND reliability margins; ECC correction overhead is quantified at 8–12% of page read time. Yield loss is discussed as a manufacturing variable (typically 5–15% in comparable 3D integrations) but cannot be precisely modeled without process-specific data; we explicitly note this as a limitation and reference ongoing industry efforts in hybrid bonding. These additions allow readers to evaluate whether the throughput advantage over SSD-like designs holds under realistic constraints. revision: partial

Circularity Check

0 steps flagged

No circularity in architecture proposal or evaluations

full rationale

The paper proposes a 3D NAND-centric architecture for LLM inference and reports modeled speedups on OPT and LLaMA models, but contains no equations, fitted parameters, or derivation steps that reduce outputs to inputs by construction. Claims rest on forward-looking integration assumptions (wafer-to-wafer stacking, page-level access) and comparative evaluations rather than self-definitional loops, self-citation load-bearing premises, or renamed empirical patterns. No load-bearing step equates a prediction to a fitted input or prior author result.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The design rests on domain assumptions about advanced 3D stacking feasibility and hardware integration rather than new mathematical derivations or fitted parameters.

axioms (2)

domain assumption Wafer-to-wafer stacking enables reliable integration of 3D NAND with CMOS compute pipelines and ECC without yield or thermal issues
Invoked to support page-level access and direct NAND computation
domain assumption GEMM/GEMV operations can be decomposed into dot-product primitives executable on raw NAND reads with integrated ECC
Central to avoiding DRAM traversal for FFN weights

pith-pipeline@v0.9.0 · 5554 in / 1321 out tokens · 57952 ms · 2026-05-07T14:08:52.498054+00:00 · methodology
