arxiv: 2604.26148 · v1 · submitted 2026-04-28 · 💻 cs.HC · cs.CL

Recognition: unknown

Beyond Screenshots: Evaluating VLMs' Understanding of UI Animations

Chen Liang , Xirui Jiang , Naihao Deng , Eytan Adar , Anhong Guo

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:58 UTC · model grok-4.3

classification 💻 cs.HC cs.CL

keywords UI animationsvision language modelsanimation understandinguser interfacesAI agentsdynamic interfacesmotion perception

0 comments

The pith

Vision-language models detect basic motions in UI animations but show inconsistent understanding of their purposes and meanings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates a dataset of 300 annotated UI animation videos called AniMINT to test current vision-language models on dynamic interface content. It shows these models handle simple motion detection reliably but perform inconsistently when identifying why an animation is used or what it communicates in context. Human evaluators achieve much stronger results on the same interpretive tasks. The work then applies Motion, Context, and Perceptual Cues probes to locate specific performance bottlenecks. This matters because modern interfaces rely on animations for feedback and state communication, so AI agents that cannot read them will act unreliably.

Core claim

The paper establishes that state-of-the-art VLMs can reliably perceive primitive motion in UI animations, yet their abilities to identify animation purposes and interpret animation meaning remain inconsistent and substantially below human performance levels, as demonstrated through systematic evaluation on the AniMINT dataset and MCPC probing factors.

What carries the argument

The AniMINT dataset of 300 densely annotated UI animation videos together with the Motion, Context, and Perceptual Cues (MCPC) probing method used to isolate factors that affect model performance.

If this is right

Targeted improvements in high-level animation interpretation would directly benefit AI agents that must act on dynamic interfaces.
Current reliance on static screenshot benchmarks misses important dynamic behaviors that affect real agent reliability.
Identified bottlenecks in motion, context, and perceptual cue integration point to concrete directions for model training or architecture changes.
UI animation understanding should be treated as a distinct capability rather than assumed to follow from general video or image understanding.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Future models might close the gap by training on paired animation videos and explicit purpose labels rather than generic video data.
The same probing approach could be applied to other dynamic UI elements such as transitions or micro-interactions to map broader capability boundaries.
Developers of interface agents could use similar datasets to create targeted fine-tuning regimes before deploying agents in animated environments.

Load-bearing premise

That the 300 chosen videos, annotation scheme, and MCPC factors are representative enough of real-world UI animations to support general claims about VLM capabilities.

What would settle it

A follow-up evaluation on a much larger and more diverse set of production UI animations that shows either consistent high-level interpretation or no measurable gap relative to human performance would falsify the reported limitations.

Figures

Figures reproduced from arXiv: 2604.26148 by Anhong Guo, Chen Liang, Eytan Adar, Naihao Deng, Xirui Jiang.

**Figure 1.** Figure 1: Overview of AniMINT, a UI animation dataset with multi-level human annotations. Each clip includes view at source ↗

**Figure 2.** Figure 2: Dataset statistics. (Left) Distribution across seven animation purposes based on prior taxonomy. (Right) view at source ↗

**Figure 3.** Figure 3: RQ1: VLM accuracy per animation effect. To view at source ↗

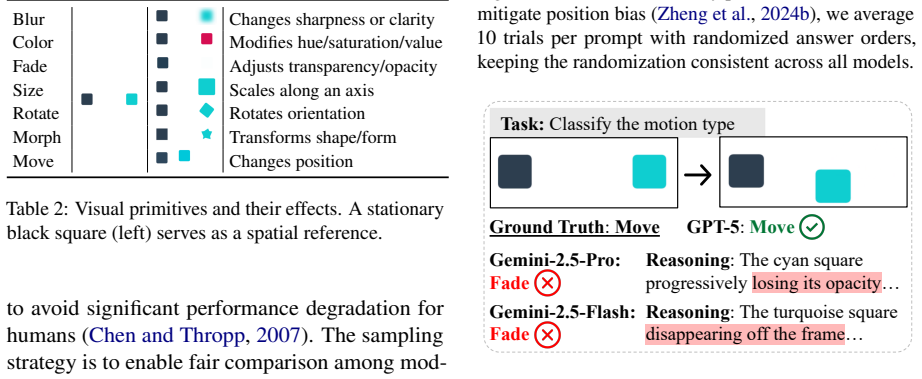

**Figure 4.** Figure 4: RQ1: An example where the “move” motion is incorrectly interpreted as “fade” by Gemini-2.5 Pro and Flash. These two models hallucinate the motion and reason the object “progressively losing capacity” or “disappearing off the frame.” 4.1 Error Analysis Hallucination errors. Despite correctly recognizing motion patterns, Gemini-2.5-Pro exhibits hallucination errors. In several cases, it describes non-existe… view at source ↗

**Figure 5.** Figure 5: RQ2 per-category recall scores by model and view at source ↗

**Figure 6.** Figure 6: Examples in RQ2 where VLMs fail to identify the correct animation purpose. view at source ↗

**Figure 7.** Figure 7: RQ3: Examples of Animation and the interpretations from VLMs. view at source ↗

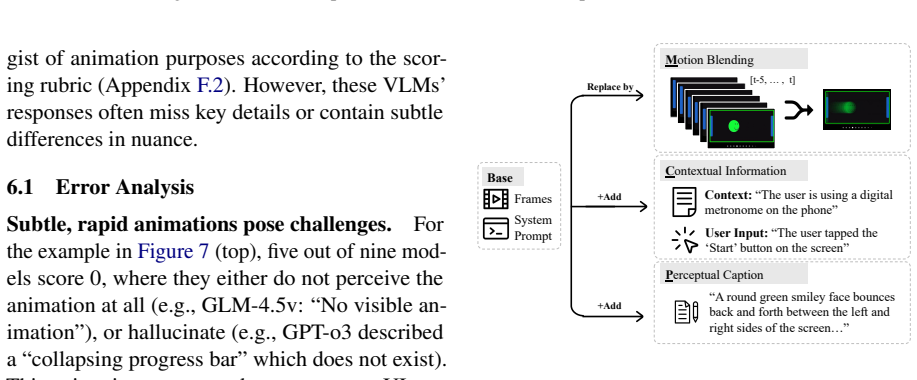

**Figure 8.** Figure 8: MCPC includes Motion Blending (blending the past six frames to capture motion), Contextual Information (interaction context and user input), and Perceptual Caption (textual descriptions of the animation). 7 Probing VLM Performance with Motion, Context, and Perceptual Cues Setup. To identify limitations and potential improvement factors, we study how Motion, Context, and Perceptual Cues affect VLM perfo… view at source ↗

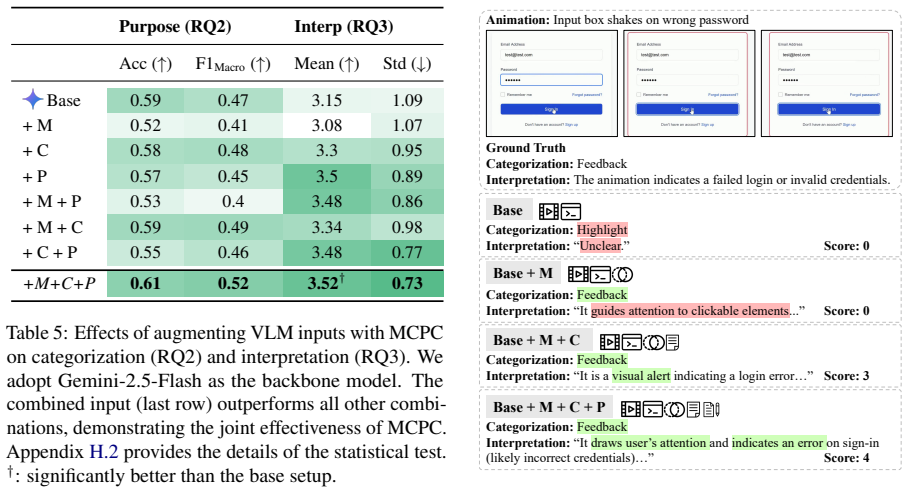

**Figure 9.** Figure 9: Improvements of incorporating MCPC: a wrong password shake is incorrectly classified as highlight in the base condition, but is correctly interpreted as an error indication with MCPC. interpretation tasks, revealing the bottleneck of motion perception and the important synergy effects across perception and semantic context. We envision this work and our AniMINT dataset as a step toward interaction-aware… view at source ↗

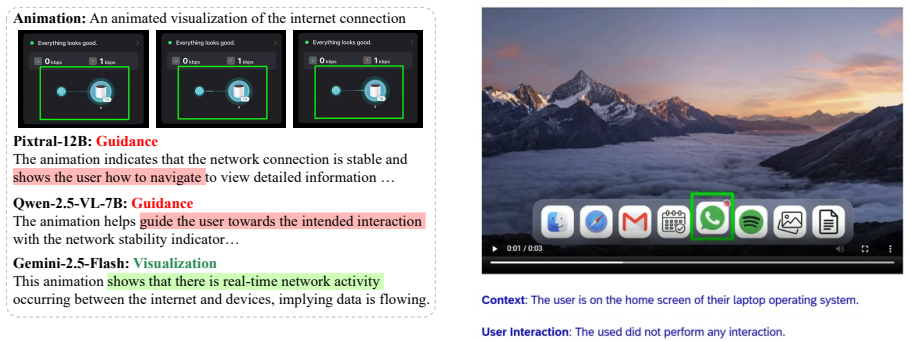

**Figure 10.** Figure 10: An example where small models failed the view at source ↗

**Figure 11.** Figure 11: An example of the labeling interface, where view at source ↗

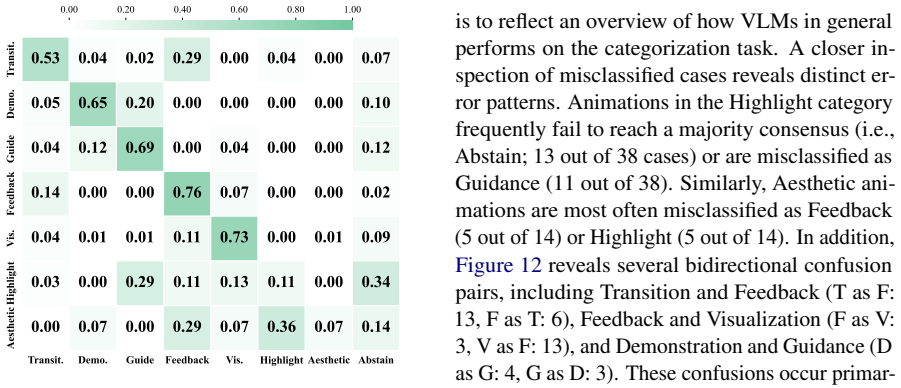

**Figure 12.** Figure 12: Accuracy of the majority vote of predictions view at source ↗

**Figure 13.** Figure 13: Confusion matrix for each model. differ significantly when tested on the same examples, while accounting for the dependency between paired observations. Test results. We conducted McNemar’s test between each pair of VLMs in view at source ↗

**Figure 14.** Figure 14: Illustration of semantic similarity computed view at source ↗

**Figure 15.** Figure 15: Examples of regular frames vs. motion blended images where motion blended images show the movement patterns in the past few frames. H.2 Statistical Significance Test Following Appendix E.3 and G.2, we adopt the McNemar’s test and the Wilcoxon signed-rank test for the purpose categorization (RQ2) and UI animation interpretation (RQ3), respectively. Tables 10 and 11 report the results, respectively. For pu… view at source ↗

read the original abstract

AI agents operating on user interfaces must understand how interfaces communicate state and feedback to act reliably. As a core communicative modality, animations are increasingly used in modern interfaces, serving critical functional purposes beyond mere aesthetics. Thus, understanding UI animation is essential for comprehensive interface interpretation. However, recent studies of Vision Language Models (VLMs) for UI understanding have focused primarily on static screenshots, leaving it unclear how well these models handle dynamic UI animations. To address this gap, we created AniMINT, a novel dataset of 300 densely annotated UI animation videos. We systematically evaluate state-of-the-art VLMs on UI animation understanding, including their abilities to perceive the animation effects, identify animation purposes, and interpret animation meaning. Our results show that VLMs can reliably detect primitive motion. However, their high-level animation interpretation remains inconsistent, with substantial gaps relative to human performance. Finally, we use Motion, Context, and Perceptual Cues (MCPC) to probe factors affecting VLM performance, revealing key bottlenecks and directions for future improvement.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper introduces a useful dataset for UI animations but its small scale leaves the general claims open to question.

read the letter

The one or two things to know are that this paper builds the AniMINT dataset of 300 annotated UI animation videos and uses it to show that VLMs can spot basic motion but have trouble with purpose and meaning in animations, unlike humans. The new part is the focus on animations instead of just screenshots, which previous VLM UI studies did. They set up a three-tier test and use Motion, Context, and Perceptual Cues to probe what affects the models. This gives a practical way to measure understanding of how interfaces use motion for feedback and state changes. The work is clear about the importance of animations for AI agents that need to act on UIs. Where it could be tighter is the scale and validation of the dataset. Three hundred videos is not a huge number, and if they don't cover enough variety in animation styles or application contexts, the gaps they find might not hold across all UI animations. The abstract mentions dense annotations but without seeing the full methods, it's unclear how they ensured the labels are consistent or how they chose the videos to be representative. That makes the human performance comparison a bit harder to trust fully until more evidence is there. People working on vision-language models for interactive systems or on UI agents will find this relevant. It points to specific areas where current models need improvement to handle dynamic interfaces. I think it should go to peer review. The dataset is a useful new resource, and getting feedback on the evaluation design and generalizability would make the findings more solid.

Referee Report

3 major / 2 minor

Summary. The paper introduces the AniMINT dataset of 300 densely annotated UI animation videos and evaluates state-of-the-art VLMs on three tasks: perceiving primitive animation effects, identifying animation purposes, and interpreting high-level animation meaning in UI contexts. It reports that VLMs reliably detect primitive motion but exhibit inconsistent high-level interpretation with substantial gaps relative to human performance, and uses Motion, Context, and Perceptual Cues (MCPC) probes to identify performance bottlenecks and suggest future directions.

Significance. If the evaluation holds, the work is significant for highlighting limitations of current VLMs in dynamic UI understanding, a key capability for AI agents interacting with interfaces. The new dataset and MCPC probing framework provide concrete benchmarks and diagnostic tools that can drive targeted improvements in VLM training for temporal and contextual reasoning.

major comments (3)

[§3] §3 (Dataset Construction): The claim that AniMINT supports general conclusions about VLM capabilities and bottlenecks rests on the 300 videos being representative of real-world UI animations; however, the selection criteria, coverage of animation types, UI contexts, and functional purposes are not justified in sufficient detail to rule out sampling artifacts, directly undermining the generalizability of the primitive-motion reliability and high-level interpretation gap findings.
[§5] §5 (Evaluation and Results): The reported performance differences between primitive motion detection and high-level interpretation lack accompanying statistical tests, confidence intervals, inter-annotator agreement for human baselines, or error analysis; without these, it is impossible to determine whether the 'substantial gaps' are robust or driven by annotation noise or task formulation.
[§6] §6 (MCPC Probing): The MCPC factors are presented as revealing key bottlenecks, but the paper does not demonstrate that these factors are exhaustive or that the probing isolates causal influences rather than correlated surface features; this weakens the prescriptive value for future VLM improvements.

minor comments (2)

[Abstract] Abstract: The summary of results omits any quantitative metrics, sample sizes for human comparisons, or statistical significance, making it difficult for readers to gauge the strength of the claims without reading the full methods and results sections.
[Figures/Tables] Figure and table captions: Several figures comparing VLM and human performance would benefit from explicit error bars or per-category breakdowns to improve interpretability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important areas for strengthening the manuscript. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

Referee: [§3] §3 (Dataset Construction): The claim that AniMINT supports general conclusions about VLM capabilities and bottlenecks rests on the 300 videos being representative of real-world UI animations; however, the selection criteria, coverage of animation types, UI contexts, and functional purposes are not justified in sufficient detail to rule out sampling artifacts, directly undermining the generalizability of the primitive-motion reliability and high-level interpretation gap findings.

Authors: We agree that additional detail on dataset construction is warranted to support generalizability claims. In the revised version, we will expand §3 with explicit selection criteria (including sources such as design repositories and app stores), quantitative coverage statistics across animation types, UI contexts, and functional purposes, and a dedicated limitations paragraph on potential sampling biases. These additions will better justify the dataset's scope without altering the core findings. revision: yes
Referee: [§5] §5 (Evaluation and Results): The reported performance differences between primitive motion detection and high-level interpretation lack accompanying statistical tests, confidence intervals, inter-annotator agreement for human baselines, or error analysis; without these, it is impossible to determine whether the 'substantial gaps' are robust or driven by annotation noise or task formulation.

Authors: We concur that statistical support and error analysis would improve robustness assessment. The revised manuscript will incorporate paired statistical tests for performance differences, 95% confidence intervals on all metrics, inter-annotator agreement scores (e.g., Fleiss' kappa) for human baselines, and a new error analysis subsection categorizing failure modes. These elements will be added to §5 to substantiate the reported gaps. revision: yes
Referee: [§6] §6 (MCPC Probing): The MCPC factors are presented as revealing key bottlenecks, but the paper does not demonstrate that these factors are exhaustive or that the probing isolates causal influences rather than correlated surface features; this weakens the prescriptive value for future VLM improvements.

Authors: The MCPC framework is presented as a diagnostic probe rather than an exhaustive or strictly causal model. We will revise §6 to explicitly note that the factors are not claimed to be exhaustive, clarify their correlational basis, and add a limitations discussion on the need for future controlled experiments to establish causality. This will temper the prescriptive claims while preserving the framework's utility as an initial analysis tool. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical benchmarking on newly created dataset

full rationale

The paper creates the AniMINT dataset of 300 UI animation videos, applies human annotations, evaluates VLMs on perception/interpretation tasks, and compares results to human performance while using MCPC factors for post-hoc probing. No equations, parameter fitting, or predictions appear; claims rest on direct empirical measurements against external human baselines rather than internal definitions or self-referential reductions. No self-citations are load-bearing for the core results, and the work does not rename known patterns or smuggle ansatzes. The analysis is self-contained as a standard dataset-driven evaluation study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Empirical benchmarking study; relies on standard assumptions about what benchmark tasks measure and that the sampled animations generalize.

axioms (1)

domain assumption Benchmark tasks on a 300-video dataset can reveal general VLM limitations in UI animation understanding.
Implicit in any small-scale evaluation study; stated in the abstract's framing of results.

pith-pipeline@v0.9.0 · 5488 in / 1239 out tokens · 83800 ms · 2026-05-07T14:58:23.835483+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

7 extracted references · 4 canonical work pages

[1]

Guiming Hardy Chen, Shunian Chen, Ziche Liu, Feng Jiang, and Benyou Wang

Gui-world: A video benchmark and dataset for multimodal gui-oriented understanding.Preprint, arXiv:2406.10819. Guiming Hardy Chen, Shunian Chen, Ziche Liu, Feng Jiang, and Benyou Wang. 2024. Humans or LLMs as the judge? a study on judgement bias. InProceed- ings of the 2024 Conference on Empirical Methods in Natural Language Processing, pages 8301–8327, M...

work page arXiv 2024
[2]

Android in the wild: A large-scale dataset for android device control

Perceived user experience of animated transi- tions in mobile user interfaces. InProceedings of the 2016 CHI Conference Extended Abstracts on Human Factors in Computing Systems, CHI EA ’16, page 3152–3158, New York, NY , USA. Association for Computing Machinery. Rada Mihalcea, Oana Ignat, Longju Bai, Angana Borah, Luis Chiruzzo, Zhijing Jin, Claude Kwizer...

work page arXiv 2016
[3]

Understanding the capabilities and limitations of large language models for cultural commonsense. InProceedings of the 2024 Conference of the North American Chapter of the Association for Computa- tional Linguistics: Human Language Technologies (Volume 1: Long Papers), pages 5668–5680, Mexico City, Mexico. Association for Computational Lin- guistics. Bruc...

2024
[4]

Mobile- agent: Autonomous multi-modal mobile device agent with visual perception.arXiv preprint arXiv:2401.16158, 2024

Mobile-agent: Autonomous multi-modal mo- bile device agent with visual perception.arXiv preprint arXiv:2401.16158. Frank Wilcoxon. 1945. Individual comparisons by rank- ing methods.Biometrics bulletin, 1(6):80–83. Jason Wu, Yi-Hao Peng, Xin Yue Amanda Li, Amanda Swearngin, Jeffrey P Bigham, and Jeffrey Nichols

work page arXiv 1945
[5]

InProceedings of the 37th Annual ACM Symposium on User Interface Software and Technology, UIST ’24, New York, NY , USA

Uiclip: A data-driven model for assessing user interface design. InProceedings of the 37th Annual ACM Symposium on User Interface Software and Technology, UIST ’24, New York, NY , USA. Association for Computing Machinery. Jialong Wu, Wenbiao Yin, Yong Jiang, Zhenglin Wang, Zekun Xi, Runnan Fang, Linhai Zhang, Yulan He, Deyu Zhou, Pengjun Xie, and Fei Huan...

2025
[6]

Advances in Neural Information Processing Systems, 37:52040–52094

Osworld: Benchmarking multimodal agents for open-ended tasks in real computer environments. Advances in Neural Information Processing Systems, 37:52040–52094. Jiayi Ye, Yanbo Wang, Yue Huang, Dongping Chen, Qihui Zhang, Nuno Moniz, Tian Gao, Werner Geyer, Chao Huang, Pin-Yu Chen, Nitesh V Chawla, and Xiangliang Zhang. 2025. Justice or prejudice? quan- tif...

2025
[7]

Boyuan Zheng, Michael Y

Appagent: Multimodal agents as smartphone users. InProceedings of the 2025 CHI Conference on Human Factors in Computing Systems, pages 1–20. Dehai Zhao, Zhenchang Xing, Qinghua Lu, Xiwei Xu, and Liming Zhu. 2025.SeeAction: Towards Reverse Engineering How-What-Where of HCI Actions from Screencasts for UI Automation, page 463–475. IEEE Press. Boyuan Zheng, ...

work page arXiv 2025
