Hardware-Efficient Hamiltonian Simulation via Trotter-Initialized Variational Optimization with Native Placement

F. S. Luiz , P. N. Ferreira , M. C. de Oliveira This is my paper

Pith reviewed 2026-05-07 11:22 UTC · model grok-4.3

classification 🪐 quant-ph
keywords Hamiltonian simulationquantum circuit compilationNISQ devicesTrotter decompositionvariational quantum algorithmsquantum hardware fidelitystructure-aware synthesis
0
0 comments X

The pith

Structure-aware approximate compilation for Hamiltonian dynamics yields higher hardware fidelity than exact generic synthesis on NISQ devices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a compilation method for time-evolution operators on noisy quantum hardware that exploits the local structure of the Hamiltonian instead of treating it as an arbitrary unitary. It places Hamiltonian terms directly onto the device's coupling map, selects Trotter blocks with a greedy procedure, and refines the result variationally starting from the Trotter decomposition. This produces circuits with fidelities above 0.996 and roughly linear growth in entangling gates for 3-to-8-qubit Heisenberg, Ising, and XY models. On IBM Torino hardware a 27-CX approximate circuit reached 0.987 fidelity while a 187-CX exact circuit performed worse. The approach matters because it shows how keeping the Hamiltonian's structure can let useful simulations run on today's hardware without waiting for fault tolerance.

Core claim

Treating product-formula decompositions as synthesis primitives, rather than mere simulation approximations, and combining native Hamiltonian-term placement, greedy Trotter-block selection, and Trotter-initialized variational refinement produces compiled circuits whose fidelity exceeds 0.996 with approximately linear scaling in entangling gates for n=3-8 qubit models; on real hardware these shorter approximate circuits can outperform much deeper exact decompositions.

What carries the argument

Trotter-initialized variational ansatz with native placement of Hamiltonian terms onto the hardware coupling map and greedy discretization for adaptive block selection, which converts the structure of the dynamics into shorter, higher-fidelity gate sequences.

If this is right

  • For Heisenberg, Ising, and XY models the compiled circuits maintain F>0.996 while generic synthesis produces circuits orders of magnitude deeper.
  • In the NISQ regime a 27-CX approximate circuit can achieve higher measured hardware fidelity than a 187-CX exact circuit on IBM Torino.
  • The number of entangling gates scales approximately linearly with system size for n=3-8 qubits.
  • Hamiltonian simulation becomes feasible on current devices without requiring pulse-level control or full error correction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same structure-aware pipeline could be applied to other local Hamiltonians beyond the three models tested, potentially extending the practical range of NISQ dynamics simulations.
  • Combining the method with existing error-mitigation techniques might further close the gap between simulated and hardware fidelity for time-evolution tasks.
  • Replacing the greedy block selector with a global optimizer could yield even shallower circuits if the variational stage remains robust.

Load-bearing premise

The Trotter-initialized variational optimization reliably reaches high fidelity without becoming trapped in poor local minima and the greedy discretization consistently selects near-optimal blocks for the tested models and qubit counts.

What would settle it

Running the variational refinement from many random initial points on the same Hamiltonians and observing whether fidelity consistently exceeds 0.99 or drops below that threshold for some fraction of trials.

Figures

Figures reproduced from arXiv: 2604.26663 by F. S. Luiz, M. C. de Oliveira, P. N. Ferreira.

Figure 1

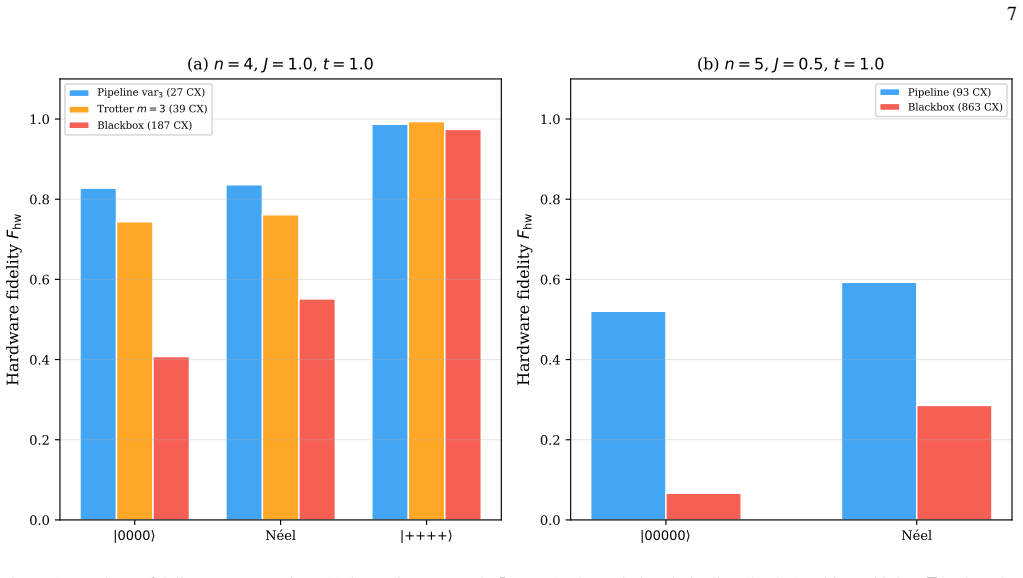

Figure 1. Figure 1: Hardware fidelity on IBM Torino. (a) Scenario B ( view at source ↗
Figure 2

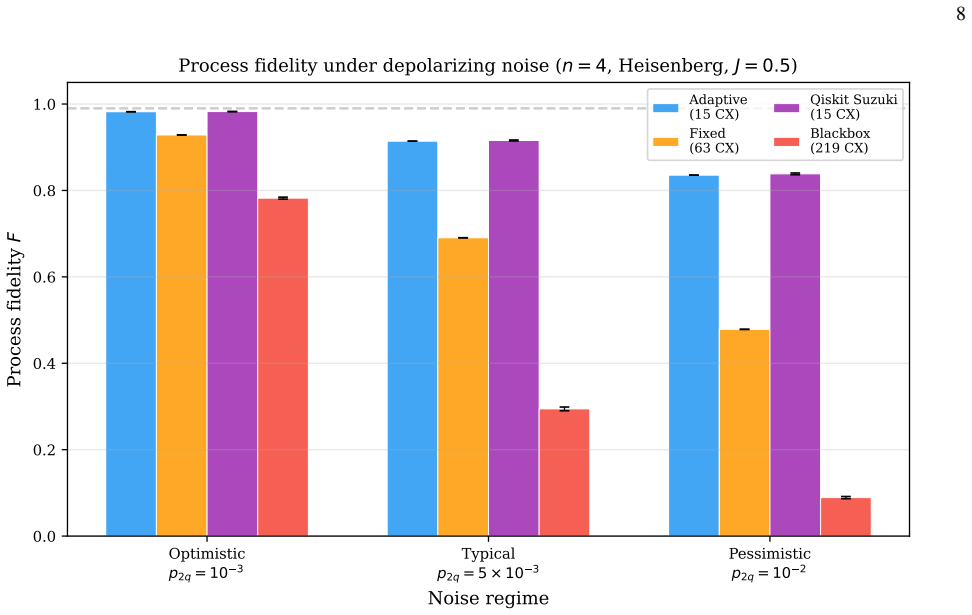

Figure 2. Figure 2: Process fidelity under depolarizing noise for three error rate regimes. The adaptive native pipeline (15 CX, blue) maintains view at source ↗
Figure 3

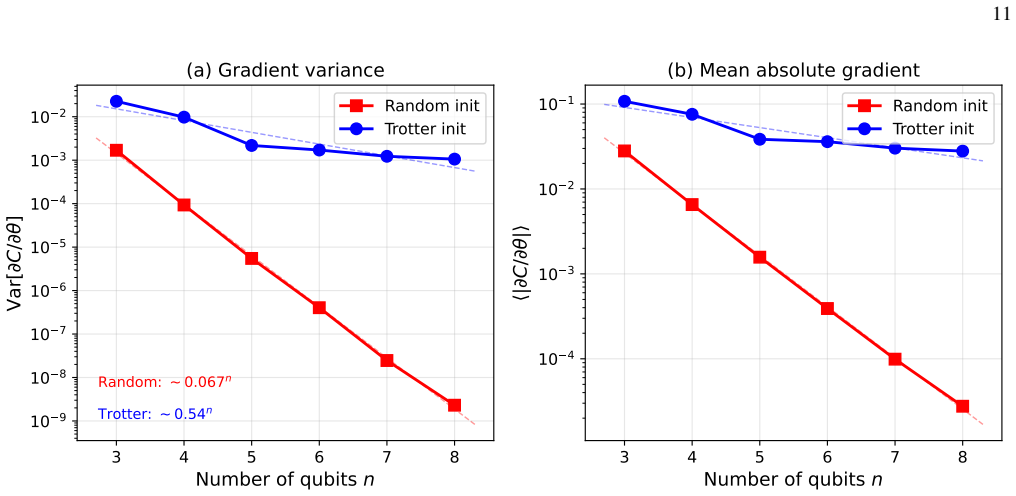

Figure 3. Figure 3: Gradient landscape scaling for the Trotter-structured variational ansatz ( view at source ↗
Figure 4
Figure 4. Figure 4: Fidelity of the adaptive native pipeline across 36 parameter configurations (4 Hamiltonian types view at source ↗
Figure 5
Figure 5. Figure 5: CX gate count (left, log scale) and fidelity (right) versus number of qubits for the Heisenberg model ( view at source ↗
Figure 6

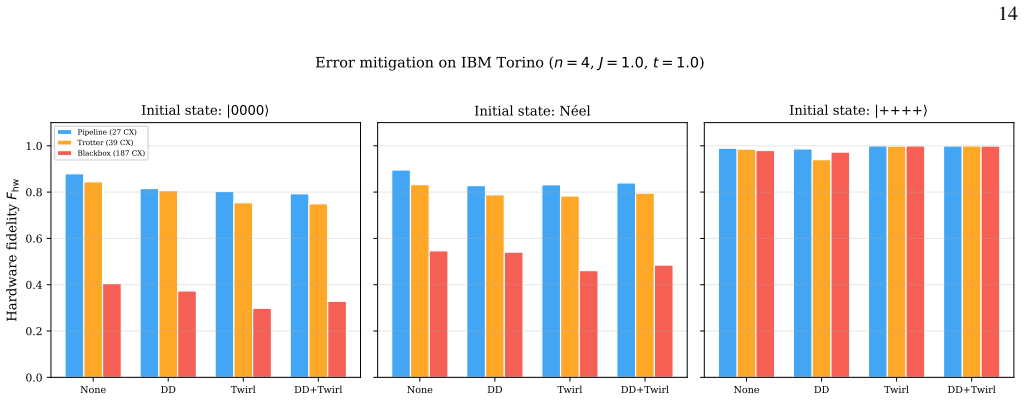

Figure 6. Figure 6: Error mitigation comparison on IBM Torino ( view at source ↗
read the original abstract

Compiling time-evolution operators of the form $U(t)=e^{-iHt}$ into hardware-native gate sequences is a central bottleneck for digital quantum simulation on noisy intermediate-scale quantum (NISQ) devices. Generic transpilation treats $U(t)$ as an arbitrary unitary, discarding the structure of Hamiltonian dynamics and producing circuits whose depth exceeds hardware coherence limits. We introduce a structure-aware compilation framework that treats product-formula decompositions as synthesis primitives rather than simulation approximations. The method combines (i) native placement of Hamiltonian terms onto the hardware coupling map, (ii) adaptive selection of Trotter blocks via a greedy discretization procedure, and (iii) variational refinement using a Trotter-initialized ansatz. Across Heisenberg, Ising, and XY models with $n=3$--$8$ qubits, the compiled circuits achieve fidelities $F>0.996$ with approximately linear scaling in the number of entangling gates, while generic synthesis produces circuits that are orders of magnitude deeper. On IBM Torino hardware, we observe a regime in which shorter approximate circuits outperform deeper exact decompositions: a 27-CX circuit achieves higher hardware fidelity ($F_{\mathrm{hw}}=0.987$) than a 187-CX exact circuit. These results demonstrate that, in the NISQ regime, structure-aware approximate compilation can outperform exact structure-agnostic synthesis, providing a practical pathway for executing Hamiltonian dynamics without requiring pulse-level control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces a structure-aware compilation framework for time-evolution operators U(t)=e^{-iHt} on NISQ hardware. It combines native placement of Hamiltonian terms onto the device coupling map, greedy discretization to select Trotter blocks, and variational refinement of a Trotter-initialized ansatz. For Heisenberg, Ising, and XY models with n=3–8 qubits the compiled circuits are reported to reach fidelities F>0.996 with approximately linear growth in entangling gates, while generic synthesis yields circuits orders of magnitude deeper. A hardware demonstration on IBM Torino shows a 27-CX approximate circuit attaining F_hw=0.987, higher than a 187-CX exact decomposition.

Significance. If the variational convergence and greedy block selection are reliable, the result would indicate that structure-aware approximate compilation can outperform exact structure-agnostic synthesis for Hamiltonian dynamics in the NISQ regime, offering a practical route to execute simulations without pulse-level control. The linear scaling and concrete hardware advantage would be noteworthy contributions.

major comments (2)
  1. [Abstract] Abstract: The headline claim that the 27-CX approximate circuit outperforms the 187-CX exact circuit on hardware (F_hw=0.987) rests on a single device run; no error bars, repeated trials, or statistical analysis are supplied, which is load-bearing for the assertion that approximate structure-aware circuits are superior in the NISQ regime.
  2. [Abstract] Abstract: The reported fidelities F>0.996 across n=3–8 and the linear entangling-gate scaling presuppose that the Trotter-initialized variational ansatz reliably escapes poor local minima and that the greedy discretization selects near-optimal blocks for the tested models; however, no convergence statistics, random-seed ablations, or optimality-gap quantification for the greedy step are provided.
minor comments (1)
  1. [Abstract] Abstract: The precise definition of the hardware fidelity F_hw (state fidelity, process fidelity, or averaged gate fidelity) and the target state or process used for its evaluation are not stated.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and indicate planned revisions to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline claim that the 27-CX approximate circuit outperforms the 187-CX exact circuit on hardware (F_hw=0.987) rests on a single device run; no error bars, repeated trials, or statistical analysis are supplied, which is load-bearing for the assertion that approximate structure-aware circuits are superior in the NISQ regime.

    Authors: We agree that the hardware demonstration relies on a single execution and lacks statistical characterization. In the revised manuscript we will report results from multiple independent runs on IBM Torino, including error bars on the observed fidelities. This will provide a more robust basis for the NISQ-regime comparison while preserving the illustrative value of the original single-run data point. revision: yes

  2. Referee: [Abstract] Abstract: The reported fidelities F>0.996 across n=3–8 and the linear entangling-gate scaling presuppose that the Trotter-initialized variational ansatz reliably escapes poor local minima and that the greedy discretization selects near-optimal blocks for the tested models; however, no convergence statistics, random-seed ablations, or optimality-gap quantification for the greedy step are provided.

    Authors: The fidelities and scaling are empirical outcomes of the complete pipeline on the tested Heisenberg, Ising, and XY instances. We did not supply convergence diagnostics or ablations in the original submission. In revision we will add a concise discussion of observed optimization trajectories and the greedy block-selection heuristic for the reported cases. Comprehensive random-seed or optimality-gap studies would require new experiments. revision: partial

Circularity Check

0 steps flagged

No circularity; empirical hardware fidelities are independent measured outcomes

full rationale

The paper's central claims rest on applying a three-part compilation procedure (native Hamiltonian-term placement on the coupling map, greedy Trotter-block discretization, and variational refinement of a Trotter-initialized ansatz) to Heisenberg/Ising/XY models for n=3-8 qubits, then reporting measured fidelities F>0.996 and a direct hardware comparison (27-CX approximate circuit vs. 187-CX exact circuit on IBM Torino). No equation defines the reported fidelity or gate count as a function of itself, no fitted parameter is relabeled as a prediction, and no self-citation is invoked to justify uniqueness or optimality of the procedure. The results are therefore presented as external empirical outcomes rather than quantities that reduce to the method's inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms or invented entities are stated. The method implicitly relies on the existence of a variational landscape that is navigable from a Trotter starting point and on the hardware coupling map being compatible with term placement.

pith-pipeline@v0.9.0 · 5567 in / 1237 out tokens · 38649 ms · 2026-05-07T11:22:05.523851+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    Maximizing simulation fidelityF sim (the process fidelityFof Eq

    Scenario A: Weak coupling (J= 0.5,n= 4) On hardware we evaluate representative depths to ex- pose the depth–noise trade-off: a fixed-step Trotter baseline with uniform discretization∆t=t/m, and the adaptive pipeline constructed from the expanded candidate set∆t∈ {0.05,0.1,0.2}∪{t/m}. Maximizing simulation fidelityF sim (the process fidelityFof Eq. 2, eval...

    work page

  2. [2]

    Scenario B: Strong coupling (J= 1.0,n= 4) with variational refinement AtJ= 1.0, the pipeline employs variational refinement withL= 3layers, producing a circuit with only 27 CX gates. This circuit achieves: •|0000⟩:F hw = 0.828(pipeline) versusF hw = 0.407 (blackbox, 187 CX) • Néel:F hw = 0.836versusF hw = 0.551 •|+ + + +⟩:F hw = 0.987versusF hw = 0.974 On...

    work page

  3. [3]

    Our pipeline with m= 5blocks (93 CX,F sim = 0.9999) achievesF hw = 0.52– 0.59on computational basis states, while Qiskit blackbox Table I

    Scenario C: Five qubits (n= 5,J= 0.5) Atn= 5, the advantage is dramatic. Our pipeline with m= 5blocks (93 CX,F sim = 0.9999) achievesF hw = 0.52– 0.59on computational basis states, while Qiskit blackbox Table I. IBM Torino hardware results. The pipeline achieves higher Fhw with fewer CX gates across all scenarios. Atn= 5, blackbox transpilation produces n...

    work page

  4. [4]

    Qiskit Suzuki-2

    Gradient landscape and barren plateau analysis Barren plateaus, the exponential vanishing of gradient vari- ance with system size, are a well-documented obstacle for variational quantum algorithms with expressive parameter- ized circuits [21]. To assess whether our Trotter-structured ansatz suffers from this phenomenon, we measure the gra- dient varianceV...

    work page 2026

  5. [5]

    6), for a total of34 raw CX

    Raw versus transpiled circuit for a single S 2 block The Suzuki-2 palindromic iteration for the Heisenberg model onn= 4qubits (9 coupling terms, 0 field terms) gen- erates 17 rotation steps, each requiring 2 CX gates (Eq. 6), for a total of34 raw CX. The palindromic ordering groups rotations by edge: • Edge(0,1)(outermost): 10 raw CX. • Edge(1,2)(interior...

    work page

  6. [6]

    At block boundaries, the last rotation of blockkand the first rotation of blockk+1act on the same qubit pair (edge(0,1)), enabling an additional consolidation

    Multi-block scaling formula Table VII verifies the formulaCX(m) = 15 + 12(m−1) form= 1to10blocks. At block boundaries, the last rotation of blockkand the first rotation of blockk+1act on the same qubit pair (edge(0,1)), enabling an additional consolidation. Each boundary saves15−12 = 3CX relative to independent blocks

    work page

  7. [7]

    Variational layer gate cancellations Each variational layer (Rz onnqubits + XX, YY , ZZ on n−1edges) contains6(n−1) = 18raw CX forn= 4. After transpilation (opt_level=3), the three Pauli rotations per edge (XX, YY , ZZ) are consolidated into a single optimal 2- qubit unitary (3 CX per edge), giving3(n−1) = 9CX per layer. ForLlayers, CX= 9L(verified forL= ...

    work page

  8. [8]

    Cross-Hamiltonian verification Table VIII shows that the transpilation-based reduction is consistent across Hamiltonian types. For Ising (ZZ-only cou- plings), no cancellation occurs because each edge has only one type of rotation; for XY (XX+YY per edge), the two ro- tations per edge consolidate into a single 2-qubit unitary. The field count on Ising ref...

    work page

  9. [9]

    Suzuki-4 gate count verification For completeness, a single S 4 block (n= 4, Heisenberg) contains5×34 = 170raw CX (five S 2 sub-blocks per Eq. 4). After transpilation atopt_level=3, this reduces to 63 CX (depth 178, 273 total gates)—a2.7×reduction. This matches the S 2 formula atm= 5blocks (both yield 63 transpiled CX), confirming that S4 withm= 1and S 2 ...

    work page

  10. [10]

    R. P. Feynman, Simulating physics with computers, Interna- tional Journal of Theoretical Physics21, 467 (1982)

    work page 1982

  11. [11]

    Lloyd, Universal quantum simulators, Science273, 1073 (1996)

    S. Lloyd, Universal quantum simulators, Science273, 1073 (1996)

    work page 1996

  12. [12]

    Preskill, Quantum computing in the NISQ era and beyond, Quantum2, 79 (2018)

    J. Preskill, Quantum computing in the NISQ era and beyond, Quantum2, 79 (2018). 20

    work page 2018

  13. [13]

    Qiskit contributors, Qiskit: An open-source framework for quantum computing,https://github.com/Qiskit/ qiskit(2024), version 2.3.0 used in this work

    work page 2024

  14. [14]

    Khaneja and S

    N. Khaneja and S. J. Glaser, Cartan decomposition of SU(2 n) and control of spin systems, Chemical Physics267, 11 (2001)

    work page 2001

  15. [15]

    V . V . Shende, I. L. Markov, and S. S. Bullock, Synthesis of quantum-logic circuits, IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems25, 1000 (2006)

    work page 2006

  16. [16]

    H. F. Trotter, On the product of semi-groups of operators, Pro- ceedings of the American Mathematical Society10, 545 (1959)

    work page 1959

  17. [17]

    M. Suzuki, Generalized Trotter’s formula and systematic ap- proximants of exponential operators and inner derivations with applications to many-body problems, Communications in Mathematical Physics51, 183 (1976)

    work page 1976

  18. [18]

    Khaneja, T

    N. Khaneja, T. Reiss, T. Schulte-Herbrüggen, and S. J. Glaser, Optimal control of coupled spin dynamics: design of NMR pulse sequences by gradient ascent algorithms, Journal of Mag- netic Resonance172, 296 (2005)

    work page 2005

  19. [19]

    Doria, T

    P. Doria, T. Calarco, and S. Montangero, Optimal control tech- nique for many-body quantum dynamics, Physical Review Let- ters106, 190501 (2011)

    work page 2011

  20. [20]

    Kandala, A

    A. Kandala, A. Mezzacapo, K. Temme, M. Takita, M. Brink, J. M. Chow, and J. M. Gambetta, Hardware-efficient variational quantum eigensolver for small molecules and quantum mag- nets, Nature549, 242 (2017)

    work page 2017

  21. [21]

    Wiersema, C

    R. Wiersema, C. Zhou, Y . de Sereville, J. F. Carrasquilla, Y . B. Kim, and H. Yuen, Exploring entanglement and optimization within the Hamiltonian variational ansatz, PRX Quantum1, 020319 (2020)

    work page 2020

  22. [22]

    M. A. Nielsen, M. R. Dowling, M. Gu, and A. C. Doherty, Quantum computation as geometry, Science311, 1133 (2006)

    work page 2006

  23. [23]

    N. J. Higham, The scaling and squaring method for the matrix exponential revisited, SIAM Journal on Matrix Analysis and Applications26, 1179 (2005)

    work page 2005

  24. [24]

    A. M. Childs, Y . Su, M. C. Tran, N. Wiebe, and S. Zhu, Theory of Trotter error with commutator scaling, Physical Review X 11, 011020 (2021)

    work page 2021

  25. [25]

    G. Li, Y . Ding, and Y . Xie, Tackling the qubit mapping problem for NISQ-era quantum devices, inProceedings of the 24th In- ternational Conference on Architectural Support for Program- ming Languages and Operating Systems(2019) pp. 1001–1014

    work page 2019

  26. [26]

    Jones and J

    T. Jones and J. Gacon, Efficient calculation of gradients in classical simulations of variational quantum algorithms, arXiv preprint arXiv:2009.02823 (2020)

    work page arXiv 2009

  27. [27]

    Truger, M

    F. Truger, M. Beisel, J. Barzen, F. Leymann, V . Yussupov, and A. MandL, Warm-starting and quantum computing: a system- atic mapping study, ACM Computing Surveys56, 1 (2024)

    work page 2024

  28. [28]

    Wecker, M

    D. Wecker, M. B. Hastings, and M. Troyer, Progress towards practical quantum variational algorithms, Physical Review A 92, 042303 (2015)

    work page 2015

  29. [29]

    J. R. McClean, J. Romero, R. Babbush, and A. Aspuru-Guzik, The theory of variational hybrid quantum-classical algorithms, New Journal of Physics18, 023023 (2016)

    work page 2016

  30. [30]

    Cerezo, A

    M. Cerezo, A. Arrasmith, R. Babbush, S. C. Benjamin, S. Endo, K. Fujii, J. R. McClean, K. Mitarai, X. Yuan, L. Cincio, and P. J. Coles, Variational quantum algorithms, Nature Reviews Physics3, 625 (2021)

    work page 2021

  31. [31]

    Campbell, Random compiler for fast Hamiltonian simula- tion, Physical Review Letters123, 070503 (2019)

    E. Campbell, Random compiler for fast Hamiltonian simula- tion, Physical Review Letters123, 070503 (2019)

    work page 2019

  32. [32]

    D. W. Berry, A. M. Childs, R. Cleve, R. Kothari, and R. D. Somma, Simulating Hamiltonian dynamics with a truncated Taylor series, Physical Review Letters114, 090502 (2015)

    work page 2015

  33. [33]

    Mitarai, M

    K. Mitarai, M. Negoro, M. Kitagawa, and K. Fujii, Quantum circuit learning, Physical Review A98, 032309 (2018)

    work page 2018

  34. [34]

    Z. Cai, R. Babbush, S. C. Benjamin, S. Endo, W. J. Huggins, Y . Li, J. R. McClean, and T. E. O’Brien, Quantum error mitiga- tion, Reviews of Modern Physics95, 045005 (2023)

    work page 2023

  35. [35]

    Viola, E

    L. Viola, E. Knill, and S. Lloyd, Dynamical decoupling of open quantum systems, Physical Review Letters82, 2417 (1999)

    work page 1999

  36. [36]

    Peruzzo, J

    A. Peruzzo, J. McClean, P. Shadbolt, M.-H. Yung, X.-Q. Zhou, P. J. Love, A. Aspuru-Guzik, and J. L. O’Brien, A variational eigenvalue solver on a photonic quantum processor, Nature Communications5, 4213 (2014)

    work page 2014

  37. [37]

    Y . Kim, A. Eddins, S. Anand, K. X. Wei, E. van den Berg, S. Rosenblatt, H. Nayfeh, Y . Wu, M. Zaletel, K. Temme,et al., Evidence for the utility of quantum computing before fault tol- erance, Nature618, 500 (2023)

    work page 2023

  38. [38]

    Clinton, B

    L. Clinton, B. Flynn, F. M. Gambetta, T. Cubitt, J. Klassen, A. Montanaro, S. Piddock, R. A. Santos, and E. Sheridan, To- wards near-term quantum simulation of materials, Nature Com- munications15, 211 (2024)

    work page 2024

  39. [39]

    Sivarajah, S

    S. Sivarajah, S. Dilkes, A. Cowtan, W. Simmons, A. Edging- ton, and R. Duncan, t|ket⟩: a retargetable compiler for NISQ devices, Quantum Science and Technology6, 014003 (2020)

    work page 2020

  40. [40]

    G. Li, Y . Ding, and Y . Xie, Paulihedral: a generalized block- wise compiler optimization framework for quantum simulation kernels, inProceedings of the 27th ACM International Confer- ence on Architectural Support for Programming Languages and Operating Systems(2022) pp. 554–569

    work page 2022

  41. [41]

    T. G. de Brugière, Faster and shorter synthesis of Hamiltonian simulation circuits, arXiv preprint arXiv:2404.03280 (2024)

    work page arXiv 2024

  42. [42]

    Vidal, Efficient classical simulation of slightly entangled quantum computations, Physical Review Letters91, 147902 (2003)

    G. Vidal, Efficient classical simulation of slightly entangled quantum computations, Physical Review Letters91, 147902 (2003)

    work page 2003

  43. [43]

    Orús, Tensor networks for complex quantum systems, Na- ture Reviews Physics1, 538 (2019)

    R. Orús, Tensor networks for complex quantum systems, Na- ture Reviews Physics1, 538 (2019)

    work page 2019

  44. [44]

    A. M. Childs and Y . Su, Nearly optimal lattice simulation by product formulas, Physical Review Letters123, 050503 (2019)

    work page 2019
