Chip-to-chip entanglement distribution over 80-km multicore fiber link

Damien Roux , Giulia Guarda , Mujtaba Zahidy , Yunhong Ding , Siyan Zhou , Domenico Ribezzo , Battulga Munkhbat , Francesco Da Ros
show 2 more authors
Davide Bacco Caterina Vigliar
This is my paper

Pith reviewed 2026-05-07 13:17 UTC · model grok-4.3

classification 🪐 quant-ph
keywords entanglement distributionsilicon photonicspath-encoded entanglementquantum key distributionmulticore fiberBell state fidelityspontaneous four-wave mixing
0
0 comments X

The pith

Silicon photonic chips distribute path-encoded entangled states over 80 km of fiber with 85.7% Bell fidelity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that fully integrated silicon photonic chips can generate telecom-band entangled photon pairs on-chip via spontaneous four-wave mixing and distribute them over an 80 km multicore fiber link while preserving path-encoded entanglement. Active stabilization of the dual-core link maintains the necessary phase coherence between spatial modes, which had previously limited such distribution to short ranges. This yields a measured Bell state fidelity of 85.7 percent and supports a secure key rate of 2.03 bits per second in the BBM92 quantum key distribution protocol. A sympathetic reader cares because the work shows integrated chips can serve as a scalable platform for long-distance entanglement-based quantum networks instead of relying on fragile bulk optics.

Core claim

Here, we report chip-to-chip distribution of path-encoded entangled states over 80 km between fully integrated silicon photonic transmitter and receiver chips. Telecom-band entangled photon pairs are generated via spontaneous four-wave mixing in on-chip spiral waveguides and distributed between chips over a dual-core, actively stabilized fiber link. Upon distribution, we measure a Bell state fidelity of 85.7 ± 0.2 %. Implementing the BBM92 protocol with the same source, we obtain a secure key rate of 2.03 bit/s in the infinite-key regime.

What carries the argument

The actively stabilized dual-core fiber link, which preserves phase coherence between the spatial modes that carry the path-encoded entanglement over the full 80 km distance.

If this is right

  • Silicon photonic chips become a viable platform for long-distance path-encoded entanglement-based quantum key distribution.
  • The on-chip source and distribution method supports secure key rates in the infinite-key regime for the BBM92 protocol.
  • Active stabilization overcomes the phase fragility that had restricted path encoding to short distances.
  • These results establish a path toward scalable device-independent quantum networks using integrated photonics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same stabilization approach might be tested on links longer than 80 km to determine its distance limit.
  • Combining this path-encoding method with other on-chip components could enable more complex multi-node quantum networks.
  • Future work could compare the robustness of path encoding against time-bin encoding under the same fiber conditions.

Load-bearing premise

Active stabilization of the dual-core fiber link is sufficient to preserve phase coherence between spatial modes over the full 80 km distance.

What would settle it

Repeating the 80 km distribution experiment with the stabilization system turned off and measuring a Bell state fidelity below 80 percent would falsify the claim that stabilization suffices to maintain the required coherence.

Figures

Figures reproduced from arXiv: 2604.26791 by Battulga Munkhbat, Caterina Vigliar, Damien Roux, Davide Bacco, Domenico Ribezzo, Francesco Da Ros, Giulia Guarda, Mujtaba Zahidy, Siyan Zhou, Yunhong Ding.

Figure 1
Figure 1. Figure 1: FIG. 1 view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 view at source ↗

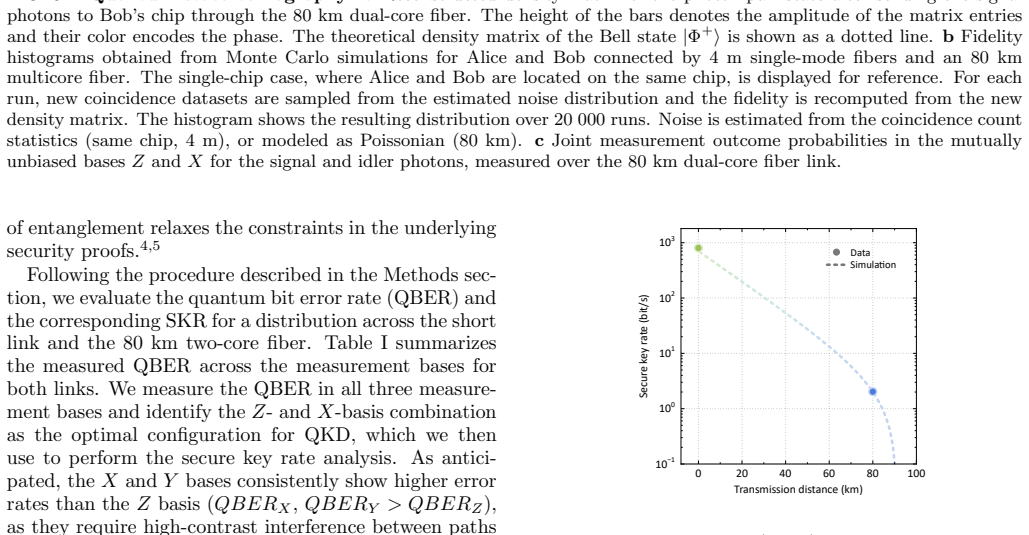

Figure 4
Figure 4. Figure 4: shows the calculated SKR for the two links, yielding 803 bit/s for the short link and 2.03 bit/s for the two-core fiber. Both values are in strong agreement with the theoretical simulation (dashed curve), which incor￾porates source rates, losses and detector parameters (see Supplementary Information). We also investigate the im￾pact of finite-size effects on the SKR evaluation. In par￾ticular, Table II rep… view at source ↗
read the original abstract

Long-range quantum entanglement is essential for building large-scale quantum networks and unconditionally secure cryptographic systems based on quantum key distribution (QKD). While photonic integrated circuits offer a highly scalable platform, the fragility of phase coherence between spatial modes has prevented the distribution of path-encoded entanglement over long distances. Here, we report chip-to-chip distribution of path-encoded entangled states over 80 km between fully integrated silicon photonic transmitter and receiver chips. Telecom-band entangled photon pairs are generated via spontaneous four-wave mixing in on-chip spiral waveguides and distributed between chips over a dual-core, actively stabilized fiber link. Upon distribution, we measure a Bell state fidelity of $85.7 \pm 0.2 \%$. Implementing the BBM92 protocol with the same source, we obtain a secure key rate of 2.03 bit/s in the infinite-key regime. These results establish silicon photonic chips as a viable platform for long-distance path-encoded entanglement-based quantum key distribution, paving the way toward scalable, device-independent quantum networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports an experimental demonstration of chip-to-chip distribution of path-encoded entangled photon pairs generated via spontaneous four-wave mixing in on-chip spiral waveguides on fully integrated silicon photonic chips. The pairs are sent over an 80 km actively stabilized dual-core multicore fiber link, yielding a measured Bell state fidelity of 85.7 ± 0.2% and a secure key rate of 2.03 bit/s in the infinite-key regime under the BBM92 protocol.

Significance. If the results hold, this is a notable advance for quantum networks and QKD because it shows that path encoding, previously limited by phase fragility, can be preserved over long distances using scalable silicon photonic integrated circuits for both generation and reception. The concrete measured values with error bars and the use of a fully chip-based transmitter-receiver pair provide a practical benchmark that could accelerate device-independent protocols and large-scale entanglement distribution.

major comments (1)
  1. § on active stabilization of the dual-core fiber link (likely within the Experimental Setup or Methods section): the manuscript states that active stabilization is used to preserve phase coherence between spatial modes but provides no quantitative metrics such as residual phase-noise rms value, loop bandwidth, or long-term stability (e.g., Allan deviation) after 80 km. This is load-bearing for the central claim, because the reported 85.7% Bell fidelity requires the relative phase drift to remain below ~0.3 rad rms to avoid visibility loss; without these data the assertion that the fragility has been overcome cannot be verified from the presented evidence.
minor comments (2)
  1. The abstract and results section would benefit from an explicit statement of the total system loss budget and the contribution from the fiber link versus the chips to allow readers to assess scalability.
  2. Figure captions should include the integration time or number of coincidence events used for the fidelity and key-rate measurements to clarify statistical significance.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address the major comment below and will revise the manuscript to strengthen the presentation of the active stabilization results.

read point-by-point responses

  1. Referee: [—] § on active stabilization of the dual-core fiber link (likely within the Experimental Setup or Methods section): the manuscript states that active stabilization is used to preserve phase coherence between spatial modes but provides no quantitative metrics such as residual phase-noise rms value, loop bandwidth, or long-term stability (e.g., Allan deviation) after 80 km. This is load-bearing for the central claim, because the reported 85.7% Bell fidelity requires the relative phase drift to remain below ~0.3 rad rms to avoid visibility loss; without these data the assertion that the fragility has been overcome cannot be verified from the presented evidence.

    Authors: We agree that quantitative characterization of the stabilization performance is necessary to fully support the central claim. In the revised manuscript we will add a dedicated paragraph (or subsection) in the Experimental Setup section that reports the residual phase-noise rms value, the servo loop bandwidth, and long-term stability data (including Allan deviation) measured after the 80 km link. These metrics will be presented together with the observed Bell fidelity to allow direct verification that the phase drift remains below the threshold required for the reported visibility. revision: yes

Circularity Check

0 steps flagged

No circularity: pure experimental demonstration with direct measurements

full rationale

This is an experimental paper reporting measured Bell-state fidelity (85.7 ± 0.2 %) and secure key rate (2.03 bit/s) from a chip-to-chip entanglement distribution setup over 80 km of actively stabilized multicore fiber. No derivation chain, fitted parameters renamed as predictions, or self-citation load-bearing steps exist. The abstract and described results consist of direct experimental outcomes; the stabilization method is presented as an implemented technique rather than a mathematical reduction to prior inputs. The paper is self-contained against external benchmarks with no equations that equate outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim rests on established quantum optics and fiber transmission principles with no new free parameters, ad-hoc axioms, or invented entities required beyond standard assumptions about phase stabilization.

axioms (2)
  • standard math Standard quantum mechanics governs the generation and measurement of path-encoded Bell states in linear optical systems.
    Invoked for SFWM pair generation and Bell fidelity calculation.
  • domain assumption Active stabilization can maintain inter-core phase coherence over 80 km in multicore fiber.
    Central premise that enables the long-distance path encoding.

pith-pipeline@v0.9.0 · 5504 in / 1379 out tokens · 100953 ms · 2026-05-07T13:17:28.785737+00:00 · methodology
