arxiv: 2604.26800 · v1 · submitted 2026-04-29 · ❄️ cond-mat.mes-hall

Transport characteristics of bulk and edge states in an off-diagonal Aubry--Andr\'e--Harper chain

Moumita Patra This is my paper

Pith reviewed 2026-05-07 11:40 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords Aubry-André-Harper modelquantum transportedge statesbulk statesoff-diagonal hoppingdephasing effectstransmission resonancessystem size dependence
0
0 comments X

The pith

Periodic hopping modulation distinguishes edge, band-edge bulk, and in-band bulk states by transport signatures in Aubry-André-Harper chains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper studies quantum transport in an off-diagonal Aubry-André-Harper chain. The periodic modulation of hopping terms creates effective internal boundaries. These boundaries lead to distinct transport behaviors for different states. Edge and band-edge bulk states show weak dependence on system size, unlike in-band bulk states which oscillate with size. Electrode coupling tunes the transport from tunneling to ballistic, and dephasing affects states based on localization.

Core claim

In the off-diagonal Aubry-André-Harper chain, the periodic hopping modulation generates effective internal boundaries that strongly influence transmission. This allows distinguishing edge states, in-band bulk states, and band-edge bulk states through transport signatures. Bulk states near the band edges exhibit weak system-size dependence similar to edge states, while in-band bulk states show pronounced size-dependent oscillations. Chain-electrode coupling controls resonance broadening and a crossover to nearly ballistic transport. Dephasing sensitivity varies with spatial localization of the states.

What carries the argument

Effective internal boundaries arising from the periodic off-diagonal hopping modulation, which control the size dependence and dephasing sensitivity of transmission for different state classes.

If this is right

  • Transmission can classify states as edge-like or bulk without spatial imaging.
  • System size variation serves as a diagnostic tool for state type.
  • Electrode coupling strength offers control over transport regime.
  • Dephasing can selectively suppress transport in localized states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar internal boundary effects might emerge in other one-dimensional modulated systems for selective transport.
  • Experimental tests in mesoscopic devices could use size dependence to verify the boundary mechanism.
  • The framework suggests ways to design coherence-protected transport channels in quasiperiodic lattices.

Load-bearing premise

The periodic off-diagonal hopping modulation generates effective internal boundaries that dominate the transport distinctions between state classes.

What would settle it

A measurement showing that band-edge bulk states exhibit strong size-dependent transmission oscillations comparable to in-band bulk states would contradict the claimed distinction.

Figures

Figures reproduced from arXiv: 2604.26800 by Moumita Patra.

Figure 1

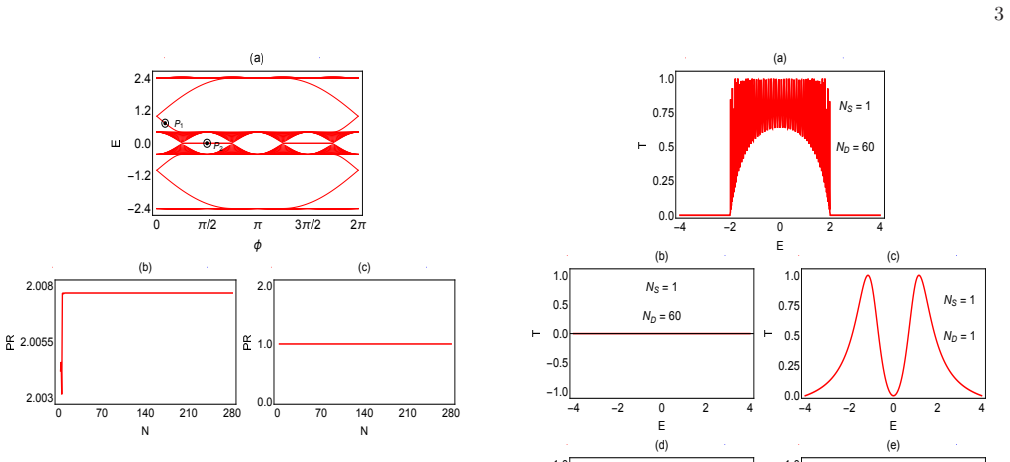

Figure 1. Figure 1: FIG. 1: (Color online). Energy spectrum and localization view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: (Color online). Transmission probability as a funct view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: (Color online). Transmission spectra for a chain of view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: (Color online). Transmission spectra for a chain view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: (Color online). Output current as a function of sys view at source ↗
Figure 6

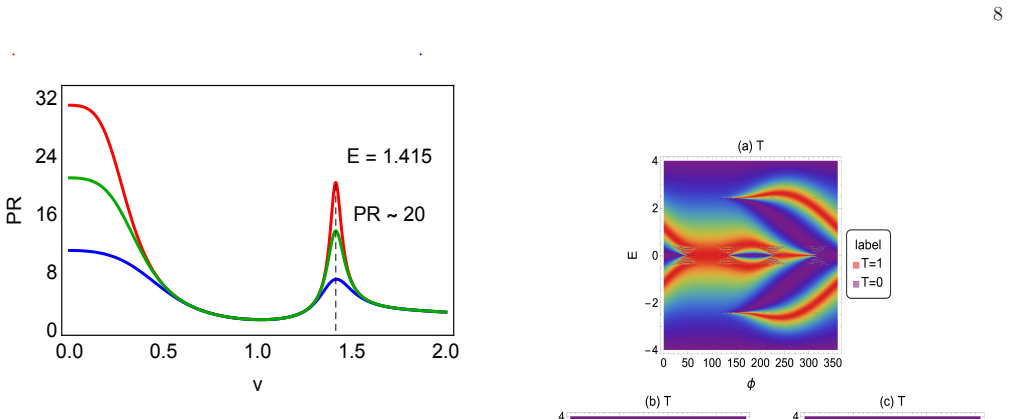

Figure 6. Figure 6: FIG. 6: (Color online). Participation ratio (PR) of the zero view at source ↗
Figure 7

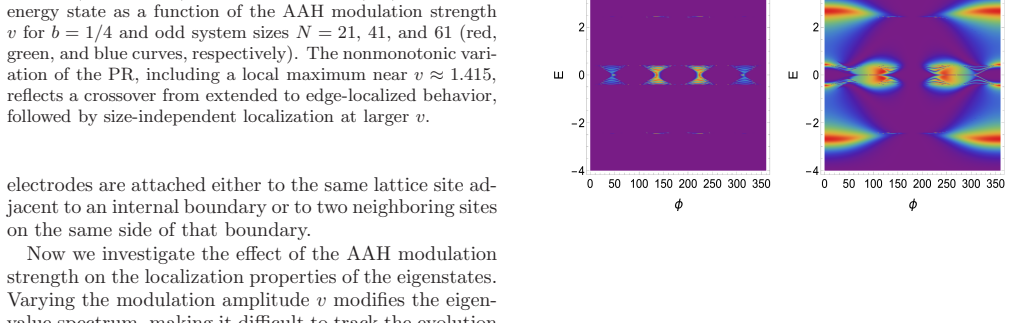

Figure 7. Figure 7: FIG. 7: (Color online). Density plots of the transmission view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: (Color online). Transmission probability as a func view at source ↗

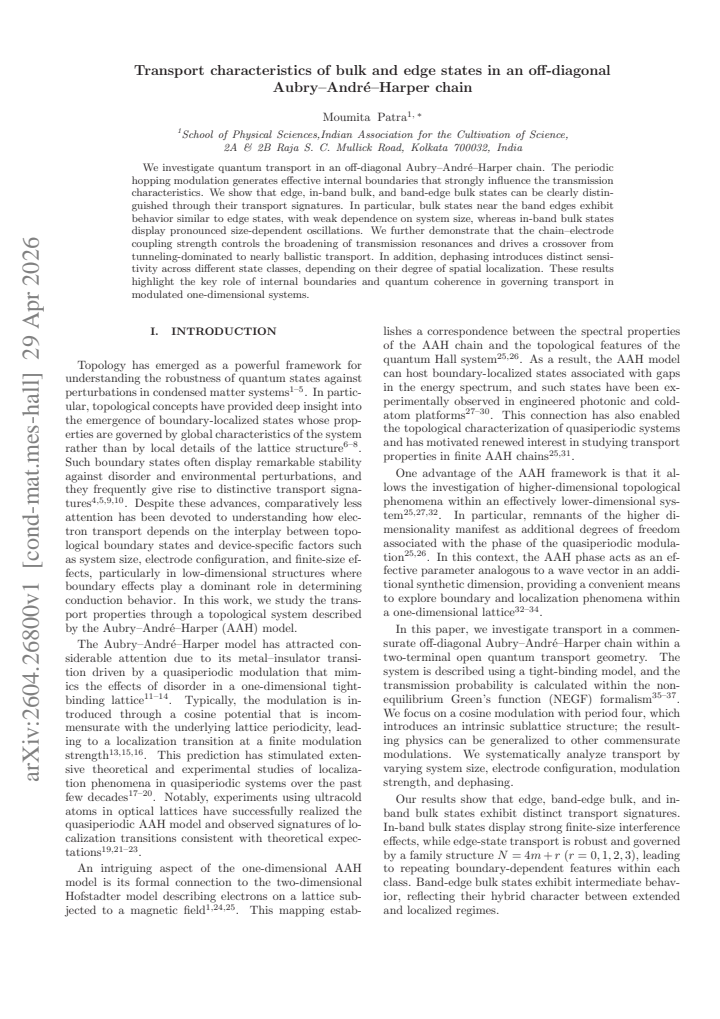

read the original abstract

We investigate quantum transport in an off-diagonal Aubry--Andr\'e--Harper chain. The periodic hopping modulation generates effective internal boundaries that strongly influence the transmission characteristics. We show that edge, in-band bulk, and band-edge bulk states can be clearly distinguished through their transport signatures. In particular, bulk states near the band edges exhibit behavior similar to edge states, with weak dependence on system size, whereas in-band bulk states display pronounced size-dependent oscillations. We further demonstrate that the chain--electrode coupling strength controls the broadening of transmission resonances and drives a crossover from tunneling-dominated to nearly ballistic transport. In addition, dephasing introduces distinct sensitivity across different state classes, depending on their degree of spatial localization. These results highlight the key role of internal boundaries and quantum coherence in governing transport in modulated one-dimensional systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript investigates quantum transport in an off-diagonal Aubry-André-Harper chain with periodic hopping modulation. It claims that this modulation generates effective internal boundaries, enabling clear distinction between edge states, in-band bulk states, and band-edge bulk states via transport signatures: band-edge bulk states show weak system-size dependence similar to edge states, while in-band bulk states exhibit pronounced size-dependent oscillations. The work further examines how chain-electrode coupling strength controls resonance broadening and a crossover from tunneling to nearly ballistic transport, and how dephasing affects different state classes based on their spatial localization.

Significance. If the numerical distinctions hold under variation of parameters, the results would clarify the role of modulation-induced internal boundaries in 1D transport, offering a practical way to differentiate state types in quasiperiodic systems through size dependence and dephasing sensitivity. This adds to studies of the AAH model by focusing on off-diagonal modulation and transport observables, with potential relevance to mesoscopic experiments on modulated chains.

major comments (2)
  1. [Results on size dependence and internal boundaries] The central claim that edge, in-band bulk, and band-edge bulk states are distinguishable by size dependence (weak for edge/band-edge bulk, oscillatory for in-band bulk) rests on numerical transmission calculations; the manuscript must demonstrate that this separation is robust to changes in modulation amplitude and the precise lead-coupling Hamiltonian, as these directly affect the effective internal boundaries and could alter the reported distinctions (see abstract and results on size dependence).
  2. [Coupling strength and transport crossover] The crossover from tunneling-dominated to ballistic transport with increasing chain-electrode coupling strength is presented as a key finding, but the specific form of the electrode attachment (e.g., how leads couple to chain ends) and the energy windows defining 'band-edge' vs 'in-band' states need explicit robustness checks, since sensitivity here would undermine the claimed separation of state classes.
minor comments (3)
  1. [Methods or results] Clarify the precise definition of 'band-edge' energies used to classify bulk states, as small shifts in these windows could affect the observed weak size dependence.
  2. [Figures] Ensure all figures showing transmission vs. energy or system size include error bars or convergence checks with respect to numerical parameters.
  3. [Introduction or discussion] Add a brief comparison to the standard (diagonal) AAH model to highlight what is unique to the off-diagonal case.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment point by point below and have incorporated additional robustness checks into the revised version.

read point-by-point responses

  1. Referee: [Results on size dependence and internal boundaries] The central claim that edge, in-band bulk, and band-edge bulk states are distinguishable by size dependence (weak for edge/band-edge bulk, oscillatory for in-band bulk) rests on numerical transmission calculations; the manuscript must demonstrate that this separation is robust to changes in modulation amplitude and the precise lead-coupling Hamiltonian, as these directly affect the effective internal boundaries and could alter the reported distinctions (see abstract and results on size dependence).

    Authors: We agree that demonstrating robustness to modulation amplitude and lead-coupling details strengthens the central claim. We have performed additional transmission calculations for modulation amplitudes λ ranging from 0.3 to 1.8 (with average hopping normalized to 1) and for two alternative lead-coupling schemes: direct nearest-neighbor attachment to the chain ends and attachment including a weak next-nearest-neighbor term. In all cases the qualitative separation persists—edge and band-edge bulk states retain weak system-size dependence while in-band bulk states exhibit clear oscillatory behavior. These results are now documented in a new subsection of the results section together with two supplementary figures. revision: yes

  2. Referee: [Coupling strength and transport crossover] The crossover from tunneling-dominated to ballistic transport with increasing chain-electrode coupling strength is presented as a key finding, but the specific form of the electrode attachment (e.g., how leads couple to chain ends) and the energy windows defining 'band-edge' vs 'in-band' states need explicit robustness checks, since sensitivity here would undermine the claimed separation of state classes.

    Authors: We concur that explicit checks on electrode attachment and energy-window definitions are warranted. We have repeated the crossover analysis using an alternative electrode attachment that couples the leads to the two outermost sites of the chain and for energy windows of width 0.1 and 0.2 (in normalized units) around the band edges. The transition from tunneling to nearly ballistic transport remains qualitatively unchanged, with only modest quantitative shifts in the critical coupling strength. These robustness tests have been added to the revised manuscript as an expanded discussion with updated figures. revision: yes

Circularity Check

0 steps flagged

No significant circularity; distinctions follow from explicit numerical transport calculations

full rationale

The paper computes transmission probabilities and size dependence for different eigenstates in the off-diagonal AAH model. No equations reduce by construction to input definitions, no parameters are fitted to data and then relabeled as predictions, and no load-bearing claims rest on self-citations or imported uniqueness theorems. The separation of edge, band-edge bulk, and in-band bulk states is obtained directly from the computed conductance and dephasing sensitivity, which are independent outputs of the model Hamiltonian and lead coupling.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of non-interacting tight-binding electrons in a one-dimensional lattice with deterministic off-diagonal modulation; no new entities or fitted parameters are introduced in the abstract.

axioms (2)
  • domain assumption The system is a non-interacting fermionic tight-binding chain with off-diagonal Aubry-André-Harper modulation.
    Invoked implicitly as the model under study.
  • domain assumption Transport is computed via scattering or Green's function methods that capture coherent transmission and dephasing.
    Standard framework for quantum transport in 1D chains.

pith-pipeline@v0.9.0 · 5440 in / 1494 out tokens · 64523 ms · 2026-05-07T11:40:33.639021+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

48 extracted references · 48 canonical work pages

  1. [1]

    D. J. Thouless, M. Kohmoto, M. P. Nightingale, and M. den Nijs, Phys. Rev. Lett. 49, 405 (1982)

    work page 1982

  2. [2]

    C. L. Kane and E. J. Mele, Phys. Rev. Lett. 95, 146802 (2005)

    work page 2005

  3. [3]

    B. A. Bernevig, T. L. Hughes, and S.-C. Zhang, Science 314, 1757 (2006)

    work page 2006

  4. [4]

    M. Z. Hasan and C. L. Kane, Rev. Mod. Phys. 82, 3045 (2010)

    work page 2010

  5. [5]

    Qi and S.-C

    X.-L. Qi and S.-C. Zhang, Rev. Mod. Phys. 83, 1057 (2011)

    work page 2011

  6. [6]

    C. L. Kane and E. J. Mele, Phys. Rev. Lett. 95, 226801 (2005)

    work page 2005

  7. [7]

    L. Fu, C. L. Kane, and E. J. Mele, Phys. Rev. Lett. 98, 106803 (2007)

    work page 2007

  8. [8]

    J. E. Moore, Nature 464, 194 (2010)

    work page 2010

  9. [9]

    K\" o nig et al., Science 318, 766 (2007)

    M. K\" o nig et al., Science 318, 766 (2007)

    work page 2007

  10. [10]

    Patra and S

    M. Patra and S. K. Maiti, Sci. Rep. 7, 14313 (2017)

    work page 2017

  11. [11]

    P. G. Harper, Proc. Phys. Soc. A 68, 874 (1955)

    work page 1955

  12. [12]

    P. W. Anderson, Phys. Rev. 109, 1492 (1958)

    work page 1958

  13. [13]

    Aubry and G

    S. Aubry and G. Andr' e , Ann. Isr. Phys. Soc. 3, 133 (1980)

    work page 1980

  14. [14]

    Kramer and A

    B. Kramer and A. MacKinnon, Rep. Prog. Phys. 56, 1469 (1993)

    work page 1993

  15. [15]

    D. J. Thouless, Phys. Rev. B 28, 4272 (1983)

    work page 1983

  16. [16]

    Ostlund, R

    S. Ostlund, R. Pandit, D. Rand, H. J. Schellnhuber, and E. D. Siggia, Phys. Rev. Lett. 50, 1873 (1983)

    work page 1983

  17. [17]

    Kohmoto, Phys

    M. Kohmoto, Phys. Rev. Lett. 51, 1198 (1983)

    work page 1983

  18. [18]

    J. B. Sokoloff, Phys. Rep. 126, 189 (1985)

    work page 1985

  19. [19]

    Roati et al., Nature 453, 895 (2008)

    G. Roati et al., Nature 453, 895 (2008)

    work page 2008

  20. [20]

    Modugno, Rep

    G. Modugno, Rep. Prog. Phys. 73, 102401 (2010)

    work page 2010

  21. [21]

    Billy et al., Nature 453, 891 (2008)

    J. Billy et al., Nature 453, 891 (2008)

    work page 2008

  22. [22]

    Schreiber et al., Science 349, 842 (2015)

    M. Schreiber et al., Science 349, 842 (2015)

    work page 2015

  23. [23]

    H. P. L\" u schen et al., Phys. Rev. Lett. 120, 160404 (2018)

    work page 2018

  24. [24]

    D. R. Hofstadter, Phys. Rev. B 14, 2239 (1976)

    work page 1976

  25. [25]

    Y. E. Kraus, Y. Lahini, Z. Ringel, M. Verbin, and O. Zilberberg, Phys. Rev. Lett. 109, 106402 (2012)

    work page 2012

  26. [26]

    L.-J. Lang, X. Cai, and S. Chen, Phys. Rev. Lett. 108, 220401 (2012)

    work page 2012

  27. [27]

    Verbin et al., Phys

    M. Verbin et al., Phys. Rev. Lett. 110, 076403 (2013)

    work page 2013

  28. [28]

    M. C. Rechtsman et al., Nature 496, 196 (2013)

    work page 2013

  29. [29]

    Lohse, C

    M. Lohse, C. Schweizer, O. Zilberberg, M. Aidelsburger, and I. Bloch, Nat. Phys. 12, 350 (2016)

    work page 2016

  30. [30]

    Nakajima et al., Nat

    S. Nakajima et al., Nat. Phys. 12, 296 (2016)

    work page 2016

  31. [31]

    Mei, S.-L

    F. Mei, S.-L. Zhu, Z.-M. Zhang, C. H. Oh, and N. Goldman, Phys. Rev. A 85, 013638 (2012)

    work page 2012

  32. [32]

    Ozawa et al., Rev

    T. Ozawa et al., Rev. Mod. Phys. 91, 015006 (2019)

    work page 2019

  33. [33]

    H. M. Price, and N. R. Cooper, Phys. Rev. A 91, 033606 (2015)

    work page 2015

  34. [34]

    Zilberberg, Adv

    O. Zilberberg, Adv. Phys. X 3, 1442662 (2018)

    work page 2018

  35. [35]

    Datta, Electronic Transport in Mesoscopic Systems (Cambridge University Press, Cambridge, 1995)

    S. Datta, Electronic Transport in Mesoscopic Systems (Cambridge University Press, Cambridge, 1995)

    work page 1995

  36. [36]

    Datta, Quantum Transport: Atom to Transistor (Cambridge University Press, Cambridge, 2005)

    S. Datta, Quantum Transport: Atom to Transistor (Cambridge University Press, Cambridge, 2005)

    work page 2005

  37. [37]

    Meir and N

    Y. Meir and N. S. Wingreen, Phys. Rev. Lett. 68, 2512 (1992)

    work page 1992

  38. [38]

    J. C. Slater and G. F. Koster, Phys. Rev. 94, 1498 (1954)

    work page 1954

  39. [39]

    Landauer, Philos

    R. Landauer, Philos. Mag. 21, 863 (1970)

    work page 1970

  40. [40]

    B\" u ttiker, Phys

    M. B\" u ttiker, Phys. Rev. Lett. 57, 1761 (1986)

    work page 1986

  41. [41]

    R. J. Bell and P. Dean, Discuss. Faraday Soc. 50, 55 (1970)

    work page 1970

  42. [42]

    Wegner, Z

    F. Wegner, Z. Phys. B 36, 209 (1980)

    work page 1980

  43. [43]

    Nozaki, Y

    D. Nozaki, Y. Girard, and K. Yoshizawa, J. Phys. Chem. C 112, 17408 (2008)

    work page 2008

  44. [44]

    C. J. Cattena, R. A. Bustos-Marun, and H. M. Pastawski, Phys. Rev. B 82, 144201 (2010)

    work page 2010

  45. [45]

    Nozaki, C

    D. Nozaki, C. G. da Rocha, H. M. Pastawski, and G. Cuniberti, Phys. Rev. B 85, 155327 (2012)

    work page 2012

  46. [46]

    Patra and S

    M. Patra and S. K. Maiti, Phys. Rev. B 100, 165408 (2019)

    work page 2019

  47. [47]

    Hanson, L

    R. Hanson, L. P. Kouwenhoven, J. R. Petta, S. Tarucha, and L. M. K. Vandersypen, Rev. Mod. Phys. 79, 1217 (2007)

    work page 2007

  48. [48]

    H. P. L\" u schen et al., Phys. Rev. Lett. 119, 260401 (2017)

    work page 2017
