arxiv: 2604.26845 · v1 · submitted 2026-04-29 · 💻 cs.IT · math.IT

Joint Transceiver Orientation Optimization for Rotatable-Antenna MIMO Capacity Maximization

Zheng Ailing , Wu Qingqing , Peng Xingxiang , Peng Qiaoyan , Zheng Ziyuan , Chen Wen This is my paper

Pith reviewed 2026-05-07 11:37 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords MIMO capacityrotatable antennasorientation optimizationalternating optimizationRiemannian Frank-Wolfechannel reconfigurationspherical-cap constraints
0
0 comments X

The pith

Jointly optimizing rotatable antenna orientations and transmit covariance raises MIMO channel capacity above fixed arrays.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines rotatable antennas that can change their boresight directions to add an orientation-domain degree of freedom for adapting MIMO channels. It formulates a capacity maximization problem that jointly tunes the transmit covariance matrix and the orientations of transmit and receive antennas subject to spherical-cap limits on rotation. An alternating optimization procedure solves the resulting non-convex problem by applying eigenmode transmission and water-filling to the covariance while using a Riemannian Frank-Wolfe method for each orientation. Numerical evaluations indicate that this design produces higher capacity than conventional fixed-orientation MIMO systems.

Core claim

The authors introduce an orientation-dependent MIMO channel model and demonstrate that alternating between water-filling power allocation for the transmit covariance and Riemannian Frank-Wolfe optimization of each antenna orientation under spherical-cap constraints produces higher ergodic capacity than any fixed-orientation benchmark.

What carries the argument

The alternating optimization that separates covariance-matrix updates (eigenmode transmission plus water-filling) from per-antenna orientation updates (Riemannian Frank-Wolfe on the spherical manifold).

If this is right

  • Simplified closed-form designs become available for the low-SNR MISO and SIMO special cases.
  • The orientation-domain reconfiguration is shown to be effective under the stated spherical-cap hardware limits.
  • The numerical gains hold when the alternating procedure is applied to the derived orientation-dependent channel model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same orientation updates could be recomputed periodically to track slow changes in the propagation environment.
  • The spherical-cap model implies that only a limited angular range needs to be mechanically or electronically addressable.
  • The approach leaves open whether the same capacity gains appear when channel estimation must be performed jointly with orientation selection.

Load-bearing premise

The MIMO channel matrix is accurately captured by an orientation-dependent model under spherical-cap constraints, and the alternating optimization converges to a hardware-realizable solution without unmodeled losses.

What would settle it

A controlled measurement of ergodic capacity in a real propagation environment where rotatable antennas are set to the algorithm's computed orientations versus the same antennas locked in a fixed reference orientation; absence of the predicted capacity gain would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.26845 by Chen Wen, Peng Qiaoyan, Peng Xingxiang, Wu Qingqing, Zheng Ailing, Zheng Ziyuan.

Figure 1
Figure 1. Figure 1: The transmitter is equipped with N transmit RAs and the receiver has M receive RAs, where N = Nx × Ny and M = Mx ×My. The UPAs at the transmitter and the receiver are located in the local xt − yt plane and xr − yr plane, re￾Y Z X ... ... Controller Z Y X Scatterers ... Receiver Controller Transmitter view at source ↗
Figure 2
Figure 2. Figure 2: Achievable rate versus the number of iterations view at source ↗
Figure 4
Figure 4. Figure 4: Achievable rate versus the maximum zenith angle. where the RFOA achieves about 31% gain over the TFOA scheme when M = N = 25. This can be explained as fol￾lows. The RFOA scheme optimizes the transmit-side RA ori￾entations, which can directly steer the radiated energy toward favorable propagation directions and reshape the effective MIMO channel from the source. As a result, both the desired channel power a… view at source ↗
Figure 6

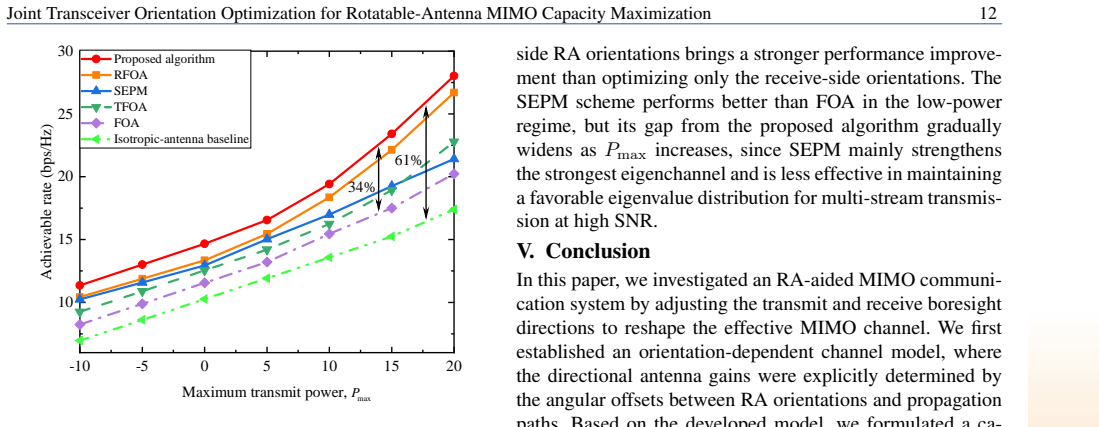

Figure 6. Figure 6: Achievable rate versus the maximum transmit power. taining a favorable balance among multiple eigenchannels. SEPM tends to concentrate most of the channel power on the strongest mode, which sacrifices the gains of the remain￾ing eigenchannels and hence limits the spatial multiplexing performance. In contrast, the proposed algorithm jointly opti￾mizes the RA orientations and the transmit covariance matrix, … view at source ↗
read the original abstract

Conventional multiple-input multiple-output (MIMO) systems mainly rely on fixed antenna arrays, which limits their capability to adapt the effective channel matrix to the propagation environment. Rotatable antennas (RAs), which enable mechanical or electronic adjustment of antenna boresight directions, introduce a new orientation-domain degree of freedom for channel reconfiguration. In this paper, we investigate an RA-aided MIMO communication system for channel capacity enhancement. We first establish an orientation-dependent MIMO channel model. Then, we formulate a capacity maximization problem by jointly optimizing the transmit covariance matrix and the transmit/receive RA orientations under practical spherical-cap constraints. To solve this non-convex problem, we develop an alternating optimization algorithm, where the transmit covariance matrix is updated via eigenmode transmission and water-filling, while each RA orientation is optimized through a Riemannian Frank-Wolfe method. We further investigate the low-SNR regime and derive simplified designs for multiple-input single-output (MISO) and single-input multiple-output (SIMO) special cases. Numerical results show that the proposed RA-aided MIMO design significantly improves the channel capacity compared with the fixed-orientation benchmark, demonstrating the benefits of orientation-domain channel reconfiguration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The paper investigates rotatable-antenna (RA) MIMO systems for capacity maximization. It first derives an orientation-dependent MIMO channel model, then formulates a non-convex joint optimization problem over the transmit covariance matrix and the transmit/receive RA orientations subject to spherical-cap constraints. An alternating optimization algorithm is proposed: eigenmode transmission with water-filling updates the covariance, while each orientation is optimized via a Riemannian Frank-Wolfe method on the spherical manifold. Simplified designs are derived for the low-SNR MISO and SIMO cases. Numerical results demonstrate that the RA-aided design yields significant capacity gains relative to fixed-orientation baselines.

Significance. If the orientation-dependent model and the reported gains hold under realistic propagation, the work adds a practical new degree of freedom (antenna boresight) to MIMO reconfiguration that complements existing spatial and polarization techniques. The algorithmic combination of water-filling with Riemannian Frank-Wolfe is technically appropriate and extends prior reconfigurable-antenna literature. The low-SNR closed-form simplifications and the explicit spherical-cap constraint handling are useful contributions. The numerical validation against fixed-orientation benchmarks supports the central claim of orientation-domain benefit, provided the channel model remains accurate when orientations change.

minor comments (4)
  1. [§II] §II (channel model): the transition from the standard MIMO channel to the orientation-dependent form is stated but the explicit dependence of the array response vectors on the boresight angles is not written out; adding the vector expressions would improve reproducibility.
  2. [§IV] §IV (algorithm): the Riemannian Frank-Wolfe update is described at a high level; the retraction and the linearization step on the spherical cap should be given explicitly (e.g., the formula for the tangent-space projection) to allow independent implementation.
  3. [§VI] §VI (numerical results): the spherical-cap radius and the number of RA elements per transceiver are not stated in the caption of the main capacity-vs-SNR figure; these parameters are essential for interpreting the reported dB gains.
  4. [§V] The low-SNR MISO/SIMO simplifications in §V are derived under the assumption that the optimal orientation aligns with the dominant path; a brief remark on how this assumption degrades when multiple paths have comparable strength would be helpful.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our work on joint transceiver orientation optimization in rotatable-antenna MIMO systems, as well as the recommendation for minor revision. The significance assessment correctly highlights the new orientation-domain degree of freedom and the technical contributions of the alternating optimization algorithm combining water-filling with Riemannian Frank-Wolfe. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's chain begins with an orientation-dependent MIMO channel model (standard far-field assumption under spherical-cap constraints), applies the classic Shannon capacity expression log det(I + H Q H^H / sigma^2), and solves the resulting non-convex problem via alternating optimization that invokes only established primitives: eigenmode transmission plus water-filling for the covariance matrix, and Riemannian Frank-Wolfe on the manifold for orientations. Low-SNR simplifications for MISO/SIMO cases follow directly from the same capacity formula without additional fitted parameters. Numerical comparisons are against fixed-orientation baselines using the identical model, so no prediction reduces to a fit by construction and no load-bearing premise rests on a self-citation chain. The derivation therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of an orientation-dependent MIMO channel model and the practical applicability of the spherical-cap constraint; no free parameters or invented entities are introduced beyond standard MIMO assumptions.

axioms (2)
  • domain assumption MIMO channel matrix depends on antenna boresight orientations
    Invoked to establish the orientation-dependent channel model before formulating the capacity maximization problem.
  • domain assumption Spherical-cap constraints accurately represent feasible antenna orientations
    Used to constrain the optimization variables for each rotatable antenna.
