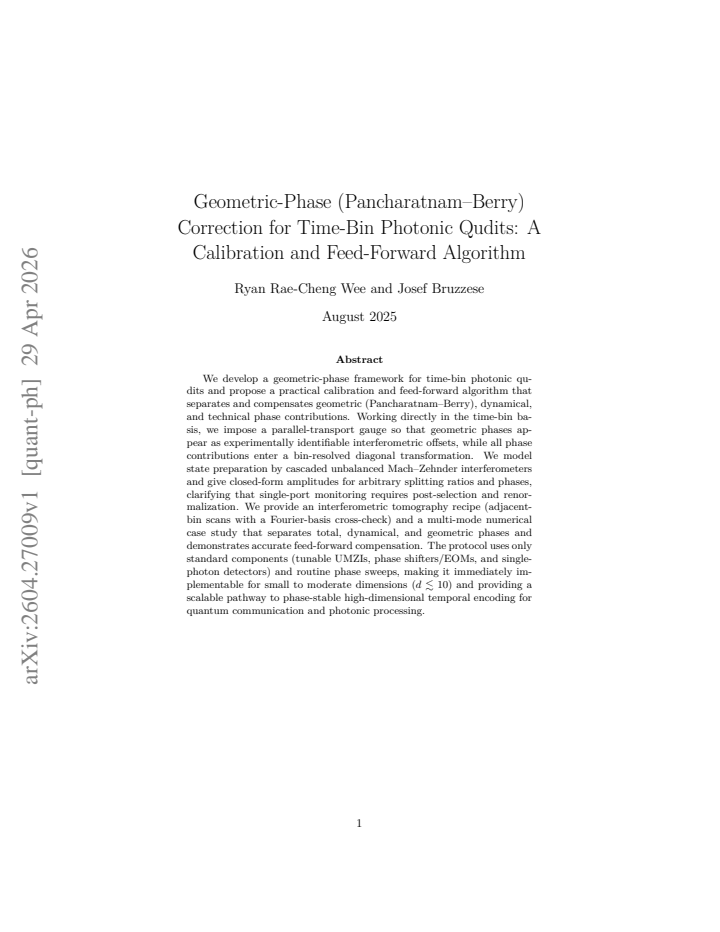

Geometric-Phase (Pancharatnam-Berry) Correction for Time-Bin Photonic Qudits: A Calibration and Feed-Forward Algorithm

Ryan Rae-Cheng Wee , Josef Bruzzese

Authors on Pith no claims yet

Pith reviewed 2026-05-07 13:32 UTC · model grok-4.3

classification 🪐 quant-ph

keywords time-bin quditsPancharatnam-Berry phasegeometric phasefeed-forward compensationinterferometric tomographyunbalanced Mach-Zehnder interferometerphotonic quantum communicationphase calibration

0 comments

The pith

Time-bin photonic qudits can have geometric phases separated and compensated by a calibration and feed-forward algorithm.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a geometric-phase framework for time-bin photonic qudits. It models state preparation with cascaded unbalanced Mach-Zehnder interferometers and adopts a parallel-transport gauge so that geometric phases appear as measurable interferometric offsets inside a bin-resolved diagonal transformation. An interferometric tomography recipe based on adjacent-bin scans, together with a Fourier-basis cross-check, separates total, dynamical, and geometric contributions. A multi-mode numerical case study then demonstrates feed-forward compensation using routine phase sweeps and standard components. A sympathetic reader would care because uncontrolled geometric phases have hindered reliable high-dimensional temporal encoding for quantum communication and processing.

Core claim

Working directly in the time-bin basis with a parallel-transport gauge, geometric (Pancharatnam-Berry) phases appear as experimentally identifiable interferometric offsets while all phase contributions enter a bin-resolved diagonal transformation; state preparation is modeled by cascaded unbalanced Mach-Zehnder interferometers that supply closed-form amplitudes for arbitrary splitting ratios and phases, and an interferometric tomography recipe based on adjacent-bin scans with a Fourier-basis cross-check allows separation of total, dynamical, and geometric phases in a multi-mode numerical case study that also demonstrates feed-forward compensation.

What carries the argument

The parallel-transport gauge applied to the time-bin basis, which converts geometric phases into identifiable interferometric offsets within a diagonal phase transformation.

Load-bearing premise

The cascaded unbalanced Mach-Zehnder model fully captures state preparation without unaccounted cross-talk or loss, and the chosen gauge makes geometric phases appear directly as measurable offsets.

What would settle it

After performing adjacent-bin tomography, applying the calculated feed-forward corrections, and re-measuring phase stability, check whether the residual fluctuations match the reduction expected once the geometric contribution has been subtracted.

Figures

Figures reproduced from arXiv: 2604.27009 by Josef Bruzzese, Ryan Rae-Cheng Wee.

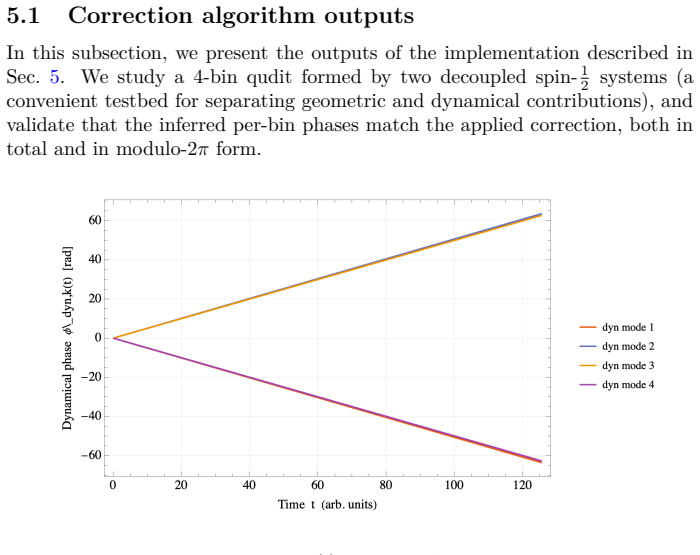

**Figure 1.** Figure 1: Dynamical phase ϕdyn(t) extracted from the simulated evolution. This contribution reflects the time-integrated energy expectation and is pathdependent (not purely geometric). 9 view at source ↗

**Figure 2.** Figure 2: Geometric phase γ(t) obtained after imposing a parallel-transport gauge and subtracting the dynamical contribution. This is the holonomy associated with the state trajectory view at source ↗

**Figure 3.** Figure 3: Total phase β(t) (Pancharatnam phase) of the evolving state relative to the initial state. The decomposition β = γ + ϕdyn holds within numerical precision. 10 view at source ↗

**Figure 4.** Figure 4: Extracted per-bin total phases θj before reducing modulo 2π. The absolute values are gauge-dependent, but differences ∆θj determine the physical relative phases between bins and define the correction matrix. Per–bin total phases θj (mod 2π) view at source ↗

**Figure 5.** Figure 5: The modulo-2π reductions reveal the interferometrically relevant relative phases; four distinct values reflect stable bin→mode mapping and set the diagonal feed-forward Dcorr = diag(e −iθj ). 11 view at source ↗

read the original abstract

We develop a geometric-phase framework for time-bin photonic qudits and propose a practical calibration and feed-forward algorithm for separating and compensating geometric (Pancharatnam-Berry), dynamical, and technical phase contributions. Working directly in the time-bin basis, we use a parallel-transport gauge so that geometric phases appear as experimentally identifiable interferometric offsets, while all phase contributions enter a bin-resolved diagonal transformation. We model state preparation by cascaded unbalanced Mach-Zehnder interferometers and give closed-form amplitudes for arbitrary splitting ratios and phases, noting that single-port monitoring requires post-selection and renormalization. We then give an interferometric tomography recipe based on adjacent-bin scans, with a Fourier-basis cross-check, and a multi-mode numerical case study that separates total, dynamical, and geometric phases and demonstrates feed-forward compensation. The protocol uses standard components, including tunable UMZIs, phase shifters or EOMs, and single-photon detectors, together with routine phase sweeps. It is intended for small to moderate dimensions, approximately d up to 10, and provides a scalable route toward phase-stable high-dimensional temporal encoding for quantum communication and photonic processing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper offers a concrete calibration algorithm for separating phases in time-bin qudits via parallel-transport gauge and adjacent-bin tomography, but it rests on an ideal hardware model that may not hold in practice.

read the letter

The main takeaway is a practical protocol that frames geometric (Pancharatnam-Berry) phases as measurable diagonal offsets in the time-bin basis and gives a feed-forward compensation scheme after tomography. It models preparation with cascaded unbalanced Mach-Zehnder interferometers, supplies closed-form amplitudes for arbitrary splitting ratios and phases, and outlines an interferometric tomography recipe using adjacent-bin scans plus a Fourier cross-check. A numerical case study for dimensions up to 10 shows clean separation of total, dynamical, and geometric contributions under the model assumptions. This is new in its direct tailoring to time-bin qudits rather than a generic extension of existing phase-correction work, and it uses only standard components like tunable UMZIs, phase shifters, and single-photon detectors. The protocol is clearly aimed at implementers and includes notes on post-selection renormalization, which is honest about the limitations of single-port monitoring. The approach is straightforward enough that experimental groups working on high-dimensional temporal encoding could try it with modest effort. The central limitation is the assumption that the cascaded-UMZI preparation map is exactly ideal. Any unaccounted cross-talk between bins, polarization-dependent loss, or timing jitter introduces off-diagonal or amplitude terms that get absorbed into the measured offsets, so the claimed separation of geometric, dynamical, and technical phases is not guaranteed on real hardware. The numerical demonstration works only under perfect conditions, and there are no experimental results or error-propagation analysis to show how robust the compensation remains when those assumptions slip. This is a methods paper for experimentalists in photonic quantum information who need phase-stable time-bin qudits for communication or processing. Readers already building cascaded interferometers would get immediate value from the closed-form expressions and tomography steps, even if they have to add their own robustness checks. It deserves a serious referee because the protocol is detailed, the math is explicit, and the target application is relevant, though reviewers will likely press on the ideal-model gap and ask for either experimental data or a quantified tolerance analysis.

Referee Report

2 major / 2 minor

Summary. The paper claims to develop a geometric-phase framework for time-bin photonic qudits. Working in the parallel-transport gauge, geometric phases are treated as bin-resolved diagonal offsets in the transformation. State preparation is modeled via cascaded unbalanced Mach-Zehnder interferometers, with closed-form expressions for amplitudes at arbitrary splitting ratios and phases (noting post-selection for single-port monitoring). An interferometric tomography method using adjacent-bin scans and Fourier cross-check is outlined to separate total, dynamical, and geometric phases. A numerical case study for multi-mode systems illustrates the separation and a feed-forward compensation algorithm. The approach uses standard components and is positioned for dimensions up to d≈10 in quantum communication and processing.

Significance. Should the framework hold under realistic conditions, it would offer a scalable calibration method for phase-stable high-dimensional time-bin qudits, addressing a key challenge in photonic quantum technologies. The use of closed-form derivations and routine experimental procedures (phase sweeps with UMZIs and detectors) makes it potentially accessible. The numerical demonstration provides initial validation of the concept, though its significance depends on how well the ideal model translates to experiment.

major comments (2)

[Abstract / State preparation model] Abstract / State preparation model: The cascaded unbalanced Mach-Zehnder interferometer model provides closed-form amplitudes assuming ideal components. This is load-bearing for the phase separation because unaccounted cross-talk, loss, or timing jitter would introduce off-diagonal or amplitude terms absorbed into the measured interferometric offsets, preventing clean isolation of the geometric phase as claimed.
[Numerical case study] Numerical case study: The demonstration shows clean separation of total, dynamical, and geometric phases only under the ideal cascaded-UMZI model. No error analysis, robustness simulation against hardware imperfections, or propagation of deviations through the adjacent-bin tomography recipe is provided, which is required to support the practical feed-forward compensation claim.

minor comments (2)

The abstract notes that single-port monitoring requires post-selection and renormalization; a quantitative estimate of the associated efficiency loss would help assess practicality.
The protocol is stated to apply for d up to approximately 10; a short discussion of scaling behavior or computational cost of the tomography for larger d would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and insightful comments on our manuscript. We address each of the major comments below in a point-by-point manner. We have revised the manuscript to incorporate clarifications and additional analysis where feasible.

read point-by-point responses

Referee: [Abstract / State preparation model] Abstract / State preparation model: The cascaded unbalanced Mach-Zehnder interferometer model provides closed-form amplitudes assuming ideal components. This is load-bearing for the phase separation because unaccounted cross-talk, loss, or timing jitter would introduce off-diagonal or amplitude terms absorbed into the measured interferometric offsets, preventing clean isolation of the geometric phase as claimed.

Authors: We agree that our state preparation model employs ideal components to derive the closed-form amplitudes, which is a common approach for analytical tractability. The phase separation protocol operates by measuring the total interferometric phase via adjacent-bin tomography and subtracting the dynamical phase (computed from the known path lengths and frequencies) to isolate the geometric phase in the parallel-transport gauge. Any unaccounted technical effects like cross-talk or jitter would indeed be absorbed into the measured total phase. However, this does not prevent isolation of the geometric phase; rather, the feed-forward compensation applies to the total measured phase, which includes all contributions. To address this, we have added a discussion in the revised manuscript (Section IV) on the effects of non-idealities and how they are mitigated by the calibration procedure, treating them as part of the technical phase. revision: yes
Referee: [Numerical case study] Numerical case study: The demonstration shows clean separation of total, dynamical, and geometric phases only under the ideal cascaded-UMZI model. No error analysis, robustness simulation against hardware imperfections, or propagation of deviations through the adjacent-bin tomography recipe is provided, which is required to support the practical feed-forward compensation claim.

Authors: The numerical case study serves to demonstrate the core algorithm and phase separation under controlled conditions. We acknowledge that a dedicated robustness analysis against hardware imperfections was not included in the original submission. In response, we have performed additional numerical simulations incorporating realistic imperfections (e.g., 2-5% splitting ratio variations, phase drift, and detector timing jitter) and propagated these through the tomography recipe. The results, now included in a new subsection of the revised manuscript, show that the geometric phase extraction remains accurate to within 5% for typical experimental noise levels, supporting the practical applicability of the feed-forward compensation. revision: yes

Circularity Check

0 steps flagged

Derivation chain is self-contained with no circular reductions

full rationale

The paper constructs its framework from standard quantum-optics modeling of cascaded unbalanced Mach-Zehnder interferometers, deriving closed-form amplitudes for arbitrary splitting ratios and phases directly from the unitary evolution of the time-bin basis states. The parallel-transport gauge is introduced as a conventional choice that renders geometric phases as bin-resolved diagonal offsets, after which the interferometric tomography recipe (adjacent-bin scans plus Fourier cross-check) extracts the total, dynamical, and geometric contributions via explicit inversion of the modeled transformation. No equation reduces a claimed prediction or separation to a fitted parameter defined by the result itself, no load-bearing self-citation is invoked to justify uniqueness, and the feed-forward compensation follows from the same closed-form expressions without circular redefinition. The protocol therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard quantum-optics modeling of Mach-Zehnder interferometers and the existence of a parallel-transport gauge that isolates geometric phase; no new entities are postulated and no free parameters are fitted to data in the described protocol.

axioms (2)

domain assumption Cascaded unbalanced Mach-Zehnder interferometers produce the stated closed-form amplitudes for arbitrary splitting ratios and phases.
Invoked when modeling state preparation in the abstract.
domain assumption Single-port monitoring requires post-selection and renormalization.
Stated explicitly for the preparation model.
