First-Principles Thermodynamic Analysis of Ternary Chalcogenide Phase Change Materials

Felix Adams , Ichiro Takeuchi , Carlos R\'ios Ocampo , Yifei Mo This is my paper

Pith reviewed 2026-05-07 09:35 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords phase change materialschalcogenidesfirst-principles calculationsthermodynamic analysispolymorphsGSTcrystallization pathwaysternary mixtures
0
0 comments X

The pith

First-principles calculations compare polymorph energies to screen ternary chalcogenides for phase-change material candidates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a thermodynamic framework, motivated by Ostwald's rule, that uses first-principles calculations to evaluate the energetics of ternary chalcogenide mixtures along binary tie lines and their polymorphs. By contrasting ground-state and metastable structures, it assesses phase stability, miscibility gaps, and the probability of fast, GST-like crystallization pathways across wide composition ranges. The approach reproduces established GST behavior and flags several new candidate mixtures with comparable energetic signatures. This offers a lower-cost alternative to direct dynamics simulations for expanding the range of usable phase-change materials in memory and photonic devices.

Core claim

Using first-principles calculations, we systematically evaluate the energetics of ternary chalcogenide mixtures along binary-binary tie lines and their polymorphs. By comparing ground-state and metastable structures, we assess phase stability, miscibility, and the likelihood of GST-like polymorph-mediated crystallization pathways across a broad composition space. The calculations reproduce known behavior in GST and related systems and identify several promising candidate mixtures with similar features.

What carries the argument

Thermodynamic polymorph screening: first-principles energy comparisons between ground-state and metastable polymorphs along binary tie lines to rank the likelihood of metastable crystallization pathways.

If this is right

  • The method confirms the expected energetic profile for the known GST family and related systems.
  • Several new ternary compositions are flagged as having GST-like stability and miscibility features.
  • The results explain why certain chalcogenide mixtures switch more readily than others.
  • Thermodynamic polymorph screening is presented as a scalable computational route for discovering additional phase-change materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tie-line energy comparison could be applied to other ternary or quaternary systems to pre-screen for fast-switching candidates before expensive dynamics runs.
  • If the energy-difference criterion proves predictive, it supplies a simple filter that could be automated across large materials databases.
  • The framework implicitly treats Ostwald's rule as a design principle, suggesting that deliberate stabilization of specific metastable polymorphs may be a general strategy for engineering fast phase transitions.

Load-bearing premise

That relative energies of ground-state versus metastable polymorphs computed at zero temperature are enough to predict the occurrence of polymorph-mediated crystallization pathways.

What would settle it

Experimental measurement or molecular-dynamics simulation showing that one of the paper's identified promising candidate mixtures crystallizes slowly or without a metastable intermediate, contrary to its computed energy ordering.

Figures

Figures reproduced from arXiv: 2604.27120 by Carlos R\'ios Ocampo, Felix Adams, Ichiro Takeuchi, Yifei Mo.

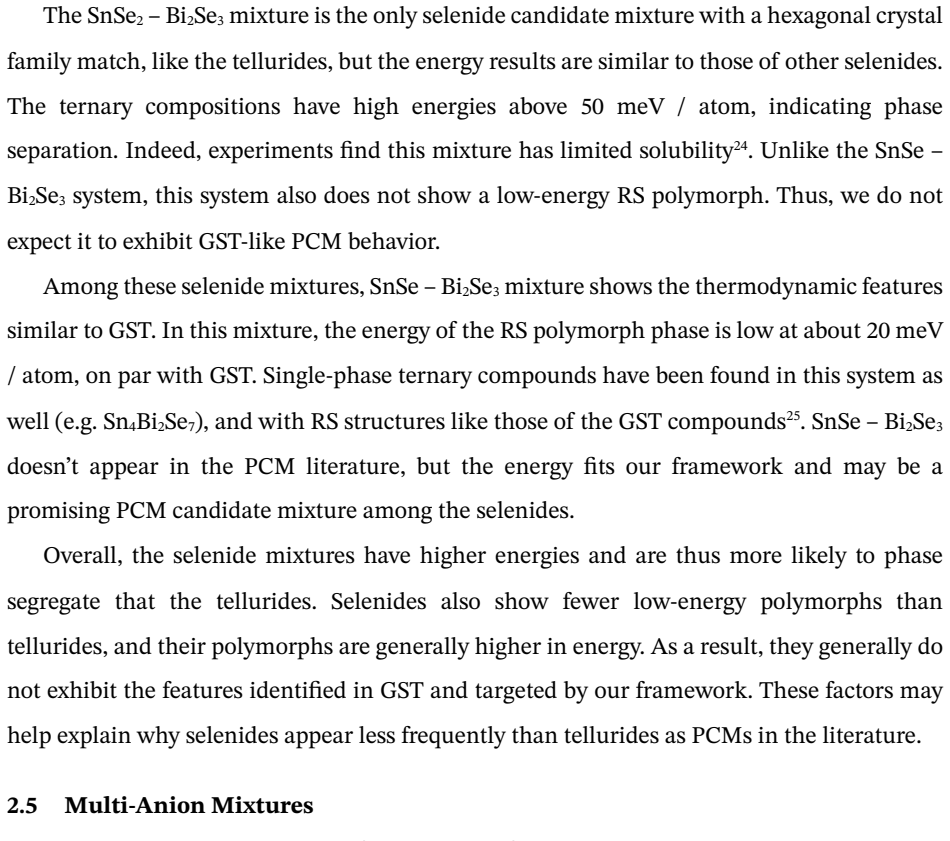

Figure 5
Figure 5. Figure 5 view at source ↗
read the original abstract

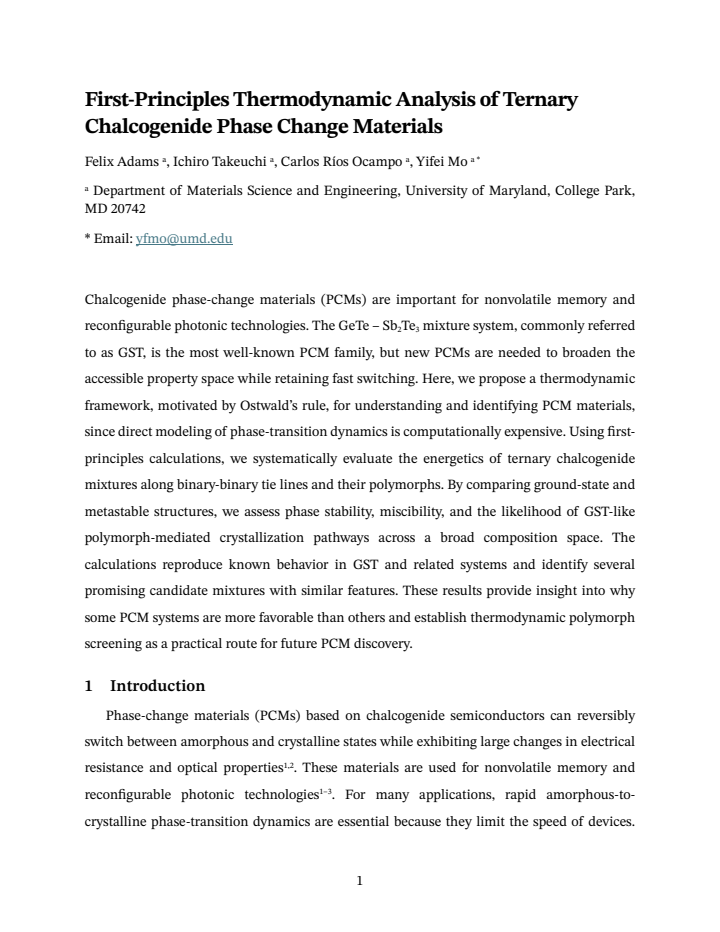

Chalcogenide phase-change materials (PCMs) are important for nonvolatile memory and reconfigurable photonic technologies. The GeTe-Sb2Te3 mixture system, commonly referred to as GST, is the most well-known PCM family, but new PCMs are needed to broaden the accessible property space while retaining fast switching. Here, we propose a thermodynamic framework, motivated by Ostwald's rule, for understanding and identifying PCM materials. Since direct modeling of phase-transition dynamics is computationally expensive, Using first-principles calculations, we systematically evaluate the energetics of ternary chalcogenide mixtures along binary-binary tie lines and their polymorphs. By comparing ground-state and metastable structures, we assess phase stability, miscibility, and the likelihood of GST-like polymorph-mediated crystallization pathways across a broad composition space. The calculations reproduce known behavior in GST and related systems and identify several promising candidate mixtures with similar features. These results provide insight into why some PCM systems are more favorable than others and establish thermodynamic polymorph screening as a practical route for future PCM discovery.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a first-principles thermodynamic framework for screening ternary chalcogenide phase-change materials (PCMs). It computes the energetics of ground-state and metastable polymorphs along binary tie-lines in composition space (extending from the GeTe-Sb2Te3 GST system), using these to assess phase stability, miscibility, and the likelihood of GST-like polymorph-mediated crystallization pathways motivated by Ostwald's rule. The calculations are reported to reproduce known GST behavior and to identify several promising new candidate mixtures with analogous thermodynamic features, positioning the approach as a practical route for PCM discovery without direct dynamics simulations.

Significance. If the static-energy proxy holds, the work offers a computationally efficient, parameter-free method to explore broad composition spaces and generate testable predictions for new PCMs with fast switching. The systematic tie-line analysis and reproduction of established GST features provide mechanistic insight into the role of metastable polymorphs. This could accelerate discovery for memory and photonic applications, though the significance is tempered by the need for stronger validation of the kinetics link.

major comments (2)
  1. [Results and Discussion] The central claim that relative DFT energies of ground-state versus metastable polymorphs suffice to rank the likelihood of polymorph-mediated crystallization pathways (and thus to screen candidates) is load-bearing for the screening conclusions and identification of new mixtures. However, no direct kinetic validation—such as nucleation barrier calculations, molecular dynamics trajectories, or comparison to measured crystallization rates—is provided for the new candidates or even for the GST reproduction case.
  2. [Abstract and Results] The abstract and results state that the calculations 'reproduce known behavior in GST and related systems,' yet no quantitative metrics (e.g., specific formation-energy differences, miscibility-gap widths, or error bars from k-point/functional convergence) or direct comparisons to experimental phase diagrams are detailed. This weakens the ability to assess how faithfully the method captures established GST polymorph energetics.
minor comments (2)
  1. [Methods] Clarify in the methods how compositions are discretized along the binary tie-lines and how metastable polymorphs are systematically enumerated or selected.
  2. [Figures and Tables] Add error bars or convergence tests to any energy plots or tables comparing polymorph stabilities.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and have revised the manuscript to strengthen the presentation of quantitative results and clarify the scope and limitations of the thermodynamic screening approach.

read point-by-point responses

  1. Referee: [Results and Discussion] The central claim that relative DFT energies of ground-state versus metastable polymorphs suffice to rank the likelihood of polymorph-mediated crystallization pathways (and thus to screen candidates) is load-bearing for the screening conclusions and identification of new mixtures. However, no direct kinetic validation—such as nucleation barrier calculations, molecular dynamics trajectories, or comparison to measured crystallization rates—is provided for the new candidates or even for the GST reproduction case.

    Authors: We agree that the absence of direct kinetic validation limits the strength of claims about crystallization pathways for the new candidates. Our framework is designed as a static, computationally efficient thermodynamic proxy motivated by Ostwald's rule to screen broad composition spaces, rather than a full kinetic model. For the GST reference system, the computed relative polymorph energies are consistent with the experimentally observed preference for metastable rock-salt-like structures as intermediates. We have added explicit discussion of this limitation in the revised manuscript, including references to literature crystallization rates for GST, and clarified that the method serves as an initial filter to prioritize candidates for subsequent kinetic studies. Direct MD or barrier calculations for the full set of candidates remain outside the current scope due to computational cost. revision: partial

  2. Referee: [Abstract and Results] The abstract and results state that the calculations 'reproduce known behavior in GST and related systems,' yet no quantitative metrics (e.g., specific formation-energy differences, miscibility-gap widths, or error bars from k-point/functional convergence) or direct comparisons to experimental phase diagrams are detailed. This weakens the ability to assess how faithfully the method captures established GST polymorph energetics.

    Authors: We acknowledge that the original text lacked sufficient quantitative detail to allow readers to evaluate the reproduction of GST behavior. In the revised manuscript we have added a table summarizing formation-energy differences for key GST compositions, quantified miscibility-gap widths along the tie lines, and reported convergence error estimates from k-point and functional tests. We have also included a direct comparison of our computed phase stabilities to experimental phase diagrams for the GeTe-Sb2Te3 system, noting both agreements in ground-state phases and any deviations in metastable polymorph energies. revision: yes

Circularity Check

0 steps flagged

No circularity; standard first-principles polymorph energetics

full rationale

The paper evaluates ternary chalcogenide mixtures using DFT-derived formation energies of ground-state and metastable polymorphs along binary tie-lines. Phase stability, miscibility, and GST-like pathway likelihood are inferred by direct comparison of these static energies, motivated by Ostwald's rule but without fitting any parameters to crystallization data or target outcomes. Known GST behavior is reproduced as validation, yet the core derivation chain consists of independent ab initio calculations whose outputs are not redefined or forced by the inputs themselves. No self-citation load-bearing steps, ansatz smuggling, or renaming of known results appear in the provided derivation. The approach is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on standard DFT approximations for chalcogenide energetics and the domain assumption that metastable polymorph energies correlate with crystallization kinetics.

axioms (1)
  • domain assumption Ostwald's rule provides a useful motivation for focusing on metastable polymorphs as indicators of crystallization pathways.
    Explicitly stated as the motivation for the thermodynamic framework in the abstract.
