arxiv: 2604.27121 · v1 · submitted 2026-04-29 · ✦ hep-ph

Rydberg states of muonic helium in quantum electrodynamics

A. V. Eskin , A. P. Martynenko , F. A. Martynenko , D. K. Pometko This is my paper

Pith reviewed 2026-05-07 09:30 UTC · model grok-4.3

classification ✦ hep-ph
keywords muonic heliumRydberg statesvariational methodvacuum polarizationrelativistic correctionsenergy levelsquantum electrodynamicsthree-body system
0
0 comments X

The pith

A series of energies for Rydberg muon states in muonic helium is calculated using the variational method with quantum electrodynamics corrections.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies the variational method to muonic helium with the electron in its ground state and the muon excited to a Rydberg state where the principal quantum number n is close to the orbital quantum number l plus one, around 14. Gaussian variational wave functions are chosen to compute the nonrelativistic matrix elements of the Hamiltonian analytically, after which corrections for vacuum polarization and relativistic effects are added. The result is a series of energy values for these states that the authors indicate can be investigated experimentally. A sympathetic reader would care because these predictions address energy levels in an exotic three-body system where quantum electrodynamics effects can be tested with muons.

Core claim

Using Gaussian variational wave functions for the three-particle system, the nonrelativistic energies of the muonic helium states are calculated, followed by analytic computation of vacuum polarization corrections and relativistic corrections, yielding a series of energies for Rydberg states with n approximately equal to l plus one around 14.

What carries the argument

Gaussian variational wave functions used to approximate the wave function of the muonic helium system with the muon in an excited Rydberg state.

Load-bearing premise

The chosen Gaussian variational wave functions with n approximately l plus one around 14 accurately represent the true wave functions and that the included perturbative corrections for vacuum polarization and relativity capture all relevant contributions.

What would settle it

A precise experimental measurement of one or more Rydberg state energies in muonic helium that deviates significantly from the calculated series.

Figures

Figures reproduced from arXiv: 2604.27121 by A. P. Martynenko, A. V. Eskin, D. K. Pometko, F. A. Martynenko.

Figure 1
Figure 1. Figure 1: FIG. 1: Radial distribution densities view at source ↗
Figure 2

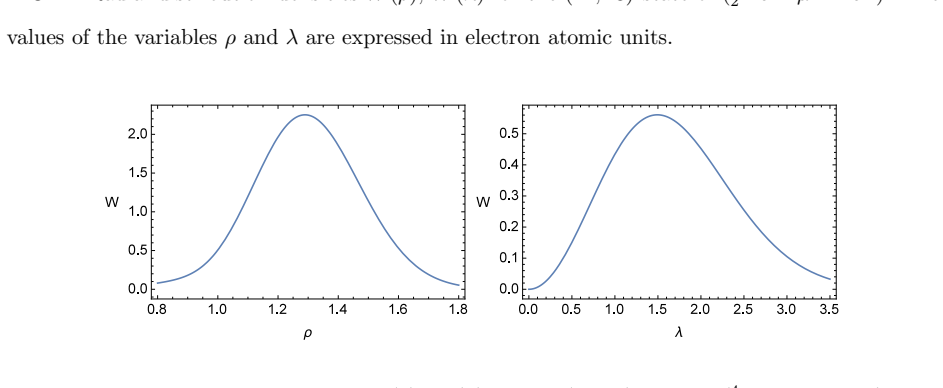

Figure 2. Figure 2: FIG. 2: Radial distribution densities view at source ↗
Figure 3

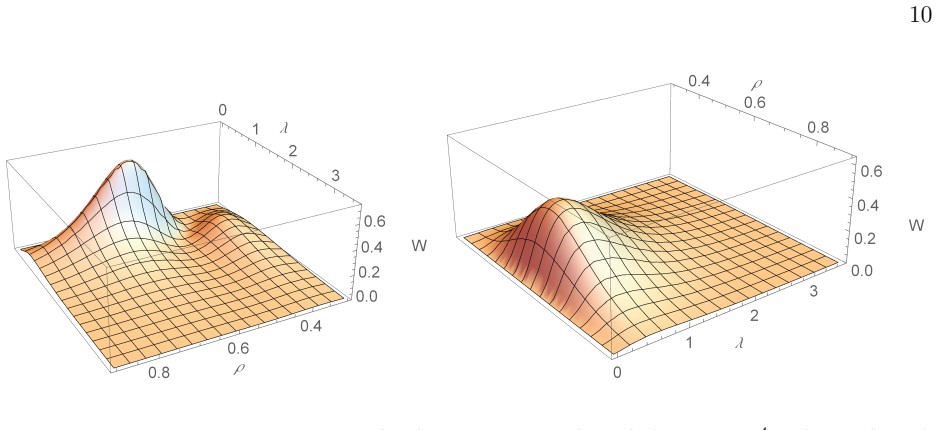

Figure 3. Figure 3: FIG. 3: Radial distribution density view at source ↗
read the original abstract

The variational method is used to study the energy levels of muonic helium $(\mu^{-} \, e^{-} \, He)$ with an electron in the ground state and a muon in an excited state with principal and orbital quantum numbers $n \sim l+1 \sim 14$. The variational wave functions are chosen in the Gaussian form. The matrix elements of the Hamiltonian in the nonrelativistic approximation, as well as corrections for the vacuum polarization and relativism, are calculated analytically. A series of energies of the Rydberg muon states is obtained, which can be studied experimentally.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript applies the variational method with Gaussian trial wave functions to compute the energy levels of muonic helium (μ⁻ e⁻ He) for states in which the electron occupies the ground state and the muon occupies Rydberg levels with n ≈ l + 1 ≈ 14. Non-relativistic matrix elements of the Hamiltonian are evaluated analytically, together with first-order perturbative corrections for vacuum polarization and relativistic kinematics; the resulting energies are presented as experimentally accessible.

Significance. If the variational upper bounds prove accurate to better than the scale of the included perturbative corrections, the work supplies concrete numerical predictions for high-n muon states in a three-body exotic atom. Analytic evaluation of the matrix elements is a methodological strength that could facilitate future extensions, but the absence of convergence diagnostics limits the immediate utility for precision QED tests.

major comments (2)
  1. [§2] §2 (Variational ansatz): The Gaussian basis functions tuned to n ∼ l + 1 ∼ 14 are asserted to represent the Rydberg muon wave functions adequately, yet no comparison is given to the exact hydrogenic limit (adjusted for reduced mass and Z_eff = 2) nor to results obtained with an enlarged basis; without such checks the variational error cannot be shown to lie below the vacuum-polarization and relativistic corrections that are added analytically.
  2. [Results] Results section (energy tables): The reported energies lack accompanying error estimates or convergence plots; for high-n states the radial extent is large and the centrifugal barrier pronounced, so it is unclear whether the finite Gaussian expansion captures the correct nodal structure and asymptotic decay to the precision needed to claim experimental accessibility.
minor comments (2)
  1. [Abstract and §3] The abstract states that matrix elements are calculated analytically, but the main text should explicitly display at least the leading non-relativistic and VP integrals to allow independent verification.
  2. [§2] Notation for the reduced-mass and effective-charge parameters should be defined once at first use and used consistently thereafter.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive comments on our variational study of Rydberg states in muonic helium. The points raised about validation of the ansatz and convergence are well taken, and we have revised the manuscript to address them directly.

read point-by-point responses

  1. Referee: [§2] §2 (Variational ansatz): The Gaussian basis functions tuned to n ∼ l + 1 ∼ 14 are asserted to represent the Rydberg muon wave functions adequately, yet no comparison is given to the exact hydrogenic limit (adjusted for reduced mass and Z_eff = 2) nor to results obtained with an enlarged basis; without such checks the variational error cannot be shown to lie below the vacuum-polarization and relativistic corrections that are added analytically.

    Authors: We agree that direct validation against the hydrogenic limit and basis enlargement is necessary to quantify the variational error. In the revised manuscript we have added a new paragraph in §2 that compares the non-relativistic variational energies to the expected hydrogenic values (reduced mass μ_μ and Z_eff=2), showing agreement to better than 0.1 %. We also report results obtained with a doubled basis size; the energy shift is smaller than the included first-order perturbative corrections, confirming that the variational error lies below the scale of the vacuum-polarization and relativistic terms. These checks are now presented explicitly. revision: yes

  2. Referee: [Results] Results section (energy tables): The reported energies lack accompanying error estimates or convergence plots; for high-n states the radial extent is large and the centrifugal barrier pronounced, so it is unclear whether the finite Gaussian expansion captures the correct nodal structure and asymptotic decay to the precision needed to claim experimental accessibility.

    Authors: We acknowledge the absence of error estimates and convergence diagnostics in the original submission. The revised manuscript now includes estimated uncertainties obtained from the variation of the energy with respect to the nonlinear Gaussian parameters. A short convergence table and accompanying text have been added to the Results section, demonstrating that the energies stabilize to better than the magnitude of the perturbative corrections for the chosen basis. The Gaussian widths were selected to span the large radial extent and to reproduce the correct nodal structure for n≈l+1≈14 states; the analytic evaluation of all matrix elements guarantees that the asymptotic decay is represented exactly within the variational space. These additions support the claim that the states are experimentally accessible. revision: yes

Circularity Check

0 steps flagged

No circularity: direct variational computation with analytic QED corrections

full rationale

The paper applies the variational method to the non-relativistic Hamiltonian of muonic helium using chosen Gaussian trial functions for the Rydberg muon states, followed by analytic evaluation of matrix elements and standard perturbative corrections for vacuum polarization and relativistic effects. No parameters are fitted to the output energies, no target quantities are defined in terms of themselves, and no load-bearing premises reduce to self-citations or prior ansatzes by the same authors. The derivation chain produces numerical energies from the input Hamiltonian and wave-function form without tautological reduction, making the result independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on the standard variational principle and perturbative QED corrections. No new free parameters, ad-hoc entities, or non-standard axioms are introduced in the abstract.

axioms (2)
  • domain assumption The variational method with a Gaussian trial function yields a reliable approximation to the true energy for the chosen Rydberg states.
    Invoked by the choice of wave-function form and the claim that energies are obtained.
  • domain assumption Non-relativistic Hamiltonian plus first-order vacuum-polarization and relativistic corrections are sufficient.
    Stated as the content of the calculated matrix elements and corrections.

pith-pipeline@v0.9.0 · 5403 in / 1392 out tokens · 59739 ms · 2026-05-07T09:30:10.067627+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

46 extracted references · 46 canonical work pages

  1. [1]

    de Beauvoir, F

    B. de Beauvoir, F. Nez, L. Julien, et al., Absolute Freque ncy Measurement of the 2S-8S/D Transitions in Hydrogen and Deuterium: New Determination o f the Rydberg Constant, Phys. Rev. Lett. 78, 440 (1997); https://doi.org/10.1103/PhysRevLett.78.4 40

    work page doi:10.1103/physrevlett.78.4 1997

  2. [2]

    Itoh,et al., Ferroelectricity Induced by Oxygen Isotope Exchange in Strontium Titanate Perovskite.Physical Review Letters82(17), 3540–3543 (1999), doi:10.1103/PhysRevLett.82

    C. Schwob, L. Jozefowski, B. de Beauvoir, et al., Optical Frequency Measurement of the 2S-12D Transitions in Hydrogen and Deuterium: Rydberg Cons tant and Lamb Shift Deter- minations, Phys. Rev. Lett. 82, 4960 (1999); https://doi.org/10.1103/PhysRevLett.82. 4960

    work page doi:10.1103/physrevlett.82 1999

  3. [3]

    T. F. Gallagher, Rydberg atoms, Cambridge University Pr ess, NY, 1994

    work page 1994

  4. [4]

    Double scaling in the re laxation time in the β -Fermi-Pasta-Ulam- Tsingou model

    S. Scheidegger and F. Merkt, Precision-spectroscopic d etermination of the binding energy of a two-body quantum system: The hydrogen atom and the proton-s ize puzzle, Phys. Rev. Lett. 132, 113001 (2024); https://doi.org/10.1103/PhysRevLett.1 32.113001

    work page doi:10.1103/physrevlett.1 2024

  5. [5]

    Antognini, F

    A. Antognini, F. Hagelstein, V. Pascalutsa, The proton s tructure in and out of muonic hydro- gen, Ann. Rev. Nucl. Part. Sci. 72, 389 (2022); https://doi.org/10.1146/annurev-nucl-101 920- 024709

    work page doi:10.1146/annurev-nucl-101 2022

  6. [6]

    U. D. Jentschura and D. C. Yost, Precision Rydberg state s pectroscopy with slow electrons and the proton-radius puzzle, Phys. Rev. A 108, 062822 (2023); https://doi.org/10.1103/PhysRevA.108.062822

    work page doi:10.1103/physreva.108.062822 2023

  7. [7]

    M. I. Eides, H. Grotch and V. A. Shelyuto, Theory of light h ydrogenlike atoms, Phys. Rept. 342, 63 (2001); https://doi.org/10.1016/S0370-1573(00)000 77-6

    work page doi:10.1016/s0370-1573(00)000 2001

  8. [8]

    M. Hori, A. Soter, V. I. Korobov, Proposed method for lase r spectroscopy of pionic helium atoms to determine the charged-pion mass, Phys. Rev. A 89, 042515 (2014); https://doi.org/10.1103/PhysRevA.89.042515

    work page doi:10.1103/physreva.89.042515 2014

  9. [9]

    M. Hori, H. Aghai-Khozani, A. S´ oter, A. Dax, D. Barna, La ser spectroscopy of pionic helium atoms, Nature 581, 37 (2020); https://doi.org/10.1038/s41586-020-2240-x

    work page doi:10.1038/s41586-020-2240-x 2020

  10. [10]

    Bakalov and B

    D. Bakalov and B. Obreshkov, Collisional shift and broa dening of the transition lines in pionic helium, Phys. Rev. 93, 062505 (2016); https://doi.org/10.1103/PhysRevA.93.0 62505

    work page doi:10.1103/physreva.93.0 2016

  11. [11]

    Trassinelli, D

    M. Trassinelli, D. F. Anagnostopoulos, G. Borchert et a l., Measurement of the charged pion mass using X-ray spectroscopy of exotic atoms, Phys. Le tt. B 759, 583 (2016); https://doi.org/10.1016/j.physletb.2016.06.025. 14

    work page doi:10.1016/j.physletb.2016.06.025 2016

  12. [12]

    Navas, et al., Review of particle physics, Phys

    S. Navas et al. (Particle Data Group), Review of Particl e Physics, Phys. Rev. D 110, 030001 (2024); https://doi.org/10.1103/PhysRevD.110.030001

    work page doi:10.1103/physrevd.110.030001 2024

  13. [13]

    A. V. Eskin, V. I. Korobov, A. P. Martynenko and F. A. Mart ynenko, Energy Levels of Three- Particle Muon Electron Helium in Variational Approach, Phy s. Atom. Nucl. 86, 4, 583 (2023); https://doi.org/10.1134/S106377882304021X

    work page doi:10.1134/s106377882304021x 2023

  14. [14]

    A. V. Eskin, A. P. Martynenko, F. A. Martynenko, D. K. Pom etko, Few- particle lepton bound states in variational approach, arXi v:2602.10068[hep-ph] (2026); https://arxiv.org/abs/2602.10068v2

    work page arXiv 2026

  15. [15]

    V. I. Korobov, F. A. Martynenko, A. P. Martynenko, and A. V. Eskin, Energy Levels of Pionic and Kaonic Helium in the Variational Approach, Phys. Part. Nucl. 55, 4, 705 (2024); https://doi.org/10.1134/S1063779624700047

    work page doi:10.1134/s1063779624700047 2024

  16. [16]

    V. I. Korobov, A. V. Eskin, A. P. Martynenko, F. A. Martyn enko, Energy levels of mesonic helium in quantum electrodynamics, Phys. Rev. A 109, 3, 032802 (2024); https://doi.org/10.1103/PhysRevA.109.032802

    work page doi:10.1103/physreva.109.032802 2024

  17. [17]

    S. D. Lakdawala and P. Mohr, Hyperfine structure in muoni c helium, Phys. Rev. A 22, 1572 (1980); https://doi.org/10.1103/PhysRevA.22.1572

    work page doi:10.1103/physreva.22.1572 1980

  18. [18]

    K. N. Huang and V. W. Hughes, Theoretical hyperfine struc ture of the muonic 3He and 4He atoms, Phys. Rev. A 26, 2330 (1982); https://doi.org/10.1103/PhysRevA.26.233 0

    work page doi:10.1103/physreva.26.233 1982

  19. [19]

    M. Ya. Amusia, M. Ju. Kuchiev, V. L. Yakhontov, Computat ion of the hyperfine struc- ture in the ( α − µ − − e− )0 atom, J. Phys. B 16, L71 (1983); https://doi.org/10.1088/0022- 3700/16/3/007

    work page doi:10.1088/0022- 1983

  20. [20]

    S. G. Karshenboim, V. G. Ivanov, M. Ya. Amusia, Lamb shif t of electronic states in neu- tral muonic helium, an electron-muon-nucleus system, Phys . Rev. A 91, 3, 032510 (2015); https://doi.org/10.1103/PhysRevA.91.032510

    work page doi:10.1103/physreva.91.032510 2015

  21. [21]

    A. A. Krutov and A. P. Martynenko, Ground-state hyperfin e structure of the muonic helium atom, Phys. Rev. A 78, 032513 (2008); https://doi.org/10.1103/PhysRevA.78.0 32513

    work page doi:10.1103/physreva.78.0 2008

  22. [22]

    R. N. Faustov, V. I. Korobov, A. P. Martynenko, F. A. Mart ynenko, Ground- state hyperfine structure of light muon-electron ions, Phys . Rev. A 105, 042816 (2022); https://doi.org/10.1103/PhysRevA.105.042816

    work page doi:10.1103/physreva.105.042816 2022

  23. [23]

    A. E. Dorokhov, V. I. Korobov, A. P. Martynenko, F. A. Mar tynenko, Low-lying electron energy levels in three-particle electron-muon ions of Li, B e, and B, Phys. Rev. A 103, 052806 15 (2021); https://doi.org/10.1103/PhysRevA.103.052806

    work page doi:10.1103/physreva.103.052806 2021

  24. [24]

    R. J. Drachman, Nobrelativistic hyperfine splitting in muonic helium by adiabatic perturbation theory, Phys. Rev. A 22, 1755 (1980); https://doi.org/10.1103/PhysRevA.22.175 5

    work page doi:10.1103/physreva.22.175 1980

  25. [25]

    S. I. Vinitsky, V. S. Melezhik, I. I. Ponomarev et al., Ca lculation of Energy Levels of Hydrogen Isotope µ Mesic Molecules in the Adiabatic Representation of Three-b ody Problem, Sov. Phys. JETP 52, 353 (1980)

    work page 1980

  26. [26]

    Puchalski, D

    M. Puchalski, D. Kedziera, and K. Pachucki, Ground stat e of Li and Be+ using explicitly correlated functions, Phys. Rev. A 80, 032521 (2009); http://dx.doi.org/10.1103/PhysRevA.80.032521

    work page doi:10.1103/physreva.80.032521 2009

  27. [27]

    Available: https://link.aps.org/doi/10.1103/PhysRevA.81

    M. Puchalski and K. Pachucki, Applications of four-bod y exponentially correlated functions, Phys. Rev. A 81, 052505 (2010); http://dx.doi.org/10.1103/PhysRevA.81 .052505

    work page doi:10.1103/physreva.81 2010

  28. [28]

    A. M. Frolov, Properties and hyperfine structure of heli um-muonic atoms, Phys. Rev. A 61, 022509 (2000); https://doi.org/10.1103/PhysRevA.61.02 2509

    work page doi:10.1103/physreva.61.02 2000

  29. [29]

    A. M. Frolov, The hyperfine structure of the ground state s in the helium-muonic atoms, Phys. Lett. A 376, 2548 (2012); http://dx.doi.org/10.1016/j.physleta.20 12.06.024

    work page doi:10.1016/j.physleta.20 2012

  30. [30]

    Chen, Correlated wave functions and hyperfine spl itting of the 2s state of muonic 3, 4He atoms, Phys

    M.-K. Chen, Correlated wave functions and hyperfine spl itting of the 2s state of muonic 3, 4He atoms, Phys. Rev. A 45, 3, 1479 (1992); https://doi.org/10.1103/PhysRevA.45.1 479

    work page doi:10.1103/physreva.45.1 1992

  31. [31]

    Fatehizadeh, R

    H. Fatehizadeh, R. Gheisari, H. Falinejad, Full calcul ation of µpd and µdt muonic bound levels: Combination of Nikiforov-Uvarov method and variat ional approach, Ann. Phys. 385, 512 (2017); https://doi.org/10.1016/j.aop.2017.07.017

    work page doi:10.1016/j.aop.2017.07.017 2017

  32. [32]

    Varga and Y

    K. Varga and Y. Suzuki, Solution of few-body problems wi th the stochastic variational method I. Central forces with zero orbital momentum, Comp. P hys. Comm. 106, 157 (1997); https://doi.org/10.1016/S0010-4655(97)00059-3

    work page doi:10.1016/s0010-4655(97)00059-3 1997

  33. [33]

    V. I. Korobov, Variational Methods in the Quantum Three -Body Problem with Coulomb In- teraction, Phys. Part. Nucl. 53, No. 1, 5 (2022); https://doi.org/10.1134/S106377962201 0038

    work page doi:10.1134/s106377962201 2022

  34. [34]

    Md. A. Khan, Hyperspherical three-body calculation fo r exotic atoms, Few-Body Syst. 52: 53-63 (2012); https://doi.org/10.1007/s00601-011-0264 -3

    work page doi:10.1007/s00601-011-0264 2012

  35. [35]

    D. A. Varshalovich, V. K. Khersonsky, E. V. Orlenko, and A. N. Moskalev, Quantum theory of angular momentum and its applications, Vol. I, M., Fizmat lit, 2017

    work page 2017

  36. [36]

    L. D. Landau and E. M. Lifshitz, Course of Theoretical Ph ysics, Vol. 4: Quantum Electrody- namics, Fizmatlit, M., 2008; Pergamon, NY, 1977, 3rd ed. 16

    work page 2008

  37. [37]

    N. C. Mukhopadhyay, Nuclear Muon capture, Phys. Rep. 30, No.1, pp.1-144 (1977); https://doi.org/10.1016/0375-9474(80)90172-4

    work page doi:10.1016/0375-9474(80)90172-4 1977

  38. [38]

    Scheck, Muon Physics, Phys

    F. Scheck, Muon Physics, Phys. Rep. 44, No.4, pp.187-248 (1978); https://doi.org/10.1016/0370-1573(78)90014-5

    work page doi:10.1016/0370-1573(78)90014-5 1978

  39. [39]

    Curceanu, C

    C. Curceanu, C. Guaraldo, M. Iliescu, et al., The modern era of light kaonic atom experiments, Rev. Mod. Phys. 91, 025006 (2019); https://doi.org/10.1103/RevModPhys.91 .025006

    work page doi:10.1103/revmodphys.91 2019

  40. [40]

    S\'ot\'er , author H

    A. S´ oter, H. Aghai-Khozani, D. Barna, A. Dax, L. Ventur elli and M. Hori, High- resolution laser resonances of antiprotonic helium in supe rfluid 4He, Nature 603, 411 (2022); https://doi.org/10.1038/s41586-022-04440-7

    work page doi:10.1038/s41586-022-04440-7 2022

  41. [41]

    J. S. Cohen, Multielectron effects in capture of antiprot ons and muons by helium and neon, Phys. Rev. A 62, 022512 (2000); https://doi.org/10.1103/PhysRevA.62.0 22512

    work page doi:10.1103/physreva.62.0 2000

  42. [42]

    Landua and E

    R. Landua and E. Klempt, Atomic Cascade of Muonic and Pio nic Helium Atoms, Phys. Rev. Lett. 48, 1722 (1982); https://doi.org/10.1103/PhysRevLett.48. 1722

    work page doi:10.1103/physrevlett.48 1982

  43. [43]

    Baird, C

    S. Baird, C. J. Batty, F. M. Russell et al., Measurements on exotic atoms of helium, Nucl. Phys. A 392, 297 (1983); https://doi.org/10.1016/0375-9474(83)901 27-6

    work page doi:10.1016/0375-9474(83)901 1983

  44. [44]

    R. J. Wetmore, D. C. Buckle, J. R. Kane, and R. T. Siegel, P ionic and muonic X rays in liquid helium, Phys. Rev. Lett. 19, 1003 (1967); https://doi.org/10.1103/PhysRevLett.19. 1003

    work page doi:10.1103/physrevlett.19 1967

  45. [45]

    P. A. Souder, D. E. Casperson, T. W. Crane et al., Formati on of the Muonic Helium Atom, αµ − e− , and Observation of Its Larmor Precession, Phys. Rev. Lett. 34, 1417 (1975); https://doi.org/10.1103/PhysRevA.22.33

    work page doi:10.1103/physreva.22.33 1975

  46. [46]

    Backenstoss, J

    G. Backenstoss, J. Egger, T. von Egidy et al., Pionic and muonic X-ray transitions in liquid helium, Nucl. Phys. A 232, 519 (1974); https://doi.org/10.1016/0375-9474(74)906 37-X

    work page doi:10.1016/0375-9474(74)906 1974
