arxiv: 2604.27280 · v1 · submitted 2026-04-30 · 💻 cs.LG · stat.ME

Predicting Covariate-Driven Spatial Deformation for Nonstationary Gaussian Processes

Minghao Gu , Weizhi Lin , Qiang Huang This is my paper

Pith reviewed 2026-05-07 08:18 UTC · model grok-4.3

classification 💻 cs.LG stat.ME
keywords nonstationary Gaussian processesspatial deformationcovariate-driven modelsLie algebradiffeomorphic deformationsGaussian process predictionnonstationary modeling
0
0 comments X

The pith

A Lie algebra model with truncated covariate interactions predicts spatial deformations for nonstationary GPs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to extend static spatial deformation methods for nonstationary Gaussian processes to handle changes driven by covariates. It connects deformation spaces to covariate spaces using velocity fields in a Lie algebra. By proving that high-order interactions can be truncated under a moderate physical assumption, it derives a concise functional form for the deformations. This allows an efficient algorithm for predicting the processes under new covariate conditions using limited data. A sympathetic reader would care because it enables more accurate modeling and forecasting of complex spatial data in fields like manufacturing and geostatistics where conditions vary.

Core claim

The central claim is that by representing covariate-driven diffeomorphic deformations via velocity fields in a Lie algebra and truncating high-order interactions under a moderate physical assumption, a concise functional form for the deformations can be established, enabling an efficient estimation-inference algorithm for out-of-sample nonstationary GP prediction with limited covariate-deformation sample pairs.

What carries the argument

The Lie algebra representation of diffeomorphic deformations generated by covariate-dependent velocity fields, which allows truncation of higher-order interactions to yield a stable and concise model.

Load-bearing premise

The moderate physical assumption that high-order interactions between covariates can be truncated in the Lie algebra representation without losing essential accuracy in the deformation model.

What would settle it

A simulation or real dataset where including higher-order covariate interaction terms significantly improves prediction accuracy over the truncated model, or where the truncated model fails to capture observed nonstationarity under new covariates.

Figures

Figures reproduced from arXiv: 2604.27280 by Minghao Gu, Qiang Huang, Weizhi Lin.

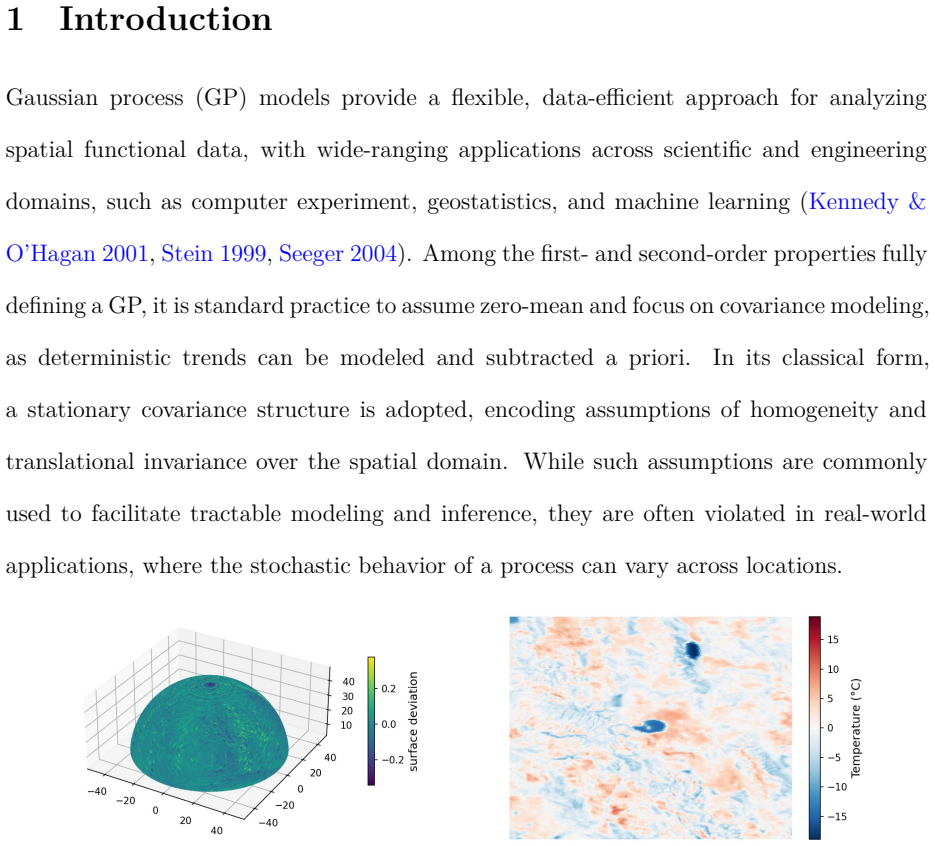

Figure 1
Figure 1. Figure 1: Left: surface deviation measured on a dome shape AM part, exhibiting heteroge view at source ↗
Figure 2

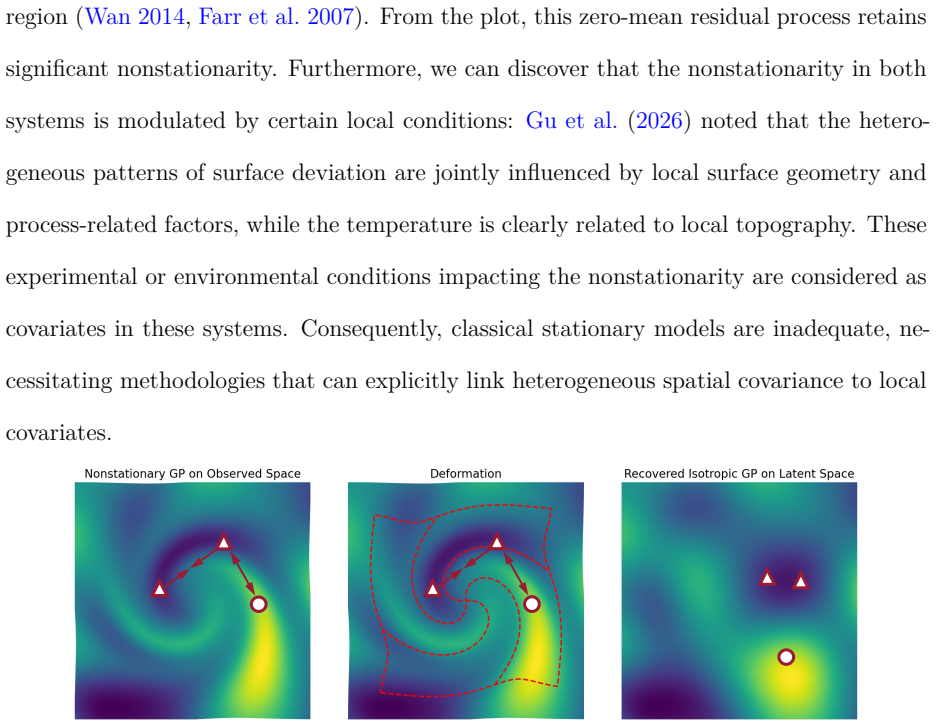

Figure 2. Figure 2: Illustration of the deformation method idea. For the original observed space (left), view at source ↗

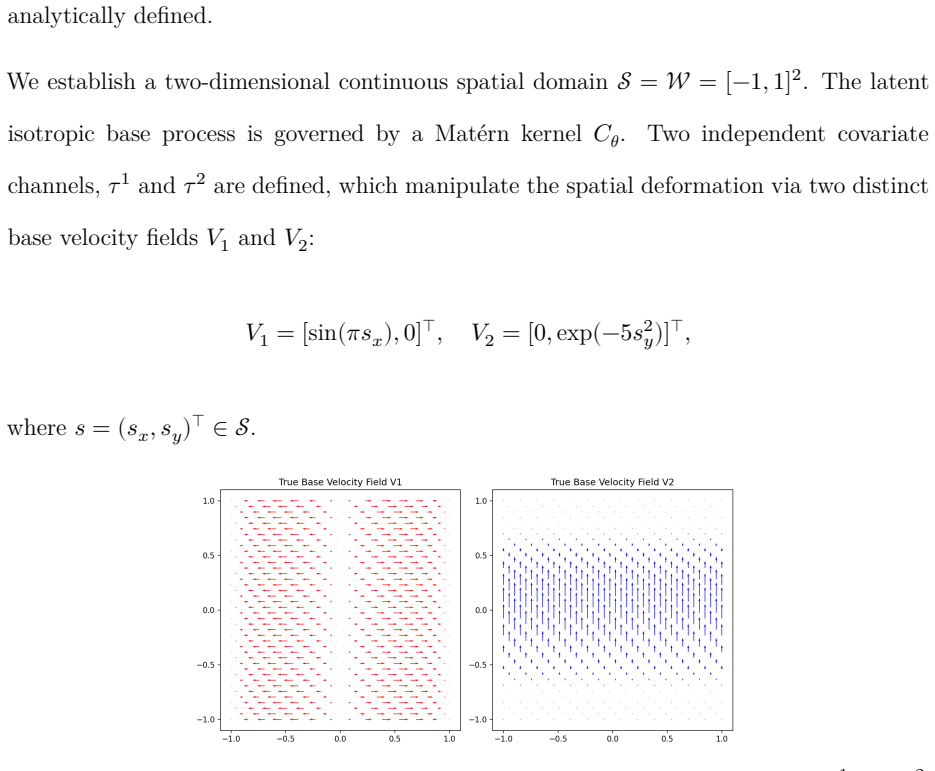

Figure 3
Figure 3. Figure 3: True base velocity fields 𝑉1 and 𝑉2 associated with covariate channel 𝜏 1 and 𝜏 2 , respectively. The two velocity fields are also plotted in view at source ↗

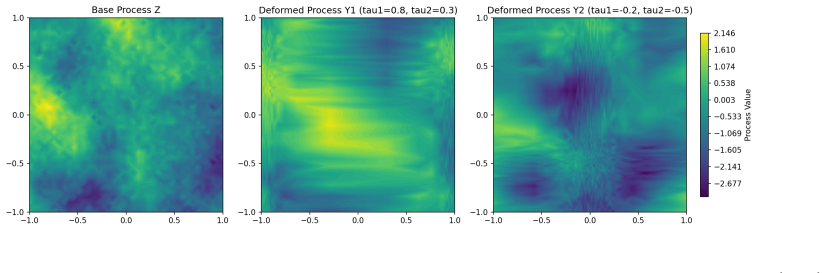

Figure 4
Figure 4. Figure 4: With the base velocity fields defined as Fig. view at source ↗

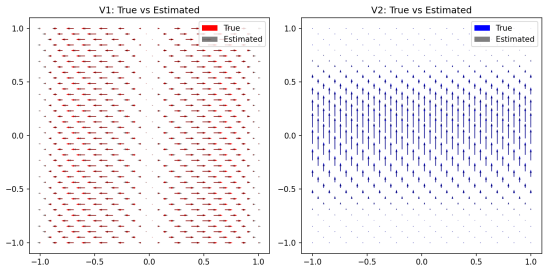

Figure 5
Figure 5. Figure 5: The estimated velocity fields (grey) are close to the underlying truth (red/blue). view at source ↗
Figure 6
Figure 6. Figure 6: The comparison between pixel-wise covariance matrices: the underlying true at view at source ↗
Figure 7

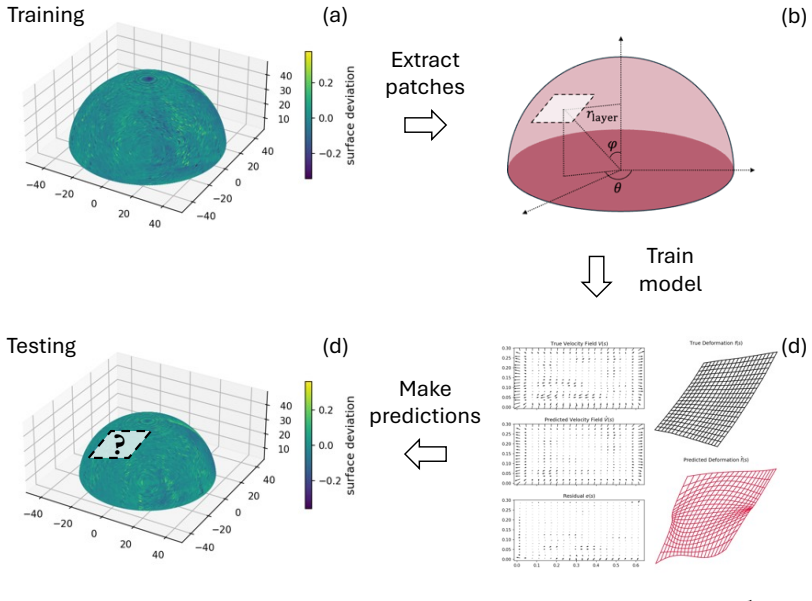

Figure 7. Figure 7: (a) Dome 𝒟1 for training. (b) Illustration of patch covariates: 𝜏 1 = 𝜃 is the azimuthal angle; 𝜏 2 = 𝜑 is the polar angle; 𝜏 3 = 𝑟layer is the in-layer radius. (c) The model is trained following the pipeline in Algorithm 1. (d) Dome 𝒟2 for testing. 25 view at source ↗
Figure 8
Figure 8. Figure 8: (a) Dome 𝒟1 for training. (b) Illustration of patch covariates: 𝜏 1 = 𝜃 is the azimuthal angle; 𝜏 2 = 𝜑 is the polar angle; 𝜏 3 = 𝑟layer is the in-layer radius. (c) The model is trained following the pipeline in Algorithm 1. (d) Dome 𝒟2 for testing. likelihood of surface deviation profiles with respect to the covariances predicted as the quantitative evaluation metric: log ℓ (Σ̂ test,𝑘|𝑌test,𝑘) = log ℙ (𝑌t… view at source ↗

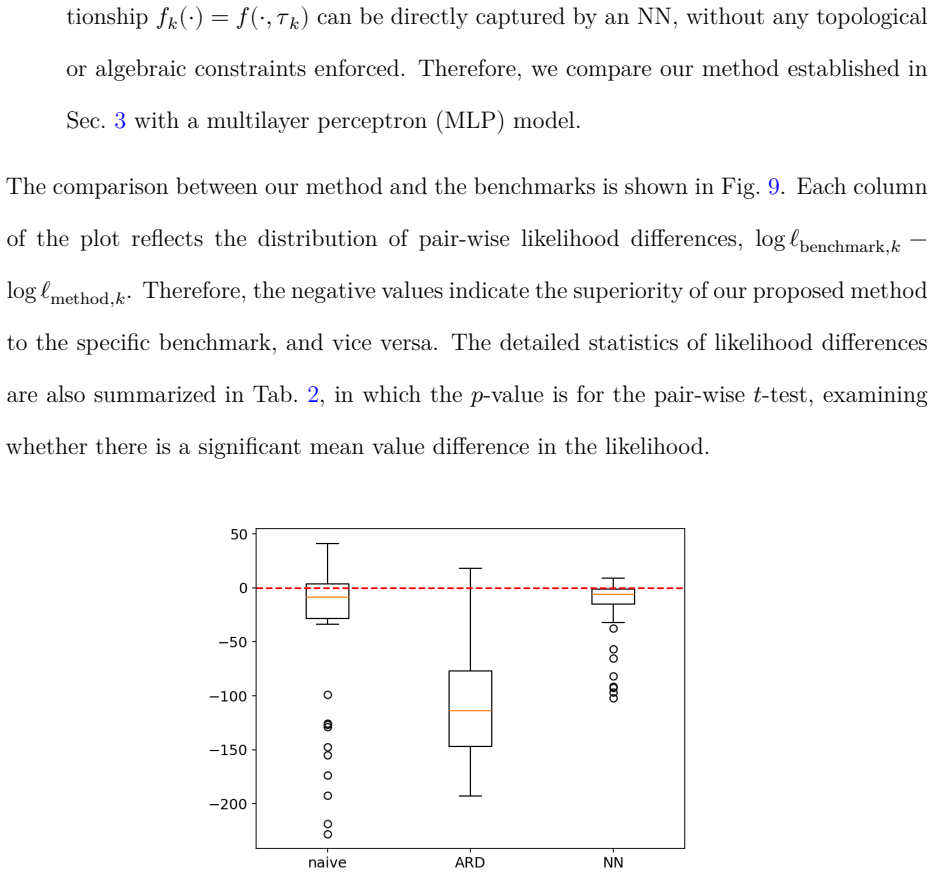

Figure 9
Figure 9. Figure 9: Boxplot of pair-wise likelihood differences log view at source ↗
Figure 10
Figure 10. Figure 10: The high-resolution terrain and temperature observation over a region of inter view at source ↗

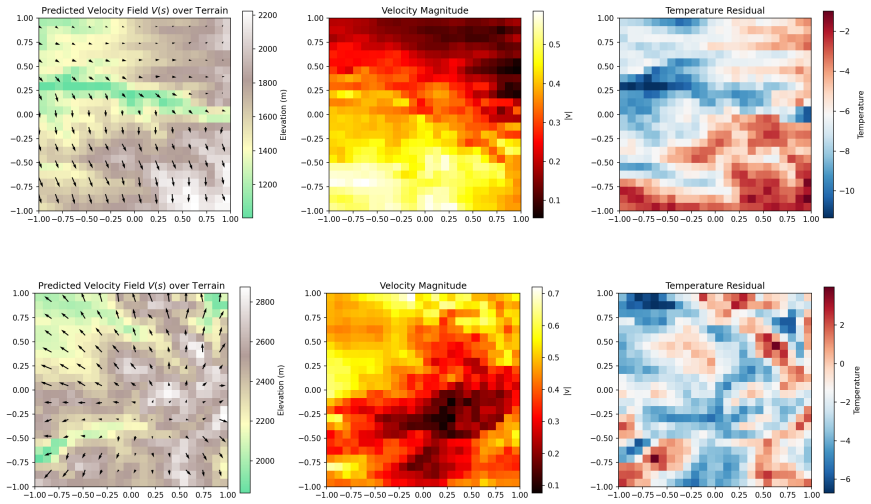

Figure 11
Figure 11. Figure 11: Predicted velocity fields (left), velocity magnitude, and true temperatures over view at source ↗
read the original abstract

Nonstationary Gaussian processes (GPs) are essential for modeling complex, locally heterogeneous spatial data. A common modeling approach is the spatial deformation method that warps the domain to recover isotropy. However, this static method does not account for changes in spatial correlation induced by covariates, limiting its ability to predict nonstationary GPs under new covariate conditions. To enable predictive modeling of the deformation method, we propose to model the spatial deformation as a function of covariates. The spaces of diffeomorphic deformations and Euclidean covariate vectors are connected by characterizing deformations as generated by velocity fields living in a Lie algebra. To overcome the estimation instability caused by high-order interactions between multiple covariates in a general Lie algebra, we prove that those interactions can be truncated with a moderate physical assumption. Based on the theoretical results, a concise functional form of deformations driven by multiple covariates can be established, and an efficient estimation-inference algorithm is developed for out-of-sample nonstationary GP prediction with limited covariate-deformation sample pairs. The effectiveness and generalizability of the method are demonstrated on a simulation study and two case studies, in the fields of manufacturing and geostatistics, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes to model covariate-driven spatial deformations for nonstationary Gaussian processes by representing deformations as generated by velocity fields in a Lie algebra. It claims to prove that high-order interactions between multiple covariates can be truncated under a moderate physical assumption, yielding a concise functional form for the deformations and an efficient estimation-inference algorithm for out-of-sample prediction from limited covariate-deformation sample pairs. The method is demonstrated on a simulation study and two case studies in manufacturing and geostatistics.

Significance. If the truncation result holds with explicit conditions and verifiable error bounds, and the physical assumption is clearly stated and validated, the work would offer a principled approach to predictive nonstationary GP modeling under changing covariates. The Lie-algebra representation of diffeomorphic deformations is a technically interesting connection that could generalize beyond the presented applications, and the focus on stable estimation from limited samples addresses a practical gap in spatial statistics.

major comments (2)
  1. Abstract: The 'moderate physical assumption' permitting truncation of high-order covariate interactions within the Lie algebra is never stated explicitly. This assumption is load-bearing for both the claimed proof of the truncation result and the derivation of the concise functional form used by the estimation algorithm; without its precise formulation (e.g., bounds on covariate magnitudes, velocity-field norms, or deformation size), the scope of the method and the accuracy of the predicted warping cannot be assessed for the manufacturing and geostatistical regimes cited.
  2. Abstract (and theoretical development): The manuscript asserts a proof that high-order interactions can be truncated, yet provides no derivation details, explicit statement of the assumption, or quantitative validation metrics for the truncation error. Because this step is required both to avoid exponential-map instability and to obtain the functional form for out-of-sample prediction, the central theoretical claim cannot be verified from the given material.
minor comments (2)
  1. Abstract: The description of the algorithm and empirical results is compressed; separating the theoretical contribution, the algorithmic steps, and the quantitative performance metrics would improve readability.
  2. Case studies: Specific numerical metrics (e.g., prediction error, comparison to baselines, sample sizes) are referenced but not reported in the abstract; including them would allow readers to gauge practical improvement immediately.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight opportunities to improve the clarity of our theoretical contributions. We address each major comment below and will revise the manuscript to incorporate the suggested clarifications.

read point-by-point responses

  1. Referee: Abstract: The 'moderate physical assumption' permitting truncation of high-order covariate interactions within the Lie algebra is never stated explicitly. This assumption is load-bearing for both the claimed proof of the truncation result and the derivation of the concise functional form used by the estimation algorithm; without its precise formulation (e.g., bounds on covariate magnitudes, velocity-field norms, or deformation size), the scope of the method and the accuracy of the predicted warping cannot be assessed for the manufacturing and geostatistical regimes cited.

    Authors: We agree that the assumption should be stated explicitly in the abstract. The assumption (bounded norms on velocity fields and moderate covariate magnitudes ensuring higher-order Lie bracket terms are negligible) is introduced in the theoretical development, but we will revise the abstract to include a concise statement of it along with a reference to the error control it provides. This will allow readers to assess applicability to the cited regimes. revision: yes

  2. Referee: Abstract (and theoretical development): The manuscript asserts a proof that high-order interactions can be truncated, yet provides no derivation details, explicit statement of the assumption, or quantitative validation metrics for the truncation error. Because this step is required both to avoid exponential-map instability and to obtain the functional form for out-of-sample prediction, the central theoretical claim cannot be verified from the given material.

    Authors: The truncation proof, including the explicit assumption and error bounds derived via the Baker-Campbell-Hausdorff formula in the Lie algebra, appears in Sections 3.1–3.3. However, to improve verifiability we will add a concise derivation sketch to the main text and include quantitative truncation-error metrics from the simulation study (e.g., error as a function of covariate magnitude). These additions will make the central claim more readily verifiable while preserving the existing results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation introduces external structure and assumption then derives forward

full rationale

The paper connects deformations to Lie algebra velocity fields, states a truncation result under a new 'moderate physical assumption,' and from that derives a closed-form covariate-driven deformation map used for out-of-sample GP prediction. No equation or claim reduces a 'prediction' or central result to a quantity already fitted inside the paper's own inputs by construction. No self-citation is invoked as load-bearing justification for the truncation or functional form. The modeling step is therefore self-contained against external benchmarks rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the Lie-algebra representation of deformations and the truncation assumption introduced to simplify multi-covariate interactions; no explicit free parameters are named in the abstract, though the estimation procedure will involve fitted parameters whose count is unknown from the summary alone.

axioms (1)
  • ad hoc to paper High-order interactions between multiple covariates can be truncated under a moderate physical assumption
    Invoked to overcome estimation instability and obtain a concise functional form for covariate-driven deformations.
invented entities (1)
  • Velocity fields living in a Lie algebra no independent evidence
    purpose: To generate and parameterize diffeomorphic spatial deformations as functions of Euclidean covariate vectors
    Provides the mathematical bridge between the space of deformations and the space of covariates.
