arxiv: 2604.27304 · v1 · submitted 2026-04-30 · ❄️ cond-mat.str-el · physics.comp-ph

Topological phase transitions in twisted bilayer graphene/hBN from interlayer coupling and substrate potentials

Huiwen Wang , Wei Jiang This is my paper

Pith reviewed 2026-05-07 08:15 UTC · model grok-4.3

classification ❄️ cond-mat.str-el physics.comp-ph
keywords twisted bilayer graphenehexagonal boron nitrideChern insulatorstopological phase transitionsmoiré flat bandsinterlayer couplingBerry curvaturesubstrate potential
0
0 comments X

The pith

Varying interlayer hopping and hBN potentials in twisted bilayer graphene enriches the flat-band topology with Chern numbers reaching 3, 4, and 5.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper systematically varies the interlayer hopping strengths w0 and w1 along with the hBN-induced staggered potential in a continuum model of TBG/hBN. This produces phase diagrams in which the Chern number of the moiré flat band takes on multiple values, including previously less explored high integers. Each change in Chern number traces to a distinct band-inversion event at either generic C3-symmetric momenta, high-symmetry points, or parabolic touchings, and these inversions appear directly in the Berry curvature distribution. The results supply concrete parameter windows that experimentalists can target to realize different topological phases.

Core claim

By scanning the two-dimensional parameter space of interlayer hoppings and substrate potential (both with and without the hBN moiré component), the continuum model yields a sequence of topological transitions that progressively populate high-Chern-number sectors up to C = 5; every transition is tied to one of three band-inversion mechanisms whose locations in the Brillouin zone are identified and whose signatures are tracked in the Berry curvature.

What carries the argument

The continuum-model Hamiltonian whose low-energy bands are obtained from interlayer hopping terms and hBN substrate potentials, with topology diagnosed by integrating Berry curvature over the moiré Brillouin zone.

If this is right

  • High-Chern-number flat bands become accessible without changing the twist angle, simply by adjusting interlayer coupling or substrate strength.
  • Each topological transition is controlled by a specific band inversion whose k-space location can be read from the Berry curvature evolution.
  • The same parameter knobs allow continuous interpolation between ordinary and high-Chern insulators, providing routes to fractional Chern states when interactions are added.
  • Existing experimental reports of Chern insulators in TBG/hBN can be assigned to particular regions of the phase diagram.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If lattice relaxation or higher-order hopping terms are later included, some of the high-Chern pockets may shrink or shift, offering a quantitative test of the minimal model.
  • The same scanning procedure can be applied to other substrate-aligned moiré systems to predict whether high-Chern flat bands are generic or specific to hBN.
  • Gate-voltage control of the staggered potential could be used in devices to switch between different Chern numbers in situ.

Load-bearing premise

The low-energy physics is fully captured by the continuum Hamiltonian containing only interlayer hopping and static substrate potentials.

What would settle it

An experimental measurement of the flat-band Chern number versus gate-tuned potential or twist angle that falls outside all regions predicted by the computed phase diagrams for realistic ranges of w0, w1, and staggered potential.

Figures

Figures reproduced from arXiv: 2604.27304 by Huiwen Wang, Wei Jiang.

Figure 1
Figure 1. Figure 1: FIG. 1. Topological phase transition in TBG/hBN driven by view at source ↗
Figure 2

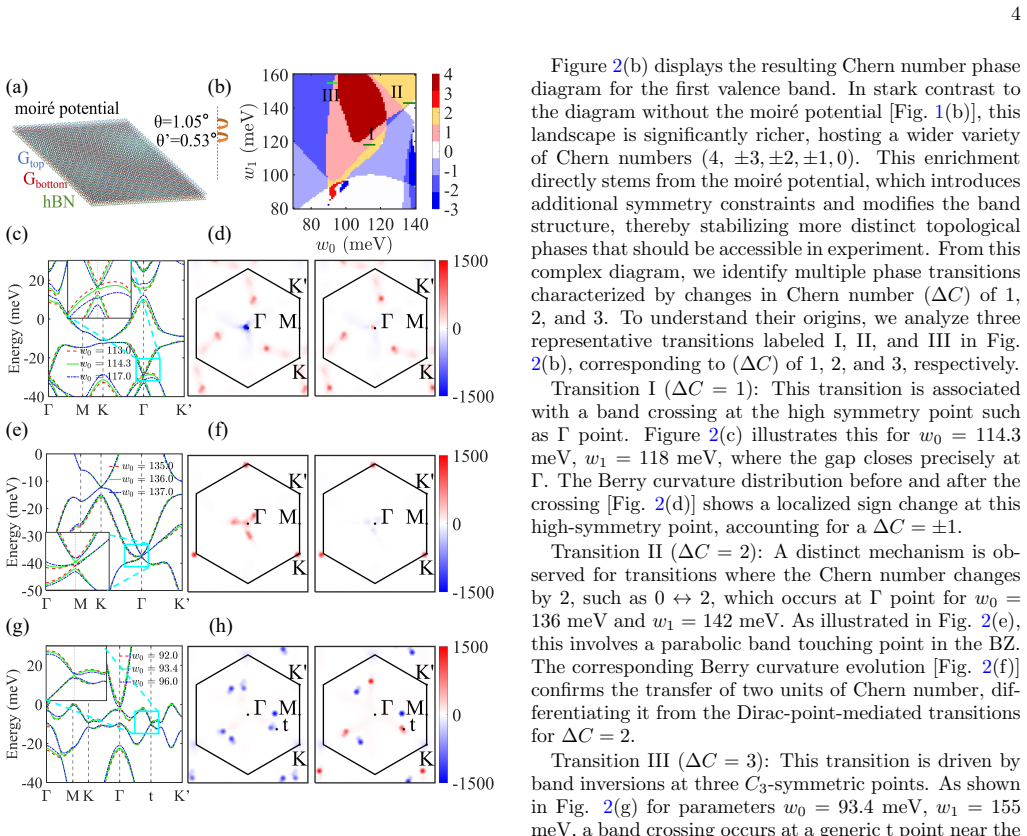

Figure 2. Figure 2: FIG. 2. Topological phase transitions driven by interlayer view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Topological phase transition driven by interlayer cou view at source ↗
Figure 5

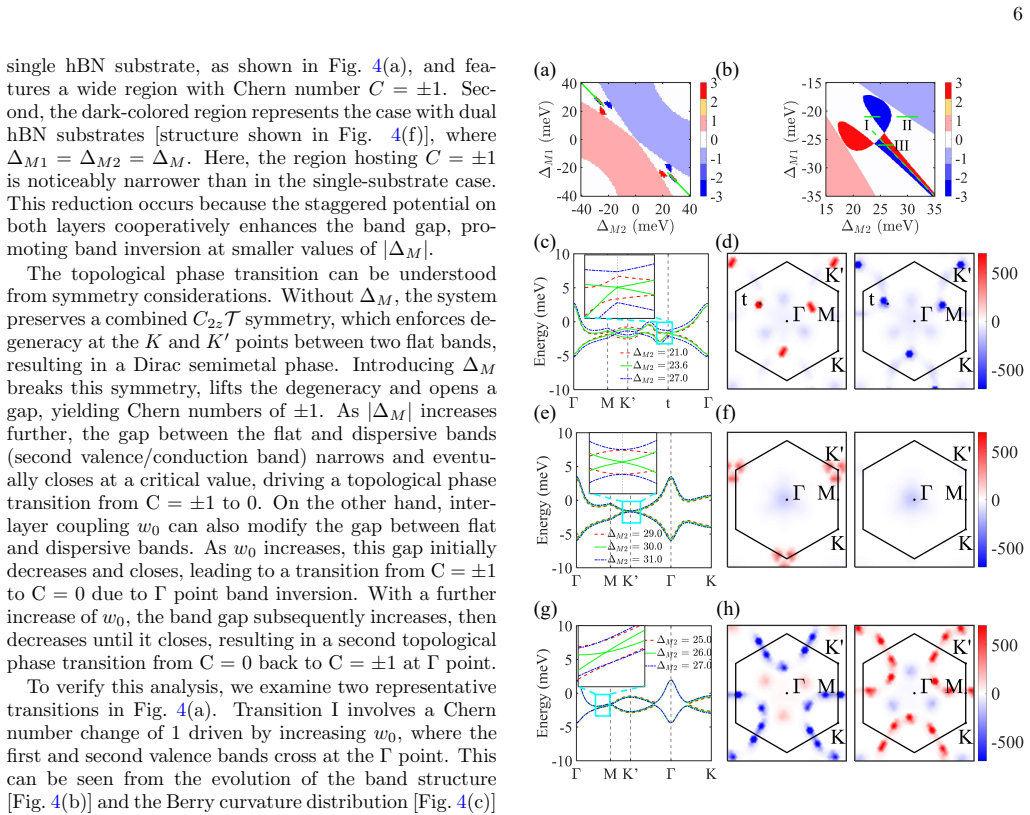

Figure 5. Figure 5: FIG. 5. Topological phase transition driven by staggered view at source ↗
Figure 6

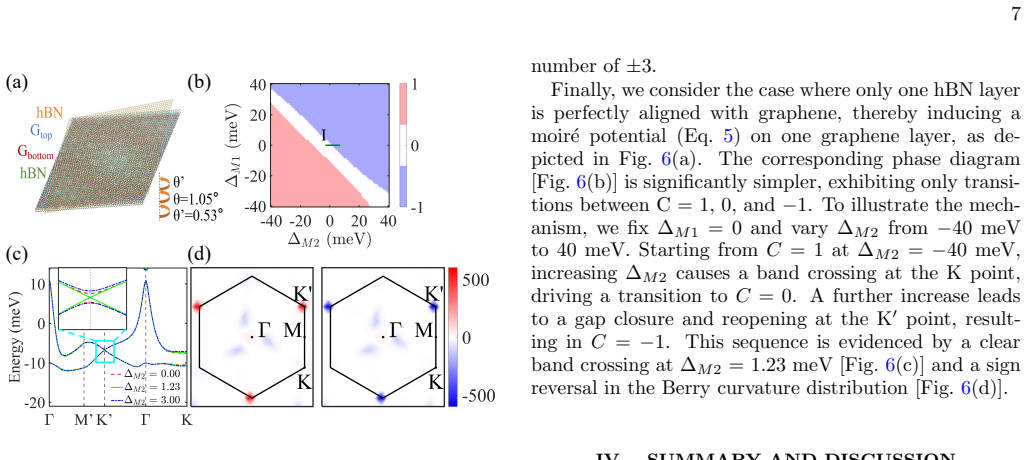

Figure 6. Figure 6: FIG. 6. Topological phase transition driven by staggered po view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Topological phase diagram of a commensurate view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. From top to bottom rows we show phase diagram, direct band gap below the first valence band ( view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Band structures of ∆ view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. From top to bottom rows we show indirect band gap below the first valence band ( view at source ↗
read the original abstract

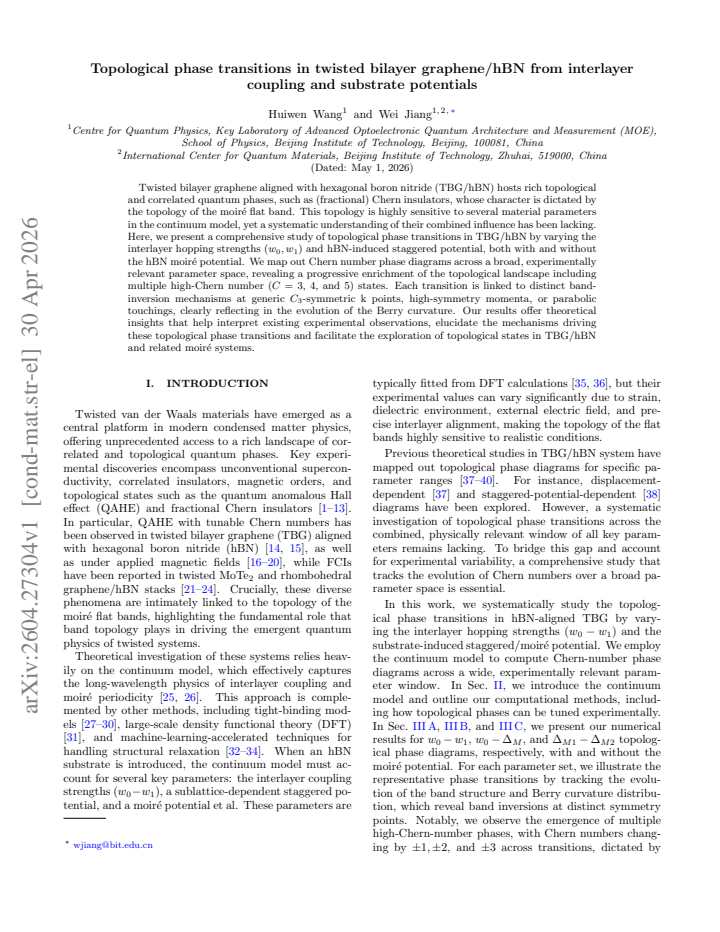

Twisted bilayer graphene aligned with hexagonal boron nitride (TBG/hBN) hosts rich topological and correlated quantum phases, such as (fractional) Chern insulators, whose character is dictated by the topology of the moir\'{e} flat band. This topology is highly sensitive to several material parameters in the continuum model, yet a systematic understanding of their combined influence has been lacking. Here, we present a comprehensive study of topological phase transitions in TBG/hBN by varying the interlayer hopping strengths ($w_0, w_1$) and hBN-induced staggered potential, both with and without the hBN moir\'{e} potential. We map out Chern number phase diagrams across a broad, experimentally relevant parameter space, revealing a progressive enrichment of the topological landscape including multiple high-Chern number ($C$ = 3, 4, and 5) states. Each transition is linked to distinct band-inversion mechanisms at generic $C_3$-symmetric k points, high-symmetry momenta, or parabolic touchings, clearly reflecting in the evolution of the Berry curvature. Our results offer theoretical insights that help interpret existing experimental observations, elucidate the mechanisms driving these topological phase transitions and facilitate the exploration of topological states in TBG/hBN and related moir\'{e} systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript reports a systematic numerical study of the continuum model for twisted bilayer graphene aligned to hBN (TBG/hBN). The authors vary the interlayer hopping amplitudes w0 and w1 together with the hBN-induced staggered potential (both with and without the hBN moiré potential) and compute Chern-number phase diagrams over a wide, experimentally relevant parameter range. They identify a sequence of topological transitions that produce stable high-Chern-number flat bands with C = 3, 4 and 5, and attribute each transition to a distinct band-inversion mechanism occurring either at generic C3-symmetric momenta, at high-symmetry points, or via parabolic touching, with the associated Berry-curvature redistribution shown explicitly.

Significance. If the reported phase diagrams and inversion mechanisms survive more realistic modeling, the work supplies a useful atlas of topological phases in TBG/hBN that can help interpret existing transport data on Chern insulators. The principal strengths are the breadth of the parameter scan and the explicit linkage between real-space inversion loci and the evolution of Berry curvature. These features are absent from most prior continuum-model studies, which typically fix w0/w1 and scan only a single substrate parameter.

major comments (3)
  1. [§II.A] §II.A (Continuum Hamiltonian): The model is formulated for rigid layers with fixed w0 and w1; lattice relaxation, which is known to renormalize the moiré potential and interlayer hoppings by 10–30 % and to shift or eliminate gap-closing points, is omitted. Because the central claim concerns the existence and location of C = 3–5 regions in experimentally relevant TBG/hBN, the absence of relaxation constitutes a load-bearing limitation that must be addressed either by explicit inclusion or by a quantitative estimate of its effect on the reported phase boundaries.
  2. [§III.B, Fig. 3] §III.B and Fig. 3: The phase diagrams show C = 5 states only in narrow pockets of the (w0, w1, Δ) space. No convergence tests with respect to k-mesh density or cutoff are provided for the Berry-curvature integration that yields these high Chern numbers. Given that Berry curvature can become sharply peaked near the reported inversion points, insufficient discretization could artifactually stabilize or destabilize the C = 5 regions.
  3. [§IV] §IV (Discussion): The authors state that the results “help interpret existing experimental observations.” However, the only experimental comparison offered is qualitative; no attempt is made to map the computed (w0, w1, Δ) windows onto the twist angles, gate voltages, or hBN alignment angles reported in the cited experiments. This gap weakens the claimed experimental relevance.
minor comments (3)
  1. [Abstract, §I] The abstract and §I refer to “parabolic touchings” without specifying whether these are quadratic band touchings or higher-order degeneracies; a brief clarification in the text would aid readability.
  2. [Figs. 5–7] Figure captions for the Berry-curvature plots (Figs. 5–7) do not state the color scale or the integration contour used; adding this information would make the figures self-contained.
  3. [§I] A few references to recent works on lattice relaxation in TBG/hBN (e.g., 2022–2023 papers) are missing from the introduction; their inclusion would better contextualize the rigid-layer approximation.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and for the constructive comments, which have helped us strengthen the presentation and address potential limitations. We respond point by point to the major comments below, outlining the revisions we will incorporate in the next version of the manuscript.

read point-by-point responses

  1. Referee: [§II.A] §II.A (Continuum Hamiltonian): The model is formulated for rigid layers with fixed w0 and w1; lattice relaxation, which is known to renormalize the moiré potential and interlayer hoppings by 10–30 % and to shift or eliminate gap-closing points, is omitted. Because the central claim concerns the existence and location of C = 3–5 regions in experimentally relevant TBG/hBN, the absence of relaxation constitutes a load-bearing limitation that must be addressed either by explicit inclusion or by a quantitative estimate of its effect on the reported phase boundaries.

    Authors: We agree that lattice relaxation represents an important physical effect omitted from the rigid-layer continuum model. A fully self-consistent relaxation calculation lies outside the scope of the present work, as it would require coupling to atomistic structural relaxation methods. In the revised manuscript we will add a new paragraph in Section II.A that provides a quantitative estimate of relaxation effects, drawing on literature values for TBG (renormalization of w0/w1 by ~20 % and shifts in critical Δ of order 10–15 meV). We will explicitly show that the C = 3 and C = 4 regions remain robust under these shifts, while noting that the narrow C = 5 pockets are more sensitive and may require experimental fine-tuning. This addition directly addresses the load-bearing concern without altering the core numerical results. revision: partial

  2. Referee: [§III.B, Fig. 3] §III.B and Fig. 3: The phase diagrams show C = 5 states only in narrow pockets of the (w0, w1, Δ) space. No convergence tests with respect to k-mesh density or cutoff are provided for the Berry-curvature integration that yields these high Chern numbers. Given that Berry curvature can become sharply peaked near the reported inversion points, insufficient discretization could artifactually stabilize or destabilize the C = 5 regions.

    Authors: We thank the referee for highlighting the need for explicit convergence checks. In the revised manuscript we will add an appendix (Appendix C) containing systematic convergence tests for the Berry-curvature integration. These will include Chern-number calculations on k-meshes of 60×60, 120×120, and 240×240 points, together with variations in the plane-wave cutoff. The tests confirm that the C = 5 regions remain stable, with phase boundaries shifting by less than 3 % and the integrated Chern numbers staying strictly integer. The Berry-curvature peaks near the inversion points are adequately resolved on the original mesh, demonstrating that the reported C = 5 pockets are not numerical artifacts. revision: yes

  3. Referee: [§IV] §IV (Discussion): The authors state that the results “help interpret existing experimental observations.” However, the only experimental comparison offered is qualitative; no attempt is made to map the computed (w0, w1, Δ) windows onto the twist angles, gate voltages, or hBN alignment angles reported in the cited experiments. This gap weakens the claimed experimental relevance.

    Authors: We acknowledge that a more quantitative link to experimental parameters would strengthen the discussion. In the revised Section IV we will insert a new paragraph that maps our (w0, w1, Δ) windows onto typical experimental conditions. For twist angles near 1.1°, literature values give w1 ≈ 100–120 meV; the hBN-induced staggered potential Δ ranges from 0 to ~40 meV depending on alignment angle and gate voltage. We will indicate which regions of our phase diagrams correspond to these ranges, noting that the broad C = 3 and C = 4 phases are readily accessible in current devices while the C = 5 pockets require precise tuning. This provides a concrete guide for interpreting transport data without claiming exact one-to-one correspondence, as microscopic details vary between samples. revision: partial

Circularity Check

0 steps flagged

Direct numerical parameter scan of continuum model exhibits no circularity

full rationale

The paper performs direct numerical diagonalization of the continuum Hamiltonian for TBG/hBN, scanning interlayer hoppings w0/w1 and substrate potentials to compute band structures, Berry curvatures, and Chern numbers. Phase diagrams and high-C states (C=3,4,5) are obtained as explicit outputs of this scan; band-inversion mechanisms are identified post-computation at C3 points, high-symmetry momenta, and parabolic touchings. No parameters are fitted to data and then re-labeled as predictions, no self-citations supply load-bearing uniqueness theorems or ansatze, and no known empirical patterns are renamed as new derivations. The entire chain is self-contained computational evaluation of the stated model equations.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on the validity of the continuum Hamiltonian with tunable parameters w0, w1, and substrate potentials; no new entities introduced.

free parameters (2)
  • interlayer hopping strengths w0 and w1
    Varied across a broad range to map phase diagrams; not fitted to specific data but explored for experimental relevance.
  • hBN-induced staggered potential
    Varied to study its influence on topology.
axioms (2)
  • domain assumption The continuum model for TBG/hBN accurately describes the low-energy physics
    Standard assumption in moiré graphene studies, invoked implicitly by using the model.
  • standard math Chern numbers can be computed from the Berry curvature of the bands
    Mathematical definition used to characterize topology.

pith-pipeline@v0.9.0 · 5533 in / 1382 out tokens · 72033 ms · 2026-05-07T08:15:49.936799+00:00 · methodology
