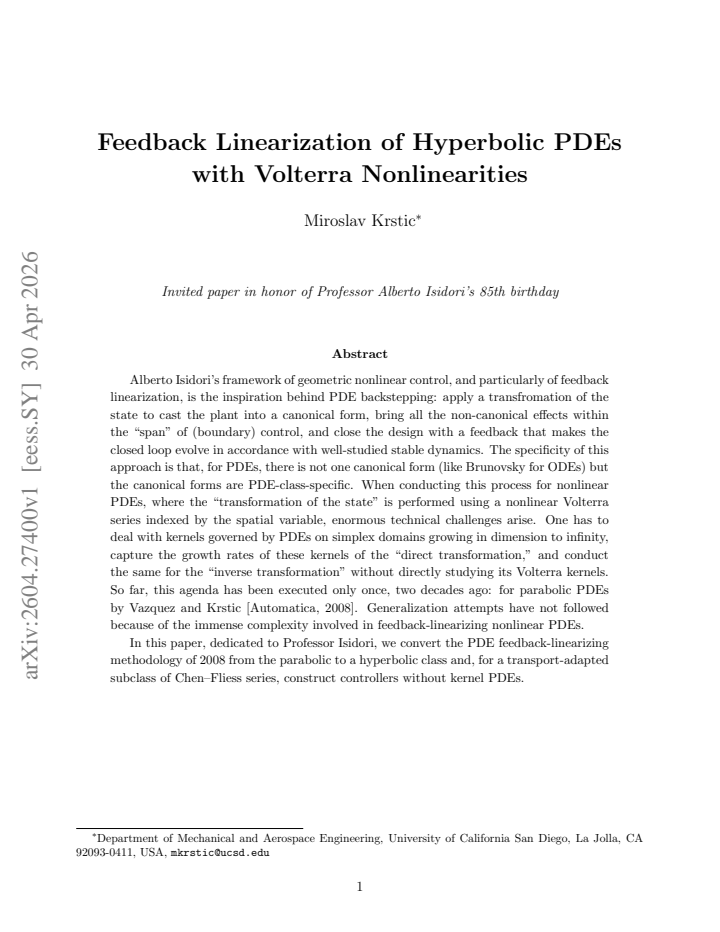

Feedback Linearization of Hyperbolic PDEs with Volterra Nonlinearities

Miroslav Krstic This is my paper

Pith reviewed 2026-05-07 08:35 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords feedback linearizationhyperbolic PDEsVolterra nonlinearitiesChen-Fliess seriesboundary controlbacksteppingnonlinear PDE control
0
0 comments X

The pith

Hyperbolic PDEs with Volterra nonlinearities from a transport-adapted Chen-Fliess subclass admit feedback linearization via invertible transformations that require no kernel PDEs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the 2008 parabolic feedback-linearization method to hyperbolic PDEs by replacing the usual kernel-PDE construction with a direct inversion of the Volterra transformation. This works only when the nonlinearity belongs to a transport-adapted subclass of Chen-Fliess series whose terms respect the characteristic speeds of the hyperbolic operator. A reader should care because the resulting boundary feedback renders the closed-loop system equivalent to a linear, exponentially stable hyperbolic PDE whose behavior is already well understood. The approach therefore removes the main technical obstacle that has blocked nonlinear feedback linearization for this important class of distributed systems.

Core claim

For hyperbolic PDEs whose nonlinearities are drawn from a transport-adapted subclass of Chen-Fliess series, a Volterra state transformation can be inverted explicitly, allowing a boundary feedback law to be written without solving any kernel PDEs; the closed-loop plant then evolves exactly as a linear, stable hyperbolic system.

What carries the argument

The transport-adapted subclass of Chen-Fliess series, which permits explicit inversion of the Volterra transformation and direct synthesis of the linearizing feedback.

If this is right

  • Boundary feedback can be written in closed form for any hyperbolic plant whose nonlinearity satisfies the transport-adapted condition.
  • The closed-loop system is exactly equivalent to a linear hyperbolic PDE whose stability is already established.
  • No growth-rate estimates on infinite families of kernels are required because the kernels themselves never appear.
  • The design recovers the classical linear backstepping controller when the nonlinearity is set to zero.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same explicit-inversion idea may apply to other hyperbolic systems with similar characteristic structure, such as traffic or pipeline models whose nonlinearities happen to lie in the admissible subclass.
  • One could test the method on a simple nonlinear transport equation with a quadratic term that satisfies the transport condition and verify that the feedback indeed linearizes the dynamics.
  • If the subclass can be characterized by a finite set of coefficient constraints, the result supplies a practical test for when a given nonlinear hyperbolic model is amenable to this simplified design.

Load-bearing premise

The nonlinear terms must belong to a transport-adapted subclass of Chen-Fliess series whose Volterra kernels can be inverted without generating auxiliary PDEs.

What would settle it

Construct a concrete hyperbolic PDE whose nonlinearity is a Chen-Fliess series outside the transport-adapted subclass and show that the corresponding Volterra transformation cannot be inverted without solving a non-trivial kernel PDE.

Figures

Figures reproduced from arXiv: 2604.27400 by Miroslav Krstic.

Figure 1

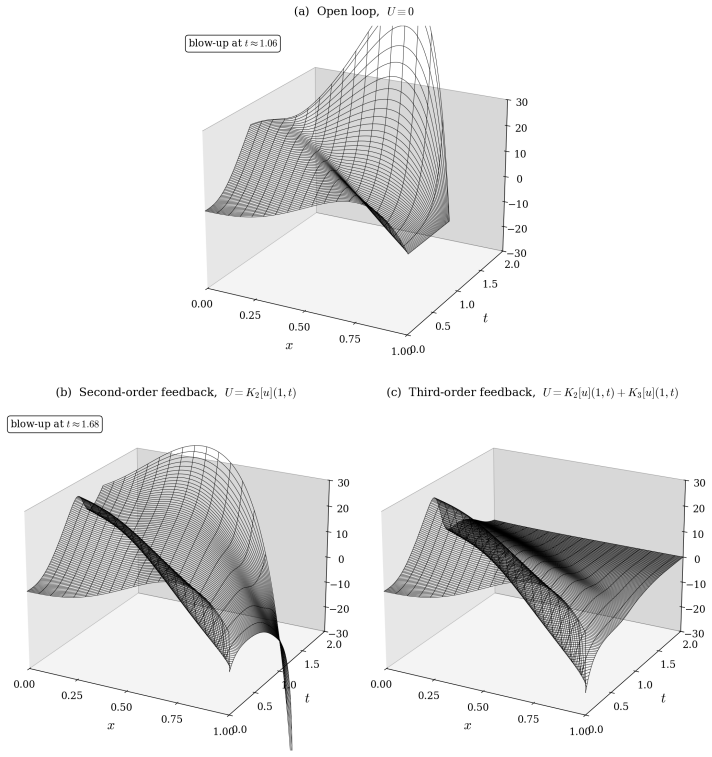

Figure 1. Figure 1: Surface plots of the solution u(x, t) of the plant (94) with initial condition (105) under three control laws. (a) Open loop, U ≡ 0: the nonlinearity (95) drives the solution to blow up at t ≈ 1.06. (b) Second-order feedback U = K2[u](1, t) with k2 given by (98): blow-up is deferred but not prevented, occurring at t ≈ 1.68. (c) Third-order feedback U = K2[u](1, t) + K3[u](1, t) with k3 given by (99): the c… view at source ↗
read the original abstract

Alberto Isidori's framework of geometric nonlinear control, and particularly of feedback linearization, is the inspiration behind PDE backstepping: apply a transfromation of the state to cast the plant into a canonical form, bring all the non-canonical effects within the "span" of (boundary) control, and close the design with a feedback that makes the closed loop evolve in accordance with well-studied stable dynamics. The specificity of this approach is that, for PDEs, there is not one canonical form (like Brunovsky for ODEs) but the canonical forms are PDE-class-specific. When conducting this process for nonlinear PDEs, where the "transformation of the state" is performed using a nonlinear Volterra series indexed by the spatial variable, enormous technical challenges arise. One has to deal with kernels governed by PDEs on simplex domains growing in dimension to infinity, capture the growth rates of these kernels of the "direct transformation," and conduct the same for the "inverse transformation" without directly studying its Volterra kernels. So far, this agenda has been executed only once, two decades ago: for parabolic PDEs by Vazquez and Krstic [Automatica, 2008]. Generalization attempts have not followed because of the immense complexity involved in feedback-linearizing nonlinear PDEs. In this paper, dedicated to Professor Isidori, we convert the PDE feedback-linearizing methodology of 2008 from the parabolic to a hyperbolic class and, for a transport-adapted subclass of Chen-Fliess series, construct controllers without kernel PDEs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript extends the Volterra-series-based feedback linearization methodology from parabolic PDEs (Vazquez-Krstic 2008) to hyperbolic PDEs. For nonlinearities belonging to a transport-adapted subclass of Chen-Fliess series, it constructs explicit controllers by exploiting the hyperbolic transport structure to obtain direct and inverse Volterra transformations that require no kernel PDEs on simplex domains.

Significance. If the central construction holds, the result is a meaningful technical advance: it supplies an explicit, kernel-PDE-free feedback design for a nontrivial class of nonlinear hyperbolic systems, directly generalizing the only prior successful execution of the full feedback-linearization agenda for nonlinear PDEs. The transport-adapted restriction is the enabling device that keeps both transformations free of auxiliary PDEs, which is a clear strength of the approach.

minor comments (2)
  1. [§2] §2: the precise membership conditions for the transport-adapted Chen-Fliess subclass are stated only informally; an explicit characterization (e.g., a growth bound or support restriction on the kernels) would help readers verify applicability to concrete examples.
  2. [Notation] The notation for the Volterra series (multi-index ordering, spatial dependence) is introduced without a compact reference table; adding one would improve readability for readers unfamiliar with Chen-Fliess series.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript, the accurate summary of its contribution, and the recommendation for minor revision. We are pleased that the work is viewed as a meaningful technical advance generalizing the 2008 parabolic case to hyperbolic PDEs via the transport-adapted Chen-Fliess structure that eliminates kernel PDEs.

Circularity Check

1 steps flagged

Minor self-citation to 2008 methodology; central hyperbolic construction remains independent

specific steps
  1. self citation load bearing [Abstract]
    "So far, this agenda has been executed only once, two decades ago: for parabolic PDEs by Vazquez and Krstic [Automatica, 2008]. Generalization attempts have not followed because of the immense complexity involved in feedback-linearizing nonlinear PDEs. In this paper, dedicated to Professor Isidori, we convert the PDE feedback-linearizing methodology of 2008 from the parabolic to a hyperbolic class and, for a transport-adapted subclass of Chen-Fliess series, construct controllers without kernel PDEs."

    The paper invokes the 2008 parabolic result (co-authored by the present author) as the sole prior execution of the agenda and then claims to convert that methodology to hyperbolic PDEs. While the citation is minor and the new subclass restriction plus explicit inverse construction supply independent content, the reference is the only external anchor for the overall feedback-linearization framework.

full rationale

The paper extends the feedback-linearization approach from the 2008 parabolic PDE result to a hyperbolic class by restricting nonlinearities to a transport-adapted Chen-Fliess subclass that permits explicit Volterra inverses without kernel PDEs. This restriction and the resulting controller construction constitute independent technical content developed in the present manuscript. The reference to Vazquez and Krstic (Automatica, 2008) supplies historical context and methodological precedent but does not reduce the new hyperbolic derivation to a tautology or force the result by definition. No fitted parameters, self-definitional loops, or load-bearing uniqueness theorems appear in the provided derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the existence of a transport-adapted subclass of Chen-Fliess series for which the Volterra transformation and its inverse can be constructed without kernel PDEs. No free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Nonlinearities belong to a transport-adapted subclass of Chen-Fliess series
    The abstract states that the kernel-free construction holds precisely for this subclass.

pith-pipeline@v0.9.0 · 5583 in / 1271 out tokens · 77248 ms · 2026-05-07T08:35:33.175708+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages

  1. [1]

    Boundary control of an unstable heat equation via measurement of domain-averaged temperature.IEEE Transactions on Auto- matic Control, 46(12):2022–2028, 2001

    Dejan Boskovic, Miroslav Krstic, and Wei-Jiu Liu. Boundary control of an unstable heat equation via measurement of domain-averaged temperature.IEEE Transactions on Auto- matic Control, 46(12):2022–2028, 2001

    work page 2022

  2. [2]

    Stephen Boyd and Leon O. Chua. Fading memory and the problem of approximating nonlinear operators with Volterra series.IEEE Transactions on Circuits and Systems, 32(11):1150–1161, 1985

    work page 1985

  3. [3]

    Brockett

    Roger W. Brockett. Volterra series and geometric control theory.Automatica, 12(2):167– 176, March 1976

    work page 1976

  4. [4]

    Byrnes and Alberto Isidori

    Christopher I. Byrnes and Alberto Isidori. New results and examples in nonlinear feedback stabilization.Systems & Control Letters, 12(5):437–442, 1989

    work page 1989

  5. [5]

    Realization and structure theory of bilinear dynamical systems.SIAM Journal on Control, 12(3):517–535, August 1974

    Paolo d’Alessandro, Alberto Isidori, and Antonio Ruberti. Realization and structure theory of bilinear dynamical systems.SIAM Journal on Control, 12(3):517–535, August 1974. 40

    work page 1974

  6. [6]

    Fonctionnelles causales non lin´ eaires et ind´ etermin´ ees non commutatives

    Michel Fliess. Fonctionnelles causales non lin´ eaires et ind´ etermin´ ees non commutatives. Bulletin de la Soci´ et´ e Math´ ematique de France, 109:3–40, 1981

    work page 1981

  7. [7]

    Vers une notion de d´ erivation fonctionnelle causale.Annales de l’Institut Henri Poincar´ e, Analyse non lin´ eaire, 3(1):67–76, 1986

    Michel Fliess. Vers une notion de d´ erivation fonctionnelle causale.Annales de l’Institut Henri Poincar´ e, Analyse non lin´ eaire, 3(1):67–76, 1986

    work page 1986

  8. [8]

    L. R. Hunt, Renjeng Su, and George Meyer. Global transformations of nonlinear systems. IEEE Transactions on Automatic Control, 28(1):24–31, 1983

    work page 1983

  9. [9]

    Springer-Verlag, Berlin, 1989

    Alberto Isidori.Nonlinear Control Systems. Springer-Verlag, Berlin, 1989

    work page 1989

  10. [10]

    Backstepping boundary control for first-order hyperbolic PDEs and application to systems with actuator and sensor delays.Systems & Control Letters, 57(9):750–758, 2008

    Miroslav Krstic and Andrey Smyshlyaev. Backstepping boundary control for first-order hyperbolic PDEs and application to systems with actuator and sensor delays.Systems & Control Letters, 57(9):750–758, 2008

    work page 2008

  11. [11]

    Lesiak and A

    C. Lesiak and A. Krener. The existence and uniqueness of volterra series for nonlinear systems.IEEE Transactions on Automatic Control, 23(6):1090–1095, 1978

    work page 1978

  12. [12]

    Control of 1-D parabolic PDEs with Volterra nonlinearities–Part I: Design.Automatica, 44(11):2778–2790, 2008

    Rafael Vazquez and Miroslav Krstic. Control of 1-D parabolic PDEs with Volterra nonlinearities–Part I: Design.Automatica, 44(11):2778–2790, 2008

    work page 2008

  13. [13]

    Control of 1-D parabolic PDEs with Volterra nonlinearities–Part II: Analysis.Automatica, 44(11):2791–2803, 2008

    Rafael Vazquez and Miroslav Krstic. Control of 1-D parabolic PDEs with Volterra nonlinearities–Part II: Analysis.Automatica, 44(11):2791–2803, 2008. 41

    work page 2008
