arxiv: 2604.27557 · v1 · submitted 2026-04-30 · 💻 cs.RO

Recognition: unknown

Function-based Parametric Co-Design Optimization of Dexterous Hands

Mohammad Amin Mirzaee , Harsh Gupta , Wenzhen Yuan
Authors on Pith no claims yet

Pith reviewed 2026-05-07 10:11 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic hand designparametric optimizationdexterous manipulationgrasp stabilityco-designsurface deformationkinematics
0
0 comments X

The pith

A unified parametric space lets designers optimize palm shape, finger kinematics, fingertip geometry, and surface curvatures together for grasp stability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a single parametric model that generates robotic hands by varying the palm, finger joint arrangements, fingertip forms, and fine surface details at once. Surface changes are made through deformation kernels that alter how the hand makes contact with objects. The model is used to optimize designs for stable grasping, with results checked first in simulation and then on physical hands during dynamic tasks. The generated hands come ready for simulation and 3D printing, and the code is released to support faster iteration on dexterous designs.

Core claim

The framework unifies palm structure, finger kinematics, fingertip geometry, and fine-scale surface curvatures within a single design space. Parametric surface deformation kernels introduce fine geometric features that directly influence contact interactions. This enables design optimization for grasp stability tasks, validated in simulation and real-world dynamic scenarios, while producing simulation- and fabrication-ready hand models.

What carries the argument

Parametric surface deformation kernels that modify fine geometric features to directly shape contact interactions within a unified design space covering palm, fingers, and fingertips.

If this is right

  • Joint optimization across palm, kinematics, fingertips, and surface details can improve grasp stability beyond what separate optimization of each element achieves.
  • The resulting hand models are directly usable for both simulation testing and physical fabrication.
  • The approach supports rapid iteration of hand designs and enables cross-embodiment policy training for control research.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the kernels generalize well, the same parametric approach could be applied to optimize hands for manipulation skills that involve motion rather than static grasps.
  • Open release of the models and code may allow researchers to test whether learned control policies transfer more readily when the hand geometry itself is co-optimized.
  • The framework could reveal systematic trade-offs between different geometric features that designers have previously adjusted only by hand.

Load-bearing premise

The deformation kernels capture real contact behavior accurately enough that simulation-based stability optimization will produce designs whose performance carries over to physical dynamic grasping without large unmodeled differences.

What would settle it

Fabricate an optimized hand from the framework and run the same grasp tasks on a physical robot; if measured grasp success rates or contact force patterns deviate substantially from simulation predictions, the central claim does not hold.

Figures

Figures reproduced from arXiv: 2604.27557 by Harsh Gupta, Mohammad Amin Mirzaee, Wenzhen Yuan.

Figure 1
Figure 1. Figure 1: Our hand co-design optimization framework finds the best hand view at source ↗
Figure 2
Figure 2. Figure 2: Palm parameterization. (A) An initial outline is defined with pa view at source ↗

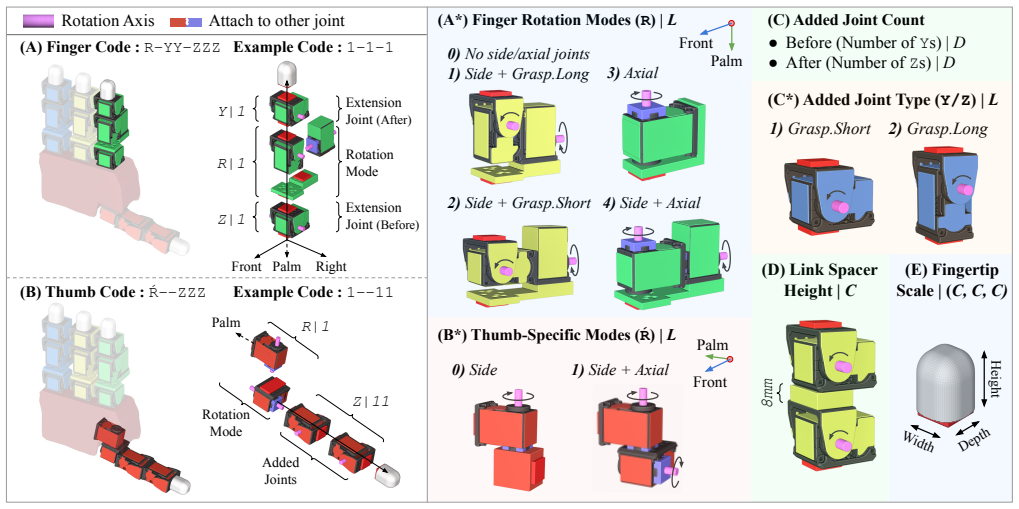

Figure 3
Figure 3. Figure 3: Finger and thumb structural parameterization. (A,B) Modular codes define joint base rotation mode and optional additional joints. (A*,B*) Different view at source ↗

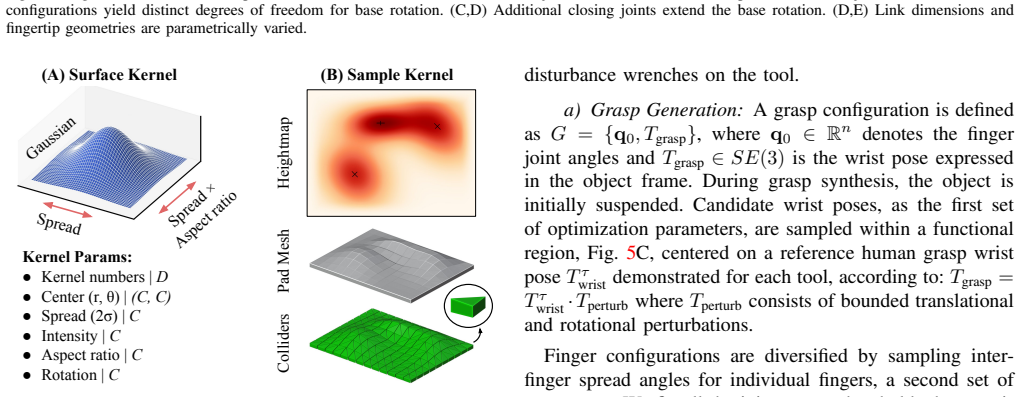

Figure 4
Figure 4. Figure 4: Palm surface geometry parameterization via surface kernels. (A) view at source ↗
Figure 5
Figure 5. Figure 5: Optimization framework overview. (A-B) The hand optimizer view at source ↗
Figure 6
Figure 6. Figure 6: Hand-design optimization results in simulation and parametric analysis. (A) The optimization converges after 200 iterations. After the first view at source ↗
Figure 7
Figure 7. Figure 7: Real-world dynamic task performance. (A) We transfer the optimal view at source ↗

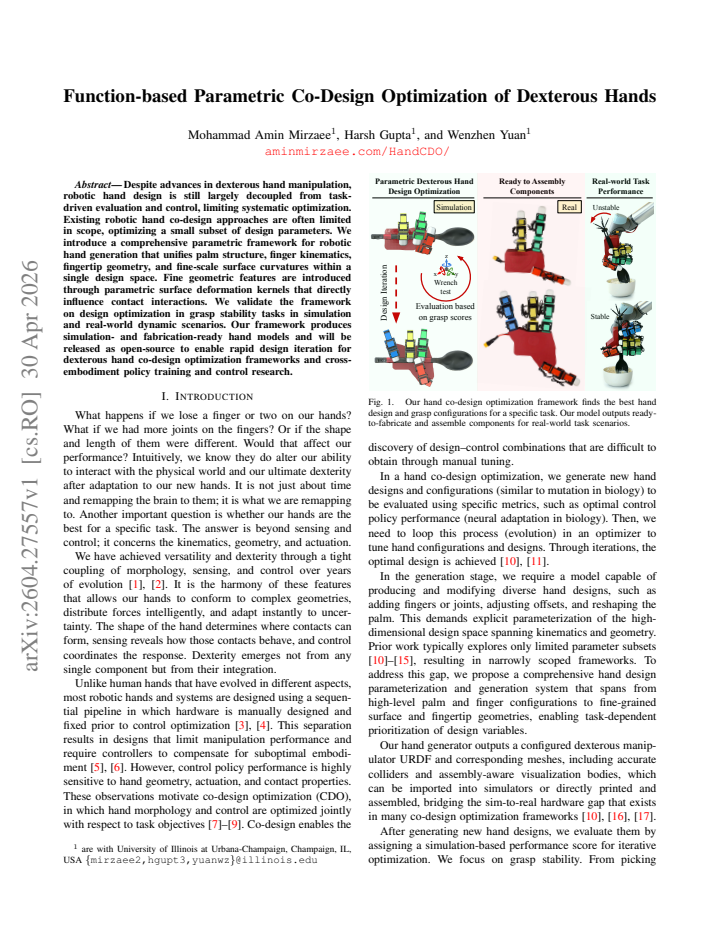

read the original abstract

Despite advances in dexterous hand manipulation, robotic hand design is still largely decoupled from task-driven evaluation and control, limiting systematic optimization. Existing robotic hand co-design approaches are often limited in scope, optimizing a small subset of design parameters. We introduce a comprehensive parametric framework for robotic hand generation that unifies palm structure, finger kinematics, fingertip geometry, and fine-scale surface curvatures within a single design space. Fine geometric features are introduced through parametric surface deformation kernels that directly influence contact interactions. We validate the framework on design optimization in grasp stability tasks in simulation and real-world dynamic scenarios. Our framework produces simulation- and fabrication-ready hand models and will be released as open-source to enable rapid design iteration for dexterous hand co-design optimization frameworks and cross-embodiment policy training and control research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces a comprehensive parametric framework for robotic hand generation that unifies palm structure, finger kinematics, fingertip geometry, and fine-scale surface curvatures within a single design space. Fine geometric features are modeled via parametric surface deformation kernels that directly influence contact interactions. The framework is applied to design optimization for grasp stability tasks, with validation claimed in both simulation and real-world dynamic scenarios. The resulting models are simulation- and fabrication-ready, and the authors plan an open-source release to support further co-design and cross-embodiment research.

Significance. If the central claims hold, the work would be significant for advancing systematic, task-driven co-design of dexterous hands beyond the limited parameter subsets common in prior approaches. A unified parametric space incorporating surface deformation kernels could enable more expressive optimization of contact geometry, potentially improving grasp performance and facilitating reproducible design iteration if the open-source release materializes.

major comments (2)
  1. [Abstract] Abstract: The claim of validation 'on design optimization in grasp stability tasks in simulation and real-world dynamic scenarios' provides no quantitative results, error bars, baselines, or metrics, which is load-bearing for the central claim that the framework produces effective, transferable hand designs.
  2. [Abstract] Abstract and validation description: No details are given on how the parametric surface deformation kernels map to physical contact mechanics (e.g., friction coefficients, patch geometry, or deformation), undermining assessment of whether simulation-optimized designs transfer to real-world dynamic tests without dominant unmodeled effects.
minor comments (1)
  1. [Abstract] The abstract would benefit from a brief statement of the number of design parameters or the dimensionality of the unified space to help readers gauge the scope of the unification.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each point below and will revise the manuscript accordingly to improve clarity on the validation claims and the physical mapping of the surface kernels.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim of validation 'on design optimization in grasp stability tasks in simulation and real-world dynamic scenarios' provides no quantitative results, error bars, baselines, or metrics, which is load-bearing for the central claim that the framework produces effective, transferable hand designs.

    Authors: We agree that the abstract is too concise and omits the specific quantitative results, baselines, and metrics that appear in the experimental sections of the full manuscript. Those sections report grasp success rates, stability metrics, and comparisons against baseline hand designs in both simulation and real-world dynamic tests, including variability measures. To make the central claims immediately assessable from the abstract, we will revise it to include a brief summary of key performance numbers, mention of the evaluation metrics, and reference to the baselines used. revision: yes

  2. Referee: [Abstract] Abstract and validation description: No details are given on how the parametric surface deformation kernels map to physical contact mechanics (e.g., friction coefficients, patch geometry, or deformation), undermining assessment of whether simulation-optimized designs transfer to real-world dynamic tests without dominant unmodeled effects.

    Authors: The methods section defines the parametric surface deformation kernels and states that they alter local curvature and normals, which are then used by the contact model to compute patch geometry and effective friction. However, we acknowledge that an explicit, step-by-step mapping from kernel parameters to friction coefficients and deformation effects is not sufficiently detailed, making it harder to judge sim-to-real transfer. We will add a clarifying paragraph with an illustrative example (including how curvature changes translate into contact parameters) and, if space allows, a supplementary figure showing before/after kernel application and resulting contact outputs. revision: yes

Circularity Check

0 steps flagged

No circularity: parametric framework presented without derivations or self-referential reductions

full rationale

The abstract and provided text introduce a parametric framework unifying palm, kinematics, geometry, and surface curvatures via deformation kernels that influence contact, with validation in simulation and real-world grasp tasks. No equations, fitted parameters renamed as predictions, self-citations, or uniqueness theorems are shown. The central claims rest on the framework's scope and open-source release rather than any derivation chain that reduces to its own inputs by construction. This is the most common honest finding for a design-framework paper whose contributions are descriptive and empirical rather than deductive.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

Review performed on abstract only; full manuscript text was not accessible, limiting ability to enumerate all parameters or assumptions.

free parameters (1)
  • design parameters for palm, finger kinematics, fingertip geometry and surface curvatures
    The framework optimizes these but no specific fitted values or count are given in the abstract.
axioms (1)
  • domain assumption Parametric surface deformation kernels directly influence contact interactions in a manner useful for optimization
    Invoked in the abstract to justify inclusion of fine-scale features.
invented entities (1)
  • parametric surface deformation kernels no independent evidence
    purpose: Introduce fine geometric features that influence contact interactions
    New modeling element introduced to extend the design space beyond standard kinematics and geometry.

pith-pipeline@v0.9.0 · 5433 in / 1158 out tokens · 100512 ms · 2026-05-07T10:11:04.112926+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

40 extracted references · 9 canonical work pages · 1 internal anchor

  1. [1]

    Sensing, actuating, and interacting through passive body dynamics: A framework for soft robotic hand design,

    K. Gilday, J. Hughes, and F. Iida, “Sensing, actuating, and interacting through passive body dynamics: A framework for soft robotic hand design,”Soft Robotics, vol. 10, no. 1, pp. 159–173, 2023

    2023

  2. [2]

    Evolution of the human hand: approaches to acquiring, analysing and interpreting the anatomical evidence,

    M. W. Marzke and R. F. Marzke, “Evolution of the human hand: approaches to acquiring, analysing and interpreting the anatomical evidence,”The Journal of Anatomy, vol. 197, no. 1, pp. 121–140, 2000

    2000

  3. [3]

    Orca: An open-source, reliable, cost-effective, anthropomorphic robotic hand for uninterrupted dexterous task learning,

    C. C. Christoph, M. Eberlein, F. Katsimalis, A. Roberti, A. Sym- petheros, M. R. V ogt, D. Liconti, C. Yang, B. G. Cangan, R. J. Hinchet et al., “Orca: An open-source, reliable, cost-effective, anthropomorphic robotic hand for uninterrupted dexterous task learning,” in2025 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2...

    2025

  4. [4]

    Leap hand: Low-cost, effi- cient, and anthropomorphic hand for robot learning,

    K. Shaw, A. Agarwal, and D. Pathak, “Leap hand: Low-cost, effi- cient, and anthropomorphic hand for robot learning,”arXiv preprint arXiv:2309.06440, 2023

    work page arXiv 2023

  5. [5]

    More than a feeling: Learning to grasp and regrasp using vision and touch,

    R. Calandra, A. Owens, D. Jayaraman, J. Lin, W. Yuan, J. Malik, E. H. Adelson, and S. Levine, “More than a feeling: Learning to grasp and regrasp using vision and touch,”IEEE Robotics and Automation Letters, vol. 3, no. 4, pp. 3300–3307, 2018

    2018

  6. [6]

    Geometric retargeting: A principled, ultrafast neural hand retargeting algorithm,

    Z.-H. Yin, C. Wang, L. Pineda, K. Bodduluri, T. Wu, P. Abbeel, and M. Mukadam, “Geometric retargeting: A principled, ultrafast neural hand retargeting algorithm,” in2025 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2025, pp. 17 376–17 382

    2025

  7. [7]

    Unshackling evolution: evolving soft robots with multiple materials and a powerful generative encoding,

    N. Cheney, R. MacCurdy, J. Clune, and H. Lipson, “Unshackling evolution: evolving soft robots with multiple materials and a powerful generative encoding,”ACM SIGEVOlution, vol. 7, no. 1, pp. 11–23, 2014

    2014

  8. [8]

    Learning to design soft hands using reward models,

    X. Bai, N. Hansen, A. Singh, M. T. Tolley, Y . Duan, P. Abbeel, X. Wang, and S. Yi, “Learning to design soft hands using reward models,”arXiv preprint arXiv:2510.17086, 2025

    work page arXiv 2025

  9. [9]

    Learning to control self-assembling morphologies: a study of generalization via modularity,

    D. Pathak, C. Lu, T. Darrell, P. Isola, and A. A. Efros, “Learning to control self-assembling morphologies: a study of generalization via modularity,”Advances in Neural Information Processing Systems, vol. 32, 2019

    2019

  10. [10]

    Automated co-design of soft hand morphology and control strategy for grasping,

    R. Deimel, P. Irmisch, V . Wall, and O. Brock, “Automated co-design of soft hand morphology and control strategy for grasping,” in2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2017, pp. 1213–1218

    2017

  11. [11]

    House of Dextra: Cross-embodied Co-design for Dexterous Hands

    K. Fay, D. A. Djapri, A. Zorin, J. Clinton, A. E. Lahib, H. Su, M. T. Tolley, S. Yi, and X. Wang, “Cross-embodied co-design for dexterous hands,”arXiv preprint arXiv:2512.03743, 2025

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  12. [12]

    Co-design of soft gripper with neural physics,

    S. Yi, X. Bai, A. Singh, J. Ye, M. T. Tolley, and X. Wang, “Co-design of soft gripper with neural physics,”arXiv preprint arXiv:2505.20404, 2025

    work page arXiv 2025

  13. [13]

    A framework for designing anthropomorphic soft hands through interaction,

    P. Mannam, K. Shaw, D. Bauer, J. Oh, D. Pathak, and N. Pollard, “A framework for designing anthropomorphic soft hands through interaction,”arXiv preprint arXiv:2306.04784, 2023

    work page arXiv 2023

  14. [14]

    Automated design of simple and robust manipulators for dexterous in-hand manipulation tasks using evolutionary strategies,

    A. Meixner, C. Hazard, and N. Pollard, “Automated design of simple and robust manipulators for dexterous in-hand manipulation tasks using evolutionary strategies,” in2019 IEEE-RAS 19th International Conference on Humanoid Robots (Humanoids). IEEE, 2019, pp. 281–288

    2019

  15. [15]

    Design and control co-optimization for automated design iteration of dexterous anthropomorphic soft robotic hands,

    P. Mannam, X. Liu, D. Zhao, J. Oh, and N. Pollard, “Design and control co-optimization for automated design iteration of dexterous anthropomorphic soft robotic hands,” in2024 IEEE 7th International Conference on Soft Robotics (RoboSoft). IEEE, 2024, pp. 332–339

    2024

  16. [16]

    Co-designing manipulation systems using task-relevant constraints,

    A. Vaish and O. Brock, “Co-designing manipulation systems using task-relevant constraints,” in2024 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2024, pp. 4177–4183

    2024

  17. [17]

    Kinematic design optimization for anthropomorphic robot hand based on interactivity of fingers,

    W. S. You, Y . H. Lee, G. Kang, H. S. Oh, J. K. Seo, and H. R. Choi, “Kinematic design optimization for anthropomorphic robot hand based on interactivity of fingers,”Intelligent Service Robotics, vol. 12, no. 2, pp. 197–208, 2019

    2019

  18. [18]

    Pose error robust grasping from contact wrench space metrics,

    J. Weisz and P. K. Allen, “Pose error robust grasping from contact wrench space metrics,” in2012 IEEE international conference on robotics and automation. IEEE, 2012, pp. 557–562

    2012

  19. [19]

    Graspit! a versatile simulator for robotic grasping,

    A. T. Miller and P. K. Allen, “Graspit! a versatile simulator for robotic grasping,”IEEE Robotics & Automation Magazine, vol. 11, no. 4, pp. 110–122, 2004

    2004

  20. [20]

    Dexgraspnet: A large-scale robotic dexterous grasp dataset for general objects based on simulation,

    R. Wang, J. Zhang, J. Chen, Y . Xu, P. Li, T. Liu, and H. Wang, “Dexgraspnet: A large-scale robotic dexterous grasp dataset for general objects based on simulation,”arXiv preprint arXiv:2210.02697, 2022

    work page arXiv 2022

  21. [21]

    Data-efficient co-adaptation of morphology and behaviour with deep reinforcement learning,

    K. S. Luck, H. B. Amor, and R. Calandra, “Data-efficient co-adaptation of morphology and behaviour with deep reinforcement learning,” in Conference on Robot Learning. PMLR, 2020, pp. 854–869

    2020

  22. [22]

    Derivative-free optimization: a review of algorithms and comparison of software implementations,

    L. M. Rios and N. V . Sahinidis, “Derivative-free optimization: a review of algorithms and comparison of software implementations,”Journal of Global Optimization, vol. 56, no. 3, pp. 1247–1293, 2013

    2013

  23. [23]

    Derivative-free optimiza- tion methods,

    J. Larson, M. Menickelly, and S. M. Wild, “Derivative-free optimiza- tion methods,”Acta Numerica, vol. 28, pp. 287–404, 2019

    2019

  24. [24]

    The hand of the dlr hand arm system: Designed for interaction,

    M. Grebenstein, M. Chalon, W. Friedl, S. Haddadin, T. Wimb ¨ock, G. Hirzinger, and R. Siegwart, “The hand of the dlr hand arm system: Designed for interaction,”The International Journal of Robotics Research, vol. 31, no. 13, pp. 1531–1555, 2012

    2012

  25. [25]

    Optimized design of the underactuated robotic hand,

    R. Cab ´as, L. M. Cabas, and C. Balaguer, “Optimized design of the underactuated robotic hand,” inProceedings 2006 IEEE International Conference on Robotics and Automation, 2006. ICRA 2006.IEEE, 2006, pp. 982–987

    2006

  26. [26]

    Geometric design optimization of an under-actuated tendon-driven robotic gripper,

    H. Dong, E. Asadi, C. Qiu, J. Dai, and I.-M. Chen, “Geometric design optimization of an under-actuated tendon-driven robotic gripper,” Robotics and Computer-Integrated Manufacturing, vol. 50, pp. 80– 89, 2018

    2018

  27. [27]

    An end-to-end differentiable framework for contact-aware robot design,

    J. Xu, T. Chen, L. Zlokapa, M. Foshey, W. Matusik, S. Sueda, and P. Agrawal, “An end-to-end differentiable framework for contact-aware robot design,”arXiv preprint arXiv:2107.07501, 2021

    work page arXiv 2021

  28. [28]

    Hardware optimiza- tion for in-hand rotation,

    K. Fay, S. Yi, M. T. Tolley, X. Wang, and H. Su, “Hardware optimiza- tion for in-hand rotation,” in1st Workshop on Robot Hardware-Aware Intelligence, 2025

    2025

  29. [29]

    Embodied manipu- lation with past and future morphologies through an open parametric hand design,

    K. Gilday, C. Sirithunge, F. Iida, and J. Hughes, “Embodied manipu- lation with past and future morphologies through an open parametric hand design,”Science Robotics, vol. 10, no. 102, p. eads6437, 2025

    2025

  30. [30]

    From power to precision: Learning fine-grained dexterity for multi-fingered robotic hands,

    J. Ye, L. Wei, G. Jiang, C. Jing, X. Zou, and X. Wang, “From power to precision: Learning fine-grained dexterity for multi-fingered robotic hands,”arXiv preprint arXiv:2511.13710, 2025

    work page arXiv 2025

  31. [31]

    Optimization of robot hand power grasps,

    Y . Yu, K. Takeuchi, and T. Yoshikawa, “Optimization of robot hand power grasps,” inProceedings. 1998 IEEE International Conference on Robotics and Automation (Cat. No. 98CH36146), vol. 4. IEEE, 1998, pp. 3341–3347

    1998

  32. [32]

    A kinematic design optimization of robot manipulators,

    R. V . Mayorga, B. Ressa, and A. K. Wong, “A kinematic design optimization of robot manipulators,” inProceedings 1992 IEEE In- ternational Conference on Robotics and Automation. IEEE, 1992, pp. 396–401

    1992

  33. [33]

    Geometric optimization of manipulator structures for working volume and dexterity,

    R. Vijaykumar, M. Tsai, and K. Waldron, “Geometric optimization of manipulator structures for working volume and dexterity,” in Proceedings. 1985 IEEE International Conference on Robotics and Automation, vol. 2. IEEE, 1985, pp. 228–236

    1985

  34. [34]

    Joint opti- mization of robot design and motion parameters using the implicit function theorem

    S. Ha, S. Coros, A. Alspach, J. Kim, and K. Yamane, “Joint opti- mization of robot design and motion parameters using the implicit function theorem.” inRobotics: Science and systems, vol. 13, 2017, pp. 10–15 607

    2017

  35. [35]

    C 2: Co- design of robots via concurrent-network coupling online and offline reinforcement learning,

    C. Chen, P. Xiang, H. Lu, Y . Wang, and R. Xiong, “C 2: Co- design of robots via concurrent-network coupling online and offline reinforcement learning,” in2023 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2023, pp. 7487– 7494

    2023

  36. [36]

    Co-designing hardware and control for robot hands,

    T. Chen, Z. He, and M. Ciocarlie, “Co-designing hardware and control for robot hands,”Science Robotics, vol. 6, no. 54, p. eabg2133, 2021

    2021

  37. [37]

    Modular mobile robot design selection with deep reinforcement learning,

    J. Whitman, M. Travers, and H. Choset, “Modular mobile robot design selection with deep reinforcement learning,” inNeurIPS Workshop on ML for engineering modeling, simulation and design, vol. 2, 2020, pp. 7–2

    2020

  38. [38]

    Learning modular robot control policies,

    ——, “Learning modular robot control policies,”IEEE Transactions on Robotics, vol. 39, no. 5, pp. 4095–4113, 2023

    2023

  39. [39]

    Jointly learning to construct and control agents using deep reinforcement learning,

    C. Schaff, D. Yunis, A. Chakrabarti, and M. R. Walter, “Jointly learning to construct and control agents using deep reinforcement learning,” in2019 international conference on robotics and automation (ICRA). IEEE, 2019, pp. 9798–9805

    2019

  40. [40]

    Grasp to act: Dex- terous grasping for tool use in dynamic settings,

    H. Gupta, M. A. Mirzaee, and W. Yuan, “Grasp to act: Dex- terous grasping for tool use in dynamic settings,”arXiv preprint arXiv:2602.20466, 2026

    work page arXiv 2026
