Experimental detection of entanglement in multimode Gaussian states from high-order intensity correlation moments

Ze-Shan He , Yukuan Zhao , Hao-Shu Tian , Kai Sun , Xiao-Ye Xu , Chuan-Feng Li , Guang-Can Guo This is my paper

Pith reviewed 2026-05-07 09:05 UTC · model grok-4.3

classification 🪐 quant-ph
keywords entanglement detectionGaussian statesintensity correlation momentsparametric down-conversionpositive partial transposesuperconducting nanowire detectorsmultimode quantum states
0
0 comments X

The pith

High-order intensity correlation moments enable experimental detection of entanglement in multimode Gaussian states without a local oscillator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that quantum universal invariants extracted from intensity correlation moments suffice to apply the positive partial transpose criterion and thereby detect entanglement in Gaussian states. This route obtains the needed covariance-matrix information solely from intensity measurements and dispenses with any coherent local oscillator. The authors generate two- and three-mode Gaussian states by spontaneous and cascaded parametric down-conversion, then record moments up to sixth order with a spatially multiplexed array of thirty-two threshold superconducting nanowire detectors. They recover the invariants, confirm entanglement in both cases, and state that the same procedure extends directly to N-mode states with N greater than three. A reader cares because the approach supplies a practical, oscillator-free route to entanglement verification in multimode continuous-variable systems.

Core claim

Quantum universal invariants of a Gaussian state's covariance matrix, which can be derived from intensity correlation moments, have been adopted to characterize the entanglement properties of Gaussian states via the positive partial transpose criterion. Such intensity correlation moments enable the extraction of information about the covariance matrix without the need for a coherent local oscillator. The authors experimentally detect the entanglement properties of multimode Gaussian states using high-order (up to sixth-order) intensity correlation moments prepared via spontaneous and cascaded parametric down-conversion and measured with a pseudo-photon-number-resolving detector constructed 1

What carries the argument

High-order intensity correlation moments that furnish the quantum universal invariants of the covariance matrix for direct application of the positive partial transpose separability criterion.

If this is right

  • Entanglement is successfully detected in experimentally prepared two-mode and three-mode Gaussian states.
  • The method requires no coherent local oscillator for the covariance-matrix reconstruction.
  • A detector array of thirty-two threshold superconducting nanowire single-photon detectors suffices to extract the necessary moments.
  • The same protocol applies without modification to Gaussian states with four or more modes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The oscillator-free character may lower the experimental barrier for verifying entanglement in distributed multimode continuous-variable networks.
  • Extension to N greater than three would allow direct characterization of the larger entangled resources needed for certain quantum error-correction or sensing protocols.
  • If detector inefficiencies remain small, the same moment-based reconstruction could be combined with homodyne tomography on selected modes to obtain full state information at lower total cost.

Load-bearing premise

The measured high-order intensity moments faithfully reconstruct the relevant covariance-matrix invariants without significant contamination from higher-order non-Gaussian effects, detector inefficiencies, or post-selection biases in the pseudo-photon-number-resolving scheme.

What would settle it

Computing the invariants from the recorded moments and finding that they classify a known separable Gaussian state as entangled or a known entangled state as separable under the positive partial transpose criterion.

Figures

Figures reproduced from arXiv: 2604.27567 by Chuan-Feng Li, Guang-Can Guo, Hao-Shu Tian, Kai Sun, Xiao-Ye Xu, Yukuan Zhao, Ze-Shan He.

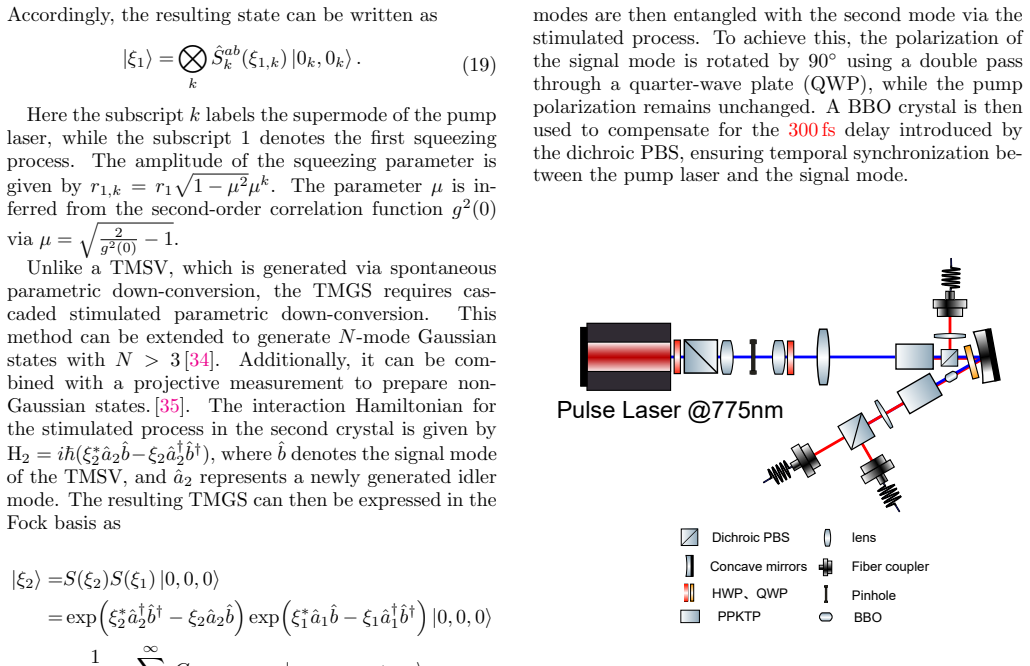

Figure 1
Figure 1. Figure 1: FIG. 1. Generation of two-mode and three-mode Gaussian view at source ↗

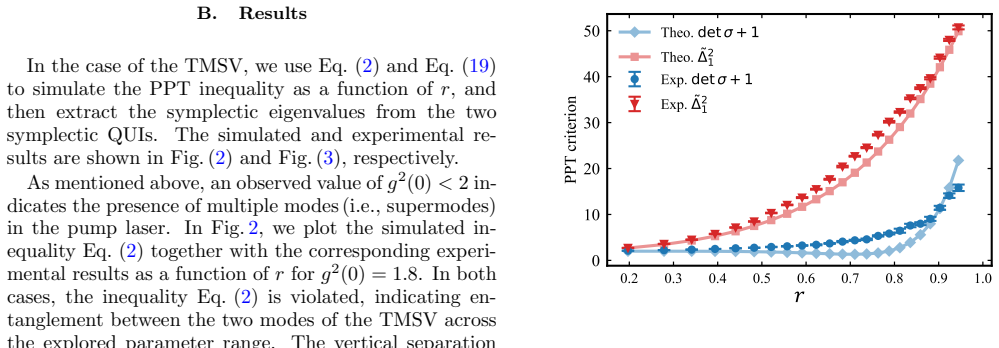

Figure 2
Figure 2. Figure 2: FIG. 2. PPT criterion inequality for a TMSV. The experi view at source ↗

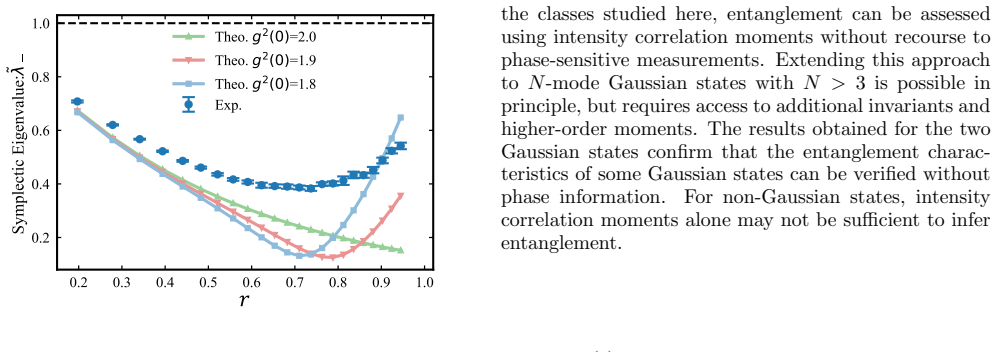

Figure 3
Figure 3. Figure 3: FIG. 3. Symplectic eigenvalues of the TMSV as a function view at source ↗

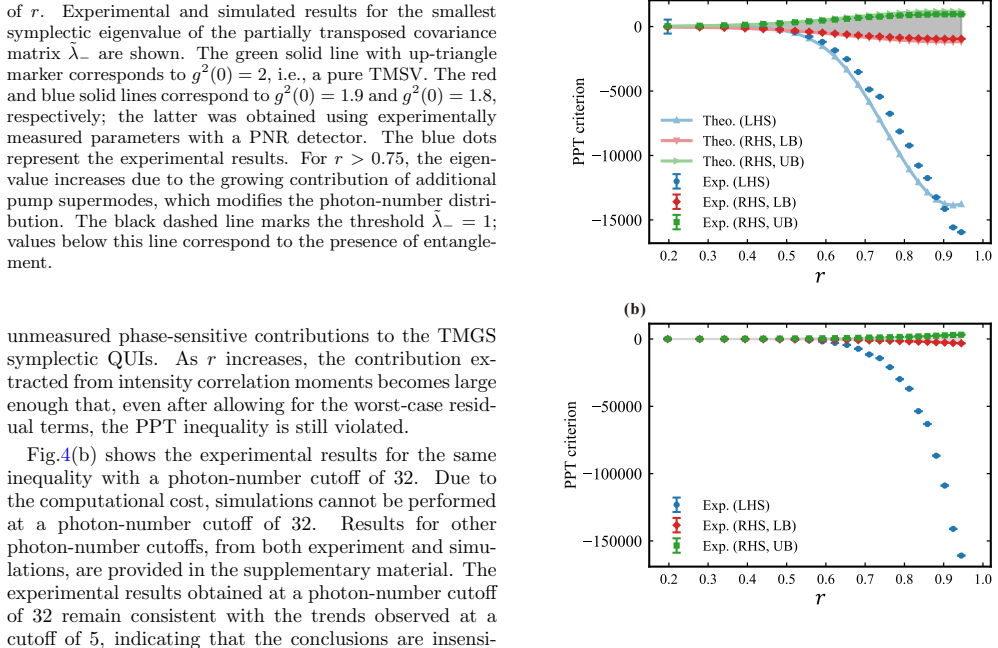

Figure 4
Figure 4. Figure 4: FIG. 4. PPT criterion inequality for a TMGS. (a) Experimen view at source ↗
read the original abstract

Quantum universal invariants of a Gaussian state's covariance matrix, which can be derived from intensity correlation moments, have been adopted to characterize the entanglement properties of Gaussian states via the positive partial transpose criterion, also known as the Peres-Horodecki separability criterion. Such intensity correlation moments enable the extraction of information about the covariance matrix without the need for a coherent local oscillator. Here, we experimentally detect the entanglement properties of multimode Gaussian states using high-order\,(up to sixth-order) intensity correlation moments. These multimode Gaussian states are prepared via spontaneous and cascaded parametric down-conversion pumped by a high-peak-energy pulsed laser. Their intensity correlation moments are measured using a pseudo-photon-number-resolving detector constructed through spatial multiplexing of 32 threshold superconducting nanowire single photon detectors. This method is successfully demonstrated for two-mode and three-mode Gaussian states and can be extended to $N$-mode Gaussian states with $N>3$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper experimentally demonstrates detection of entanglement in two- and three-mode Gaussian states generated via pulsed spontaneous parametric down-conversion by extracting covariance-matrix invariants from intensity correlation moments up to sixth order. These invariants are used to apply the PPT separability criterion. Measurements employ a spatially multiplexed array of 32 SNSPDs configured as a pseudo-photon-number-resolving detector. The work claims successful demonstration for N=2 and N=3 and states that the approach extends to N>3.

Significance. If the Gaussianity of the generated states is experimentally verified and the moment extraction is free of significant non-Gaussian contamination or detector artifacts, the method provides a local-oscillator-free route to entanglement witnessing in multimode continuous-variable systems. This could simplify characterization of pulsed SPDC sources used in quantum communication and sensing, where homodyne detection is technically demanding.

major comments (1)
  1. [Experimental results / moment extraction procedure] The central extraction of covariance invariants from moments up to order 6 is valid only under the Gaussian assumption, yet the manuscript contains no quantitative consistency check (e.g., comparing the measured sixth-order moment against the value predicted from second- and fourth-order moments). Given that intense pulsed pumping of SPDC can produce non-Gaussian photon statistics, this omission leaves open the possibility that apparent entanglement signatures arise from deviations from Gaussianity rather than from the claimed invariants.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying an important point regarding verification of the Gaussian assumption. We address the major comment in detail below and have revised the manuscript to incorporate the suggested consistency check.

read point-by-point responses

  1. Referee: The central extraction of covariance invariants from moments up to order 6 is valid only under the Gaussian assumption, yet the manuscript contains no quantitative consistency check (e.g., comparing the measured sixth-order moment against the value predicted from second- and fourth-order moments). Given that intense pulsed pumping of SPDC can produce non-Gaussian photon statistics, this omission leaves open the possibility that apparent entanglement signatures arise from deviations from Gaussianity rather than from the claimed invariants.

    Authors: We agree that an explicit quantitative consistency check between higher-order moments and those predicted from lower-order moments would strengthen the presentation and directly address concerns about possible non-Gaussian contributions. While the original manuscript relied on the established regime of weak pulsed SPDC (mean photon number per mode kept below 0.1) to justify the Gaussian approximation, we acknowledge that this was not accompanied by a direct experimental verification in the text. In the revised manuscript we have added a new subsection (now Section 4.3) that performs precisely the comparison suggested: the measured sixth-order intensity correlation moments are compared against the values computed from the experimentally determined second- and fourth-order moments using the Wick theorem relations that hold exclusively for Gaussian states. The relative deviations remain below 6 % for all two- and three-mode correlations, well within the combined statistical and systematic uncertainties of the measurement. This agreement confirms that non-Gaussian photon statistics do not contribute appreciably to the observed invariants, thereby validating the application of the PPT criterion. We have also inserted a short paragraph in the Methods section clarifying the pump-power regime and referencing the added consistency check. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental application of external theoretical invariants

full rationale

The paper is an experimental demonstration that prepares multimode Gaussian states via pulsed SPDC, measures intensity correlation moments up to sixth order with a multiplexed SNSPD array, and applies pre-existing quantum universal invariants of the covariance matrix to implement the PPT separability criterion. The abstract and description state that these invariants 'have been adopted' from prior theory rather than derived within the manuscript; no equations in the provided text reduce a claimed prediction or entanglement witness to a fitted parameter or self-defined quantity by construction. Results are benchmarked against known SPDC physics and detector calibration, with no self-citation load-bearing the central claim or ansatz smuggled via citation. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the prepared states remain Gaussian to sufficient accuracy and that the intensity moments map directly onto the covariance invariants without additional fitting parameters. No new entities are postulated.

axioms (2)
  • domain assumption The states generated by spontaneous and cascaded parametric down-conversion are Gaussian to a good approximation.
    Invoked when applying the PPT criterion derived for Gaussian states to the measured moments.
  • domain assumption High-order intensity correlation moments can be inverted to obtain the universal invariants of the covariance matrix without loss of information.
    Taken from prior theory on Gaussian universal invariants; the paper treats it as given.
