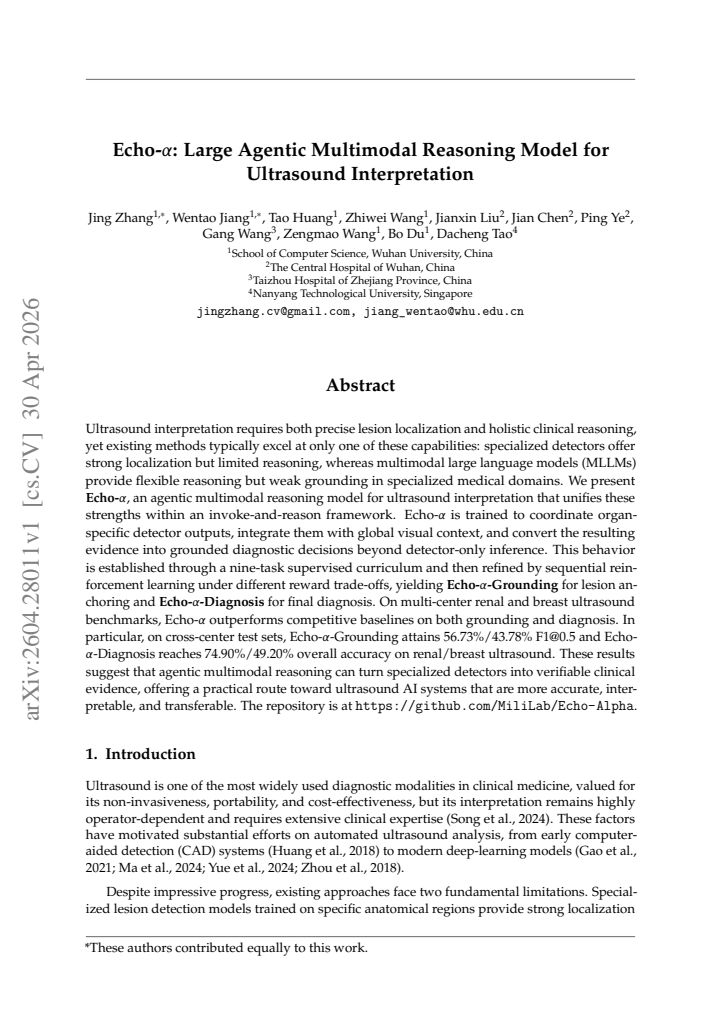

Echo-{α}: Large Agentic Multimodal Reasoning Model for Ultrasound Interpretation

Jing Zhang , Wentao Jiang , Tao Huang , Zhiwei Wang , Jianxin Liu , Jian Chen , Ping Ye , Gang Wang

show 3 more authors

Zengmao Wang Bo Du Dacheng Tao

Authors on Pith no claims yet

Pith reviewed 2026-05-07 06:08 UTC · model grok-4.3

classification 💻 cs.CV

keywords ultrasound interpretationagentic multimodal reasoninglesion groundingclinical diagnosisreinforcement learningcross-center evaluationrenal ultrasoundbreast ultrasound

0 comments

The pith

Echo-α coordinates specialized detectors with multimodal reasoning to improve both lesion localization and diagnostic accuracy in ultrasound.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Ultrasound interpretation needs precise lesion localization together with holistic clinical reasoning, yet existing tools typically manage only one of these well. Echo-α builds an agentic model that invokes organ-specific detectors, integrates their outputs with global image context, and converts the combined evidence into grounded diagnostic decisions. The model first learns coordination through a nine-task supervised curriculum and then refines the balance between localization and reasoning via sequential reinforcement learning with different reward trade-offs. On multi-center renal and breast ultrasound benchmarks, the resulting variants surpass competitive baselines in both F1@0.5 grounding scores and overall diagnostic accuracy, with the largest gains appearing on cross-center test sets. If correct, this shows how agentic coordination can convert isolated detector outputs into verifiable clinical evidence rather than leaving them as separate predictions.

Core claim

Echo-α is an agentic multimodal reasoning model trained to coordinate organ-specific detector outputs, integrate them with global visual context, and convert the resulting evidence into grounded diagnostic decisions. This behavior is established through a nine-task supervised curriculum and then refined by sequential reinforcement learning under different reward trade-offs, producing Echo-α-Grounding for lesion anchoring and Echo-α-Diagnosis for final diagnosis. On multi-center renal and breast ultrasound benchmarks, Echo-α outperforms competitive baselines on both grounding and diagnosis, attaining 56.73%/43.78% F1@0.5 and 74.90%/49.20% overall accuracy on cross-center test sets for renal/

What carries the argument

The invoke-and-reason framework, in which the model calls organ-specific detectors and integrates their localized outputs with global visual context to support diagnostic reasoning.

Load-bearing premise

The combination of the nine-task supervised curriculum and sequential reinforcement learning under varying reward trade-offs produces genuine unification of localization and reasoning rather than overfitting to the renal and breast datasets or the specific reward formulations.

What would settle it

Testing Echo-α on ultrasound scans from a new organ type such as cardiac or liver images collected at previously unseen centers and observing that its grounding F1 or diagnostic accuracy falls below that of standard detectors or MLLMs would show the unification does not generalize.

read the original abstract

Ultrasound interpretation requires both precise lesion localization and holistic clinical reasoning, yet existing methods typically excel at only one of these capabilities: specialized detectors offer strong localization but limited reasoning, whereas multimodal large language models (MLLMs) provide flexible reasoning but weak grounding in specialized medical domains. We present Echo-{\alpha}, an agentic multimodal reasoning model for ultrasound interpretation that unifies these strengths within an invoke-and-reason framework. Echo-{\alpha} is trained to coordinate organ-specific detector outputs, integrate them with global visual context, and convert the resulting evidence into grounded diagnostic decisions beyond detector-only inference. This behavior is established through a nine-task supervised curriculum and then refined by sequential reinforcement learning under different reward trade-offs, yielding Echo-{\alpha}-Grounding for lesion anchoring and Echo-{\alpha}-Diagnosis for final diagnosis. On multi-center renal and breast ultrasound benchmarks, Echo-{\alpha} outperforms competitive baselines on both grounding and diagnosis. In particular, on cross-center test sets, Echo-{\alpha}-Grounding attains 56.73%/43.78% F1@0.5 and Echo- {\alpha}-Diagnosis reaches 74.90%/49.20% overall accuracy on renal/breast ultrasound. These results suggest that agentic multimodal reasoning can turn specialized detectors into verifiable clinical evidence, offering a practical route toward ultrasound AI systems that are more accurate, interpretable, and transferable. The repository is at https://github.com/MiliLab/Echo-Alpha.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Echo-α applies an agentic detector-plus-MLLM loop to ultrasound via a nine-task curriculum and sequential RL, but the reported gains stay confined to renal and breast data with limited evidence that the agentic part drives the improvement.

read the letter

The paper's main contribution is a concrete system that lets an MLLM invoke an organ-specific detector, fold the output into its context, and produce either a grounded localization or a diagnostic conclusion. Training proceeds in two stages: first a nine-task supervised curriculum, then sequential RL that balances different reward terms to yield separate Echo-α-Grounding and Echo-α-Diagnosis checkpoints. On cross-center renal and breast ultrasound splits the numbers are 56.73 % / 43.78 % F1@0.5 for grounding and 74.90 % / 49.20 % accuracy for diagnosis, above the listed baselines. That cross-center split is the clearest positive signal in the work. The repository link is also useful for anyone who wants to inspect the implementation directly. The framing itself is a straightforward extension of recent agentic MLLM patterns to the ultrasound setting, and the authors are clear about the practical gap they are targeting between detector precision and clinical reasoning. The main limitation is scope. All quantitative claims rest on two organs only, and the RL reward coefficients are chosen by the authors without reported ablations that would show whether the invoke-and-reason loop adds value beyond the curriculum alone. If the curriculum tasks and reward formulations are already tuned to the lesion appearance and phrasing typical of renal and breast scans, the gains could be domain-specific fitting rather than a general unification. No results appear for other common ultrasound targets such as liver or thyroid, and there are no detector-swap or reward-perturbation experiments that would isolate the agentic component. The methods section follows standard practice for this line of work, but the absence of those controls leaves the transferability claim under-supported. This paper is aimed at groups already working on multimodal agents or medical imaging pipelines who need a working example of detector-MLLM coordination. A reader looking for an engineering template will find the curriculum design and training schedule worth examining, even if they will want to run their own broader tests. I would send it to peer review. The cross-center numbers and the explicit two-stage training recipe are concrete enough to merit referee scrutiny, though the reviewers will almost certainly ask for additional organs and clearer isolation of the agentic contribution.

Referee Report

3 major / 3 minor

Summary. The paper introduces Echo-α, an agentic multimodal model for ultrasound interpretation that unifies lesion localization from organ-specific detectors with clinical reasoning via an invoke-and-reason framework. It is trained first with a nine-task supervised curriculum and then refined through sequential reinforcement learning under varying reward trade-offs, producing Echo-α-Grounding (for localization) and Echo-α-Diagnosis (for final decisions). On cross-center renal and breast ultrasound test sets, it reports F1@0.5 scores of 56.73%/43.78% for grounding and overall accuracies of 74.90%/49.20% for diagnosis, outperforming competitive baselines, with a public repository provided.

Significance. If the unification of localization and reasoning holds beyond the reported datasets, this work could meaningfully advance practical ultrasound AI by turning detector outputs into verifiable evidence for diagnosis, addressing a key limitation of both pure detectors and general MLLMs. The cross-center splits and open-source code are concrete strengths that support reproducibility and some degree of transferability claims. However, the significance is constrained by the narrow organ scope (renal/breast only) and the empirical nature of the gains, which may not yet demonstrate broad architectural advantages over simpler fine-tuning approaches.

major comments (3)

[§4] §4 (Training): The nine-task supervised curriculum followed by sequential RL with author-chosen reward trade-offs is presented as the mechanism for unification, yet no ablation studies isolate the contribution of the agentic invoke-and-reason loop versus the curriculum alone or versus joint end-to-end training. Without such controls (e.g., performance drop when the RL stage or detector invocation is removed), the central claim that the framework produces genuine integration rather than dataset-specific optimization cannot be verified from the reported numbers.
[§5] §5 (Experiments): All grounding and diagnosis results, including the cross-center F1@0.5 and accuracy figures, are confined to renal and breast ultrasound. No held-out organ types, detector-swap experiments, or reward-ablation tables are provided to test whether the reported gains transfer or arise from fitting to the annotation styles and lesion statistics of these two organs. This directly bears on the claim of transferable unification.
[Table 2] Table 2 / cross-center results: The outperformance over baselines is stated, but the manuscript does not specify whether the baselines were re-implemented with identical detector backbones, data augmentations, or training budgets as Echo-α. If the baselines use weaker detectors or different splits, the numerical gains (e.g., 56.73% F1@0.5) cannot be unambiguously attributed to the agentic framework.

minor comments (3)

[§3] The notation F1@0.5 is used without an explicit definition of the IoU threshold or how multiple lesions per image are handled; a short clarification in §3 or the caption of Table 1 would improve reproducibility.
[§1] The abstract and §1 mention 'multi-center' benchmarks but provide no table or text listing the number of centers, scanner vendors, or patient inclusion criteria. Adding this information would strengthen the generalization narrative.
[§2] A few sentences comparing the invoke-and-reason loop to prior agentic or tool-use frameworks in medical imaging (e.g., Med-PaLM or similar) would better situate the novelty.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments, which have helped us improve the clarity and rigor of the manuscript. We address each major comment point by point below. Where the concerns identify gaps in the original submission, we have revised the manuscript accordingly; in other cases we provide additional justification for the current experimental design while acknowledging limitations.

read point-by-point responses

Referee: [§4] §4 (Training): The nine-task supervised curriculum followed by sequential RL with author-chosen reward trade-offs is presented as the mechanism for unification, yet no ablation studies isolate the contribution of the agentic invoke-and-reason loop versus the curriculum alone or versus joint end-to-end training. Without such controls (e.g., performance drop when the RL stage or detector invocation is removed), the central claim that the framework produces genuine integration rather than dataset-specific optimization cannot be verified from the reported numbers.

Authors: We agree that explicit ablation studies would strengthen the evidence for the agentic loop's contribution. In the revised manuscript we have added a new subsection in §4 together with an accompanying table that reports two controlled ablations: (1) the model trained solely on the nine-task supervised curriculum without the subsequent RL stage, and (2) a joint end-to-end baseline that maps image features directly to diagnoses without explicit detector invocation or the invoke-and-reason loop. The revised results show that removing either the RL stage or the agentic coordination produces measurable degradation relative to the full Echo-α pipeline. We also added a short discussion explaining why complete isolation is inherently difficult—the curriculum itself is deliberately staged to prepare the model for agentic behavior—yet the new controls still allow readers to assess the incremental value of the full framework. revision: yes
Referee: [§5] §5 (Experiments): All grounding and diagnosis results, including the cross-center F1@0.5 and accuracy figures, are confined to renal and breast ultrasound. No held-out organ types, detector-swap experiments, or reward-ablation tables are provided to test whether the reported gains transfer or arise from fitting to the annotation styles and lesion statistics of these two organs. This directly bears on the claim of transferable unification.

Authors: We acknowledge that the empirical evaluation is limited to renal and breast ultrasound, which reflects the availability of high-quality multi-center annotations for these organs. The cross-center splits already constitute a non-trivial test of transfer across acquisition protocols, scanners, and patient demographics. The architecture itself is constructed to support extension: organ-specific detectors are modular and can be replaced without retraining the reasoning module, while the invoke-and-reason loop operates on detector outputs plus global visual context. In the revision we have expanded the discussion in §5 to describe this modularity, including a qualitative detector-swap thought experiment and explicit statements about how the same training recipe would apply to additional organs. Full quantitative validation on held-out organ types would require new annotated datasets that are not currently available to us; we therefore treat this as a limitation of the present study rather than a claim of immediate broad transferability. revision: partial
Referee: [Table 2] Table 2 / cross-center results: The outperformance over baselines is stated, but the manuscript does not specify whether the baselines were re-implemented with identical detector backbones, data augmentations, or training budgets as Echo-α. If the baselines use weaker detectors or different splits, the numerical gains (e.g., 56.73% F1@0.5) cannot be unambiguously attributed to the agentic framework.

Authors: We appreciate the referee highlighting this ambiguity. All baselines reported in Table 2 were re-implemented by us using the identical organ-specific detector backbones, the same cross-center data splits, and comparable data-augmentation pipelines and training budgets (same number of epochs, optimizer settings, and batch sizes). We have revised the caption of Table 2 and added a dedicated paragraph in §5 that explicitly documents these implementation choices, including the precise detector architectures and hyper-parameter settings used for each baseline. This clarification ensures that the observed gains can be attributed to the agentic invoke-and-reason framework rather than differences in backbone strength or training protocol. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical results on cross-center test sets are independently measured

full rationale

The paper's claims rest on reported F1@0.5 and accuracy numbers obtained after nine-task supervised curriculum training plus sequential RL, evaluated on multi-center cross-center held-out splits for renal and breast ultrasound. These metrics are compared to external baselines and do not reduce to the training inputs by construction. No equations, self-definitional steps, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or description. The training procedure (curriculum + RL with author-chosen reward trade-offs) is a standard empirical pipeline whose outputs are falsifiable on separate test data; any overfitting concern is a generalization issue, not a circularity reduction. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

Because only the abstract is available, the ledger is necessarily incomplete. The central claim rests on standard assumptions of supervised learning and RL (i.i.d. data, reward functions that correctly trade off grounding and diagnosis) plus the unstated assumption that the chosen nine tasks and reward schedule produce transferable behavior. No invented physical entities are introduced. Free parameters include all model weights, curriculum task weights, and RL reward coefficients, none of which are enumerated in the abstract.

free parameters (2)

RL reward trade-off coefficients
The abstract states that sequential RL is performed 'under different reward trade-offs'; these scalars are fitted or chosen to balance grounding and diagnosis objectives and directly affect the final Echo-α-Grounding and Echo-α-Diagnosis variants.
Nine-task curriculum weights
The supervised pre-training stage uses an unspecified weighting across nine tasks; these weights are free parameters that shape what the model learns before RL.

axioms (2)

domain assumption The outputs of organ-specific detectors can be treated as reliable evidence that the agentic model can integrate without introducing new systematic errors.
Invoked in the description of the invoke-and-reason framework; if detector outputs are biased on cross-center data, the entire reasoning chain collapses.
domain assumption Sequential reinforcement learning under the chosen reward schedule improves both grounding and diagnosis without catastrophic forgetting of the supervised curriculum.
Stated as the refinement step that yields the two final model variants.

pith-pipeline@v0.9.0 · 5597 in / 1965 out tokens · 80378 ms · 2026-05-07T06:08:43.906601+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

31 extracted references · 9 canonical work pages · 6 internal anchors

[1]

Asgari, N

E. Asgari, N. Monta \ n a-Brown, M. Dubois, S. Khalil, J. Balloch, J. A. Yeung, and D. Pimenta. A framework to assess clinical safety and hallucination rates of llms for medical text summarisation. NPJ digital medicine, 8 0 (1): 0 274, 2025

2025
[2]

S. Bai, Y. Cai, R. Chen, K. Chen, X. Chen, Z. Cheng, L. Deng, W. Ding, C. Gao, C. Ge, W. Ge, Z. Guo, Q. Huang, J. Huang, F. Huang, B. Hui, S. Jiang, Z. Li, M. Li, M. Li, K. Li, Z. Lin, J. Lin, X. Liu, J. Liu, C. Liu, Y. Liu, D. Liu, S. Liu, D. Lu, R. Luo, C. Lv, R. Men, L. Meng, X. Ren, X. Ren, S. Song, Y. Sun, J. Tang, J. Tu, J. Wan, P. Wang, P. Wang, Q....

work page internal anchor Pith review arXiv 2025
[3]

Q. Chen, X. Su, X. Zhang, J. Wang, J. Chen, Y. Shen, C. Han, Z. Chen, W. Xu, F. Li, et al. Lw-detr: A transformer replacement to yolo for real-time detection. arXiv preprint arXiv:2406.03459, 2024

work page arXiv 2024
[4]

Y. Gao, M. Zhou, and D. N. Metaxas. Utnet: a hybrid transformer architecture for medical image segmentation. In International conference on medical image computing and computer-assisted intervention, pages 61--71. Springer, 2021

2021
[5]

D. Guo, D. Yang, H. Zhang, J. Song, P. Wang, Q. Zhu, R. Xu, R. Zhang, S. Ma, X. Bi, et al. Deepseek-r1 incentivizes reasoning in llms through reinforcement learning. Nature, 645 0 (8081): 0 633--638, 2025

2025
[6]

X. Guo, M. Alsharid, H. Zhao, et al. A visually grounded language model for fetal ultrasound understanding. Nature Biomedical Engineering, pages 1--17, 2026

2026
[7]

Huang, F

Q. Huang, F. Zhang, and X. Li. Machine learning in ultrasound computer-aided diagnostic systems: a survey. BioMed research international, 2018 0 (1): 0 5137904, 2018

2018
[8]

Jocher and J

G. Jocher and J. Qiu. Ultralytics yolo26. https://github.com/ultralytics/ultralytics, 2026. Version 26.0.0, software, AGPL-3.0

2026
[9]

YOLOv11: An Overview of the Key Architectural Enhancements

R. Khanam and M. Hussain. Yolov11: An overview of the key architectural enhancements. arXiv preprint arXiv:2410.17725, 2024

work page internal anchor Pith review arXiv 2024
[10]

Y. Lai, J. Zhong, M. Li, S. Zhao, Y. Li, K. Psounis, and X. Yang. Med-r1: Reinforcement learning for generalizable medical reasoning in vision-language models. IEEE Transactions on Medical Imaging, 2026

2026
[11]

C. Li, C. Wong, S. Zhang, N. Usuyama, H. Liu, J. Yang, T. Naumann, H. Poon, and J. Gao. Llava-med: Training a large language-and-vision assistant for biomedicine in one day. Advances in Neural Information Processing Systems, 36: 0 28541--28564, 2023

2023
[12]

J. Ma, Y. He, F. Li, L. Han, C. You, and B. Wang. Segment anything in medical images. Nature communications, 15 0 (1): 0 654, 2024

2024
[13]

J. Mao, J. Huang, A. Toshev, O. Camburu, A. L. Yuille, and K. Murphy. Generation and comprehension of unambiguous object descriptions. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 11--20, 2016

2016
[14]

A. Pal, L. K. Umapathi, and M. Sankarasubbu. Med-halt: Medical domain hallucination test for large language models. In Proceedings of the 27th Conference on Computational Natural Language Learning (CoNLL), pages 314--334, 2023

2023
[15]

Redmon, S

J. Redmon, S. Divvala, R. Girshick, and A. Farhadi. You only look once: Unified, real-time object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 779--788, 2016

2016
[16]

Robinson, P

I. Robinson, P. Robicheaux, M. Popov, D. Ramanan, and N. Peri. RF - DETR : Neural architecture search for real-time detection transformers. In The Fourteenth International Conference on Learning Representations, 2026

2026
[17]

Schick, J

T. Schick, J. Dwivedi-Yu, R. Dess \` , R. Raileanu, M. Lomeli, E. Hambro, L. Zettlemoyer, N. Cancedda, and T. Scialom. Toolformer: Language models can teach themselves to use tools. Advances in neural information processing systems, 36: 0 68539--68551, 2023

2023
[18]

Z. Shao, P. Wang, Q. Zhu, R. Xu, J. Song, X. Bi, H. Zhang, M. Zhang, Y. Li, Y. Wu, et al. Deepseekmath: Pushing the limits of mathematical reasoning in open language models. arXiv preprint arXiv:2402.03300, 2024

work page internal anchor Pith review arXiv 2024
[19]

C. She, R. Lu, L. Chen, et al. Echovlm: Dynamic mixture-of-experts vision-language model for universal ultrasound intelligence. arXiv preprint arXiv:2509.14977, 2025

work page internal anchor Pith review Pith/arXiv arXiv 2025
[20]

DINOv3

O. Sim \'e oni, H. V. Vo, M. Seitzer, F. Baldassarre, M. Oquab, C. Jose, V. Khalidov, M. Szafraniec, S. Yi, M. Ramamonjisoa, et al. Dinov3. arXiv preprint arXiv:2508.10104, 2025

work page internal anchor Pith review arXiv 2025
[21]

Singhal, S

K. Singhal, S. Azizi, T. Tu, S. S. Mahdavi, J. Wei, H. W. Chung, N. Scales, A. Tanwani, H. Cole-Lewis, S. Pfohl, et al. Large language models encode clinical knowledge. Nature, 620 0 (7972): 0 172--180, 2023

2023
[22]

K. Song, J. Feng, and D. Chen. A survey on deep learning in medical ultrasound imaging. Frontiers in Physics, 12: 0 1398393, 2024

2024
[23]

Y. Tian, Q. Ye, and D. Doermann. YOLO v12: Attention-centric real-time object detectors. In The Thirty-ninth Annual Conference on Neural Information Processing Systems, 2026

2026
[24]

S. Wang, Z. Zhao, X. Ouyang, Q. Wang, and D. Shen. Chatcad: Interactive computer-aided diagnosis on medical image using large language models. arXiv preprint arXiv:2302.07257, 2023

work page arXiv 2023
[25]

W. Yue, J. Zhang, K. Hu, Y. Xia, J. Luo, and Z. Wang. Surgicalsam: Efficient class promptable surgical instrument segmentation. In Proceedings of the AAAI Conference on Artificial Intelligence, volume 38, pages 6890--6898, 2024

2024
[26]

Zhang, H

C. Zhang, H. Qiu, Q. Zhang, Y. Xu, Z. Zeng, S. Yang, P. Shi, L. Ma, and J. Zhang. Perceptual-evidence anchored reinforced learning for multimodal reasoning. arXiv preprint arXiv:2511.18437, 2025 a

work page arXiv 2025
[27]

RadAgents: Multimodal Agentic Reasoning for Chest X-ray Interpretation with Radiologist-like Workflows

K. Zhang, C. D. Barrett, J. Kim, L. Sun, T. Taghavi, and K. Kenthapadi. Radagents: Multimodal agentic reasoning for chest x-ray interpretation with radiologist-like workflows. arXiv preprint arXiv:2509.20490, 2025 b

work page internal anchor Pith review Pith/arXiv arXiv 2025
[28]

Zhang, Y

S. Zhang, Y. Xu, N. Usuyama, et al. A multimodal biomedical foundation model trained from fifteen million image-text pairs. NEJM AI, 2 0 (1): 0 AIoa2400640, 2025 c

2025
[29]

Z. Zhao, S. Wang, J. Gu, Y. Zhu, L. Mei, Z. Zhuang, Z. Cui, Q. Wang, and D. Shen. Chatcad+: Toward a universal and reliable interactive cad using llms. IEEE Transactions on Medical Imaging, 43 0 (11): 0 3755--3766, 2024

2024
[30]

Zheng, P

Z. Zheng, P. Wang, W. Liu, J. Li, R. Ye, and D. Ren. Distance-iou loss: Faster and better learning for bounding box regression. In Proceedings of the AAAI conference on artificial intelligence, volume 34, pages 12993--13000, 2020

2020
[31]

Z. Zhou, M. M. Rahman Siddiquee, N. Tajbakhsh, and J. Liang. Unet++: A nested u-net architecture for medical image segmentation. In International workshop on deep learning in medical image analysis, pages 3--11. Springer, 2018

2018
