Soft-MSM: Differentiable Context-Aware Elastic Alignment for Time Series
Pith reviewed 2026-05-09 20:36 UTC · model grok-4.3
The pith
Soft-MSM replaces the hard split and merge penalties in MSM with a smooth gated surrogate to produce a fully differentiable elastic alignment loss.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Soft-MSM is obtained by inserting a smooth gated surrogate for MSM's piecewise split/merge cost into the standard dynamic-programming recurrence, yielding forward recursion, backward recursion, soft alignment matrix, closed-form gradient, limiting behaviour, and a divergence-corrected formulation that together make the full MSM distance usable as a gradient-based loss while preserving its context-aware transition structure.
What carries the argument
The smooth gated surrogate for MSM's piecewise split/merge cost, which routes gradients through both the dynamic-programming recursion and the local context-dependent transition costs.
If this is right

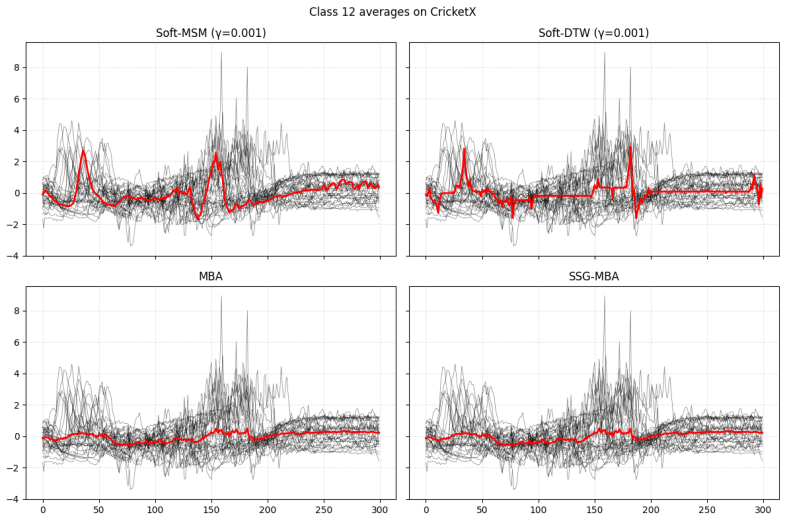

- Soft-MSM barycentres achieve lower MSM loss than existing non-differentiable MSM barycentre constructions.

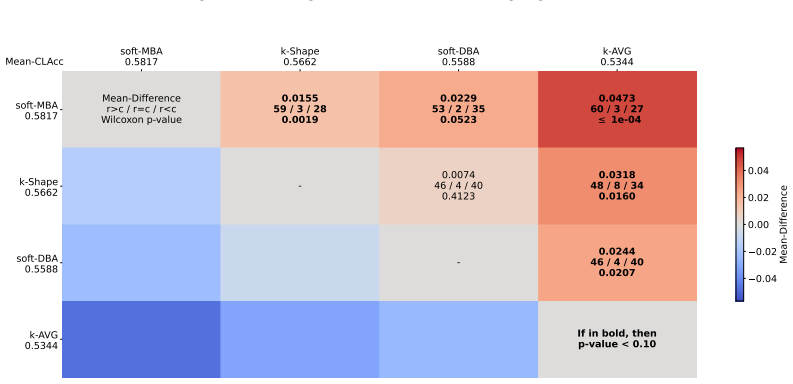

- Clustering with Soft-MSM centroids outperforms clustering that uses Soft-DTW centroids.

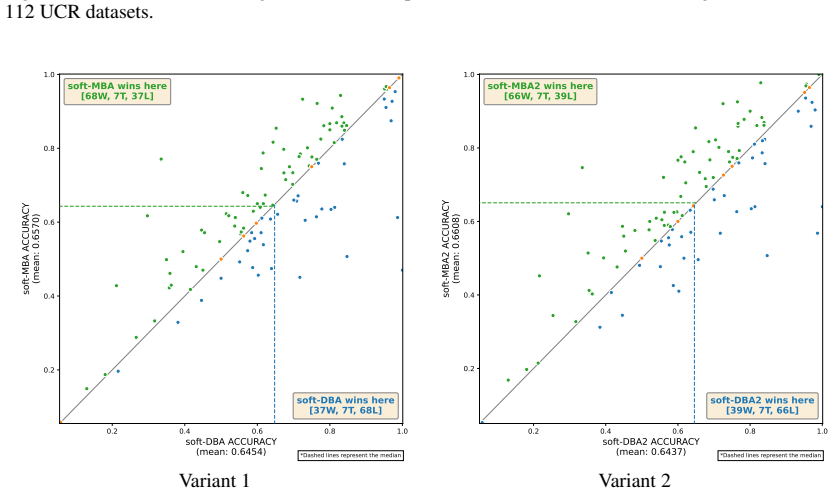

- Nearest-centroid classification with Soft-MSM centroids outperforms the same classifier built on Soft-DTW centroids.
- The closed-form gradient and divergence correction allow direct use of MSM-style alignment inside any gradient-based time-series pipeline.
Where Pith is reading between the lines
- Soft-MSM could be dropped into existing deep sequence models wherever Soft-DTW is currently used, provided the model can tolerate the extra cost of the gated transition logic.
- The same gating trick may generalise to other elastic distances whose transition costs also depend on local alignment context.
- Because the method supplies both a soft alignment matrix and a scalar loss, it could support new regularisation schemes that penalise particular alignment patterns during training.
Load-bearing premise
The smooth gated surrogate produces alignments and gradients that stay faithful to the original hard MSM distance across the sequences and parameter settings used in practice.
What would settle it
A side-by-side comparison on sequences containing clear split or merge decisions in which the Soft-MSM alignment matrix differs substantially from the hard MSM alignment matrix, or in which gradient descent using Soft-MSM fails to reduce the true (non-smooth) MSM distance to a new minimum.
Figures
read the original abstract
Elastic distances like dynamic time warping (DTW) are central to time series machine learning because they compare sequences under local temporal misalignment. Soft-DTW is an adaptation of DTW that can be used as a gradient-based loss by replacing the hard minimum in its dynamic-programming recursion with a smooth relaxation. However, this approach does not directly extend to elastic distances whose transition costs depend on the local alignment context. Move-Split-Merge (MSM) is one such distance: it uses context-aware split and merge penalties and has often outperformed DTW in supervised and unsupervised time series machine learning tasks such as classification and clustering. We introduce Soft-MSM, a smooth relaxation of MSM and an elastic alignment loss with context-aware transition costs. Central to the formulation is a smooth gated surrogate for MSM's piecewise split/merge cost, which enables gradients through both the dynamic-programming recursion and the local transition structure. We derive the forward recursion, backward recursion, soft alignment matrix, closed-form gradient, limiting behaviour, and divergence-corrected formulation. Experiments on 112 UCR datasets show that Soft-MSM gives lower MSM barycentre loss than existing MSM barycentre methods, and yields significantly better clustering and nearest-centroid classification performance than Soft-DTW-based alternatives. An implementation is available in the open-source \texttt{aeon} toolkit.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces Soft-MSM, a smooth differentiable relaxation of the Move-Split-Merge (MSM) elastic distance. It replaces MSM's piecewise context-dependent split/merge costs with a smooth gated surrogate inside the dynamic-programming recursion, derives the forward/backward passes, soft alignment matrix, closed-form gradient, limiting behaviour, and a divergence-corrected formulation. Experiments on 112 UCR datasets report lower MSM barycentre loss than existing MSM barycentre methods and significantly better clustering and nearest-centroid classification performance than Soft-DTW alternatives, with an open-source implementation in the aeon toolkit.
Significance. If the gated surrogate remains faithful to MSM, the work would usefully extend the family of gradient-based elastic losses beyond Soft-DTW to context-aware distances that have previously shown advantages in time-series tasks. The explicit derivation of gradients through both the recursion and the local transition structure, together with the open implementation, are concrete strengths that would support adoption in barycentre, clustering, and classification pipelines.
major comments (2)
- [§3] §3 (smooth gated surrogate definition): No analytic error bounds are derived for the approximation error between the soft gated surrogate and MSM's original piecewise split/merge cost, nor are there systematic empirical checks (e.g., alignment or distance error as a function of sequence length, amplitude scale, or c-parameter) across the regimes present in the 112 UCR experiments. This is load-bearing for the central claim that reported gains reflect faithful elastic alignment rather than surrogate artifacts.
- [§5] §5 (experiments): The claims of 'significantly better' clustering and nearest-centroid classification lack reported statistical tests, p-values, effect sizes, or multiple-comparison corrections. Ablations on the smoothing temperature and the divergence-corrected formulation are also absent, preventing assessment of whether the performance edge is robust or sensitive to these choices.
minor comments (1)
- [§3] The notation for the soft alignment matrix and the forward/backward recursions would benefit from an explicit variable glossary or additional inline definitions to improve readability for readers unfamiliar with the MSM formulation.
Simulated Author's Rebuttal
We thank the referee for their constructive feedback and positive evaluation of the manuscript. We address the major comments point by point below.
read point-by-point responses
-
Referee: [§3] §3 (smooth gated surrogate definition): No analytic error bounds are derived for the approximation error between the soft gated surrogate and MSM's original piecewise split/merge cost, nor are there systematic empirical checks (e.g., alignment or distance error as a function of sequence length, amplitude scale, or c-parameter) across the regimes present in the 112 UCR experiments. This is load-bearing for the central claim that reported gains reflect faithful elastic alignment rather than surrogate artifacts.
Authors: We agree that analytic error bounds would be desirable but are difficult to derive due to the recursive structure of the dynamic programming and the dependence on variable sequence properties. In the revised manuscript, we will incorporate systematic empirical checks, including quantitative assessments of the approximation error for alignment paths and distances as functions of sequence length, amplitude, and the c-parameter, using representative datasets from the UCR archive. This will support that the observed performance gains are not due to surrogate artifacts. revision: partial
-
Referee: [§5] §5 (experiments): The claims of 'significantly better' clustering and nearest-centroid classification lack reported statistical tests, p-values, effect sizes, or multiple-comparison corrections. Ablations on the smoothing temperature and the divergence-corrected formulation are also absent, preventing assessment of whether the performance edge is robust or sensitive to these choices.
Authors: We will revise the experimental section to include statistical significance tests, such as Wilcoxon signed-rank tests with p-values, effect sizes, and appropriate multiple-comparison corrections (e.g., Bonferroni). Additionally, we will add ablations on the smoothing temperature parameter and the divergence-corrected formulation to demonstrate the robustness of the results. revision: yes
- Deriving analytic error bounds for the approximation error of the soft gated surrogate to the original MSM piecewise costs.
Circularity Check
Soft-MSM derivation is a direct, independent relaxation of MSM with no load-bearing reductions
full rationale
The paper introduces Soft-MSM by replacing MSM's piecewise context-dependent split/merge costs with an explicitly derived smooth gated surrogate inside the DP recursion. It then derives the forward recursion, backward recursion, soft alignment matrix, closed-form gradient, limiting behaviour, and divergence correction directly from this construction. No equation reduces to a fitted parameter renamed as a prediction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled via self-citation. The performance claims on 112 UCR datasets are empirical evaluations of the resulting loss and alignments rather than tautological consequences of the formulation itself. The derivation chain is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
