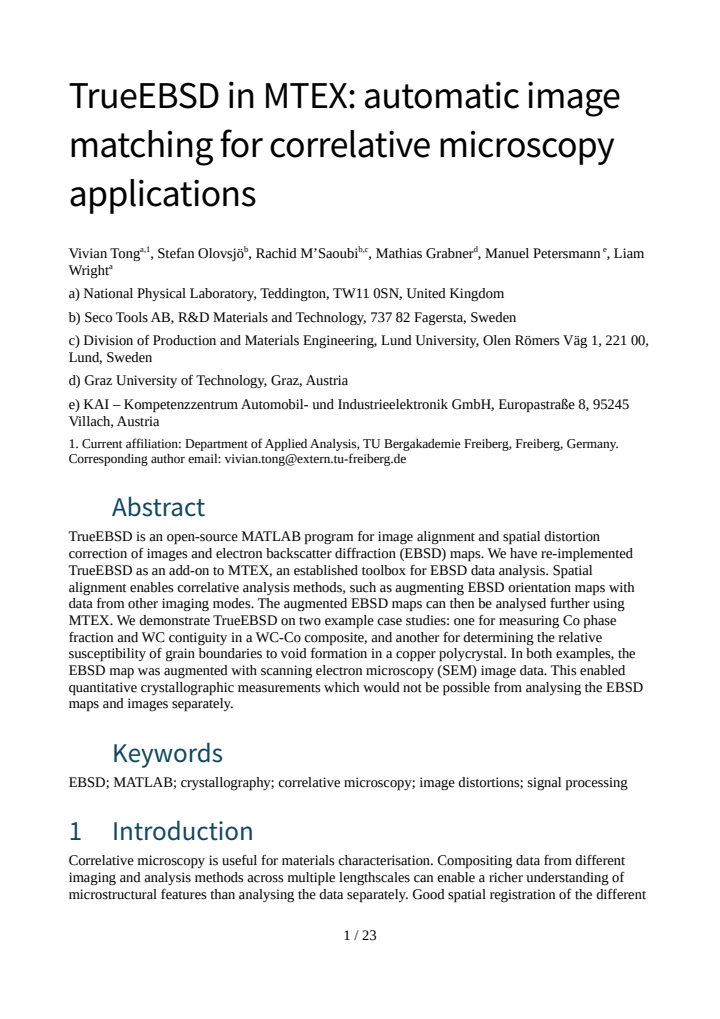

TrueEBSD in MTEX: automatic image matching for correlative microscopy applications

Vivian Tong , Stefan Olovsj\"o , Rachid M'Saoubi , Mathias Grabner , Manuel Petersmann , Liam Wright
Authors on Pith no claims yet

Pith reviewed 2026-05-09 19:34 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords EBSDimage alignmentcorrelative microscopyMTEXTrueEBSDdistortion correctionWC-Co compositegrain boundaries
0
0 comments X

The pith

Re-implementing TrueEBSD in MTEX allows automatic alignment of EBSD maps with SEM images to enable combined quantitative analysis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors have integrated the TrueEBSD program for image alignment and distortion correction into the MTEX toolbox for EBSD data analysis. This integration supports correlative microscopy by overlaying EBSD orientation maps with data from other modes, such as SEM images, so that both can be analyzed together. Two case studies illustrate the approach: measuring the cobalt phase fraction and WC contiguity in a composite material, and assessing grain boundary susceptibility to voids in copper. These measurements require the spatial correspondence between the crystallographic and image data that separate analysis cannot provide.

Core claim

TrueEBSD in MTEX performs automatic image matching to align and correct distortions in EBSD maps and accompanying images. When applied to a WC-Co composite, it allows calculation of phase fractions and contiguity metrics using combined data. In a copper polycrystal, it identifies which grain boundaries are more prone to void formation by correlating orientations with image features.

What carries the argument

The automatic image matching and spatial distortion correction functionality of the TrueEBSD add-on within MTEX, which registers EBSD maps to other images for correlative use.

If this is right

  • Phase fraction and contiguity in WC-Co composites can be measured with crystallographic context from EBSD.
  • Grain boundaries in polycrystals can be classified by their crystallographic character and correlated with void formation propensity.
  • Augmented EBSD maps can be processed further using the full range of MTEX analysis tools.
  • Correlative workflows become feasible without manual alignment steps for each dataset.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar alignment techniques could be applied to other combinations of microscopy techniques, such as EBSD with optical micrographs or chemical maps.
  • The open implementation may allow users to adapt the matching for specific sample types or imaging conditions not covered in the examples.
  • By enabling these measurements, the method supports statistical studies over many grains or boundaries that were previously impractical.
  • Reproducibility of correlative EBSD studies could improve due to the automated nature of the alignment.

Load-bearing premise

The image matching algorithm produces alignments with errors small enough not to affect the accuracy of the quantitative measurements demonstrated in the case studies.

What would settle it

Repeating the case study analyses with independently verified manual alignments and finding statistically significant differences in the reported phase fractions or boundary susceptibilities would indicate the automatic method is insufficient.

read the original abstract

TrueEBSD is an open-source MATLAB program for image alignment and spatial distortion correction of images and electron backscatter diffraction (EBSD) maps. We have re-implemented TrueEBSD as an add-on to MTEX, an established toolbox for EBSD data analysis. Spatial alignment enables correlative analysis methods, such as augmenting EBSD orientation maps with data from other imaging modes. The augmented EBSD maps can then be analysed further using MTEX. We demonstrate TrueEBSD on two example case studies: one for measuring Co phase fraction and WC contiguity in a WC-Co composite, and another for determining the relative susceptibility of grain boundaries to void formation in a copper polycrystal. In both examples, the EBSD map was augmented with scanning electron microscopy (SEM) image data. This enabled quantitative crystallographic measurements which would not be possible from analysing the EBSD maps and images separately.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript describes the re-implementation of TrueEBSD as an MTEX add-on for automatic image matching and spatial distortion correction between EBSD maps and other modalities such as SEM images. It demonstrates the approach on two case studies (WC-Co composite phase/contiguity analysis and copper grain-boundary void susceptibility), claiming that the resulting augmented maps enable quantitative crystallographic measurements impossible from separate EBSD or image analysis.

Significance. If the automatic registration and distortion correction achieve pixel-scale accuracy, the MTEX integration would provide a reproducible, open-source route to correlative microscopy that combines orientation data with microstructural images for boundary-sensitive metrics. The software contribution itself is a clear strength for the community.

major comments (1)
  1. [Case studies] Case studies section: no residual alignment error (pixels or nm), no comparison against manual landmark registration, and no sensitivity test are reported showing how the key outputs (WC contiguity, phase fractions, grain-boundary void susceptibility) vary under plausible sub-pixel misalignments. These quantities depend on precise boundary localization; without such metrics the claim that the measurements are now possible rests on an unverified assumption about registration quality.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback and positive view of the software contribution. We address the single major comment below.

read point-by-point responses

  1. Referee: [Case studies] Case studies section: no residual alignment error (pixels or nm), no comparison against manual landmark registration, and no sensitivity test are reported showing how the key outputs (WC contiguity, phase fractions, grain-boundary void susceptibility) vary under plausible sub-pixel misalignments. These quantities depend on precise boundary localization; without such metrics the claim that the measurements are now possible rests on an unverified assumption about registration quality.

    Authors: We agree that the manuscript would be strengthened by quantitative validation of registration accuracy. The current text demonstrates alignment quality through visual overlays of the registered EBSD and SEM data but does not report residual error statistics, a manual-landmark benchmark, or sensitivity of the derived metrics to sub-pixel shifts. In the revised manuscript we will add these elements to the Case Studies section: (i) root-mean-square residual on the inlier feature points (in pixels and nm), (ii) a side-by-side comparison of the automatic TrueEBSD result with a manual landmark registration for at least one case study, and (iii) a sensitivity test in which controlled sub-pixel translations are applied to the registered images and the resulting changes in WC contiguity, phase fraction, and grain-boundary void susceptibility are quantified. These additions directly address the concern that the quantitative claims rest on an unverified assumption. revision: yes

Circularity Check

0 steps flagged

No circularity: paper is a software implementation with case-study demonstrations, not a derivation chain

full rationale

The manuscript presents an open-source MTEX add-on for image alignment and distortion correction, followed by two example applications (WC-Co composite and copper polycrystal). No equations, first-principles derivations, fitted parameters, or predictions appear in the provided text. The central claim—that alignment enables quantitative measurements impossible from separate analysis—is supported by demonstration rather than by any self-referential reduction. No self-citations, ansatzes, or uniqueness theorems are invoked as load-bearing steps. The reader's assessment of score 0.0 is confirmed; the skeptic's concern about unquantified alignment error is a validation gap, not a circularity issue.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a software tool paper; the central claim rests on the described implementation and two example applications rather than any mathematical derivation or physical model.
