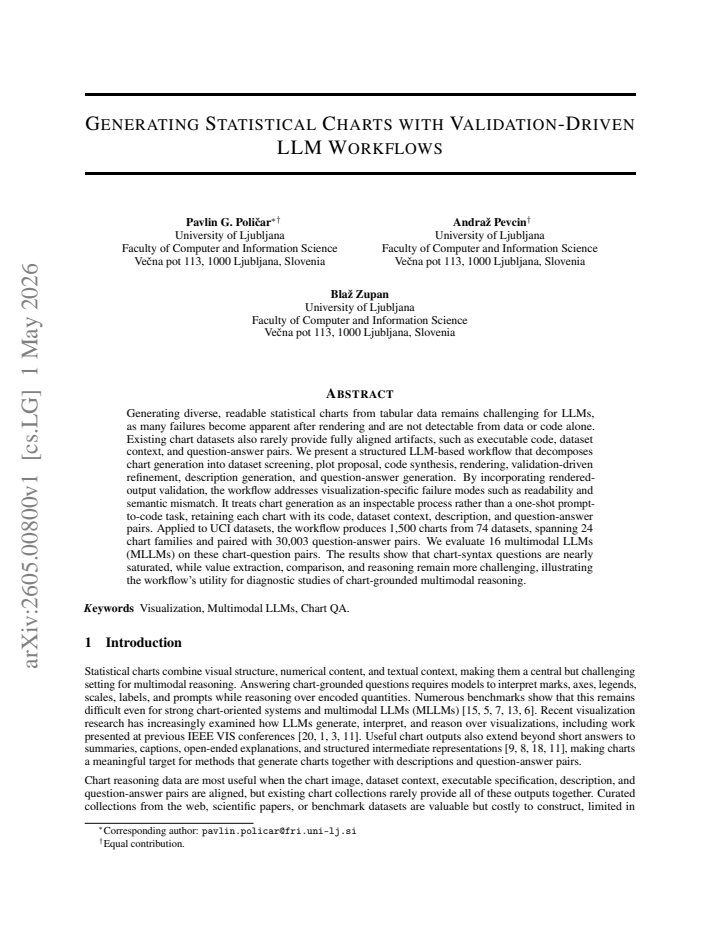

Generating Statistical Charts with Validation-Driven LLM Workflows

Pavlin G. Poli\v{c}ar , Andra\v{z} Pevcin , Bla\v{z} Zupan This is my paper

Pith reviewed 2026-05-09 19:47 UTC · model grok-4.3

classification 💻 cs.LG
keywords statistical chartsLLM workflowsvalidation-driven refinementmultimodal LLMschart question answeringUCI datasetsdata visualizationrendering validation
0
0 comments X

The pith

A validation-driven workflow turns tabular data into aligned statistical charts and exposes limits in multimodal chart reasoning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a multi-step LLM workflow for generating statistical charts that includes a validation step on the rendered image to catch problems like bad readability or mismatched meaning that are invisible in the code or data. This approach generates a large collection of 1500 charts from 74 UCI datasets across 24 chart types, each accompanied by executable code, context, descriptions, and 30003 question-answer pairs. A reader would care because one-shot chart generation often fails in ways that only show up visually, and this method creates reusable, inspectable artifacts instead. The evaluation of 16 multimodal models on the resulting questions shows that basic syntax is easy but deeper reasoning tasks are not, demonstrating how the dataset can diagnose model weaknesses in chart understanding.

Core claim

By decomposing chart generation into dataset screening, plot proposal, code synthesis, rendering, validation-driven refinement, description generation, and question-answer generation, the workflow produces 1500 charts spanning 24 families from 74 UCI datasets, each retained with its code, dataset context, description, and question-answer pairs. Evaluation on 16 MLLMs reveals that chart-syntax questions are nearly saturated while value extraction, comparison, and reasoning tasks remain challenging.

What carries the argument

The rendered-output validation step within the structured LLM workflow that detects and corrects visualization failures.

If this is right

  • The workflow reliably produces diverse and readable charts with full alignments for research use.
  • Multimodal LLMs perform well on syntax but struggle with extracting values, comparisons, and reasoning from charts.
  • The resulting dataset of 1500 charts and 30003 QA pairs supports diagnostic evaluation of chart-grounded reasoning.
  • Chart generation can be treated as an inspectable, iterative process rather than a single prompt.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such workflows could extend to generating charts from non-tabular data sources.
  • The QA pairs could serve as training data to improve model performance on chart reasoning tasks.
  • Applying the method to additional datasets might uncover patterns in which chart types are hardest for current models.

Load-bearing premise

The validation of rendered chart images can consistently identify and fix issues such as poor readability and semantic mismatch that are not apparent from the data or code.

What would settle it

Human inspection finding many generated charts with persistent readability problems despite the validation step, or MLLM evaluations not showing the expected gaps in reasoning capabilities.

Figures

Figures reproduced from arXiv: 2605.00800 by Andra\v{z} Pevcin, Bla\v{z} Zupan, Pavlin G. Poli\v{c}ar.

Figure 1
Figure 1. Figure 1: Three outputs generated by the proposed workflow. Each panel pairs a statistical chart generated from a [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic overview of the structured LLM-based generation workflow. The pipeline separates dataset [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Evaluation accuracy across all 16 models. The left panel shows overall accuracy for each model, while the [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Question-type and chart-family effects after centering each group against each model’s own overall accuracy. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Generating diverse, readable statistical charts from tabular data remains challenging for LLMs, as many failures become apparent after rendering and are not detectable from data or code alone. Existing chart datasets also rarely provide fully aligned artifacts, such as executable code, dataset context, and question-answer pairs. We present a structured LLM-based workflow that decomposes chart generation into dataset screening, plot proposal, code synthesis, rendering, validation-driven refinement, description generation, and question-answer generation. By incorporating rendered-output validation, the workflow addresses visualization-specific failure modes such as readability and semantic mismatch. It treats chart generation as an inspectable process rather than a one-shot prompt-to-code task, retaining each chart with its code, dataset context, description, and question-answer pairs. Applied to UCI datasets, the workflow produces 1,500 charts from 74 datasets, spanning 24 chart families and paired with 30,003 question-answer pairs. We evaluate 16 multimodal LLMs (MLLMs) on these chart-question pairs. The results show that chart-syntax questions are nearly saturated, while value extraction, comparison, and reasoning remain more challenging, illustrating the workflow's utility for diagnostic studies of chart-grounded multimodal reasoning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a structured LLM-based workflow for generating statistical charts from tabular data that incorporates rendered-output validation to address issues like readability and semantic mismatch not detectable from code or data alone. The workflow is applied to 74 UCI datasets to create a dataset of 1,500 charts spanning 24 families, each accompanied by executable code, dataset context, descriptions, and 30,003 question-answer pairs. The authors evaluate 16 multimodal LLMs on these chart-QA pairs, finding that syntax-related questions are nearly solved while value extraction, comparison, and reasoning tasks remain challenging.

Significance. If the validation process is shown to be reliable, this work provides a valuable, large-scale, fully-aligned chart dataset that can serve as a benchmark for multimodal chart understanding and reasoning. It demonstrates the utility of iterative, inspectable generation processes over one-shot approaches and highlights specific limitations in current MLLMs for chart-grounded tasks. The scale (1,500 charts, 30k QA pairs) and diversity (24 chart families) are notable strengths.

major comments (2)
  1. [Workflow description (Section 3)] The central claim that rendered-output validation reliably catches visualization-specific failures (readability, semantic mismatch) invisible from code or data rests on an unverified assumption. No quantitative validation accuracy metrics, human agreement rates, inter-rater statistics, or rejection-rate breakdowns are reported for the validation step, making it impossible to determine whether the retained 1,500 charts are representative or the result of self-filtering bias.
  2. [Evaluation (Section 5)] The evaluation of 16 MLLMs reports that chart-syntax questions are nearly saturated while value extraction, comparison, and reasoning remain challenging. However, without baseline comparisons (e.g., to non-LLM chart QA systems) or details on how the 30,003 QA pairs were generated and balanced across chart families, the diagnostic utility of the dataset for these specific failure modes cannot be fully assessed.
minor comments (2)
  1. [Abstract] The abstract states that the workflow produces 'high-level evaluation outcomes' but the manuscript should include concrete quantitative results (e.g., per-question-type accuracies) to support the saturation and challenge claims.
  2. [Dataset construction] Clarify the distribution of the 30,003 question-answer pairs across the 1,500 charts and 24 families to allow readers to evaluate balance and potential skew toward easier chart types.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of the validation process and evaluation that we will clarify and strengthen. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Workflow description (Section 3)] The central claim that rendered-output validation reliably catches visualization-specific failures (readability, semantic mismatch) invisible from code or data rests on an unverified assumption. No quantitative validation accuracy metrics, human agreement rates, inter-rater statistics, or rejection-rate breakdowns are reported for the validation step, making it impossible to determine whether the retained 1,500 charts are representative or the result of self-filtering bias.

    Authors: We acknowledge that the current manuscript does not provide quantitative metrics such as validation accuracy, human agreement rates, or inter-rater statistics for the rendered-output validation step. The validation procedure in Section 3 employs an LLM judge guided by explicit criteria targeting readability issues and semantic mismatches that cannot be detected from code or data alone. To address the concern, we will add rejection-rate breakdowns by failure category and representative examples of rejected charts to the revised Section 3 and appendix. We maintain that the iterative, inspectable nature of the workflow improves quality over one-shot generation; the final set spans 24 families from 74 diverse UCI datasets, which supports broad coverage rather than narrow self-filtering. We will also add a brief discussion of potential limitations arising from the absence of human validation studies. revision: partial

  2. Referee: [Evaluation (Section 5)] The evaluation of 16 MLLMs reports that chart-syntax questions are nearly saturated while value extraction, comparison, and reasoning remain challenging. However, without baseline comparisons (e.g., to non-LLM chart QA systems) or details on how the 30,003 QA pairs were generated and balanced across chart families, the diagnostic utility of the dataset for these specific failure modes cannot be fully assessed.

    Authors: Section 4 already outlines the QA generation process, which uses category-specific templates (syntax, value extraction, comparison, reasoning) applied uniformly across charts to produce the 30,003 pairs. We will expand this description with explicit balancing statistics per chart family and include the full generation prompts in the appendix. Regarding baselines, the paper focuses on diagnosing limitations in current multimodal LLMs rather than comparing against traditional non-LLM systems. We agree that a simple non-LLM baseline (e.g., heuristic or rule-based QA) would enhance the diagnostic framing, and we will add such a comparison to Section 5 in the revision. revision: partial

Circularity Check

0 steps flagged

No circularity: purely descriptive empirical workflow with no derivations or self-referential predictions

full rationale

The paper presents an LLM-based workflow for generating charts from UCI datasets, including steps like dataset screening, code synthesis, rendering, validation, and QA pair creation. It produces 1,500 charts and evaluates MLLMs on them. There are no mathematical equations, fitted parameters, predictions derived from inputs, or self-citations that bear the central claim. The workflow is described as an inspectable process using rendered-output validation, but this is presented as an empirical method without reducing to self-definition or fitted inputs by construction. The result is self-contained as a descriptive contribution with independent content in the generated dataset and evaluation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The workflow rests on the assumption that current LLMs can be reliably prompted for subtasks including visual validation; no free parameters, new entities, or additional axioms are introduced beyond standard LLM use and existing UCI data.

axioms (1)
  • domain assumption LLMs can perform subtasks such as code synthesis and rendered-image validation when given appropriate prompts
    This is the core premise enabling the multi-step workflow described in the abstract.

pith-pipeline@v0.9.0 · 5520 in / 1278 out tokens · 102610 ms · 2026-05-09T19:47:08.509094+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

  1. [1]

    N. Chen, Y . Zhang, J. Xu, K. Ren, and Y . Yang. Viseval: A benchmark for data visualization in the era of large language models.IEEE Transactions on Visualization and Computer Graphics, 31(1):1301–1311, 2025

    work page 2025

  2. [2]

    X. Chen, L. Gong, A. Cheung, and D. Song. PlotCoder: Hierarchical decoding for synthesizing visualization code in programmatic context. In C. Zong, F. Xia, W. Li, and R. Navigli, editors,Proceedings of the 59th Annual Meeting of the Association for Computational Linguistics and the 11th International Joint Conference on Natural Language Processing (Volume...

    work page 2021

  3. [3]

    Y . Cui, L. W. Ge, Y . Ding, L. Harrison, F. Yang, and M. Kay. Promises and pitfalls: Using large language models to generate visualization items.IEEE Transactions on Visualization and Computer Graphics, 31(1):1094–1104, 2025

    work page 2025

  4. [4]

    Y . Han, C. Zhang, X. Chen, X. Yang, Z. Wang, G. Yu, B. Fu, and H. Zhang. Chartllama: A multimodal llm for chart understanding and generation, 2023

    work page 2023

  5. [5]

    Hoque, P

    E. Hoque, P. Kavehzadeh, and A. Masry. Chart question answering: State of the art and future directions. Computer Graphics Forum, 41(3):555–572, 2022
