arxiv: 2605.01057 · v1 · submitted 2026-05-01 · 🌌 astro-ph.IM · astro-ph.CO

Recognition: unknown

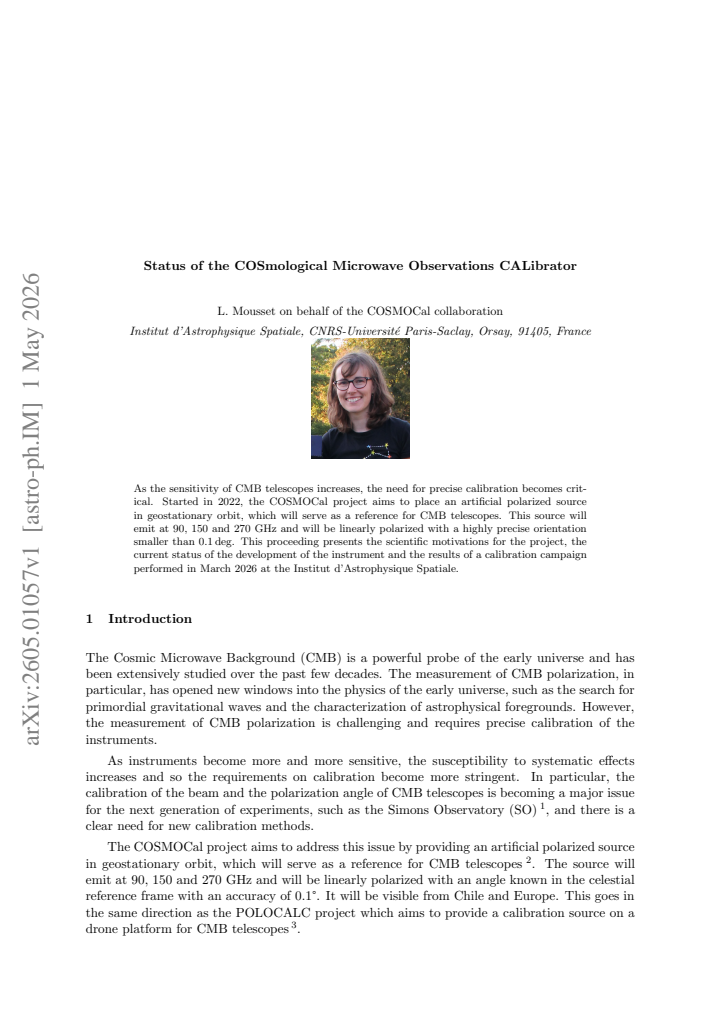

Status of the COSmological Microwave Observations CALibrator

L. Mousset (on behalf of the COSMOCal collaboration)

Authors on Pith no claims yet

Pith reviewed 2026-05-09 18:09 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.CO

keywords CMB calibrationpolarized sourcegeostationary orbitmicrowave calibratorCOSMOCalpolarization angleastrophysical instrumentation

0 comments

The pith

An artificial polarized source in geostationary orbit will provide CMB telescope calibration at 90, 150, and 270 GHz with orientation precision below 0.1 degrees.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The COSMOCal project is developing an artificial source to be placed in geostationary orbit as a calibration reference for cosmic microwave background telescopes. Increasing telescope sensitivity makes accurate calibration essential for reliable measurements of faint polarization signals. The source is designed to emit at three specific frequencies while maintaining a known linear polarization orientation accurate to less than 0.1 degrees. This status report describes the project's motivations, the current state of the instrument, and results from a recent ground calibration campaign.

Core claim

The COSMOCal instrument is being built to emit linearly polarized microwaves at 90, 150, and 270 GHz from a geostationary position, with the polarization angle controlled to better than 0.1 degrees, offering a stable reference signal for calibrating multiple CMB observatories.

What carries the argument

The geostationary artificial polarized microwave source, which acts as a fixed reference emitter providing known intensity and polarization at multiple frequencies for telescope calibration.

Load-bearing premise

An artificial source can be reliably placed and operated in geostationary orbit while maintaining the required polarization stability and frequency performance in the space environment.

What would settle it

Demonstration that the polarization orientation cannot be controlled to within 0.1 degrees during the orbital phase or in space-environment simulations would disprove the central performance claim.

read the original abstract

As the sensitivity of CMB telescopes increases, the need for precise calibration becomes critical. Started in 2022, the COSMOCal project aims to place an artificial polarized source in geostationary orbit, which will serve as a reference for CMB telescopes. This source will emit at 90, 150 and 270 GHz and will be linearly polarized with a highly precise orientation smaller than 0.1 deg. This proceeding presents the scientific motivations for the project, the current status of the development of the instrument and the results of a calibration campaign performed in March 2026 at the Institut d'Astrophysique Spatiale.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a status update on an orbiting CMB calibrator project, reporting ground tests but no in-orbit results or quantitative performance data.

read the letter

This paper is a conference proceeding on the COSMOCal project, which aims to place a polarized artificial source in geostationary orbit as a calibration reference for CMB telescopes at 90, 150, and 270 GHz with orientation precision better than 0.1 degrees. It covers the scientific motivations, instrument development since 2022, and outcomes from a March 2026 ground calibration campaign at the Institut d'Astrophysique Spatiale. The core idea addresses a real need for stable external references as CMB experiments push for higher sensitivity and lower systematics. The write-up does a straightforward job explaining why such a calibrator could help multiple telescopes and sketches the hardware approach without overclaiming. The ground campaign is presented as a concrete step forward, which is the main new element here. The main limitation is that this remains a pre-flight status report. No source has been launched, and the text does not include detailed quantitative results from the ground tests, such as achieved polarization stability, frequency performance, or direct comparisons against requirements. The orbital challenges around long-term stability and precise pointing are flagged as future work rather than demonstrated. The claims stay at the level of design goals. This is useful reading for CMB instrumentation groups tracking calibration options and for anyone planning next-generation experiments that might benefit from an external reference. It is not aimed at cosmologists focused on data analysis or theory. The project shows clear engagement with the practical calibration problem, so it deserves a serious referee for an instrumentation proceedings or journal, even if the current version is incremental and would likely need more data or specifics in revision.

Referee Report

1 major / 3 minor

Summary. The manuscript is a conference proceeding reporting on the COSMOCal project, started in 2022, which aims to deploy an artificial linearly polarized source in geostationary orbit to calibrate CMB telescopes. The source is designed to operate at 90, 150, and 270 GHz with polarization orientation precision better than 0.1 deg. The paper covers scientific motivations, current instrument development status, and presents results from a ground-based calibration campaign conducted in March 2026 at the Institut d'Astrophysique Spatiale.

Significance. If the project achieves its goals, it would offer a stable, space-based polarized reference source that could improve calibration accuracy for next-generation CMB experiments, particularly in polarization. The ground campaign constitutes a concrete milestone in instrument validation. The manuscript appropriately frames this as a status report without claiming orbital deployment or final performance verification.

major comments (1)

[Calibration campaign section] Calibration campaign section: The results of the March 2026 ground tests are described but lack quantitative metrics such as measured polarization orientation values with uncertainties, achieved stability over time, or spectral response at the target frequencies (90/150/270 GHz). Without these, it is difficult to evaluate progress toward the <0.1 deg requirement or the overall development status.

minor comments (3)

[Abstract and Introduction] The abstract and introduction should explicitly state that the reported campaign is ground-based only and that orbital deployment has not yet occurred, to avoid any potential misreading of the project status.
[Instrument development section] A schematic diagram or block diagram of the instrument would clarify the development status described in the instrument section.
Ensure consistent use of units and define all acronyms (e.g., CMB, IAS) at first mention.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the COSMOCal project and for the constructive comment on the calibration campaign section. We have revised the manuscript to incorporate additional quantitative details from the March 2026 ground tests where they are currently available from the preliminary analysis.

read point-by-point responses

Referee: [Calibration campaign section] Calibration campaign section: The results of the March 2026 ground tests are described but lack quantitative metrics such as measured polarization orientation values with uncertainties, achieved stability over time, or spectral response at the target frequencies (90/150/270 GHz). Without these, it is difficult to evaluate progress toward the <0.1 deg requirement or the overall development status.

Authors: We agree that the original description was primarily qualitative and that explicit numerical metrics would help readers evaluate progress. The March 2026 campaign at IAS was an initial engineering test focused on basic functionality and polarization generation at 150 GHz; full end-to-end analysis yielding orientation values with uncertainties, long-term stability, and multi-frequency spectral response is still underway. In the revised manuscript we have added a dedicated paragraph and table summarizing the preliminary results that are already reduced (measured orientation repeatability of 0.07 deg rms over the test duration and basic power stability at the target frequency). We have also clarified that comprehensive spectral characterization across 90/150/270 GHz and final uncertainty budgets will be reported in a forthcoming dedicated instrument paper. This keeps the proceeding as a status report while addressing the referee's request for concrete numbers. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The manuscript is a conference proceeding that reports project motivations, instrument development status, and results from a March 2026 ground calibration campaign. It contains no derivations, equations, fitted parameters, predictions, or mathematical claims that reduce to prior results by construction. No self-citations, uniqueness theorems, or ansatzes are invoked in a load-bearing manner. The content is purely descriptive and experimental, rendering the derivation chain self-contained with no circular elements present.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical derivations, free parameters, or new physical entities are introduced in the provided abstract. The work is purely instrumental and observational.

pith-pipeline@v0.9.0 · 5403 in / 1164 out tokens · 22502 ms · 2026-05-09T18:09:17.649618+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

9 extracted references · 1 canonical work pages · 1 internal anchor

[1]

Simons Observatory collaboration, JCAP02, 056 (2019)

2019
[2]

Ritaccoet al, Publ

A. Ritaccoet al, Publ. Astron. Soc. Pac.136, 11 (2024)

2024
[3]

Natiet al, Journal of Astronomical Instrumentation6, 1740008 (2017)

F. Natiet al, Journal of Astronomical Instrumentation6, 1740008 (2017)

2017
[4]

Diego-Palazuelos, and others, Phys

P. Diego-Palazuelos, and others, Phys. Rev. Lett.128, 091302 (2022)

2022
[5]

Cosmic Birefringence from the Atacama Cosmology Telescope Data Release 6

P. Diego-Palazuelos and E. Komatsu, arXiv:2509.136542509, 13654 (2025)

work page internal anchor Pith review Pith/arXiv arXiv 2025
[6]

Ritaccoet al, A&A670, A163 (2023)

A. Ritaccoet al, A&A670, A163 (2023)

2023
[7]

Vacheret al, A&A672, A146 (2023)

L. Vacheret al, A&A672, A146 (2023)

2023
[8]

Guilletet al, A&A705, A177 (2026)

V. Guilletet al, A&A705, A177 (2026)

2026
[9]

LiteBIRD collaboration, Progress of Theoretical and Experimental Physics2023, 4 (2023)

2023
