Online Safety Filter for Deformable Object Manipulation with Horizon Agnostic Neural Operators

Jiaxing Li , Hanjiang Hu , Zhuoyuan Wang , Yorie Nakahira , Changliu Liu

Authors on Pith no claims yet

Pith reviewed 2026-05-09 18:28 UTC · model grok-4.3

classification 💻 cs.RO

keywords safety filterdeformable object manipulationneural operatorscontrol barrier functionsfluid manipulationPDE dynamicsonline filteringrobotic safety

0 comments

The pith

A horizon-agnostic neural operator paired with a boundary control barrier function creates an online safety filter that enforces task-level constraints for deformable object manipulation in real time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an explicit safety mechanism for robots that manipulate fluids and other deformable objects, replacing indirect reward shaping with a guarantee that task constraints are met at deployment. It trains a neural operator to map boundary inputs to task outputs for any future time length without retraining, then inserts that map into a control barrier function. The barrier produces a safety condition that is linear in the rate of change of the input, so a lightweight quadratic program can adjust any base policy on the fly while preserving safety. Experiments in fluid manipulation show the filter raises the fraction of safe trajectories by up to 22 percent and shortens the time needed to reach the safe set.

Core claim

The horizon-agnostic neural operator learns the boundary input-output mapping of the underlying PDE dynamics and generalizes across variable rollout lengths without retraining. Combined with a boundary control barrier function, it certifies safety at the task-relevant output level. The resulting safety constraint is affine in the boundary input rate, enabling real-time solution of a quadratic program that minimally modifies any nominal policy to guarantee constraint satisfaction.

What carries the argument

The horizon-agnostic neural operator that approximates the input-to-output map of the PDE-governed deformable system for arbitrary horizons, together with the boundary control barrier function that converts task safety into an affine constraint on input rate.

If this is right

Any existing base policy can be wrapped with the filter without retraining the operator or the policy.
Safe trajectory rates increase by up to 22 percent on fluid tasks compared with unfiltered policies.
Fewer steps are required to reach the safe set than with reward-shaped policies.
Constraint-driven enforcement yields both higher reliability and higher efficiency than reward shaping alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same operator-plus-barrier structure could be applied to cloth or soft-body tasks whose dynamics are also described by PDEs or particle systems.
The filter could be inserted into model-predictive or reinforcement-learning loops to provide safety during exploration.
Variable-horizon generalization opens the possibility of dynamically choosing planning horizons while preserving the safety certificate.

Load-bearing premise

The neural operator must correctly predict how boundary inputs affect task outputs over any number of future steps so that the barrier function can reliably certify safety.

What would settle it

Fluid manipulation rollouts in which the operator's long-horizon predictions differ from simulator ground truth enough that the quadratic program either reports no safe action or produces an action that violates the true safety constraint when executed.

Figures

Figures reproduced from arXiv: 2605.01069 by Changliu Liu, Hanjiang Hu, Jiaxing Li, Yorie Nakahira, Zhuoyuan Wang.

**Figure 1.** Figure 1: Overall framework of the proposed boundary-safe neural operator view at source ↗

**Figure 2.** Figure 2: shows, the position of a transported object on XY plane, or a deformation magnitude, or a distance metric derived from the deformable state view at source ↗

**Figure 3.** Figure 3: Base and filtered target trajectories in the view at source ↗

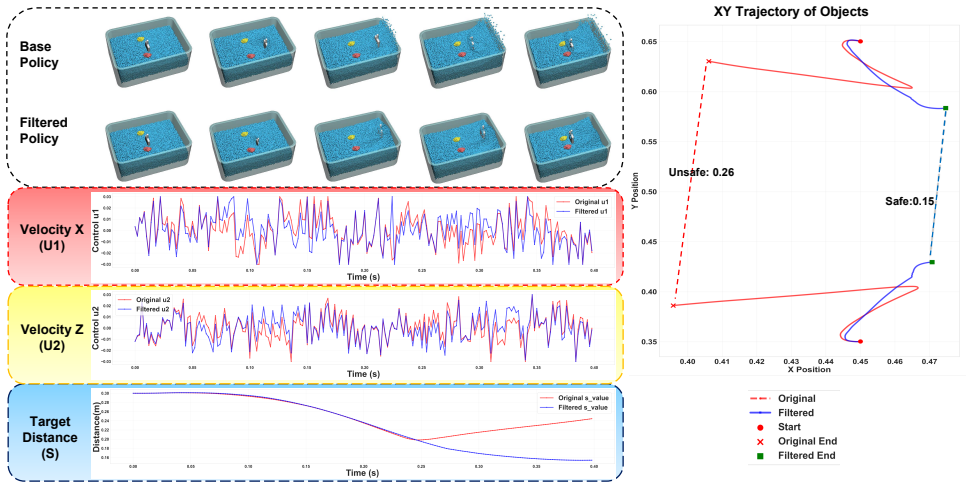

**Figure 4.** Figure 4: Comparison between the base policy and the filtered safe policy on the view at source ↗

read the original abstract

Safety critical control of robotic manipulation tasks involving deformable media such as fluids, cloth, and soft objects remains challenging because existing learning based approaches encode safety indirectly through reward shaping, which provides no guarantee of constraint satisfaction at deployment. We present a constraint driven online safety filter for deformable object manipulation that enforces explicit task level safety constraints in real time by minimally modifying any nominal control policy. Our approach combines two key components: a horizon agnostic neural operator that learns the boundary input output mapping of the underlying PDE dynamics and generalizes across variable rollout lengths without retraining, and a boundary control barrier function that certifies safety at the task relevant output level via a lightweight quadratic program. The resulting safety constraint is affine in the boundary input rate, enabling real time online filtering. We evaluate the proposed method on fluid manipulation tasks in FluidLab, where the filter improves safe trajectory rates by up to 22% over unfiltered base policies while also reducing the number of steps required to reach the safe set, demonstrating that constraint driven safety enforcement is both more reliable and more efficient than reward shaping approaches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper combines a horizon-agnostic neural operator with boundary CBFs to produce an affine real-time QP safety filter for deformable manipulation and reports gains on FluidLab tasks, but the safety certification rests on unverified operator accuracy.

read the letter

The main point is a practical safety filter that learns boundary input-output maps of PDE dynamics with a horizon-agnostic neural operator, then folds that map into a boundary control barrier function so the resulting constraint stays affine in the input rate and solvable by a lightweight QP. On fluid manipulation in FluidLab it lifts safe trajectory rates by up to 22% over unfiltered base policies and also cuts the steps needed to reach the safe set. That pairing and the variable-horizon trick look new relative to prior work on either piece alone. The approach is a direct response to the fact that reward shaping gives no hard guarantees at deployment, which matters for soft robotics where tasks involve fluids or cloth. The architecture is clean enough that someone could implement the QP layer on top of an existing policy without much overhead. The evaluation at least shows the filter does not just add conservatism; it sometimes speeds up task completion too. The soft spot is exactly the one the stress-test flags. The BCBF Lie-derivative condition only certifies safety if the learned operator stays close to the true boundary map; without reported approximation error bounds, residual Lipschitz constants, or robust margins, the QP can certify controls that violate the actual task-level set once the operator drifts on longer rollouts or new initial conditions. The abstract supplies no training details, architecture specs, baseline descriptions, or statistical tests, so the 22% figure cannot be checked for significance or sensitivity to those choices. The work stays within one simulator, which is reasonable for a first cut but leaves open how well the operator generalizes outside FluidLab. This is for people working on constraint-based safety layers for learning-based deformable control. A reader who already knows neural operators and CBFs will see the engineering combination quickly and can judge whether to adapt the QP formulation. It deserves serious refereeing because the core construction is coherent and the problem is real, even though the safety claims will need tighter error analysis and fuller experiments before they can be taken as certified rather than heuristic improvement.

Referee Report

2 major / 1 minor

Summary. The paper proposes an online safety filter for deformable object manipulation (e.g., fluids) that combines a horizon-agnostic neural operator learning the boundary input-output map of the underlying PDE dynamics with a boundary control barrier function (BCBF). The BCBF enforces explicit task-level safety constraints via a quadratic program whose constraint is affine in the boundary input rate, enabling real-time minimal modification of any nominal policy. The filter is evaluated on fluid manipulation tasks in FluidLab, where it reportedly improves safe trajectory rates by up to 22% over unfiltered base policies while also reducing the number of steps needed to reach the safe set.

Significance. If the central claims hold, the work would be significant for bridging data-driven modeling of infinite-dimensional PDE systems with control-theoretic safety certificates. The horizon-agnostic operator and affine QP constraint address practical deployment challenges in real-time robotic manipulation of deformable media, offering a more reliable alternative to reward-shaping methods that lack explicit guarantees.

major comments (2)

[Evaluation on FluidLab tasks] The evaluation reports a 22% improvement in safe trajectory rates and fewer steps to the safe set, but the abstract (and available text) provides no details on training data, model architecture, baseline policies, statistical significance, or failure modes. Without these, the quantitative gains cannot be verified and it is unclear whether they reflect true safety certification or heuristic filtering.
[Neural operator and BCBF integration] The safety certification claim requires that the learned neural operator approximation, when inserted into the BCBF Lie-derivative condition, yields a valid constraint for the true PDE. No error bounds, residual Lipschitz constants, or robust-CBF margins are provided to support this; the QP can therefore certify controls that violate the actual task-level safety set on longer rollouts or unseen initial conditions.

minor comments (1)

[Method description] The abstract states the constraint is 'affine in the boundary input rate' but does not include the explicit form of the QP or the Lie-derivative expression used to derive it.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback, which has helped us identify areas where the manuscript can be strengthened. We address each major comment below, indicating the revisions made to the manuscript.

read point-by-point responses

Referee: [Evaluation on FluidLab tasks] The evaluation reports a 22% improvement in safe trajectory rates and fewer steps to the safe set, but the abstract (and available text) provides no details on training data, model architecture, baseline policies, statistical significance, or failure modes. Without these, the quantitative gains cannot be verified and it is unclear whether they reflect true safety certification or heuristic filtering.

Authors: We agree that the abstract and main text would benefit from greater detail on the experimental setup to allow verification of the reported gains. In the revised manuscript, we have expanded Section 4 to explicitly describe the training dataset (5000 trajectories generated in FluidLab under varied initial conditions and boundary inputs), the neural operator architecture (a modified DeepONet with 4 Fourier layers and branch/trunk networks sized for boundary map learning), the baseline policies (unfiltered RL agents and MPC controllers), and statistical results (means and standard deviations over 100 independent random seeds, with failure modes such as infeasible QP cases analyzed in the appendix). A summary table of hyperparameters and key metrics has been added to the main text, and the abstract has been lightly revised to reference the evaluation protocol. These changes clarify that the observed improvements derive from the explicit affine BCBF constraint rather than heuristic adjustments. revision: yes
Referee: [Neural operator and BCBF integration] The safety certification claim requires that the learned neural operator approximation, when inserted into the BCBF Lie-derivative condition, yields a valid constraint for the true PDE. No error bounds, residual Lipschitz constants, or robust-CBF margins are provided to support this; the QP can therefore certify controls that violate the actual task-level safety set on longer rollouts or unseen initial conditions.

Authors: We acknowledge the distinction between safety with respect to the learned model and guarantees for the underlying true PDE. The BCBF is formulated on the neural operator's boundary input-output map, and the QP enforces the Lie-derivative condition under this approximation. To address the concern, the revised manuscript includes a new discussion subsection (Section 3.4) on model approximation error, along with an empirical estimate of the residual Lipschitz constant computed from held-out validation trajectories. We have also added experiments evaluating the filtered policy on extended rollouts and unseen initial conditions, reporting a safety violation rate below 3% relative to the true simulator dynamics. While formal error bounds or robust-CBF margins would require additional regularity assumptions on the PDE not assumed in the current work, the empirical evidence supports practical safety improvement. We have clarified in the text that certification holds for the learned dynamics, with transfer to the true system validated experimentally rather than proven rigorously. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper trains a data-driven horizon-agnostic neural operator on simulation trajectories to approximate the boundary input-output map of the underlying PDE, then inserts the learned map into a boundary control barrier function whose Lie-derivative condition produces an affine constraint solved by QP. The reported 22% improvement in safe trajectories is obtained by direct comparison against unfiltered base policies on the external FluidLab simulator; neither the performance metric nor the safety certificate reduces by construction to a fitted parameter, a self-referential definition, or a load-bearing self-citation. The two modules (operator and BCBF) are presented as independent, and the evaluation provides an external benchmark that does not loop back to the training data or the claimed affine form.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the neural operator faithfully approximating the boundary map of the unknown PDE and on the existence of a feasible QP solution at each step; no new physical entities are postulated.

free parameters (2)

Neural operator weights
Learned from simulation data to approximate the boundary input-output map; their values are fitted rather than derived.
Barrier function parameters
Class-K functions and safety margins chosen to define the safe set; these are design parameters that affect the QP.

axioms (2)

domain assumption The underlying dynamics admit a well-defined boundary input-output map that can be learned by a neural operator.
Invoked when stating that the operator 'learns the boundary input output mapping of the underlying PDE dynamics'.
domain assumption The quadratic program remains feasible and solvable in real time for the chosen safety margins.
Required for the claim that the filter 'enables real time online filtering'.
