arxiv: 2605.01102 · v1 · submitted 2026-05-01 · 💻 cs.AI · physics.ao-ph

Recognition: unknown

Towards Multi-Agent Autonomous Reasoning in Hydrodynamics

Jinpai Zhao , Albert Cerrone , Joannes Westerink , Clint Dawson

Authors on Pith no claims yet

Pith reviewed 2026-05-09 19:03 UTC · model grok-4.3

classification 💻 cs.AI physics.ao-ph

keywords multi-agent systemshydrodynamicslarge language modelscontext saturationLayer Execution Graphautonomous reasoningscientific workflowsagent orchestration

0 comments

The pith

Multi-agent coordination via a Layer Execution Graph cuts context saturation and reaches 93.6% factual precision on hydrodynamics queries.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that breaking scientific reasoning into specialized agents linked by a Layer Execution Graph lets large language models handle accumulating tool outputs and data traces without the reliability drop seen in single-agent systems. A reader would care because hydrodynamics and similar technical fields routinely require chaining many observations and calculations, where one long context window quickly becomes too crowded for accurate decisions. The system uses a planner to sketch task-specific graphs in natural language, assigns narrow roles to data-specialist agents, inserts consolidators to compress parallel results, and ends with a reporter that assembles the answer while logging every step. On 37 test queries of varying difficulty the setup delivered 93.6 percent factual precision, never failed a query, stayed above 90 percent even when run in parallel tracks, and still gave useful partial answers when individual data sources were removed. These outcomes indicate that graph-structured multi-agent routing can keep performance stable as workflow complexity grows.

Core claim

A planner agent builds query-specific execution topologies from natural-language routing heuristics; specialist agents operate under strict tool allowlists in complementary data-class roles; consolidator agents fuse parallel outputs into concise briefs; a reporter agent produces the final response; and every tool call is logged for provenance. When evaluated on 37 queries across six complexity categories with Claude Sonnet 4.6, the prototype records 93.6 percent factual precision and a 100 percent pass rate. Performance remains above 90 percent from single-threaded to five parallel tracks and degrades gracefully under simulated loss of individual data sources.

What carries the argument

The Layer Execution Graph (LEG), which lets a planner agent construct query-specific topologies from natural-language heuristics so that specialist agents, consolidators, and a reporter can operate in layered, auditable sequence without a single shared context window.

If this is right

Accuracy stays above 90 percent whether the system runs single-threaded or with five independent parallel tracks.
When one or more data sources are removed the system still returns substantive partial answers rather than failing.
Every tool invocation carries provenance logs that support later audit or replay.
Strict tool allowlists on specialist agents keep behavior bounded while the planner supplies domain knowledge only through natural-language heuristics.
The same layered structure can be reused across queries without hard-coding fixed control logic for each new problem.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The approach could transfer to other data-rich scientific domains such as climate modeling or structural engineering where multiple heterogeneous sources must be combined.
Domain experts could extend the system by editing the natural-language routing heuristics rather than rewriting code.
Larger-scale tests with different backbone models would show whether the precision gains depend on the specific model used here.
Adding real-time streaming data sources would test whether consolidators can maintain brevity and accuracy under continuous input.

Load-bearing premise

The Layer Execution Graph and consolidator agents reduce context saturation and error buildup without introducing coordination failures or hidden biases missed by the reported metrics.

What would settle it

A direct side-by-side run of the identical 37 queries on a single-agent baseline that shows materially lower factual precision or outright failures once context length grows, while the multi-agent version keeps its 93.6 percent score.

Figures

Figures reproduced from arXiv: 2605.01102 by Albert Cerrone, Clint Dawson, Jinpai Zhao, Joannes Westerink.

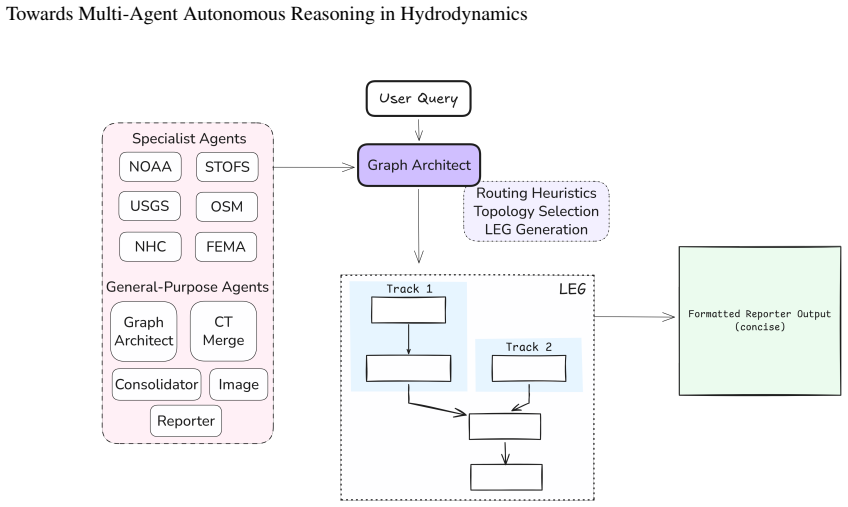

**Figure 1.** Figure 1: Diagram of MAS Prototype 3 Demonstration Following the roadmap in the Introduction—architecture, then illustration, then benchmarks—we now turn to qualitative behavior before the quantitative assessment in Section 4. To familiarize the reader with the general operation of the MAS prototype, we present four use-cases. 3.1 Single Specialist Agent, Single Track We first consider a relatively simple user query… view at source ↗

**Figure 2.** Figure 2: Example of one-track LEG with a single specialist agent. view at source ↗

**Figure 3.** Figure 3: 3.3 Parallel Tracks We now consider the following multi-part query: “What is the observed storm surge from Hurricane Ian in Fort Myers, the total number of storms in HURDAT2 in 2011, the FEMA flood map guidance for Miami for a category 3 storm, and the average total water level in Seattle in May 2025?" The Graph Architect immediately allocated four parallel tracks, one for each of the four independent ques… view at source ↗

**Figure 3.** Figure 3: Example of one-track LEG with multiple specialist agents. view at source ↗

**Figure 5.** Figure 5: Additionally, because both agents in the layer generate images, the view at source ↗

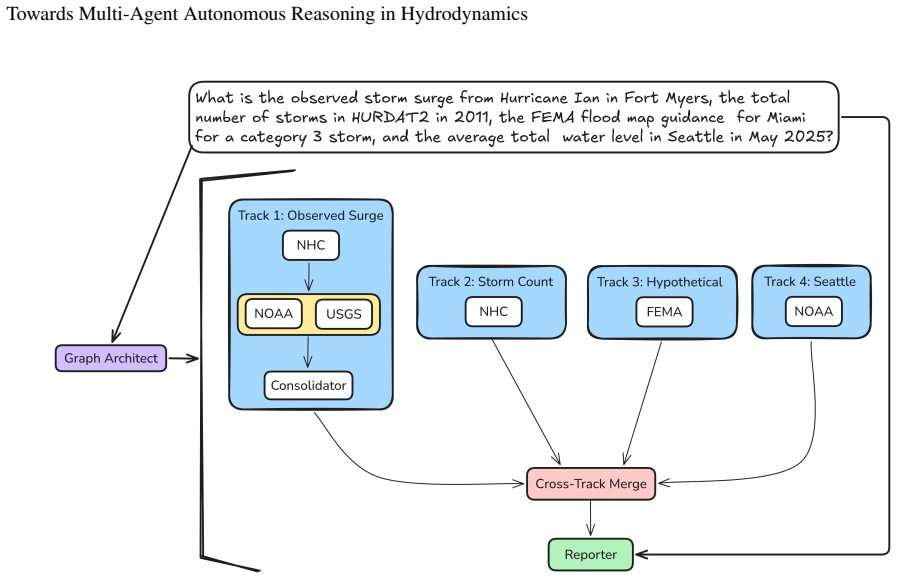

**Figure 4.** Figure 4: Example of four-track LEG. means to draw context out of STOFS output (via contour plots of total water level), effectively condensing hundreds of megabytes of data per time frame into a narrative complete with geographic references. The LLM’s base knowledge obviously contributes to this referencing, but the Image agent actually references a labeled OSM basemap together with the STOFS plot, meaning that rep… view at source ↗

**Figure 5.** Figure 5: Example of image understanding. • Source Attribution scores how well the processing pipeline cites its data sources. For surge queries this decomposes into four equally weighted components (station ID, vertical datum, temporal reference, and authoritative source name) evaluated across the combined text of the Consolidator, Cross-Track Merge, and Reporter outputs, so that technical details retained in inter… view at source ↗

read the original abstract

Single-agent systems (SAS) have become the default pattern for LLM-driven scientific workflows, but routing planning, tool use, and synthesis through a single context window comes with a well-known cost: as tool specifications and observational traces accumulate, the effective context available for each decision shrinks, and end-to-end reliability suffers. We present a multi-agent system (MAS) prototype for hydrodynamics in which specialized agents are coordinated through a Layer Execution Graph (LEG). A planner agent constructs query-specific execution topologies from natural-language routing heuristics that capture domain knowledge without hard-coding it as rigid control logic; specialist agents operate under strict tool allowlists and occupy complementary data-class roles. Between layers, consolidator agents fuse parallel outputs into concise briefs, and a reporter agent synthesizes the final response, while the runtime logs provenance for every tool invocation to support auditability. All benchmarks, ablations, and stress tests use Claude Sonnet~4.6 as the backbone model for both specialist and general-purpose agents. Evaluated on 37 queries spanning six complexity categories, the prototype achieves 93.6% factual precision with a 100% pass rate. Accuracy remains above 90% across runs from single-threaded to five independent parallel tracks, and under simulated loss of individual data sources the system degrades gracefully, still returning substantive partial answers. Together, these results suggest that planner-guided, graph-structured multi-agent orchestration can meaningfully alleviate the context-saturation bottlenecks that constrain monolithic single-agent architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a concrete multi-agent graph setup for hydrodynamics queries and reports solid numbers, but the missing single-agent baseline leaves the core claim about context saturation untested.

read the letter

This work builds a planner-driven Layer Execution Graph that breaks hydrodynamics questions into specialist agents with tight tool lists, then uses consolidators to keep outputs short before the final reporter step. On 37 queries they hit 93.6% factual precision and a 100% pass rate, with accuracy staying high even when running in parallel or when one data source is dropped. The provenance logging for every tool call is a practical touch that makes the outputs easier to audit later.

Referee Report

2 major / 2 minor

Summary. The paper proposes a multi-agent system (MAS) prototype for hydrodynamics reasoning that uses a planner agent to build query-specific Layer Execution Graphs (LEG), specialist agents with tool allowlists, consolidator agents to fuse outputs, and a reporter agent for final synthesis. It claims this graph-structured orchestration alleviates context-saturation bottlenecks inherent to single-agent LLM systems. Using Claude Sonnet 4.6, the system is evaluated on 37 queries across six complexity categories, reporting 93.6% factual precision, 100% pass rate, >90% accuracy under single-threaded to five-parallel-track runs, and graceful degradation under simulated data-source loss, with provenance logging for auditability.

Significance. If the reported performance and robustness hold under proper controls, the work would offer a practical demonstration of planner-guided multi-agent orchestration for scientific workflows, with strengths in modularity, auditability, and fault tolerance. The explicit use of domain-informed routing heuristics without rigid hard-coding, combined with stress tests on parallel tracks and data loss, provides a useful template for similar domains where context limits constrain monolithic agents.

major comments (2)

[Evaluation] Evaluation section (as summarized in the abstract): The central claim that the LEG, consolidators, and specialist allowlists alleviate context saturation is not supported by any single-agent baseline run on the same 37 queries, nor by direct metrics such as context token occupancy, decision-point context length, or error accumulation rates. Without these comparisons, the 93.6% precision and 100% pass rate cannot be attributed to the MAS architecture rather than the backbone model or query selection.
[Results] Results and stress-test description: No ablation results, query selection criteria, or error-bar details are provided for the accuracy figures across parallel tracks and data-loss scenarios. This omission is load-bearing because the weakest assumption (that the LEG and consolidators reduce saturation without introducing coordination failures) cannot be assessed from the reported aggregate metrics alone.

minor comments (2)

[Abstract] The abstract and methods would benefit from an explicit definition of 'factual precision' and 'pass rate' (e.g., how factual claims are verified against ground truth).
[Evaluation] Clarify whether the 37 queries were selected to be representative or to highlight MAS strengths; this affects generalizability claims.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments correctly identify gaps in direct comparative evaluation that limit the strength of claims about context-saturation relief. We respond point-by-point below and will incorporate the requested baselines, ablations, and details in a revised manuscript.

read point-by-point responses

Referee: [Evaluation] Evaluation section (as summarized in the abstract): The central claim that the LEG, consolidators, and specialist allowlists alleviate context saturation is not supported by any single-agent baseline run on the same 37 queries, nor by direct metrics such as context token occupancy, decision-point context length, or error accumulation rates. Without these comparisons, the 93.6% precision and 100% pass rate cannot be attributed to the MAS architecture rather than the backbone model or query selection.

Authors: We agree that the manuscript lacks a direct single-agent baseline on the identical 37 queries and does not report quantitative saturation metrics such as token occupancy, decision-point context length, or error accumulation. The presented results focus on MAS performance and robustness under stress conditions, but these do not substitute for the requested head-to-head comparison. In revision we will add a single-agent baseline experiment using the same queries and Claude Sonnet 4.6 backbone, reporting context token usage, decision lengths, and error rates alongside the MAS figures to enable direct attribution. revision: yes
Referee: [Results] Results and stress-test description: No ablation results, query selection criteria, or error-bar details are provided for the accuracy figures across parallel tracks and data-loss scenarios. This omission is load-bearing because the weakest assumption (that the LEG and consolidators reduce saturation without introducing coordination failures) cannot be assessed from the reported aggregate metrics alone.

Authors: The manuscript states that ablations and stress tests were performed, yet we acknowledge that explicit query selection criteria, error bars or variance on the >90% accuracy figures, and component ablations (e.g., removing consolidators or altering routing heuristics) are not detailed enough to isolate coordination overhead or confirm absence of new failure modes. We will expand the results section with: (i) documented query selection and categorization methodology, (ii) error bars or standard deviations for all reported accuracy numbers, and (iii) targeted ablations that measure the incremental effect of LEG structure and consolidators on both saturation metrics and coordination failures. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical system description and benchmarks

full rationale

The paper describes a multi-agent prototype for hydrodynamics queries and reports empirical results (93.6% factual precision, 100% pass rate on 37 queries, graceful degradation under stress tests) using Claude Sonnet 4.6. No equations, derivations, fitted parameters, predictions, or first-principles claims appear in the provided text. The central claim that graph-structured orchestration alleviates context saturation is supported only by the reported metrics on the MAS itself; while this leaves the mechanism attribution open to the skeptic's baseline critique, it does not constitute circularity because nothing reduces by construction to its own inputs, self-citations, or renamed ansatzes. The evaluation is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on domain assumptions about LLM agent behavior and the effectiveness of graph-structured coordination; the Layer Execution Graph itself is an invented coordination mechanism without external falsifiable evidence beyond the prototype.

axioms (2)

domain assumption Natural-language routing heuristics can capture domain knowledge sufficiently to generate reliable query-specific execution topologies without hard-coded control logic.
Invoked in the planner agent's construction of the Layer Execution Graph.
domain assumption Consolidator agents can fuse parallel specialist outputs into concise briefs without critical information loss.
Required for the multi-layer architecture to preserve accuracy.

invented entities (1)

Layer Execution Graph (LEG) no independent evidence
purpose: To coordinate specialized agents via query-specific execution topologies derived from natural-language heuristics.
New structure introduced to organize planner, specialist, consolidator, and reporter agents.

pith-pipeline@v0.9.0 · 5563 in / 1487 out tokens · 58416 ms · 2026-05-09T19:03:37.429451+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

18 extracted references · 8 canonical work pages · 3 internal anchors

[1]

Chawla, Olaf Wiest, and Xiangliang Zhang

Taicheng Guo, Xiuying Chen, Yaqi Wang, Ruidi Chang, Shichao Pei, N. Chawla, Olaf Wiest, and Xiangliang Zhang. Large language model based multi-agents: A survey of progress and challenges. InInternational Joint Conference on Artificial Intelligence, 2024

2024
[2]

A survey on large language model-based agents for statistics and data science.The American Statistician, 0(0):1–14, 2025

Maojun Sun, Ruijian Han, Binyan Jiang, Houduo Qi, Defeng Sun, Yancheng Yuan, and Jian Huang. A survey on large language model-based agents for statistics and data science.The American Statistician, 0(0):1–14, 2025

2025
[3]

Single-agent or Multi -agent Systems ? Why Not Both ?, May 2025

Mingyan Gao, Yanzi Li, Banruo Liu, Yifan Yu, Phillip Wang, Ching-Yu Lin, and Fan Lai. Single-agent or multi-agent systems? why not both?ArXiv, abs/2505.18286, 2025. 14 Towards Multi-Agent Autonomous Reasoning in Hydrodynamics

work page arXiv 2025
[4]

Johnson, Michelle D

Reid T. Johnson, Michelle D. Pain, and J.D. West. Natural language tools: A natural language approach to tool calling in large language agents.ArXiv, abs/2510.14453, 2025

work page arXiv 2025
[5]

Search, Do not Guess: Teaching Small Language Models to Be Effective Search Agents

Yizhou Liu, Qi Sun, Yulin Chen, Siyue Zhang, and Chen Zhao. Search, do not guess: Teaching small language models to be effective search agents.arXiv, abs/2604.04651, 2026

work page internal anchor Pith review Pith/arXiv arXiv 2026
[6]

arXiv preprint arXiv:2502.14321 , year =

Bingyu Yan, Xiaoming Zhang, Litian Zhang, Lian Zhang, Ziyi Zhou, Dezhuang Miao, and Chaozhuo Li. Beyond self-talk: A communication-centric survey of llm-based multi-agent systems.ArXiv, abs/2502.14321, 2025

work page arXiv 2025
[7]

Khanh-Tung Tran, Dung Dao, Minh-Duong Nguyen, Quoc-Viet Pham, Barry O’Sullivan, and Hoang D. Nguyen. Multi-agent collaboration mechanisms: A survey of llms.ArXiv, abs/2501.06322, 2025

work page internal anchor Pith review arXiv 2025
[8]

MOSAIC: Multi-agent Orchestration for Task-Intelligent Scientific Coding

Siddeshwar Raghavan and Tanwi Mallick. Mosaic: Multi-agent orchestration for task-intelligent scientific coding. ArXiv, abs/2510.08804, 2025

work page internal anchor Pith review Pith/arXiv arXiv 2025
[9]

Jiawei Zhang, Guangyu Liu, Oscar Johansson, et al

Jiawei Xu, Arief Barkah Koesdwiady, Sisong Bei, Yan Han, Baixiang Huang, Dakuo Wang, Yutong Chen, Zheshen Jessie Wang, Peihao Wang, Pan Li, and Ying Ding. Rethinking the value of multi-agent workflow: A strong single agent baseline.ArXiv, abs/2601.12307, 2026

work page arXiv 2026
[10]

D. V . Pantiukhin, Ivan Kuznetsov, Boris Shapkin, Antonia Anna Jost, Thomas Jung, and Nikolay Koldunov. A hierarchical multi-agent system for autonomous discovery in geoscientific data archives.ArXiv, abs/2602.21351, 2026

work page arXiv 2026
[11]

Chateval: Towards better llm-based evaluators through multi-agent debate

Chi-Min Chan, Weize Chen, Yusheng Su, Jianxuan Yu, Wei Xue, Shanghang Zhang, Jie Fu, and Zhiyuan Liu. Chateval: Towards better llm-based evaluators through multi-agent debate. InInternational Conference on Learning Representations, 2024

2024
[12]

Agentmd: Empowering language agents for risk prediction with large-scale clinical tool learning.Nature Communications, 16(1):9377, 2025

Qiao Jin, Zhizheng Wang, Yifan Yang, et al. Agentmd: Empowering language agents for risk prediction with large-scale clinical tool learning.Nature Communications, 16(1):9377, 2025

2025
[13]

Peter Sun and John A. Marohn. mmodel: A workflow framework to accelerate the development of experimental simulations.The Journal of Chemical Physics, 159(4):044801, 07 2023

2023
[14]

Woong Shin, Renan Souza, Daniel Rosendo, Frédéric Suter, Feiyi Wang, Prasanna Balaprakash, and Rafael Ferreira da Silva. The (r)evolution of scientific workflows in the agentic ai era: Towards autonomous science.SC25-W: Workshops of the International Conference for High Performance Computing, Networking, Storage and Analysis, pages 2305–2316, 2025

2025
[15]

LangGraph Overview: Building Stateful, Multi-Actor Applications

LangChain AI. LangGraph Overview: Building Stateful, Multi-Actor Applications. https://docs.langchain. com/oss/python/langgraph/overview, 2026. Accessed: April 12, 2026

2026
[16]

Gptswarm: Language agents as optimizable graphs

Mingchen Zhuge, Wenyi Wang, Louis Kirsch, Francesco Faccio, Dmitrii Khizbullin, and Jürgen Schmidhuber. Gptswarm: Language agents as optimizable graphs. InForty-first International Conference on Machine Learning
[17]

Ocean mcp: Real-time marine data, mcp-native

Mansur Ali Jisan. Ocean mcp: Real-time marine data, mcp-native. https://github.com/mansurjisan/ocean-mcp,
[18]

NHC→NOAA

MCP servers for NOAA CO-OPS, ERDDAP, NHC, Recon, STOFS, OFS, RTOFS, and WW3 data. 15 Towards Multi-Agent Autonomous Reasoning in Hydrodynamics Appendix A A.1 End-to-End Benchmark Queries Tables A.1–A.3 list all 37 queries used in the end-to-end benchmark (Table 1). Each query is annotated with its expected LEG topology and the ground-truth source against ...

2005
