arxiv: 2605.01377 · v1 · submitted 2026-05-02 · 🧮 math.OC

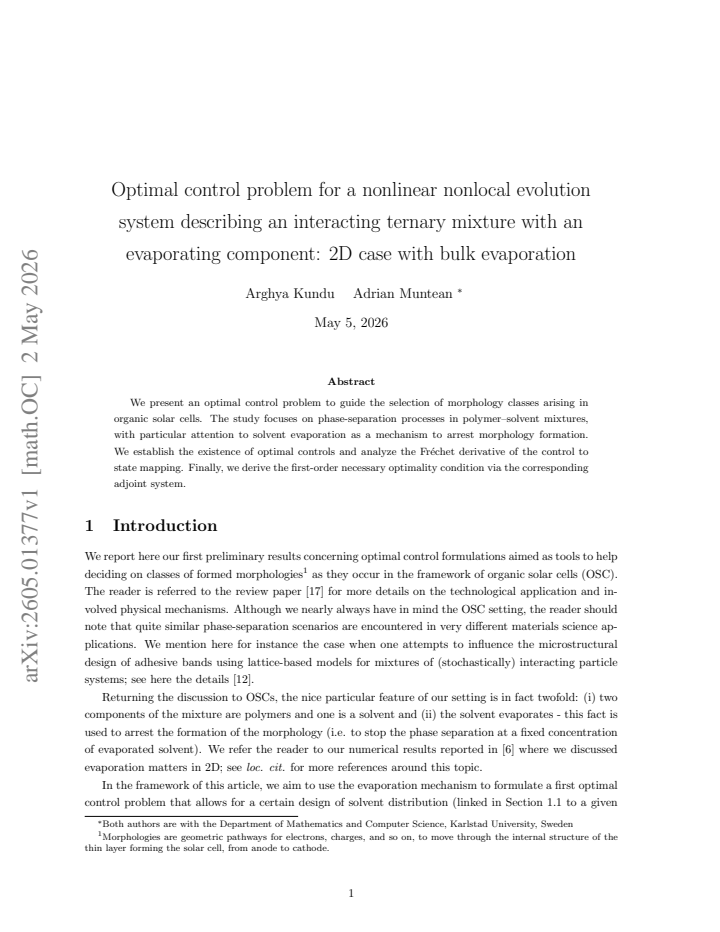

Optimal control problem for a nonlinear nonlocal evolution system describing an interacting ternary mixture with an evaporating component: 2D case with bulk evaporation

Arghya Kundu , Adrian Muntean This is my paper

Pith reviewed 2026-05-09 14:52 UTC · model grok-4.3

classification 🧮 math.OC
keywords optimal controlnonlocal evolution systemternary mixturebulk evaporationorganic solar cellsFrechet derivativeadjoint systemphase separation
0
0 comments X

The pith

Existence of optimal controls and first-order necessary optimality conditions are established for a nonlinear nonlocal evolution system modeling an evaporating ternary mixture in two dimensions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper formulates an optimal control problem whose goal is to steer phase-separation processes in polymer-solvent mixtures toward selected morphology classes useful for organic solar cells. Solvent evaporation is treated as the mechanism that can freeze the morphology at a chosen stage. The authors prove that optimal controls exist within a suitable admissible set, show that the control-to-state mapping is Frechet differentiable, and obtain the first-order optimality condition by means of the corresponding adjoint system. A reader cares because the result supplies a mathematically rigorous way to choose control parameters, such as evaporation rates, that improve the performance of solution-processed solar cells.

Core claim

For the given nonlinear nonlocal evolution system describing an interacting ternary mixture with an evaporating component in the two-dimensional case with bulk evaporation, optimal controls exist, the control-to-state map admits a Frechet derivative, and the first-order necessary optimality condition holds in terms of the adjoint state.

What carries the argument

The Frechet derivative of the control-to-state mapping together with the associated adjoint system, which together produce the first-order necessary optimality condition.

If this is right

  • Optimal controls can be characterized explicitly through the adjoint equation.
  • The differentiability result permits gradient-based numerical algorithms to compute controls that achieve target morphologies.
  • The optimality condition applies directly to the two-dimensional bulk-evaporation setting for the ternary mixture.
  • The framework links the mathematical well-posedness of the evolution system to the practical selection of morphology classes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adjoint-based analysis could be carried out in three space dimensions once well-posedness is available.
  • The derived optimality condition might be used to design time-dependent evaporation protocols that are realizable in laboratory spin-coating or blade-coating experiments.
  • Analogous optimal-control formulations could be applied to other nonlocal phase-separation models arising in materials processing.

Load-bearing premise

The nonlinear nonlocal evolution system is well-posed for every admissible control and the physical model accurately represents the dominant mechanisms of morphology formation.

What would settle it

A concrete admissible control for which the state system loses uniqueness or existence, or for which the candidate optimal control fails to satisfy the derived adjoint-based optimality condition.

read the original abstract

We present an optimal control problem to guide the selection of morphology classes arising in organic solar cells. The study focuses on phase separation processes in polymer solvent mixtures, with particular attention to solvent evaporation as a mechanism to arrest morphology formation. We establish the existence of optimal controls and analyze the Frechet derivative of the control to state mapping. Finally, we derive the first order necessary optimality condition via the corresponding adjoint system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript formulates an optimal control problem for a nonlinear nonlocal evolution system in 2D that models an interacting ternary mixture with bulk evaporation, motivated by morphology control in organic solar cells. It establishes existence of optimal controls, analyzes the Fréchet derivative of the control-to-state mapping, and derives the first-order necessary optimality condition via the corresponding adjoint system.

Significance. If the well-posedness and differentiability results hold with the stated regularity, the work supplies a rigorous adjoint-based framework for optimizing evaporation-driven phase separation in polymer mixtures. This is potentially significant for applied optimal control of nonlocal PDEs with materials-science applications, as it directly targets a mechanism (bulk evaporation) used to arrest morphology formation.

major comments (1)
  1. [Well-posedness analysis (likely §2–3)] The existence of optimal controls, Fréchet differentiability of the control-to-state map, and the adjoint-based optimality condition all presuppose that the nonlinear nonlocal state system admits a unique solution for every admissible control. The abstract asserts these results, but the manuscript must supply the precise function spaces, a priori estimates, and fixed-point or Galerkin argument that close for the chosen nonlocal kernel and evaporation term in 2D; any gap here renders the subsequent claims unverifiable.
minor comments (2)
  1. [Abstract] The abstract should indicate the precise function spaces and the class of admissible controls to allow readers to assess the technical setting at a glance.
  2. [Notation and model formulation] Notation for the nonlocal interaction kernel and the evaporation rate should be introduced once and used consistently in all subsequent sections.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive overall assessment of our work and for the detailed major comment. We address the point directly below.

read point-by-point responses

  1. Referee: The existence of optimal controls, Fréchet differentiability of the control-to-state map, and the adjoint-based optimality condition all presuppose that the nonlinear nonlocal state system admits a unique solution for every admissible control. The abstract asserts these results, but the manuscript must supply the precise function spaces, a priori estimates, and fixed-point or Galerkin argument that close for the chosen nonlocal kernel and evaporation term in 2D; any gap here renders the subsequent claims unverifiable.

    Authors: We thank the referee for this observation. Sections 2 and 3 of the manuscript contain the complete well-posedness theory for the state system. The phase variables are sought in the space W = {v ∈ L²(0,T;H¹(Ω)) : ∂ₜv ∈ L²(0,T;H⁻¹(Ω))}, with the evaporation component in L²(0,T;L²(Ω)). Global a priori estimates are obtained by testing the equations with the solutions themselves, using the positive-definiteness of the nonlocal kernel (assumed integrable and symmetric) and the monotonicity properties of the evaporation nonlinearity. Existence follows from a Galerkin scheme on a finite-dimensional subspace of H¹(Ω), followed by passage to the limit via the Aubin-Lions lemma and weak lower semicontinuity. Uniqueness is proved by a standard difference estimate closed with Gronwall’s inequality. The nonlinear coupling is handled by a contraction mapping argument on a suitable ball in the state space for small time or small data, which is then extended globally by the a priori bounds. These arguments are written explicitly for the 2D setting and the chosen kernel class, thereby justifying the subsequent Fréchet differentiability and adjoint derivation. revision: no

Circularity Check

0 steps flagged

No circularity; standard optimal control derivation from well-posedness assumption

full rationale

The paper's chain proceeds from the assumption that the nonlinear nonlocal evolution system is well-posed under admissible controls, to proving existence of optimal controls, Fréchet differentiability of the control-to-state map, and first-order necessary conditions via the adjoint system. No quoted step reduces a claimed result to a fitted parameter, self-definition, or self-citation chain by construction. The well-posedness prerequisite is external to the optimality analysis rather than derived from it, and the abstract supplies no evidence of renaming, smuggling ansatzes, or treating fitted inputs as predictions. The derivation remains self-contained under standard PDE optimal control techniques.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no concrete information on free parameters, background axioms, or newly postulated entities; the ledger is therefore empty.

pith-pipeline@v0.9.0 · 5367 in / 1168 out tokens · 34330 ms · 2026-05-09T14:52:34.201284+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    Anai and S

    M. Anai and S. Yoshikawa. A finite difference analysis for the phase separation equation coupled with viscoelasticity in two space dimension. Technical report, Hiroshima University, Japan, 2025

    work page 2025

  2. [2]

    Anit ¸a, V

    S. Anit ¸a, V. Capasso, and A.-M. Mo¸ sneagu. Regional control in optimal harvesting of population dynamics.Nonlinear Analysis: Theory, Methods, Applications, 147:191–212, 2016

    work page 2016

  3. [3]

    Barbu, P

    V. Barbu, P. Colli, G. Gilardi, G. Marinoschi, and E. Rocca. Sliding mode control for a nonlinear phase-field system.SIAM Journal on Control and Optimization, 55(3):2108–2133, 2017

    work page 2017

  4. [4]

    Brezis.Functional Analysis, Sobolev Spaces and Partial Differential Equations

    H. Brezis.Functional Analysis, Sobolev Spaces and Partial Differential Equations. Springer, 2011

    work page 2011

  5. [5]

    E. N. M. Cirillo, N. J¨ averg˚ ard, R. Lyons, A. Muntean, and S. A. Muntean. 3D morphology formation in a mixture of three differently averse components.Modelling and Simulation in Materials Science and Engineering, 33(5):055014, 2025

    work page 2025

  6. [6]

    E. N. M. Cirillo, R. Lyons, A. Muntean, and S. A. Muntean. Pattern Formation in Three-State Systems: Towards Understanding Morphology Formation in the Presence of Evaporation. In P. Trovalusci, T. Sadowski, and A. Ibrahimbegovic, editors,Multiscale and Multiphysics Modelling for Advanced and Sustainable Materials, volume 231, pages 71–85. Springer Nature ...

    work page 2025

  7. [7]

    L. C. Evans.Partial Differential Equations, volume 19. American Mathematical Society, 2022

    work page 2022

  8. [8]

    E. Fried. Continua described by a microstructural field.Z. angew. Math. Phys., 47:168–175, 1996

    work page 1996

  9. [9]

    Frigeri, E

    S. Frigeri, E. Rocca, and J. Sprekels. Optimal distributed control of a nonlocal Cahn–Hilliard/Navier– Stokes system in two dimensions.SIAM Journal on Control and Optimization, 54(1):221–250, 2016

    work page 2016

  10. [10]

    Fukao and N

    T. Fukao and N. Yamazaki. A boundary control problem for the equation and dynamic boundary condition of Cahn–Hilliard type. InSolvability, Regularity, and Optimal Control of Boundary Value Problems for PDEs: In Honour of Prof. Gianni Gilardi, pages 255–280. Springer, 2017

    work page 2017

  11. [11]

    M. E. Gurtin. Generalized Ginzburg-Landau and Cahn-Hilliard equations based on a microforce balance.Physica D: Nonlinear Phenomena, 92(3):178–192, 1996

    work page 1996

  12. [12]

    V. C. E. Kronberg, S. A. Muntean, N. H. Kr¨ oger, and A. Muntean. Numerical explorations of solvent borne adhesives: a lattice-based approach to morphology formation.Modelling and Simulation in Materials Science and Engineering, 31(7):075005, 2023

    work page 2023

  13. [13]

    Leoni.A First Course in Sobolev Spaces

    G. Leoni.A First Course in Sobolev Spaces. American Mathematical Soc., 2017

    work page 2017

  14. [14]

    Lyons, E

    R. Lyons, E. N. M. Cirillo, and A. Muntean. Phase separation and morphology formation in inter- acting ternary mixtures under evaporation: Well-posedness and numerical simulation of a non-local evolution system.Nonlinear Analysis: Real World Applications, 77:104039, 2024

    work page 2024

  15. [15]

    Marra and M

    R. Marra and M. Mourragui. Phase segregation dynamics for the Blume–Capel model with Kac interaction.Stochastic Processes and their Applications, 88(1):79–124, 2000. 22

    work page 2000

  16. [16]

    Raymond.Optimal Control of Partial Differential Equations.https://www.math

    J.-P. Raymond.Optimal Control of Partial Differential Equations.https://www.math. univ-toulouse.fr/~raymond/book-ficus.pdf

    work page

  17. [17]

    L. J. Richter, D. M. DeLongchamp, and A. Amassian. Morphology development in solution-processed functional organic blend films: An in situ viewpoint.Chemical Reviews, 117(9):6332–6366, 2017

    work page 2017

  18. [18]

    Shimura and S

    K. Shimura and S. Yoshikawa. A new conservative finite difference scheme for 1D Cahn–Hilliard equation coupled with elasticity.Journal of Applied Analysis, 28:311–332, 2022

    work page 2022

  19. [19]

    Tr¨ oltzsch.Optimal Control of Partial Differential Equations: Theory, Methods, and Applications, volume 112

    F. Tr¨ oltzsch.Optimal Control of Partial Differential Equations: Theory, Methods, and Applications, volume 112. American Mathematical Soc., 2010. 23

    work page 2010
