arxiv: 2605.01988 · v1 · submitted 2026-05-03 · 🌌 astro-ph.HE

Recognition: unknown

4HWC J2029+3641: a Pulsar Wind Nebula Powered by PSR J2030+3641?

Ziwei Ou , Jie Wang , Songpeng Pei
Authors on Pith no claims yet

Pith reviewed 2026-05-09 16:03 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords HAWC sourceFermi-LATgamma-ray pulsarphase-resolved analysisouter-gap modelpulsar wind nebulaPSR J2030+3641
0
0 comments X

The pith

The HAWC source 4HWC J2029+3641 shows no spatial extension in its off-peak gamma-ray emission and a spectrum consistent with the pulsar PSR J2030+3641.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates whether the newly detected HAWC source 4HWC J2029+3641 is a pulsar wind nebula powered by the nearby gamma-ray pulsar PSR J2030+3641. Through phase-resolved analysis of Fermi-LAT data, the off-peak emission component is found to have no significant spatial extension and a spectrum best fit by an exponentially cutoff power-law with strong curvature. This suggests the source is not a separate nebula but part of the pulsar's emission, which is further supported by the radio-to-gamma phase lag and narrow peaks favoring an outer-gap model. A reader would care because resolving such associations helps understand the high-energy emission mechanisms in middle-aged pulsars similar to Geminga and clarifies the nature of unidentified TeV sources.

Core claim

No significant spatial extension was found for the off-peak component of 4HWC J2029+3641. The off-peak spectrum exhibits strong curvature and is best described by an exponentially cutoff power-law model. The observed radio-to-gamma phase lag and narrow peak separation favor an outer-gap model for the gamma-ray emission from PSR J2030+3641.

What carries the argument

Phase-resolved binned maximum likelihood spectral analysis of Fermi-LAT data from 300 MeV to 1 PeV, separating on-peak and off-peak emissions to test for extension and spectral shape.

If this is right

  • The TeV source 4HWC J2029+3641 is likely dominated by emission from the pulsar PSR J2030+3641 rather than a pulsar wind nebula.
  • The gamma-ray production mechanism in this middle-aged pulsar aligns with outer-gap geometry.
  • Similar middle-aged pulsars with Geminga-like spin parameters may exhibit strong spectral curvature without detectable extended nebulae.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Some other HAWC sources located near pulsars may be reclassified as pulsar emission if subjected to comparable phase-resolved studies.
  • The results connect to questions about whether outer-gap processes dominate TeV emission in middle-aged pulsars lacking prominent wind nebulae.
  • Deeper multi-wavelength monitoring could reveal variability or other signatures to further test the pure pulsar interpretation.

Load-bearing premise

The 0.1 degree angular separation between 4HWC J2029+3641 and PSR J2030+3641 indicates a physical association, and the phase-resolved analysis isolates off-peak emission without contamination from a possible compact pulsar wind nebula.

What would settle it

Detection of significant spatial extension in the off-peak gamma-ray emission at TeV energies or a spectrum without exponential cutoff would indicate a separate pulsar wind nebula component.

Figures

Figures reproduced from arXiv: 2605.01988 by Jie Wang, Songpeng Pei, Ziwei Ou.

Figure 1
Figure 1. Figure 1: PSR J2030+3641 timing results from Tempo2 with the Fermi plug-in. Top-left panel: phase histogram of the analyzed Fermi-LAT data. Two full rotational phase are shown here. Bottom-left panel: H-test significance (TS) as a function of time. Right panel: pulse phase for each γ-ray event vs. time. exponential cutoff, respectively. We fixed b = 2/3 as provided by Fermi-LAT pulsar catalogs. We obtain a TS value … view at source ↗
Figure 2

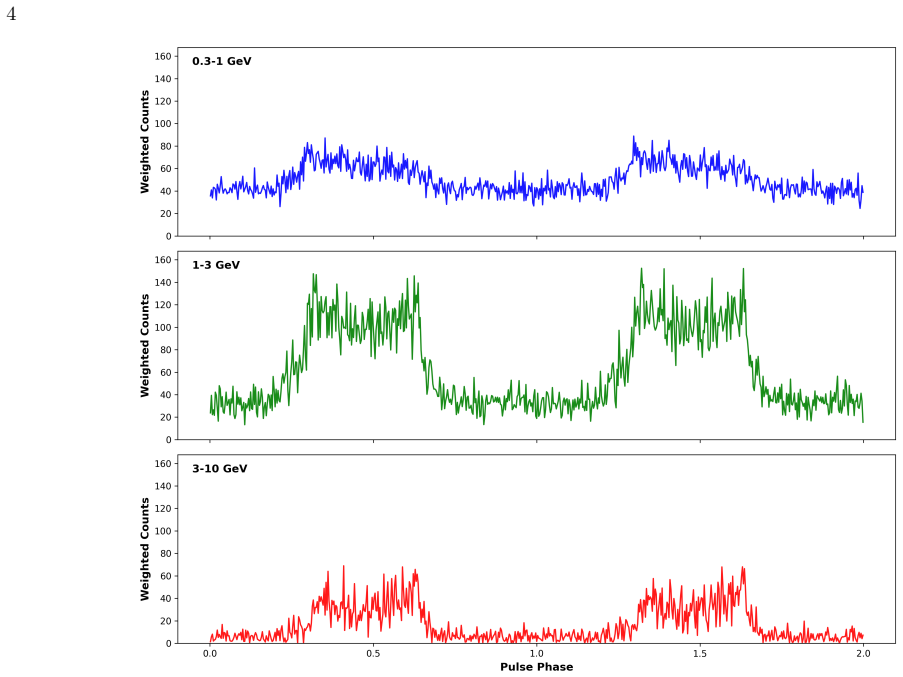

Figure 2. Figure 2: Weighted pulse profile of PSR J2030+3641 at different energies. Phase Range Flux Γ d TS log(L) (ph s−1 cm−2 ) Phase Averaged – (2.06 ± 0.07) × 10−08 1.95 ± 0.03 0.83 ± 0.05 5079 -9688355.462 on-pulse 0.26-0.69 (9.72 ± 0.17) × 10−09 1.81 ± 0.04 0.81 ± 0.05 1403 -154129.9931 off-pulse 0-0.26 & 0.69-1 (1.15 ± 0.12) × 10−09 2.71 ± 0.09 - 210 -269178.3188 view at source ↗
Figure 3
Figure 3. Figure 3: 2 ◦ × 2 ◦ TS map (300 MeV to 1 PeV) of whole phase (left) and off-pulse (right) center at the position of PSR J2030+3641. 4HWC J2029+3641 and 1LHAASO J2027+3657 are presented as black cross and white circle view at source ↗
Figure 4
Figure 4. Figure 4: Left: Fermi-LAT spectra of PSR J2030+3641 during on-peak and off peak. Right: phase-averaged Fermi-LAT spectrum of PSR J2030+3641. cuts to reproduce ∆ and generally struggles to explain the observed lag magnitude. Therefore, the phase pa￾rameters of PSR J2030+3641 strongly favour the OG picture of high-energy emission from the outer magne￾tosphere, with the radio emission arising from closer to the stellar… view at source ↗
read the original abstract

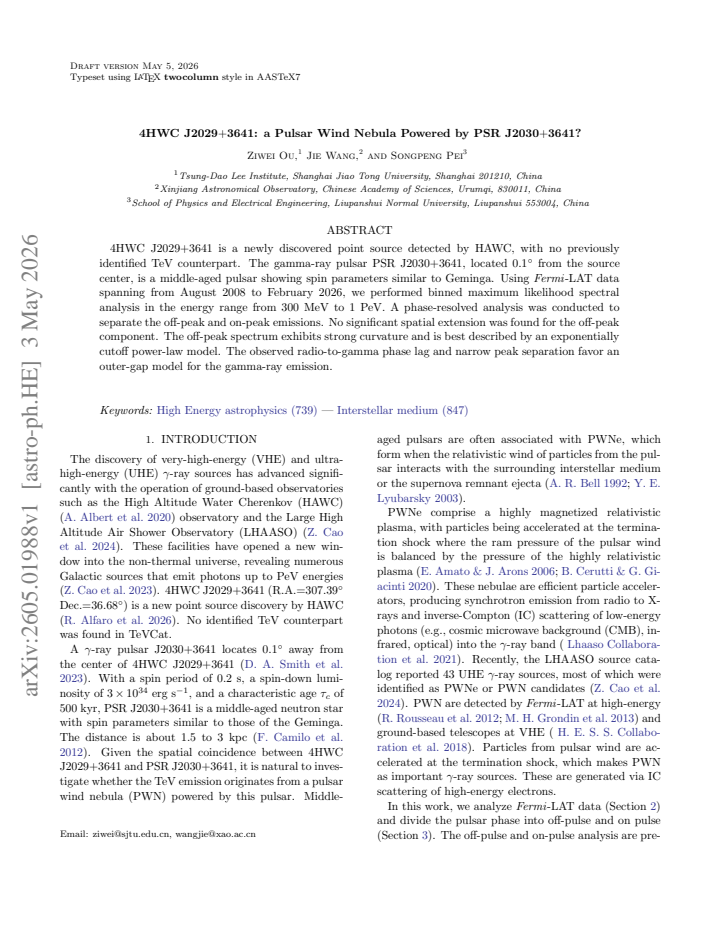

4HWC J2029+3641 is a newly discovered point source detected by HAWC, with no previously identified TeV counterpart. The gamma-ray pulsar PSR J2030+3641, located 0.1 degree from the source center, is a middle-aged pulsar showing spin parameters similar to Geminga. Using Fermni-LAT data spanning from August 2008 to February 2026, we performed binned maximum likelihood spectral analysis in the energy range from 300 MeV to 1 PeV. A phase-resolved analysis was conducted to separate the off-peak and on-peak emissions. No significant spatial extension was found for the off-peak component. The off-peak spectrum exhibits strong curvature and is best described by an exponentially cutoff power-law model. The observed radio-to-gamma phase lag and narrow peak separation favor an outer-gap model for the gamma-ray emission.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript examines the HAWC source 4HWC J2029+3641 located 0.1° from the middle-aged gamma-ray pulsar PSR J2030+3641. Using 17+ years of Fermi-LAT data (300 MeV–1 PeV), the authors apply binned maximum-likelihood spectral fitting and phase-resolved analysis to separate on-peak and off-peak components. They report no significant spatial extension for the off-peak emission, a strongly curved spectrum best described by an exponentially cutoff power-law, and radio-to-gamma phase lags plus narrow peak separation that match outer-gap predictions. The central conclusion is that the HAWC source is the pulsed emission from PSR J2030+3641 rather than a pulsar wind nebula.

Significance. If the results are robust, the work adds a well-characterized example to the small sample of middle-aged pulsars (Geminga-like) detected at TeV energies by HAWC, helping to clarify when apparent TeV sources are actually pulsed magnetospheric emission rather than PWNe. The phase-resolved approach provides a practical template for source classification in overlapping GeV–TeV catalogs.

major comments (2)
  1. [Spectral Analysis] Spectral fitting section: the statement that the off-peak spectrum is 'best described' by an exponentially cutoff power-law lacks any reported test-statistic (TS) values, likelihood-ratio comparisons, or information criteria against plausible alternatives (log-parabola, broken power-law). Without these quantities the strength of the model preference cannot be evaluated.
  2. [Spatial Extension Analysis] Spatial morphology section: the claim of 'no significant spatial extension' for the off-peak component rests on a likelihood-ratio test, yet neither the TS value for the extension hypothesis nor the assumed morphology (e.g., Gaussian width) and degrees of freedom are provided. This information is load-bearing for the central assertion that the source is point-like and pulsar-dominated.
minor comments (2)
  1. [Abstract] Abstract: 'Fermni-LAT' is a typographical error; the stated energy range '300 MeV to 1 PeV' exceeds the standard Fermi-LAT response (typically <1 TeV); please correct and clarify the high-energy cutoff used in the analysis.
  2. [Observations and Data Analysis] Data reduction: explicit description of event-class selection, zenith-angle cuts, and background-model construction is missing, limiting reproducibility of the binned likelihood results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which will improve the clarity and rigor of the manuscript. We address each major comment below and will revise the paper to incorporate the requested statistical details supporting our spectral and spatial conclusions.

read point-by-point responses

  1. Referee: [Spectral Analysis] Spectral fitting section: the statement that the off-peak spectrum is 'best described' by an exponentially cutoff power-law lacks any reported test-statistic (TS) values, likelihood-ratio comparisons, or information criteria against plausible alternatives (log-parabola, broken power-law). Without these quantities the strength of the model preference cannot be evaluated.

    Authors: We agree that explicit statistical comparisons are needed to substantiate the model selection. Our analysis fitted the off-peak spectrum with several models (power law, log-parabola, and exponentially cutoff power law) over the 300 MeV–1 PeV range using binned maximum-likelihood methods. The exponentially cutoff power-law yielded the highest likelihood, consistent with the curved spectrum expected from the outer-gap model of PSR J2030+3641. In the revised manuscript we will add the TS values for each model, the likelihood-ratio test results (e.g., TS between cutoff power-law and log-parabola), and any relevant information criteria to allow quantitative evaluation of the preference. revision: yes

  2. Referee: [Spatial Extension Analysis] Spatial morphology section: the claim of 'no significant spatial extension' for the off-peak component rests on a likelihood-ratio test, yet neither the TS value for the extension hypothesis nor the assumed morphology (e.g., Gaussian width) and degrees of freedom are provided. This information is load-bearing for the central assertion that the source is point-like and pulsar-dominated.

    Authors: We concur that the spatial test details are essential to support the point-like nature of the off-peak emission and its association with the pulsar rather than an extended PWN. The analysis performed a likelihood-ratio comparison between a point-source hypothesis and an extended Gaussian morphology (with free width) centered at the pulsar position, using the 17+ years of Fermi-LAT data. The resulting TS for extension was below the significance threshold, confirming consistency with a point source. The revised manuscript will report the exact TS value, the assumed Gaussian morphology, the degrees of freedom, and the test outcome to make this evidence fully transparent. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results follow from standard Fermi-LAT likelihood analysis on public data

full rationale

The manuscript conducts binned maximum-likelihood spectral and phase-resolved analysis on public Fermi-LAT data (2008–2026) using established pipelines to test for spatial extension of the off-peak component, fit an exponentially cutoff power-law spectrum, and compare phase lags to outer-gap predictions. None of the load-bearing steps define a quantity in terms of itself, rename a fitted parameter as a prediction, or rest on self-citations whose content is unverified outside the present work. The 0.1° positional association and lack of extension are quantified directly via likelihood-ratio tests against the HAWC PSF and Fermi localization; the model preference follows from the curvature observed in the data. The derivation chain is therefore self-contained against external benchmarks and contains no reduction of claimed results to inputs by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of gamma-ray data analysis and the physical association implied by proximity; spectral model parameters are fitted to data but no new entities are postulated.

free parameters (1)
  • Spectral parameters (photon index, cutoff energy)
    Fitted via maximum likelihood to the off-peak Fermi-LAT spectrum to determine the best model shape.
axioms (2)
  • domain assumption Phase-resolved analysis cleanly separates on-peak and off-peak emission without significant cross-contamination.
    Invoked when performing the separation to isolate the off-peak component for spatial and spectral study.
  • domain assumption Instrument response functions and background models for Fermi-LAT are sufficiently accurate for the energy range 300 MeV to 1 PeV.
    Required for the validity of the binned maximum likelihood spectral analysis.
