Natural Gradient Bayesian Filtering: Geometry-Aware Filter for Dynamical Systems

Chang Liu , Wenhan Cao , Zeju Sun , Tianyi Zhang , Jiayu Yuan , Yi Zeng , Ting Yuan , Yao Lyu
show 3 more authors
Wei Wu Stephen Shing-Toung Yau Shengbo Eben Li
This is my paper

Pith reviewed 2026-05-08 18:37 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords natural gradientBayesian filteringGaussian approximationKalman filterinformation geometrynonlinear state estimationroboticsattitude estimation
0
0 comments X

The pith

Natural gradient descent on the Gaussian manifold recovers the Kalman measurement update exactly in the linear case and extends geometrically to nonlinear filtering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that viewing prediction and measurement updates as inference on the manifold of Gaussian distributions allows natural gradient descent to refine posterior mean and covariance iteratively. This respects the intrinsic geometry of the Gaussian family, automatically preserving positive definiteness of the covariance. In the linear-Gaussian setting a single natural-gradient step reproduces the classical Kalman update exactly. The approach is positioned as a geometry-aware alternative to extended and unscented Kalman filters for nonlinear dynamical systems.

Core claim

The NANO filter performs Bayesian filtering by iteratively applying natural gradient steps on the statistical manifold of multivariate Gaussians, using the Fisher information metric to update both mean and covariance parameters while guaranteeing that the covariance remains positive definite. In the linear-Gaussian case this procedure coincides exactly with the Kalman measurement update after one step; in nonlinear cases it supplies an iterative refinement of the Gaussian posterior approximation.

What carries the argument

Natural gradient descent on the statistical manifold of Gaussian distributions, where the Fisher-Rao metric defines the direction of steepest ascent for the negative log-likelihood or KL divergence objective.

If this is right

  • A single natural-gradient step recovers the exact Kalman measurement update when the system and measurement models are linear and the noise is Gaussian.
  • Covariance matrices remain positive definite by construction throughout the iterative updates.
  • The filter can be applied directly to nonlinear estimation tasks such as satellite attitude determination, SLAM, and state estimation on quadruped and humanoid robots.
  • Prediction and measurement updates are treated uniformly as optimization steps on the same Gaussian manifold.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric view may allow systematic incorporation of constraints or additional manifold structure (for example, on rotation groups) into the filter without ad-hoc projections.
  • Because each step is an optimization move, the method could be combined with line-search or adaptive step-size rules to improve robustness in strongly nonlinear regimes.
  • The exact recovery of Kalman in the linear case suggests that differences in performance on nonlinear problems arise purely from how the geometry-aware steps handle higher-order effects compared with linearization or sigma-point sampling.

Load-bearing premise

That natural gradient steps on the Gaussian manifold produce a valid approximation to the true posterior in nonlinear systems without introducing new instabilities or biases beyond those already present in standard Gaussian filters.

What would settle it

Apply the NANO filter to a linear-Gaussian problem and check whether the mean and covariance after one step match the closed-form Kalman update to machine precision; or apply it to a nonlinear benchmark such as satellite attitude estimation and verify whether the covariance matrices remain positive definite while the estimation error stays below that of an unscented Kalman filter baseline.

Figures

Figures reproduced from arXiv: 2605.02306 by Chang Liu, Jiayu Yuan, Shengbo Eben Li, Stephen Shing-Toung Yau, Tianyi Zhang, Ting Yuan, Wei Wu, Wenhan Cao, Yao Lyu, Yi Zeng, Zeju Sun.

Figure 1

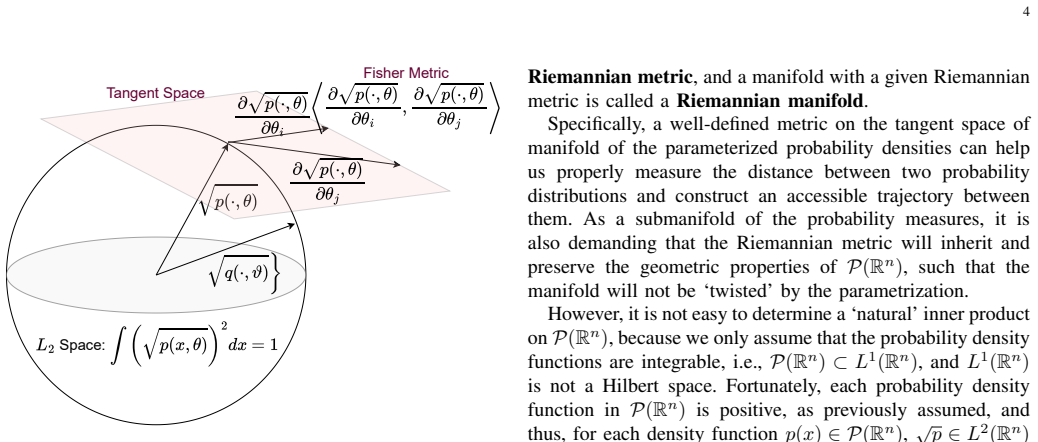

Figure 1. Figure 1: Illustration of Fisher information metric view at source ↗

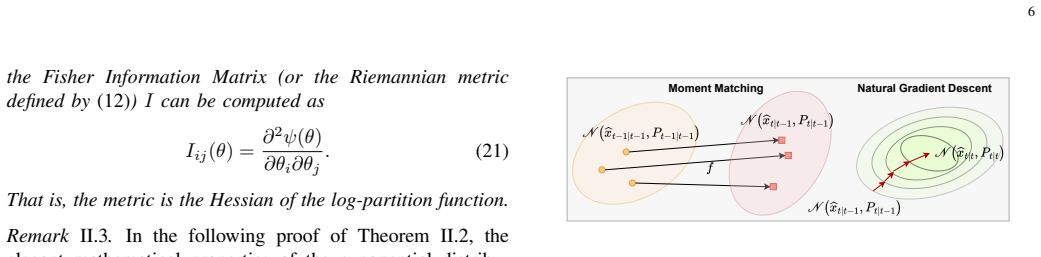

Figure 2
Figure 2. Figure 2: Illustration of NANO filter The transformation matrix between ϱ and θ: ∂ϱ ∂θ =  ∂ 2ψ ∂θi∂θj  ij = I(θ), is just the Fisher information matrix. In this way, the Fisher information matrix with respect to the expectation parameters ϱ can be written as ˜I(ϱ) = Ep(x,ϱ) view at source ↗
Figure 3

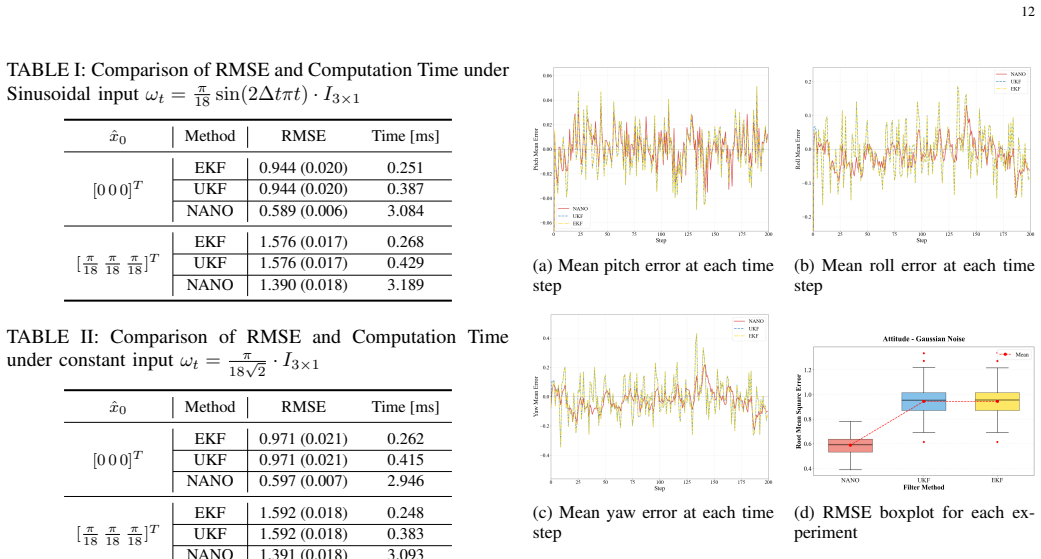

Figure 3. Figure 3: Comparison of attitude estimation performance under view at source ↗
Figure 4

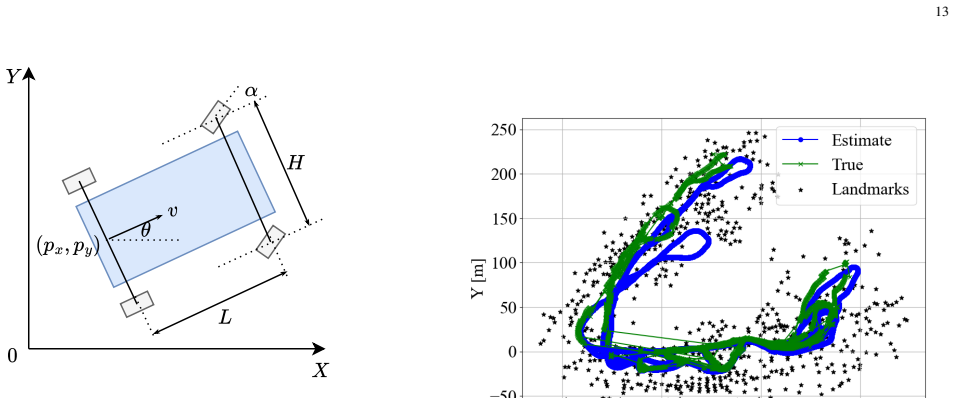

Figure 4. Figure 4: Vehicle in the 2D coordinate system view at source ↗
Figure 5

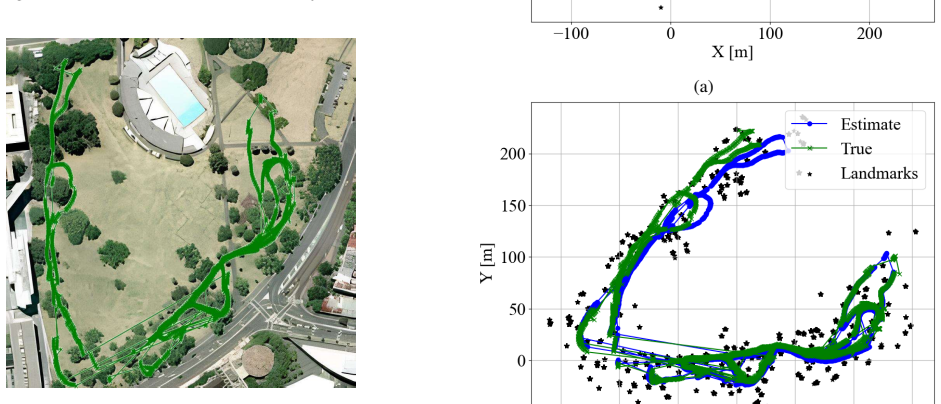

Figure 5. Figure 5: Victoria Park map and vehicle trajectory obtained from view at source ↗

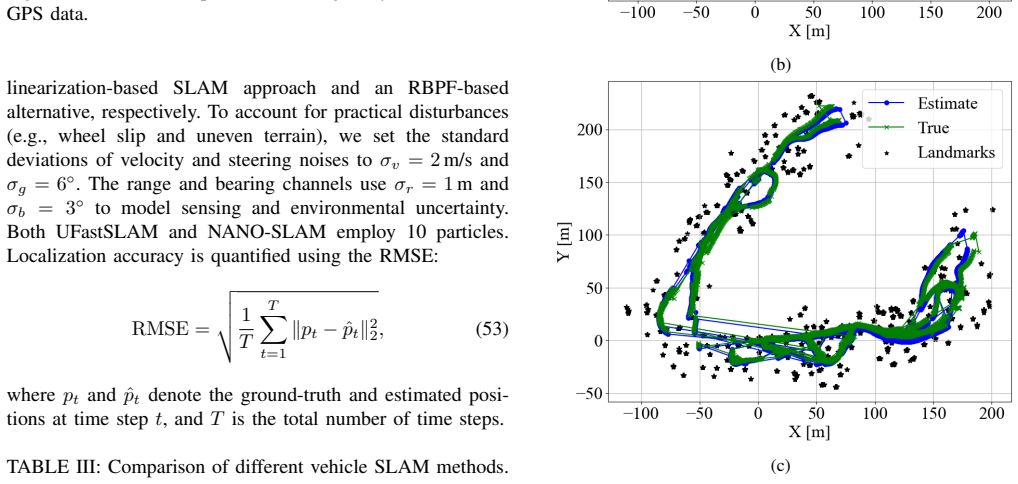

Figure 6
Figure 6. Figure 6: Experimental results of the vehicle localization and view at source ↗
Figure 7

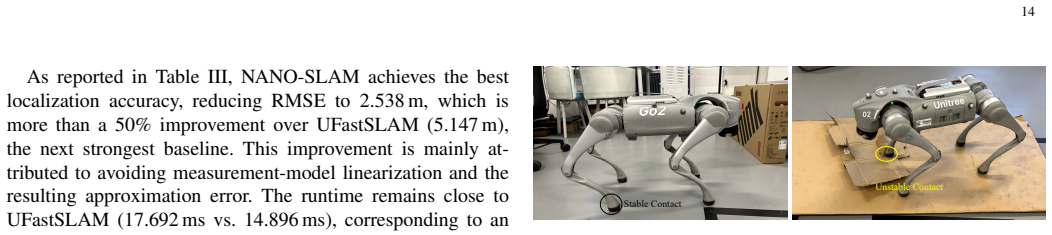

Figure 7. Figure 7: Different environments of real-world legged robot view at source ↗
Figure 8

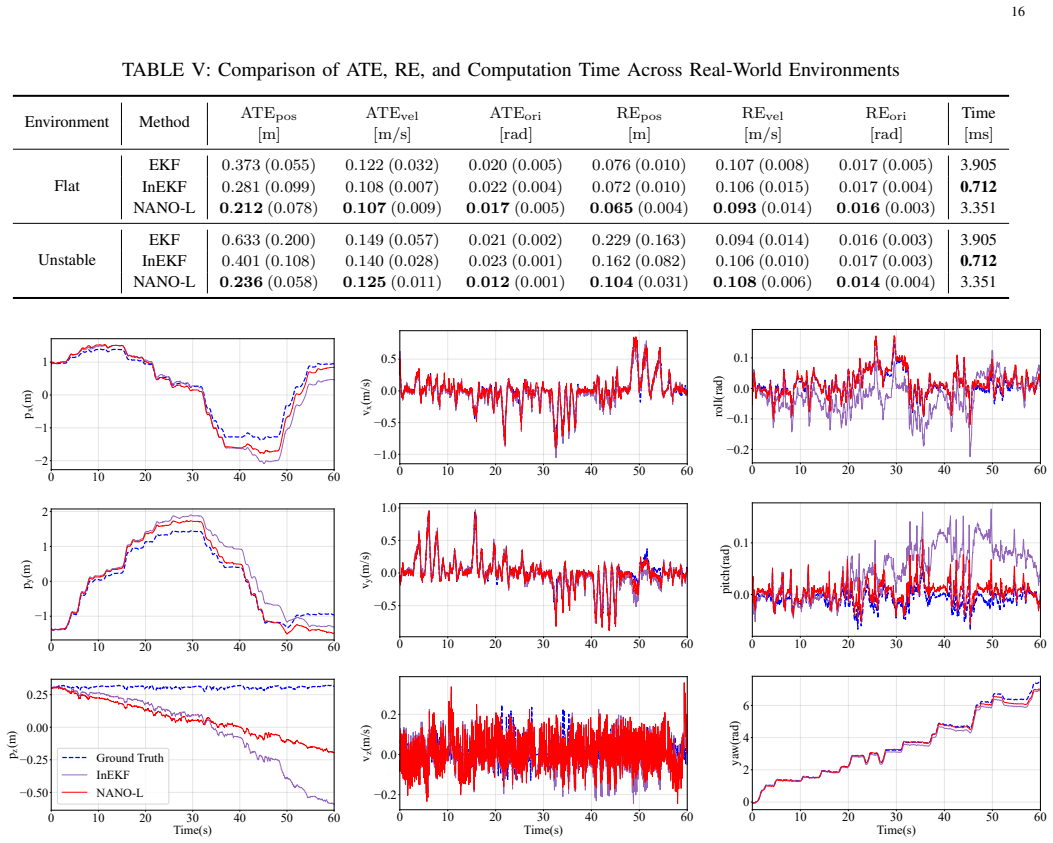

Figure 8. Figure 8: Estimated position, velocity, and orientation for InEKF and NANO-L on the unstable terrain. view at source ↗

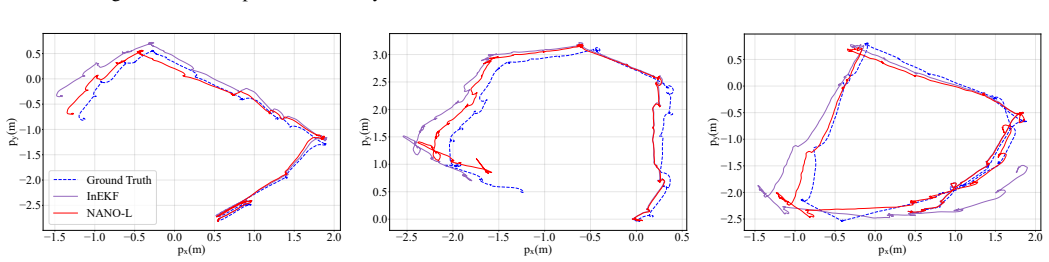

Figure 9
Figure 9. Figure 9: Estimated trajectories from InEKF and NANO-L on the flat terrain with different distances and durations. From left to view at source ↗
Figure 10

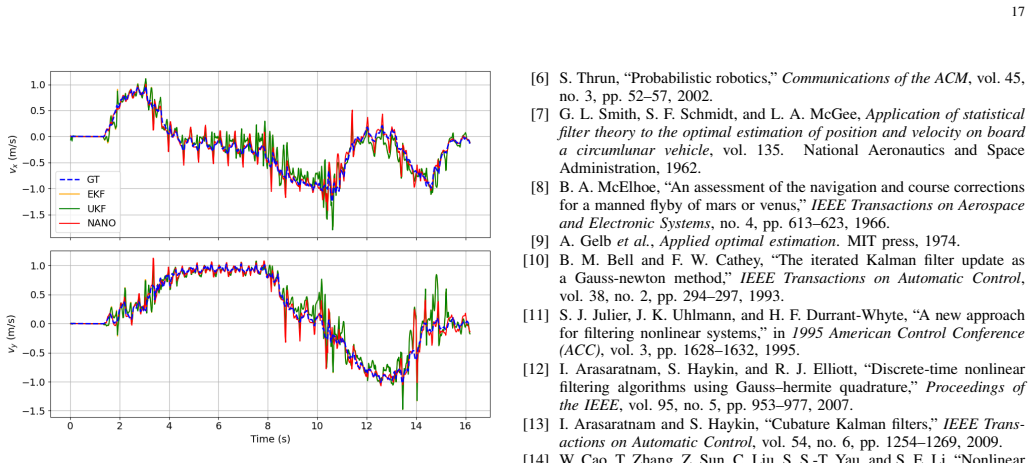

Figure 10. Figure 10: Estimated velocity from EKF, UKF and NANO. view at source ↗
Figure 11
Figure 11. Figure 11: Estimated trajectories from EKF, UKF and NANO. view at source ↗
read the original abstract

Bayesian filtering is a cornerstone of state estimation in complex systems such as aerospace systems, yet exact solutions are available only for linear Gaussian models. In practice,nonlinear systems are handled through tractable approximations,with Gaussian filters such as the extended and unscented Kalman filters being among the most widely used methods. This tutorial revisits Gaussian filtering from an information-geometric perspective, viewing the prediction and measurement update steps as inference procedures over state distributions. Within this framework, we introduce a geometry-aware Gaussian filtering approach that leverages natural gradient descent on the statistical manifold of Gaussian distributions. The resulting Natural Gradient Gaussian Approximation (NANO) filter iteratively refines the posterior mean and covariance while respecting the intrinsic geometry of the Gaussian family and preserving the positive definiteness of the covariance matrix. We further highlight fundamental connections to the classical Kalman filtering, showing that a single natural-gradient step exactly recovers the Kalman measurement update in the linear-Gaussian case. The practical implications of the proposed framework are illustrated through case studies in representative nonlinear estimation problems,including satellite attitude estimation, simultaneous localization and mapping, and state estimation for robotic systems including quadruped and humanoid robots.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript presents a tutorial on Gaussian Bayesian filtering from an information-geometric viewpoint. It introduces the Natural Gradient Gaussian Approximation (NANO) filter, which performs iterative natural-gradient descent on the statistical manifold of Gaussian distributions to refine posterior mean and covariance. A central claim is that a single natural-gradient step exactly recovers the classical Kalman measurement update in the linear-Gaussian case; the method is shown to preserve positive definiteness by construction. The framework is illustrated via case studies on nonlinear problems including satellite attitude estimation, SLAM, and state estimation for quadruped and humanoid robots.

Significance. If the derivations are correct, the work supplies a geometrically principled reinterpretation of Gaussian filtering that recovers the Kalman filter as a special case and automatically respects the positive-definiteness constraint. The exact recovery result anchors the approach in classical theory and may help researchers design manifold-aware updates for robotics and aerospace applications. The tutorial format usefully connects optimization on statistical manifolds with filtering practice.

minor comments (2)
  1. Abstract: missing space in 'In practice,nonlinear systems'.
  2. Abstract: the list of case studies repeats 'including' ('including satellite attitude estimation, simultaneous localization and mapping, and state estimation for robotic systems including quadruped...').

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading and positive assessment of the manuscript. The summary accurately reflects the tutorial's focus on information geometry for Gaussian filtering, the introduction of the NANO filter, and the exact recovery of the Kalman update as a special case. We appreciate the recommendation for minor revision and the recognition of potential utility in robotics and aerospace applications. No specific major comments were listed in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's derivation chain is self-contained. The central result—that one natural-gradient step on the Gaussian statistical manifold recovers the Kalman measurement update—follows directly from the known coincidence between the Fisher information metric and the information-form update under linear-Gaussian assumptions; this is a standard geometric identity, not a redefinition or fit of the target quantity. The NANO filter's iterative refinement is defined as natural-gradient descent on the manifold, which by construction stays within the positive-definite cone; this is an intrinsic property of the chosen geometry rather than an input smuggled back as output. No self-citations are used as load-bearing premises for uniqueness or ansatz, and the abstract plus skeptic analysis show no equations that reduce the claimed prediction to a fitted parameter or prior result by construction. The argument therefore does not collapse to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on the standard assumption that Gaussian approximations remain useful for the target nonlinear systems and that the natural gradient provides a geometrically meaningful update direction; no new free parameters or invented entities are mentioned in the abstract.

axioms (2)
  • domain assumption Gaussian distributions form a suitable statistical manifold for approximating posteriors in the considered dynamical systems
    Implicit in all Gaussian filtering methods; stated as the setting for the NANO filter
  • domain assumption Natural gradient descent on this manifold yields a valid refinement of the posterior
    Central to the proposed iterative procedure

pith-pipeline@v0.9.0 · 5537 in / 1338 out tokens · 76520 ms · 2026-05-08T18:37:42.729972+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

41 extracted references · 41 canonical work pages · 1 internal anchor
