arxiv: 2605.02407 · v2 · submitted 2026-05-04 · ❄️ cond-mat.mtrl-sci

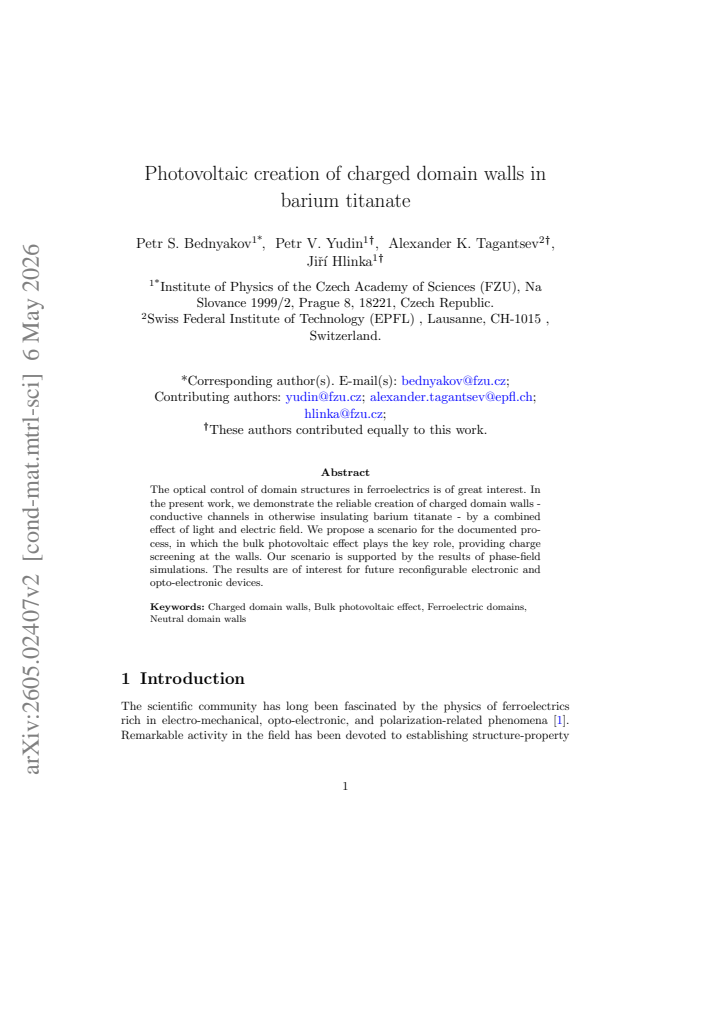

Photovoltaic creation of charged domain walls in barium titanate

P.S. Bednyakov , P.V. Yudin , A.K. Tagantsev , J. Hlinka This is my paper

Pith reviewed 2026-05-08 18:33 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords barium titanatecharged domain wallsbulk photovoltaic effectferroelectricsconductive channelsoptical controlphase-field simulation
0
0 comments X

The pith

Light and electric field create charged domain walls that conduct in insulating barium titanate.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that applying light together with an electric field reliably forms charged domain walls inside barium titanate crystals. These walls serve as narrow conductive paths through a material that is otherwise insulating. The authors argue that the bulk photovoltaic effect generates photocurrents that screen the bound charges at the walls and stabilize them. Phase-field simulations reproduce the observed behavior when this photovoltaic mechanism is included. The result opens a route to optically reconfigurable ferroelectric devices.

Core claim

Charged domain walls in barium titanate can be created on demand by the simultaneous application of light and an electric field, with the bulk photovoltaic effect supplying the photocurrent that screens polarization charge at the walls and thereby stabilizes the walls against collapse.

What carries the argument

The bulk photovoltaic effect, which produces a steady photocurrent that compensates the bound charge density on the charged domain walls.

If this is right

  • Charged domain walls become stable conductive channels inside an otherwise insulating ferroelectric.
  • Domain structures can be written and erased optically without permanent electrodes.
  • Phase-field models that include the bulk photovoltaic term reproduce the experimental wall formation.
  • The same mechanism should operate in other wide-band-gap ferroelectrics under above-band-gap illumination.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique could allow light-addressable switches or memory elements inside a single crystal.
  • Similar light-assisted wall creation may appear in other photovoltaic ferroelectrics such as lithium niobate.
  • Device geometries that combine transparent electrodes with ferroelectric thin films would test scalability.

Load-bearing premise

The bulk photovoltaic effect is the main process that supplies the screening charges at the walls.

What would settle it

A direct measurement showing that the photocurrent at the walls vanishes or that the walls fail to form when the bulk photovoltaic effect is suppressed by choice of wavelength or electrode material.

read the original abstract

The optical control of domain structures in ferroelectrics is of great interest. In the present work, we demonstrate the reliable creation of charged domain walls - conductive channels in otherwise insulating barium titanate - by a combined effect of light and electric field. We propose a scenario for the documented process, in which the bulk photovoltaic effect plays the key role, providing charge screening at the walls. Our scenario is supported by the results of phase-field simulations. The results are of interest for future reconfigurable electronic and opto-electronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript demonstrates the reliable creation of charged domain walls in barium titanate via the combined application of light and an electric field. It proposes a scenario in which the bulk photovoltaic effect supplies the screening charge at the walls and supports this with phase-field simulations. The results are positioned as relevant for reconfigurable electronic and opto-electronic devices.

Significance. If the experimental demonstration and proposed mechanism hold, the work would provide a practical route to optically reconfigurable conductive channels within an otherwise insulating ferroelectric, with potential device implications. The inclusion of phase-field modeling to test the screening scenario is a positive element that strengthens the mechanistic interpretation.

major comments (3)
  1. [Results / Experimental demonstration] The central experimental claim of 'reliable creation' is presented without quantitative data, error analysis, or statistical measures of reproducibility (e.g., success rate across multiple samples or trials). This absence leaves the reliability assertion without verifiable backing and directly affects assessment of the demonstration's robustness.
  2. [Discussion / Proposed scenario] The proposed scenario attributes the key role to the bulk photovoltaic effect for charge screening, yet the manuscript does not present controls or comparisons that isolate this mechanism from alternative screening processes (e.g., photo-induced carrier generation or electrode injection). Without such isolation, the attribution remains a plausible but untested hypothesis.
  3. [Modeling / Phase-field simulations] The phase-field simulations are invoked to support the scenario, but the text provides no details on parameter selection, boundary conditions, or how the simulated charge densities compare quantitatively to experimental observations. This limits the ability to judge whether the modeling constitutes independent corroboration.
minor comments (2)
  1. [Abstract / Introduction] The abstract and introduction would benefit from a brief statement of the specific light wavelength, intensity, and field strength ranges used, to allow immediate context for the combined-effect claim.
  2. [Throughout] Notation for domain-wall conductivity and photovoltaic current should be defined consistently when first introduced, to avoid ambiguity in later sections.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and constructive feedback on our manuscript. We address each major comment below and have prepared revisions to strengthen the presentation of our results, the mechanistic discussion, and the modeling details.

read point-by-point responses

  1. Referee: The central experimental claim of 'reliable creation' is presented without quantitative data, error analysis, or statistical measures of reproducibility (e.g., success rate across multiple samples or trials). This absence leaves the reliability assertion without verifiable backing and directly affects assessment of the demonstration's robustness.

    Authors: We agree that explicit quantitative support for reproducibility would improve the manuscript. In the revised version we will add success rates from repeated trials on multiple samples, error bars on key measurements, and a brief statistical summary of the experimental outcomes. The original data already show consistent domain-wall formation under the reported conditions, but we will make this quantification explicit. revision: yes

  2. Referee: The proposed scenario attributes the key role to the bulk photovoltaic effect for charge screening, yet the manuscript does not present controls or comparisons that isolate this mechanism from alternative screening processes (e.g., photo-induced carrier generation or electrode injection). Without such isolation, the attribution remains a plausible but untested hypothesis.

    Authors: The scenario is motivated by the bulk character of the photovoltaic current and the absence of direct electrode contact to the newly formed walls. We acknowledge that dedicated controls isolating the bulk photovoltaic effect from other photo-induced processes would be valuable. In the revision we will expand the discussion to compare the observed behavior with alternative mechanisms, citing the directionality of the photovoltaic current and the specific illumination geometry, and we will add any available supporting control data or literature references. Full experimental isolation may require additional measurements that are beyond the present scope. revision: partial

  3. Referee: The phase-field simulations are invoked to support the scenario, but the text provides no details on parameter selection, boundary conditions, or how the simulated charge densities compare quantitatively to experimental observations. This limits the ability to judge whether the modeling constitutes independent corroboration.

    Authors: We will include a new subsection (or supplementary note) that specifies the material parameters, boundary conditions, and numerical settings used in the phase-field model. We will also add a quantitative comparison of the simulated charge densities at the domain walls with order-of-magnitude estimates derived from the experimental photocurrent and domain-wall conductivity data. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper reports an experimental demonstration of creating charged domain walls in BaTiO3 via combined illumination and electric field, proposes a scenario in which the bulk photovoltaic effect provides screening charge, and supports the scenario with phase-field simulations. No equations, fitted parameters, or self-citation chains are described that reduce the central claim to its own inputs by construction. The work is self-contained against external benchmarks (direct observation plus independent modeling), with the photovoltaic role framed explicitly as a proposed scenario rather than a derived necessity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the experimental observation and the assumption that the bulk photovoltaic effect supplies screening; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The bulk photovoltaic effect can generate and separate charges inside the ferroelectric to screen polarization discontinuities at domain walls.
    This is the key proposed mechanism stated in the abstract.
