· Lean TheoremCollins asymmetries for pion-in-jet production in polarized ell p collisions at the EIC
Pith reviewed 2026-05-08 18:06 UTC · model grok-4.3
The pith
Collins asymmetries for pion-in-jet production offer clearer access to transversity at the EIC
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Collins asymmetries in lepton-proton processes allow for a much clearer access to the transversity distribution, including its sea-quark component. Although the Weizsäcker-Williams quasireal photon exchange contributes across the kinematical range, it does not spoil the dominance of quark-initiated channels, leaving gluon counterparts with only a marginal role.
What carries the argument
The Collins azimuthal asymmetry for pion-in-jet production in a simplified TMD framework with transversity distributions and Collins fragmentation functions.
Load-bearing premise
Transversity and Collins fragmentation functions extracted from SIDIS and e+e- annihilation can be directly applied to lepton-proton collisions assuming TMD factorization and Collins universality.
What would settle it
Observation of Collins asymmetries in EIC data that significantly differ from those predicted using SIDIS and e+e- inputs would challenge the assumption of direct applicability and universality.
Figures

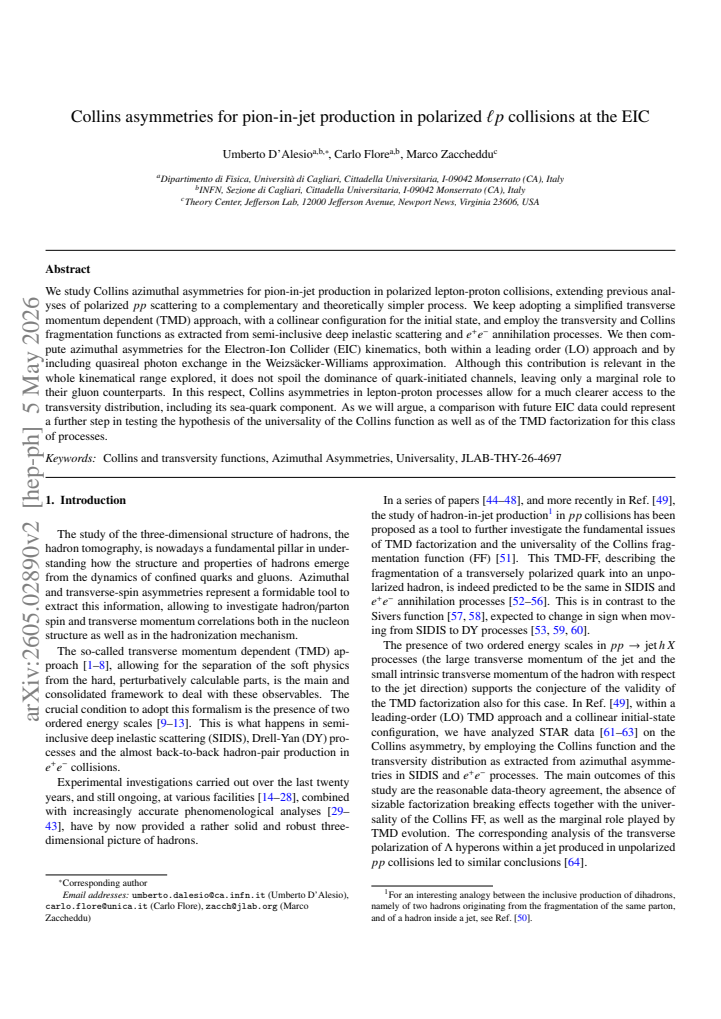

read the original abstract
We study Collins azimuthal asymmetries for pion-in-jet production in polarized lepton-proton collisions, extending previous analyses of polarized $pp$ scattering to a complementary and theoretically simpler process. We keep adopting a simplified transverse momentum dependent (TMD) approach, with a collinear configuration for the initial state, and employ the transversity and Collins fragmentation functions as extracted from semi-inclusive deep inelastic scattering and $e^+ e^-$ annihilation processes. We then compute azimuthal asymmetries for the Electron-Ion Collider (EIC) kinematics, both within a leading order (LO) approach and by including quasireal photon exchange in the Weizs\"acker-Williams approximation. Although this contribution is relevant in the whole kinematical range explored, it does not spoil the dominance of quark-initiated channels, leaving only a marginal role to their gluon counterparts. In this respect, Collins asymmetries in lepton-proton processes allow for a much clearer access to the transversity distribution, including its sea-quark component. As we will argue, a comparison with future EIC data could represent a further step in testing the hypothesis of the universality of the Collins function as well as of the TMD factorization for this class of processes.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper computes Collins azimuthal asymmetries for pion-in-jet production in polarized lepton-proton collisions at the EIC using a simplified TMD framework with collinear initial state. It inserts transversity and Collins functions previously extracted from SIDIS and e+e- annihilation, evaluates the asymmetries at leading order and with Weizsäcker-Williams quasireal photon exchange for EIC kinematics, and reports that quark-initiated channels dominate while gluon contributions remain marginal. This leads to the claim of clearer access to transversity, including its sea-quark component, with future EIC data comparison positioned as a test of TMD factorization and Collins universality.
Significance. If the reported dominance holds under the stated inputs, the work supplies concrete, falsifiable predictions for a process that is theoretically simpler than polarized pp scattering and could provide complementary constraints on transversity with reduced gluon contamination. The explicit numerical demonstration that the WW term, while relevant across the kinematics, does not alter the quark dominance is a clear strength of the analysis.
minor comments (1)
- Abstract: the phrase 'as we will argue' for clearer access to the sea-quark component of transversity should be accompanied by an explicit pointer to the section or figure containing the supporting numerical comparison of quark versus gluon channels.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the positive overall assessment. We appreciate the recognition that our work supplies concrete predictions for a theoretically simpler process than polarized pp scattering and that the explicit demonstration of quark dominance (even with the Weizsäcker-Williams contribution) is a strength. We address the report below.
Circularity Check
No significant circularity; derivation uses independent prior extractions
full rationale
The paper inserts transversity and Collins functions previously extracted from SIDIS and e+e- data into a standard TMD framework (collinear initial state, LO hard scattering plus WW photons) to compute EIC asymmetries. The reported dominance of quark channels and clearer access to transversity (including sea) is a numerical outcome of that insertion, not a definitional equivalence or self-fit. No equations reduce the target prediction to the input parametrizations by construction, no uniqueness theorem is invoked from self-citation, and no ansatz is smuggled. The calculation is self-contained against external benchmarks from other processes; any future data comparison is presented as a test rather than an internal verification.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Universality of the Collins fragmentation function across processes
- domain assumption Validity of TMD factorization for this class of processes
Reference graph
Works this paper leans on
-
[1]
A. Kotzinian, New quark distributions and semiinclusive electroproduction on the polarized nucleons, Nucl. Phys. B 441 (1995) 234–248.arXiv:hep-ph/9412283,doi: 10.1016/0550-3213(95)00098-D
-
[2]
R. D. Tangerman, P. J. Mulders, Intrinsic transverse momentum and the polarized Drell-Yan process, Phys. Rev. D 51 (1995) 3357–3372.arXiv:hep-ph/9403227, doi:10.1103/PhysRevD.51.3357
-
[3]
R. D. Tangerman, P. J. Mulders, Probing transverse quark polarization in deep inelastic leptoproduction, Phys. Lett. B 352 (1995) 129–133.arXiv:hep-ph/9501202,doi: 10.1016/0370-2693(95)00485-4
-
[4]
D. Boer, P. J. Mulders, Time reversal odd distribution functions in leptoproduction, Phys. Rev. D 57 (1998) 5780–5786.arXiv:hep-ph/9711485,doi:10.1103/ PhysRevD.57.5780
work page Pith review arXiv 1998
- [5]
-
[6]
A. Bacchetta, M. Diehl, K. Goeke, A. Metz, P. J. Mul- ders, M. Schlegel, Semi-inclusive deep inelastic scatter- ing at small transverse momentum, JHEP 02 (2007) 093. arXiv:hep-ph/0611265,doi:10.1088/1126-6708/ 2007/02/093
- [7]
-
[8]
D. Pitonyak, M. Schlegel, A. Metz, Polarized hadron pair production from electron-positron annihilation, Phys. Rev. D 89 (5) (2014) 054032.arXiv:1310.6240,doi: 10.1103/PhysRevD.89.054032
-
[9]
J. C. Collins, D. E. Soper, Back-To-Back Jets in QCD, Nucl. Phys. B 193 (1981) 381, [Erratum: Nucl.Phys.B 213, 545 (1983)].doi:10.1016/0550-3213(81) 90339-4
-
[10]
J. C. Collins, D. E. Soper, G. F. Sterman, Transverse Momentum Distribution in Drell-Yan Pair and W and Z Boson Production, Nucl. Phys. B 250 (1985) 199–224. doi:10.1016/0550-3213(85)90479-1
-
[11]
X.-d. Ji, J.-p. Ma, F. Yuan, QCD factoriza- tion for semi-inclusive deep-inelastic scatter- ing at low transverse momentum, Phys. Rev. D 9 71 (2005) 034005.arXiv:hep-ph/0404183, doi:10.1103/PhysRevD.71.034005
-
[12]
Collins, Foundations of perturbative QCD, Cambridge University Press, 2013
J. Collins, Foundations of perturbative QCD, Cambridge University Press, 2013
2013
-
[13]
M. G. Echevarría, A. Idilbi, I. Scimemi, Soft and Collinear Factorization and Transverse Momentum Dependent Par- ton Distribution Functions, Phys. Lett. B 726 (2013) 795. arXiv:1211.1947,doi:10.1016/j.physletb.2013. 09.003
-
[14]
R. Seidl, et al., Measurement of Azimuthal Asymmetries in Inclusive Production of Hadron Pairs ine +e− Annihila- tion at √s=10.58 GeV, Phys. Rev. D 78 (2008) 032011, [Erratum: Phys.Rev.D 86, 039905 (2012)].arXiv:0805. 2975,doi:10.1103/PhysRevD.78.032011
-
[16]
Airapetian, et al., Observation of the Naive-T-odd Sivers Effect in Deep-Inelastic Scattering, Phys
A. Airapetian, et al., Observation of the Naive-T-odd Sivers Effect in Deep-Inelastic Scattering, Phys. Rev. Lett. 103 (2009) 152002.arXiv:0906.3918,doi:10.1103/ PhysRevLett.103.152002
-
[17]
X. Qian, et al., Single Spin Asymmetries in Charged Pion Production from Semi-Inclusive Deep Inelastic Scattering on a Transversely Polarized 3He Target, Phys. Rev. Lett. 107 (2011) 072003.arXiv:1106.0363,doi:10.1103/ PhysRevLett.107.072003
-
[18]
Electron Ion Collider: The next QCD frontier — Understanding the glue that binds us all
A. Accardi, et al., Electron Ion Collider: The Next QCD Frontier, Eur. Phys. J. A 52 (2016) 268.arXiv:1212. 1701,doi:10.1140/epja/i2016-16268-9
-
[19]
C. Adolph, et al., II – Experimental investigation of transverse spin asymmetries inµ-p SIDIS processes: Sivers asymmetries, Phys. Lett. B 717 (2012) 383–389. arXiv:1205.5122,doi:10.1016/j.physletb.2012. 09.056
-
[22]
The RHIC SPIN Program: Achievements and Future Opportunities
E.-C. Aschenauer, et al., The RHIC SPIN Program: Achievements and Future Opportunities (1 2015).arXiv: 1501.01220
work page Pith review arXiv 2015
-
[23]
M. Ablikim, et al., Measurement of azimuthal asymme- tries in inclusive charged dipion production ine +e− an- nihilations at √s=3.65 GeV, Phys. Rev. Lett. 116 (4) (2016) 042001.arXiv:1507.06824,doi:10.1103/ PhysRevLett.116.042001
-
[24]
Letter of Intent: A New QCD facility at the M2 beam line of the CERN SPS (COMPASS++/AMBER)
B. Adams, et al., Letter of Intent: A New QCD fa- cility at the M2 beam line of the CERN SPS (COM- PASS++/AMBER) (8 2018).arXiv:1808.00848
work page Pith review arXiv 2018
-
[25]
A. Chen, et al., Probing nucleon’s spin structures with polarized Drell-Yan in the Fermilab SpinQuest experi- ment, PoS SPIN2018 (2019) 164.arXiv:1901.09994, doi:10.22323/1.346.0164
- [26]
-
[27]
A. Accardi, et al., LHCspin: a Polarized Gas Target for LHC (4 2025).arXiv:2504.16034
-
[28]
A. Accardi, et al., Strong interaction physics at the lumi- nosity frontier with 22 GeV electrons at Jefferson Lab, Eur. Phys. J. A 60 (9) (2024) 173.arXiv:2306.09360, doi:10.1140/epja/s10050-024-01282-x
-
[29]
M. Anselmino, M. Boglione, U. D’Alesio, A. Kotzinian, F. Murgia, A. Prokudin, Extracting the Sivers function from polarized SIDIS data and making predictions, Phys. Rev. D 72 (2005) 094007, [Erratum: Phys.Rev.D 72, 099903 (2005)].arXiv:hep-ph/0507181,doi:10. 1103/PhysRevD.72.094007
-
[30]
M. Anselmino, M. Boglione, U. D’Alesio, A. Kotzinian, F. Murgia, A. Prokudin, C. Türk, Transversity and Collins functions from SIDIS ande +e− data, Phys. Rev. D 75 (2007) 054032.arXiv:hep-ph/0701006,doi:10. 1103/PhysRevD.75.054032
-
[31]
Analysis of the vertexes Ξ ∗ QΞ′ QV, Σ∗ QΣQVand radiative decays Ξ ∗ Q →Ξ ′ Qγ, Σ ∗ Q →Σ Qγ
M. Anselmino, M. Boglione, U. D’Alesio, A. Kotzinian, S. Melis, F. Murgia, A. Prokudin, C. Türk, Sivers Ef- fect for Pion and Kaon Production in Semi-Inclusive Deep Inelastic Scattering, Eur. Phys. J. A 39 (2009) 89–100.arXiv:0805.2677,doi:10.1140/epja/ i2008-10697-y
-
[32]
M. Anselmino, M. Boglione, U. D’Alesio, S. Melis, F. Murgia, A. Prokudin, Simultaneous extraction of transversity and Collins functions from new SIDIS and e+e− data, Phys. Rev. D 87 (2013) 094019.arXiv: 1303.3822,doi:10.1103/PhysRevD.87.094019
-
[33]
M. Anselmino, M. Boglione, U. D’Alesio, J. O. Gonza- lez Hernandez, S. Melis, F. Murgia, A. Prokudin, Collins functions for pions from SIDIS and newe +e− data: a first glance at their transverse momentum dependence, Phys. Rev. D 92 (11) (2015) 114023.arXiv:1510.05389, doi:10.1103/PhysRevD.92.114023. 10
-
[34]
M. Boglione, U. D’Alesio, C. Flore, J. Gonzalez- Hernandez, Assessing signals of TMD physics in SIDIS azimuthal asymmetries and in the extraction of the Sivers function, JHEP 07 (2018) 148.arXiv:1806.10645, doi:10.1007/JHEP07(2018)148
-
[35]
U. D’Alesio, C. Flore, A. Prokudin, Role of the Sof- fer bound in determination of transversity and the tensor charge, Phys. Lett. B 803 (2020) 135347.arXiv:2001. 01573,doi:10.1016/j.physletb.2020.135347
- [36]
- [37]
-
[38]
A. Bacchetta, V . Bertone, C. Bissolotti, G. Bozzi, M. Cerutti, F. Piacenza, M. Radici, A. Signori, Unpo- larized transverse momentum distributions from a global fit of Drell-Yan and semi-inclusive deep-inelastic scat- tering data, JHEP 10 (2022) 127.arXiv:2206.07598, doi:10.1007/JHEP10(2022)127
-
[39]
A. Bacchetta, V . Bertone, C. Bissolotti, G. Bozzi, M. Cerutti, F. Delcarro, M. Radici, L. Rossi, A. Sig- nori, Flavor dependence of unpolarized quark trans- verse momentum distributions from a global fit, JHEP 08 (2024) 232.arXiv:2405.13833,doi:10.1007/ JHEP08(2024)232
-
[40]
Neural-Network Extraction of Unpolarized Transverse-Momentum-Dependent Distributions
A. Bacchetta, V . Bertone, C. Bissolotti, M. Cerutti, M. Radici, S. Rodini, L. Rossi, Neural-Network Extrac- tion of Unpolarized Transverse-Momentum-Dependent Distributions, Phys. Rev. Lett. 135 (2) (2025) 021904. arXiv:2502.04166,doi:10.1103/csc2-bj91
- [41]
-
[42]
M. Boglione, U. D’Alesio, C. Flore, J. O. Gonzalez- Hernandez, F. Murgia, A. Prokudin, Simultaneous reweighting of Transverse Momentum Dependent distri- butions, Phys. Lett. B 854 (2024) 138712.arXiv:2402. 12322,doi:10.1016/j.physletb.2024.138712
- [43]
-
[44]
Yuan, Azimuthal asymmetric distribution of hadrons inside a jet at hadron collider, Phys
F. Yuan, Azimuthal asymmetric distribution of hadrons inside a jet at hadron collider, Phys. Rev. Lett. 100 (2008) 032003.arXiv:0709.3272,doi:10.1103/ PhysRevLett.100.032003
-
[45]
U. D’Alesio, F. Murgia, C. Pisano, Azimuthal asymme- tries for hadron distributions inside a jet in hadronic col- lisions, Phys. Rev. D 83 (2011) 034021.arXiv:1011. 2692,doi:10.1103/PhysRevD.83.034021
-
[46]
U. D’Alesio, F. Murgia, C. Pisano, Testing the universality of the Collins function in pion-jet production at RHIC, Phys. Lett. B 773 (2017) 300–306.arXiv:1707.00914, doi:10.1016/j.physletb.2017.08.023
-
[47]
Z.-B. Kang, A. Prokudin, F. Ringer, F. Yuan, Collins azimuthal asymmetries of hadron production inside jets, Phys. Lett. B 774 (2017) 635.arXiv:1707.00913,doi: 10.1016/j.physletb.2017.10.031
- [48]
-
[49]
Quantum processor-inspired machine learning in the biomedical sciences
U. D’Alesio, C. Flore, M. Zaccheddu, Collins function for pion-in-jet production in polarizedppcollisions: a test of universality and factorization, Phys. Lett. B 871 (2025) 140024.arXiv:2506.21959,doi:10.1016/j. physletb.2025.140024
work page doi:10.1016/j 2025
-
[50]
A. Bacchetta, M. Radici, L. Rossi, Analogies between hadron-in-jet and dihadron fragmentation, Phys. Rev. D 108 (1) (2023) 014005.arXiv:2303.04314,doi:10. 1103/PhysRevD.108.014005
-
[51]
J. C. Collins, Fragmentation of transversely polarized quarks probed in transverse momentum distributions, Nucl. Phys. B 396 (1993) 161.arXiv:hep-ph/9208213, doi:10.1016/0550-3213(93)90262-N
-
[52]
Metz, Gluon-exchange in spin-dependent fragmenta- tion, Phys
A. Metz, Gluon-exchange in spin-dependent fragmenta- tion, Phys. Lett. B 549 (2002) 139–145.arXiv:hep-ph/ 0209054,doi:10.1016/S0370-2693(02)02899-X
-
[53]
D. Boer, P. Mulders, F. Pijlman, Universality of T odd effects in single spin and azimuthal asymmetries, Nucl. Phys. B 667 (2003) 201.arXiv:hep-ph/0303034, doi:10.1016/S0550-3213(03)00527-3
- [54]
- [55]
-
[56]
D. Boer, Z.-B. Kang, W. V ogelsang, F. Yuan, Test of the Universality of Naive-time-reversal-odd Fragmenta- tion Functions, Phys. Rev. Lett. 105 (2010) 202001. 11 arXiv:1008.3543,doi:10.1103/PhysRevLett.105. 202001
-
[57]
D. W. Sivers, Single Spin Production Asymmetries from the Hard Scattering of Point-Like Constituents, Phys. Rev. D 41 (1990) 83.doi:10.1103/PhysRevD. 41.83
-
[58]
D. W. Sivers, Hard scattering scaling laws for single spin production asymmetries, Phys. Rev. D 43 (1991) 261. doi:10.1103/PhysRevD.43.261
-
[59]
J. C. Collins, Leading twist single transverse-spin asymmetries: Drell-Yan and deep inelastic scattering, Phys. Lett. B 536 (2002) 43.arXiv:hep-ph/0204004, doi:10.1016/S0370-2693(02)01819-1
-
[60]
S. J. Brodsky, D. S. Hwang, I. Schmidt, Initial state in- teractions and single spin asymmetries in Drell-Yan pro- cesses, Nucl. Phys. B 642 (2002) 344.arXiv:hep-ph/ 0206259,doi:10.1016/S0550-3213(02)00617-X
-
[61]
M. Abdallah, et al., Azimuthal transverse single-spin asymmetries of inclusive jets and identified hadrons within jets from polarizedppcollisions at √s=200 GeV, Phys. Rev. D 106 (7) (2022) 072010.arXiv: 2205.11800,doi:10.1103/PhysRevD.106.072010
-
[62]
Y . Zhang, Azimuthal transverse single-spin asymmetries of inclusive jets and hadrons within jets from polarized ppcollisions at √s=510 GeV, PoS SPIN2023 (2024) 059.doi:10.22323/1.456.0059
-
[63]
Aboona, et al., Energy Independence of the Collins Asymmetry in p↑p Collisions, Phys
B. Aboona, et al., Energy Independence of the Collins Asymmetry in p↑p Collisions, Phys. Rev. Lett. 135 (26) (2025) 261902.arXiv:2507.16355,doi:10.1103/ jgsw-zhny
-
[64]
U. D’Alesio, L. Gamberg, F. Murgia, M. Zaccheddu, TransverseΛpolarization in unpolarizedpp→jetΛ ↑X, Phys. Lett. B 851 (2024) 138552.arXiv:2402.01612, doi:10.1016/j.physletb.2024.138552
-
[65]
C. F. von Weizsacker, Radiation emitted in collisions of very fast electrons, Z. Phys. 88 (1934) 612–625.doi: 10.1007/BF01333110
-
[66]
E. J. Williams, Nature of the high-energy particles of penetrating radiation and status of ionization and radi- ation formulae, Phys. Rev. 45 (1934) 729–730.doi: 10.1103/PhysRev.45.729
-
[67]
S. J. Brodsky, T. Kinoshita, H. Terazawa, Two Photon Mechanism of Particle Production by High-Energy Col- liding Beams, Phys. Rev. D 4 (1971) 1532–1557.doi: 10.1103/PhysRevD.4.1532
-
[68]
Terazawa, Two photon processes for particle produc- tion at high-energies, Rev
H. Terazawa, Two photon processes for particle produc- tion at high-energies, Rev. Mod. Phys. 45 (1973) 615–662. doi:10.1103/RevModPhys.45.615
-
[69]
B. A. Kniehl, Elasticepscattering and the Weizsacker- Williams approximation, Phys. Lett. B 254 (1991) 267– 273.doi:10.1016/0370-2693(91)90432-P
-
[70]
M. Anselmino, M. Boglione, U. D’Alesio, S. Melis, F. Murgia, A. Prokudin, Single spin asymmetries inℓp→ hXprocesses: A Test of factorization, Phys. Rev. D 81 (2010) 034007.arXiv:0911.1744,doi:10.1103/ PhysRevD.81.034007
-
[71]
B. A. Kniehl, G. Kramer, M. Spira, Largep T photo- production ofD ∗± mesons inepcollisions, Z. Phys. C 76 (1997) 689–700.arXiv:hep-ph/9610267,doi: 10.1007/s002880050591
-
[72]
U. D’Alesio, C. Flore, F. Murgia, Transverse single-spin asymmetries inℓp ↑ →h Xwithin a TMD approach: role of quasi-real photon exchange, Phys. Rev. D 95 (9) (2017) 094002.arXiv:1701.01148,doi:10.1103/ PhysRevD.95.094002
-
[73]
A. Bacchetta, U. D’Alesio, M. Diehl, C. Miller, Single- spin asymmetries: The Trento conventions, Phys. Rev. D 70 (2004) 117504.arXiv:hep-ph/0410050,doi:10. 1103/PhysRevD.70.117504
-
[74]
M. Anselmino, M. Boglione, J. Gonzalez Hernandez, S. Melis, A. Prokudin, Unpolarised Transverse Momen- tum Dependent Distribution and Fragmentation Functions from SIDIS Multiplicities, JHEP 04 (2014) 005.arXiv: 1312.6261,doi:10.1007/JHEP04(2014)005
- [75]
-
[76]
D. de Florian, R. Sassot, M. Epele, R. J. Hernández-Pinto, M. Stratmann, Parton-to-Pion Fragmentation Reloaded, Phys. Rev. D 91 (1) (2015) 014035.arXiv:1410.6027, doi:10.1103/PhysRevD.91.014035
-
[77]
D. de Florian, M. Epele, R. J. Hernandez-Pinto, R. Sassot, M. Stratmann, Parton-to-Kaon Fragmentation Revisited, Phys. Rev. D 95 (9) (2017) 094019.arXiv:1702.06353, doi:10.1103/PhysRevD.95.094019
-
[78]
G. P. Salam, J. Rojo, A Higher Order Perturbative Par- ton Evolution Toolkit (HOPPET), Comput. Phys. Com- mun. 180 (2009) 120–156.arXiv:0804.3755,doi: 10.1016/j.cpc.2008.08.010
-
[79]
Bacchetta, private communication (2015)
A. Bacchetta, private communication (2015)
2015
-
[80]
Z.-B. Kang, K. Lee, F. Zhao, Polarized jet fragmen- tation functions, Phys. Lett. B 809 (2020) 135756. arXiv:2005.02398,doi:10.1016/j.physletb. 2020.135756. 12
-
[81]
Z.-B. Kang, H. Xing, F. Zhao, Y . Zhou, Polarized frag- menting jet functions in inclusive and exclusive jet pro- duction, JHEP 03 (2024) 142.arXiv:2311.00672,doi: 10.1007/JHEP03(2024)142
-
[82]
D. Boer, C. J. Bomhof, D. S. Hwang, P. J. Mulders, Spin asymmetries in jet-hyperon production at LHC, Phys. Lett. B 659 (2008) 127–136.arXiv:0709.1087,doi: 10.1016/j.physletb.2007.10.059
-
[83]
D. Boer, Transverse Lambda polarization at high energy colliders, PoS DIS2010 (2010) 215.arXiv:1007.3145, doi:10.22323/1.106.0215. 13
