arxiv: 2605.03643 · v1 · submitted 2026-05-05 · ✦ hep-th

Algebraic constructions of code lattices in Narain conformal field theories

E.H Saidi , R. Sammani This is my paper

Pith reviewed 2026-05-07 15:28 UTC · model grok-4.3

classification ✦ hep-th
keywords Narain CFTcode CFTlattice constructionsdiscriminant groupeven self-dual latticesinclusion relationsLie algebra ranks
0
0 comments X

The pith

Explicit algebraic constructions are given for three nested lattices with discriminant group Z_k to realize Narain CFTs from codes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors work to establish concrete algebraic constructions for an even lattice, an even self-dual intermediate lattice, and the dual lattice that nest inside one another with the quotient of the dual by the original being the cyclic group of order k. These are supplied first for the simplest rank-one situation and then for higher ranks tied to Lie algebra structures. A sympathetic reader would care because the constructions supply the lattice data needed to build consistent Narain conformal field theories using codes, moving from abstract requirements to explicit examples. The paper also notes some further structural properties and possible broader uses of the same approach.

Core claim

The paper claims that the even lattice Lambda_k sits inside the even self-dual intermediate lattice Lambda_kC which sits inside the dual Lambda_k star, with the discriminant group of the dual over the original lattice being exactly Z_k, and that explicit algebraic constructions of these lattices in R to the (r d, r d) exist for rank r equals d equals 1 and then for higher-dimensional Lie algebras with r equals d greater than 1.

What carries the argument

The chain of lattice inclusions Lambda_k subset Lambda_kC subset Lambda_k star defined by having discriminant group isomorphic to Z_k, which produces the even self-dual intermediate lattice with equal positive and negative signatures required for code CFT realizations.

If this is right

  • The same algebraic method supplies the lattices first in rank one and then in higher ranks linked to Lie algebras.
  • Further structural features of the lattices follow from the constructions.
  • The approach admits generalizations to additional cases beyond those treated in detail.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The constructions could allow more systematic generation of explicit Narain CFT models from code data.
  • The algebraic lattice method may connect to other lattice-based techniques for building conformal field theories.

Load-bearing premise

The lattices produced by the algebraic constructions must turn out to be even and self-dual so that they can serve in code CFT realizations of Narain theories.

What would settle it

An explicit check that one of the constructed lattices has a discriminant group other than Z_k or fails to be even would show the constructions do not deliver the claimed relations.

Figures

Figures reproduced from arXiv: 2605.03643 by E.H Saidi, R. Sammani.

Figure 1

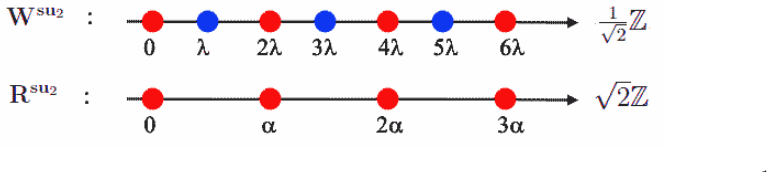

Figure 1. Figure 1: At the top, we show the weight lattice Wsu2 of su(2) which is isomorphic to √ 1 2 Z. At the bottom, we present the root lattice Rsu2 isomorphic to √ 2Z. The quotient Wsu2 /R su2 defines the discriminant group, isomorphic to Z2. The lattices sites xn are occupied by particles that can be described in terms of wave functions ψ (xn). by particle states interpreted as hybrids of KK modes and windings with mome… view at source ↗
Figure 2
Figure 2. Figure 2: Weight lattice Λ∗ 2 : It is a 2D lattice given by the cross product of two weight lattices of SU(2). Site positions of these lattices have four different colors. The sites in each 1D straightline in Λ∗ 2 (including horizontal and vertical axes ) have two colors. B) [Λ2C] j and Λ∗ 2 as superpositions of sublattices isomorphic to Λ2 By applying the decomposition Wsu2 = A ∪ B to (2.3), we find that both Λ∗ 2 … view at source ↗
Figure 3
Figure 3. Figure 3: The structure of the lattices (Λ2C)1 and (Λ2C)2 with sites shown in two different colors. The superposition (Λ2C)1 ∪ (Λ2C)2 gives Λ∗ 2 . The even self dual lattice contains the Λ2 made by red sites. Sites in blue belong to (Λ2C)1/Λ2 ≃ Λ2 + λ. splittings, we deduce the following: (i) Λ∗ 2 consists of four 2D sublattices given by A×A ′ and A× B ′ as well as B × A ′ and B × B ′ ; while the even self duals (Λ2… view at source ↗
Figure 4

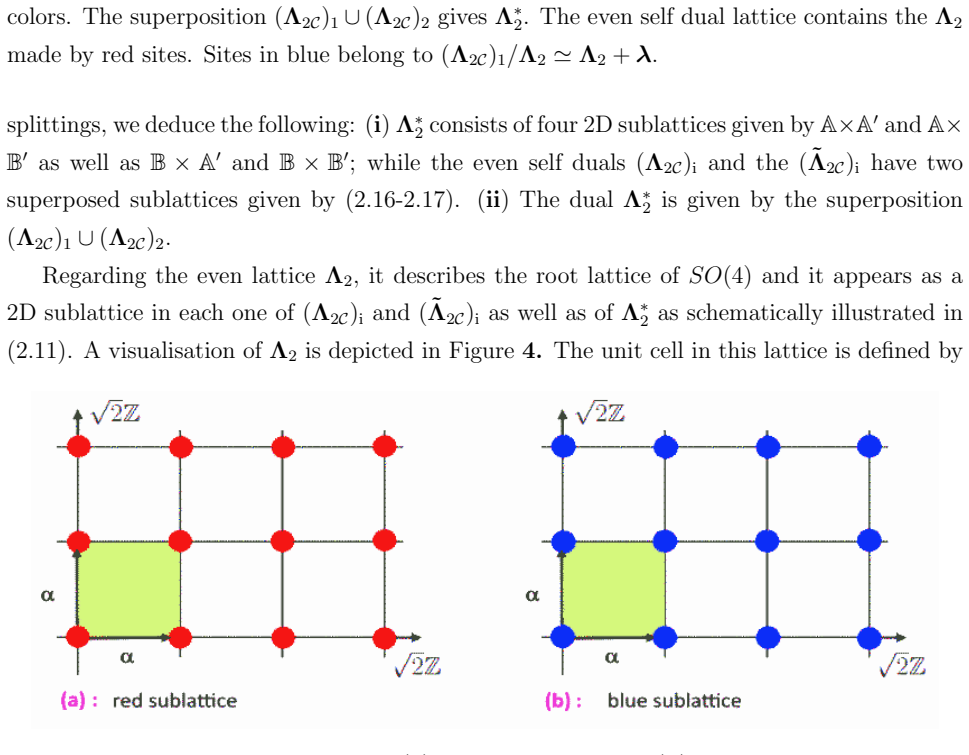

Figure 4. Figure 4: Two isomorphic lattices Λ2; (a) red sublattice of Λ∗ 2 . (b) blue sublattice of Λ∗ 2 . The two additional ones are given by the black and the green sublattices of Λ∗ 2 in the Figures 2 and 3. They are isomorphic to the root lattice of SO(4) given by Rsu2 × R′su2 . The area of its normalised unit cell is equal to ucΛ2 = 2. 11 view at source ↗
Figure 5
Figure 5. Figure 5: On the left, a colored parallelogram (unit cell) of the hexagonal lattice R view at source ↗
Figure 6
Figure 6. Figure 6: Triangular lattice Zλ1 ⊕ Zλ2 generated by the SU(3) weights with (λ\1,λ2) = π/3. It is the weight lattice Wsu3 3 of su(3). The unit cell is a triangle with pistachio color. Sites in Wsu3 3 are painted in three colors: red, blue and green. with α˜i .α˜j = k 3Kij and λ˜ i .λ˜ j = 3 kKij being the 2×2 matrices Kij and Kij as before. For generic integer values of k ≥ 2, the Wsu3 k is given by a superposition o… view at source ↗
Figure 7
Figure 7. Figure 7: The two sheets A S B of Wsu3 2 . The sites in A are in red color while the site B in B are in blue. The sites C of the Wsu3 3 are absent for k=2. 18 view at source ↗
Figure 8

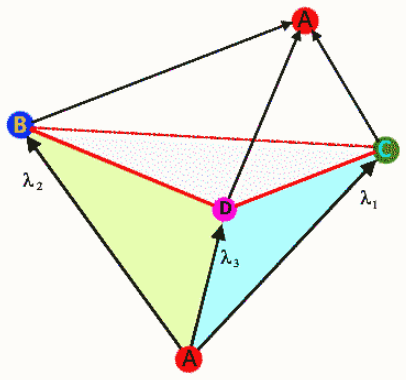

Figure 8. Figure 8: three dimensional unit cell of the weight lattice of SU(4) generated by view at source ↗
read the original abstract

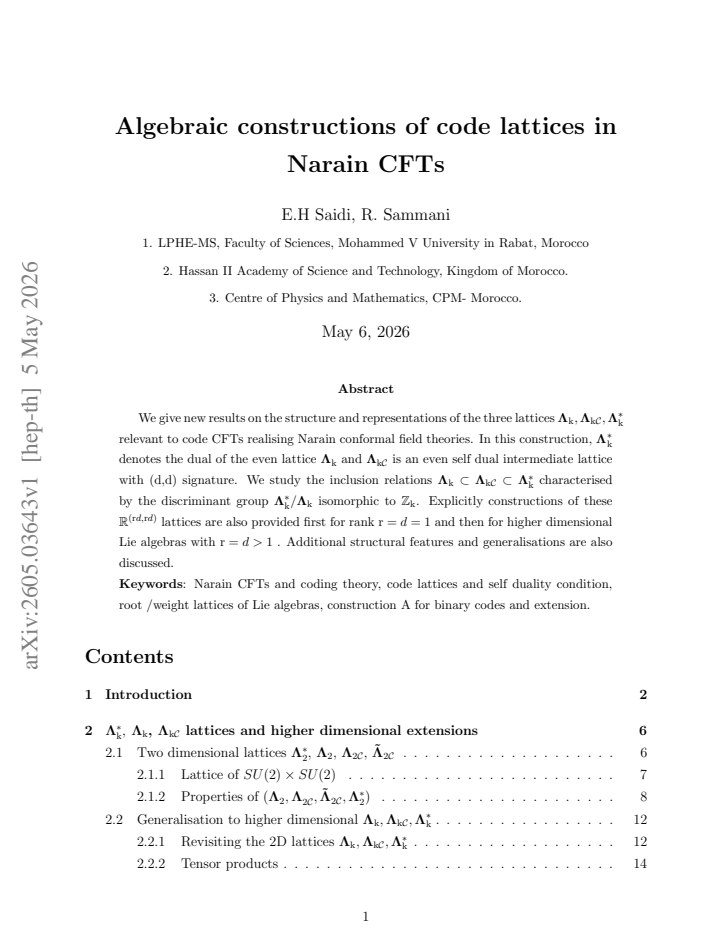

We give new results on the structure and representations of the three lattices $\mathbf{\Lambda }_{\mathrm{k}},\mathbf{\Lambda }_{\mathrm{k}\mathcal{C}},\mathbf{\Lambda }_{\mathrm{k}}^{\ast }$ relevant to code CFTs realizing Narain conformal field theories. In this construction, $\mathbf{\Lambda }_{\mathrm{k}}^{\ast }$ denotes the dual of the even lattice $\mathbf{\Lambda }_{\mathrm{k}}$ and $\mathbf{\Lambda }_{\mathrm{k}\mathcal{C}}$ is an even self-dual intermediate lattice with a (d,d) signature. We study the inclusion relations $\mathbf{\Lambda }_{\mathrm{k}}\subset \mathbf{\Lambda } _{\mathrm{k}\mathcal{C}}\subset \mathbf{\Lambda }_{\mathrm{k}}^{\ast }$ characterized by the discriminant group $\mathbf{\Lambda } _{\mathrm{k}}^{\ast }/\mathbf{\Lambda }_{\mathrm{k}}$ isomorphic to $\mathbb{Z}_{\mathrm{k}}$ and provide explicit constructions of these $\mathbb{R}^{(\mathrm{r}d,\mathrm{r}d)}$ lattices first for rank $\mathrm{r}=d=1$ and then for higher dimensional Lie algebras with $\mathrm{r}=d>1$. Additional structural features and generalisations are also discussed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript studies the inclusion relations among three lattices Λ_k ⊂ Λ_kC ⊂ Λ_k* relevant to code CFT realizations of Narain theories, where the discriminant group Λ_k*/Λ_k ≅ ℤ_k. It supplies explicit constructions of these ℝ^(rd,rd) lattices for rank r=d=1 and then generalizes the construction to higher-dimensional cases (r=d>1) by employing root lattices of simple Lie algebras, while preserving the stated discriminant group and even/self-dual properties of the intermediate lattice.

Significance. If the higher-dimensional constructions are shown to produce even, unimodular lattices of signature (rd,rd) that admit a self-orthogonal code C yielding a modular-invariant theta series, the work would furnish a systematic algebraic method for generating families of Narain CFTs from Lie-algebra data and code theory, extending beyond the rank-1 case and potentially aiding classification efforts.

major comments (1)
  1. [Higher-dimensional constructions] Higher-dimensional constructions (r=d>1): the text states that the generalization via root lattices of higher Lie algebras preserves the discriminant group ℤ_k and yields an even self-dual intermediate lattice Λ_kC, but supplies neither explicit generators nor Gram matrices, nor direct verification that all norms are even integers or that the underlying code C is self-orthogonal. These checks are load-bearing for the central claim that the resulting lattices realize valid code CFTs.
minor comments (1)
  1. [Abstract] Abstract: the use of boldface math symbols (e.g., bold Lambda) is inconsistent with standard LaTeX rendering in the arXiv version; replace with ordinary math mode for clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: Higher-dimensional constructions (r=d>1): the text states that the generalization via root lattices of higher Lie algebras preserves the discriminant group ℤ_k and yields an even self-dual intermediate lattice Λ_kC, but supplies neither explicit generators nor Gram matrices, nor direct verification that all norms are even integers or that the underlying code C is self-orthogonal. These checks are load-bearing for the central claim that the resulting lattices realize valid code CFTs.

    Authors: We agree that the higher-dimensional section would be strengthened by explicit verification. The construction proceeds by embedding the root lattice of a simple Lie algebra (which is even and integral) into the Narain lattice framework so that the quotient by the code lattice remains ℤ_k and the intermediate lattice is even and self-dual by construction; the code C is chosen to be self-orthogonal by the same algebraic rules used in the rank-1 case. Nevertheless, the manuscript does not list generators or Gram matrices for any r>1 example, nor does it perform the norm and self-orthogonality checks explicitly. In the revised version we will add a concrete rank-2 illustration using the A₂ root lattice, including an explicit basis, the Gram matrix, verification that all norms are even integers, and direct confirmation that the associated code is self-orthogonal. This example will make the general argument fully explicit while preserving the paper’s emphasis on the inclusion relations and discriminant group. revision: yes

Circularity Check

0 steps flagged

No significant circularity; constructions are explicit and self-contained

full rationale

The paper states explicit algebraic constructions of the lattices Λ_k, Λ_kC and Λ_k* first for r=d=1 and then via root lattices of higher-dimensional Lie algebras for r=d>1, together with the inclusion chain and the discriminant group Z_k. These are presented as direct results of the algebraic setup rather than as predictions fitted to data or derived from prior self-citations. No equations in the abstract reduce a claimed result to its own input by definition, no fitted parameter is relabeled as a prediction, and no uniqueness theorem or ansatz is imported solely via self-citation. The even/self-dual properties are required by the Narain code-CFT context but are asserted to follow from the given generators and Lie-algebra embeddings, without circular redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities can be extracted. The lattices themselves are standard objects in the literature, but their specific algebraic forms are presented as new without further detail.

pith-pipeline@v0.9.0 · 5504 in / 1179 out tokens · 43163 ms · 2026-05-07T15:28:11.078256+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

41 extracted references · 6 canonical work pages · 2 internal anchors

  1. [1]

    Dymarsky, A., & Shapere, A. (2021). Quantum stabilizer codes, lattices, and CFTs. Journal of High Energy Physics, 2021(3), 1-84

    2021

  2. [2]

    Buican, M., Dymarsky, A., & Radhakrishnan, R. (2023). Quantum codes, CFTs, and defects. Journal of High Energy Physics, 2023(3), 1-37

    2023

  3. [3]

    Kawabata, K., Nishioka, T., & Okuda, T. (2023). Narain CFTs from qudit stabilizer codes. SciPost Physics Core, 6(2), 035. 24

    2023

  4. [4]

    F., Kawabata, K., Nishioka, T., Okuda, T., & Yahagi, S

    Alam, Y. F., Kawabata, K., Nishioka, T., Okuda, T., & Yahagi, S. (2023). Narain CFTs from nonbinary stabilizer codes. Journal of High Energy Physics, 2023(12), 1-38

    2023

  5. [5]

    Angelinos, N., Chakraborty, D., & Dymarsky, A. (2022). Optimal Narain CFTs from codes. Journal of High Energy Physics, 2022(11), 1-22

    2022

  6. [6]

    Furuta, Y. (2024). On the rationality and the code structure of a Narain CFT, and the simple current orbifold. Journal of Physics A: Mathematical and Theoretical, 57(27), 275202

    2024

  7. [7]

    Narain, K. S. (1989). New heterotic string theories in uncompactified dimensions<10. In Current Physics–Sources and Comments (Vol. 4, pp. 246-251). Elsevier

    1989

  8. [8]

    S., Sarmadi, M

    Narain, K. S., Sarmadi, M. H., & Witten, E. (1986). A note on toroidal compactification of heterotic string theory (No. RAL–86-022)

    1986

  9. [9]

    Aharony, O., Dymarsky, A., & Shapere, A. D. (2024). Holographic description of Narain CFTs and their code-based ensembles. Journal of High Energy Physics, 2024(5), 1-46

    2024

  10. [10]

    Dymarsky, A., & Shapere, A. (2021). Comments on the holographic description of Narain theories. Journal of High Energy Physics, 2021(10), 1-26

    2021

  11. [11]

    Chakraborty, S., & Hashimoto, A. (2022). Weighted average over the Narain moduli space as a TT deformation of the CFT target space. Physical Review D, 105(8), 086018

    2022

  12. [12]

    Kawabata, K., Nishioka, T., & Okuda, T. (2023). Supersymmetric conformal field theories from quantum stabilizer codes. Physical Review D, 108(8), L081901

    2023

  13. [13]

    H., & Zou, Y

    Sang, S., Hsieh, T. H., & Zou, Y. (2024). Approximate quantum error correcting codes from conformal field theory. Physical Review Letters, 133(21), 210601

    2024

  14. [14]

    Dymarsky, A., & Shapere, A. (2021). Solutions of modular bootstrap constraints from quantum codes. Physical Review Letters, 126(16), 161602

    2021

  15. [15]

    Dymarsky, A., & Sharon, A. (2021). Non-rational Narain CFTs from codes over F4. Journal of High Energy Physics, 2021(11), 1-34

    2021

  16. [16]

    Yahagi, S. (2022). Narain CFTs and error-correcting codes on finite fields. Journal of High Energy Physics, 2022(8), 1-21

    2022

  17. [17]

    Kawabata, K., Nishioka, T., & Okuda, T. (2024). Narain CFTs from quantum codes and their$${\mathbb{Z}} {2}$$gauging. Journal of High Energy Physics, 2024(5), 1-56

    2024

  18. [18]

    Algebraic Realisation of the Zamolodchikov Metric in Narain Theories

    Saidi, E. H., & Sammani, R. (2024). Classification of Narain CFTs and ensemble average. arXiv preprint arXiv:2412.13932. 25

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  19. [19]

    H., & Sammani, R

    Saidi, E. H., & Sammani, R. (2025). Code CFTs and Topological Matter. arXiv preprint arXiv:2506.22088

    work page arXiv 2025

  20. [20]

    Maloney, A., & Witten, E. (2020). Averaging over Narain moduli space. Journal of High Energy Physics, 2020(10), 1-47

    2020

  21. [21]

    M., & Yamazaki , M

    Ashwinkumar, M., Kidambi, A., Leedom, J. M., & Yamazaki, M. (2023). Generalized Narain theories decoded: discussions on Eisenstein series, characteristics, orbifolds, dis- criminants and ensembles in any dimension. arXiv preprint arXiv:2311.00699

    work page arXiv 2023

  22. [22]

    H., Laamara, R

    Sammani, R., Saidi, E. H., Laamara, R. A., & Drissi, L. B. (2025). Fluctuating ensemble averages and the BTZ threshold. The European Physical Journal C, 85(4), 1-18

    2025

  23. [23]

    Y., & Oikawa, T

    Mizoguchi, S. Y., & Oikawa, T. (2025). Unifying error-correcting code/Narain CFT corre- spondences via lattices over integers of cyclotomic fields. Physics Letters B, 862, 139308

    2025

  24. [24]

    Angelinos, N. (2025). Code construction and ensemble holography of simply-laced WZW models at level 1. Journal of High Energy Physics, 2025(6), 1-31

    2025

  25. [25]

    Z., & Kane, C

    Hasan, M. Z., & Kane, C. L. (2010). Colloquium: topological insulators. Reviews of modern physics, 82(4), 3045-3067

    2010

  26. [26]

    L., & Zhang, S

    Qi, X. L., & Zhang, S. C. (2011). Topological insulators and superconductors. Reviews of modern physics, 83(4), 1057-1110

    2011

  27. [27]

    B., Saidi, E

    Drissi, L. B., Saidi, E. H., & Bousmina, M. (2011). Graphene, lattice field theory and symmetries. Journal of mathematical physics, 52(2)

    2011

  28. [28]

    L. B. Drissi, E. H. Saidi, M. Bousmina, Electronic Properties and Hidden Symmetries of Graphene, Nuclear Physics B Volume 829, Issue 3, 21 April 2010, Pages 523-533, arXiv:1008.4470 [cond-mat.str-el]

    work page arXiv 2010

  29. [29]

    B., Lounis, S., & Saidi, E

    Drissi, L. B., Lounis, S., & Saidi, E. H. (2022). Higher-order topological matter and fractional chiral states. The European Physical Journal Plus, 137(7), 796

    2022

  30. [30]

    B., & Saidi, E

    Drissi, L. B., & Saidi, E. H. (2020). A signature index for third order topological insulators. Journal of Physics: Condensed Matter, 32(36), 365704

    2020

  31. [31]

    H., Ahl Laamara, R., & Btissam Drissi, L

    Boujakhrout, Y., Saidi, E. H., Ahl Laamara, R., & Btissam Drissi, L. (2023). ’t Hooft lines of ADE-type and topological quivers. SciPost Physics, 15(3), 078

    2023

  32. [32]

    Black flowers and real forms of higher spin symmetries

    Sammani, R., Saidi, E.H. Black flowers and real forms of higher spin symmetries. J. High Energ. Phys. 2024, 44 (2024). https://doi.org/10.1007/JHEP10(2024)044 26

    work page doi:10.1007/jhep10(2024)044 2024

  33. [33]

    H., Laamara, R

    Sammani, R., Boujakhrout, Y., Saidi, E. H., Laamara, R. A., & Drissi, L. B. (2023). Higher spin AdS 3 gravity and Tits-Satake diagrams. Physical Review D, 108(10), 106019

    2023

  34. [34]

    H., & Laamara, R

    Sammani, R., Saidi, E. H., & Laamara, R. A. (2025). Black hole solutions of three dimen- sional E6-gravity. Journal of Mathematical Physics, 66(2)

    2025

  35. [35]

    H., Fassi-Fehri, O., & Bousmina, M

    Saidi, E. H., Fassi-Fehri, O., & Bousmina, M. (2012). Topological aspects of fermions on hyperdiamond. Journal of mathematical physics, 53(7)

    2012

  36. [36]

    Saidi, E. H. (2014). Twisted 3D$\mathcal{N}= 4$N= 4 supersymmetric YM on de- formed$\mathbb{A} {3}ˆ{\ast}$A3* lattice. Journal of Mathematical Physics, 55(1)

    2014

  37. [37]

    Jeukendrup, C. (2025). On the Construction and Uniqueness of the E8 Lattice (Bachelor’s thesis)

    2025

  38. [38]

    Dixon, G. (1994). Octonion X-Product and E8 Lattices. arXiv preprint hep-th/9411063

    work page internal anchor Pith review arXiv 1994

  39. [39]

    Cohn, H., Kumar, A., Miller, S., Radchenko, D., & Viazovska, M. (2017). The sphere packing problem in dimension 24. Annals of mathematics, 185(3), 1017-1033

    2017

  40. [40]

    H., & Sloane, N

    Conway, J. H., & Sloane, N. J. A. (2013). Sphere packings, lattices and groups (Vol. 290). Springer Science & Business Media

    2013

  41. [41]

    Ebeling, W. (1994). Lattices and codes, a course partially based on lectures by F. Hirzen- bruch, Vieweg (Braunschweig). 27

    1994
