Task-Aware Scanning Parameter Configuration for Robotic Inspection Using Vision Language Embeddings and Hyperdimensional Computing
Pith reviewed 2026-05-07 15:26 UTC · model grok-4.3
The pith
A hyperdimensional computing system recommends optimal laser scanner settings from a natural-language inspection task and an initial image.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
ScanHD binds instruction and observation into a task-aware code using hyperdimensional computing and performs parameter-wise associative reasoning with compact memories to match discrete scanner regimes, achieving 92.7 percent average exact accuracy and 98.1 percent average Win@1 accuracy across the five parameters with strong cross-split generalization on Instruct-Obs2Param.
What carries the argument
ScanHD, a hyperdimensional computing framework that encodes instruction and observation embeddings, binds them into task-aware vectors, and retrieves each parameter setting through associative memory lookup.
If this is right
- Robotic systems can configure laser profilers autonomously from task intent and scene context without manual tuning.
- Sensor configuration becomes an adaptive decision variable that improves measurement fidelity for each inspection instruction.
- Low-latency inference supports real-time deployment on robot-mounted hardware.
- The method generalizes across object and illumination splits within the collected data.
Where Pith is reading between the lines
- The same binding mechanism could be applied to configure other robot sensors such as cameras or depth cameras for different tasks.
- Replacing the discrete associative memories with continuous regression heads would allow the approach to handle non-discrete parameter spaces.
- Online updates to the compact memories could let the system adapt when the robot encounters previously unseen objects.
- The compact size of the memories makes the method suitable for edge devices where large multimodal models cannot run.
Load-bearing premise
The five discrete parameter regimes captured in the dataset are sufficient to represent optimal configurations for the stated inspection intents.
What would settle it
Running the system on objects outside the original 16-object collection or under lighting conditions absent from the dataset and measuring whether exact accuracy falls below 80 percent.
Figures
read the original abstract
Robotic laser profiling is widely used for dimensional verification and surface inspection, yet measurement fidelity is often dominated by sensor configuration rather than robot motion. Industrial profilers expose multiple coupled parameters, including sampling frequency, measurement range, exposure time, receiver dynamic range, and illumination, that are still tuned by trial-and-error; mismatches can cause saturation, clipping, or missing returns that cannot be recovered downstream. We formulate instruction-conditioned sensing parameter recommendation; given a pre-scan RGB observation and a natural-language inspection instruction, infer a discrete configuration over key parameters of a robot-mounted profiler. To benchmark this problem, we develop Instruct-Obs2Param, a real-world multimodal dataset linking inspection intents and multi-view pose and illumination variation across 16 objects to canonical parameter regimes. We then propose ScanHD, a hyperdimensional computing framework that binds instruction and observation into a task-aware code and performs parameter-wise associative reasoning with compact memories, matching discrete scanner regimes while yielding stable, interpretable, low-latency decisions. On Instruct-Obs2Param, ScanHD achieves 92.7% average exact accuracy and 98.1% average Win@1 accuracy across the five parameters, with strong cross-split generalization and low-latency inference suitable for deployment, outperforming rule-based heuristics, conventional multimodal models, and multimodal large language models. This work enables autonomous, instruction-conditioned sensing configuration from task intent and scene context, eliminating manual tuning and elevating sensor configuration from a static setting to an adaptive decision variable.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper formulates the task of instruction-conditioned configuration of coupled parameters (sampling frequency, measurement range, exposure time, receiver dynamic range, illumination) for a robot-mounted laser profiler. It introduces the Instruct-Obs2Param dataset linking natural-language inspection intents, multi-view RGB observations across 16 objects with pose/illumination variation, and canonical discrete parameter regimes. It proposes ScanHD, a hyperdimensional computing pipeline that encodes vision-language embeddings into task-aware codes, performs parameter-wise associative lookup in compact memories, and reports 92.7% average exact accuracy and 98.1% average Win@1 accuracy on cross-splits, outperforming rule-based heuristics, conventional multimodal models, and MLLMs while providing low-latency inference.
Significance. If the reported accuracies and latency hold under the stated protocol, the work supplies a concrete, interpretable, and deployable alternative to manual tuning for industrial robotic inspection. The Instruct-Obs2Param dataset is a useful benchmark contribution, and the HDC binding approach offers compactness and stability advantages over heavier multimodal models. These strengths support the claim that sensor configuration can be treated as an adaptive, task-aware decision variable.
major comments (2)
- [Evaluation / Experiments] Evaluation section (cross-split protocol): the 92.7% exact / 98.1% Win@1 figures and the 'strong cross-split generalization' and 'suitable for deployment' claims rest on interpolation within the closed 16-object collection under controlled conditions. No experiments on novel objects or lighting regimes outside this set are reported, leaving the central assumption that the five discrete regimes plus HDC associative lookup will remain reliable under distribution shift unverified and load-bearing for the deployment narrative.
- [§3] §3 (ScanHD architecture): the binding of instruction and observation embeddings into hyperdimensional codes and the subsequent parameter-wise memory lookup are described at a high level, but the precise encoding functions, bundling operations, and memory construction details are not given with sufficient equations or pseudocode to permit independent reproduction or verification of the claimed parameter-free character of the associative reasoning.
minor comments (2)
- [Evaluation] Clarify the exact definition and computation of 'Win@1 accuracy' (is it top-1 among the five parameters or per-parameter?) and report per-parameter breakdowns in addition to the averages.
- [Baselines] Provide implementation details or references for the MLLM baselines (model names, prompting templates, fine-tuning status) to allow assessment of the fairness of the comparison.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. We address each major comment below with clarifications and indicate where revisions will be made to strengthen the manuscript.
read point-by-point responses
-
Referee: [Evaluation / Experiments] Evaluation section (cross-split protocol): the 92.7% exact / 98.1% Win@1 figures and the 'strong cross-split generalization' and 'suitable for deployment' claims rest on interpolation within the closed 16-object collection under controlled conditions. No experiments on novel objects or lighting regimes outside this set are reported, leaving the central assumption that the five discrete regimes plus HDC associative lookup will remain reliable under distribution shift unverified and load-bearing for the deployment narrative.
Authors: We agree that all reported results, including the 92.7% exact and 98.1% Win@1 accuracies, are obtained via cross-splits within the 16-object Instruct-Obs2Param collection under controlled pose and illumination variations. The protocol does ensure no overlap in object instances, views, or lighting between train and test, which supports our claims of strong cross-split generalization within the dataset's scope. However, we acknowledge that no experiments on entirely novel objects or unseen lighting regimes are included, leaving robustness under broader distribution shift untested. In the revision we will moderate the 'suitable for deployment' language to reflect this scope, add an explicit limitations paragraph discussing the assumption of similar industrial conditions, and clarify that the current results demonstrate utility for tasks matching the dataset's characteristics. revision: partial
-
Referee: [§3] §3 (ScanHD architecture): the binding of instruction and observation embeddings into hyperdimensional codes and the subsequent parameter-wise memory lookup are described at a high level, but the precise encoding functions, bundling operations, and memory construction details are not given with sufficient equations or pseudocode to permit independent reproduction or verification of the claimed parameter-free character of the associative reasoning.
Authors: We thank the referee for highlighting the need for greater technical precision. In the revised manuscript we will expand Section 3 with the exact encoding functions for mapping vision-language embeddings to hypervectors, the specific binding and bundling operations (including the mathematical definitions of the task-aware code construction), and the step-by-step procedure for building the parameter-wise associative memories. We will also include pseudocode for the complete ScanHD inference process to enable independent reproduction and to substantiate the parameter-free character of the associative lookup. revision: yes
Circularity Check
No circularity: empirical accuracies measured on held-out cross-splits of a new dataset
full rationale

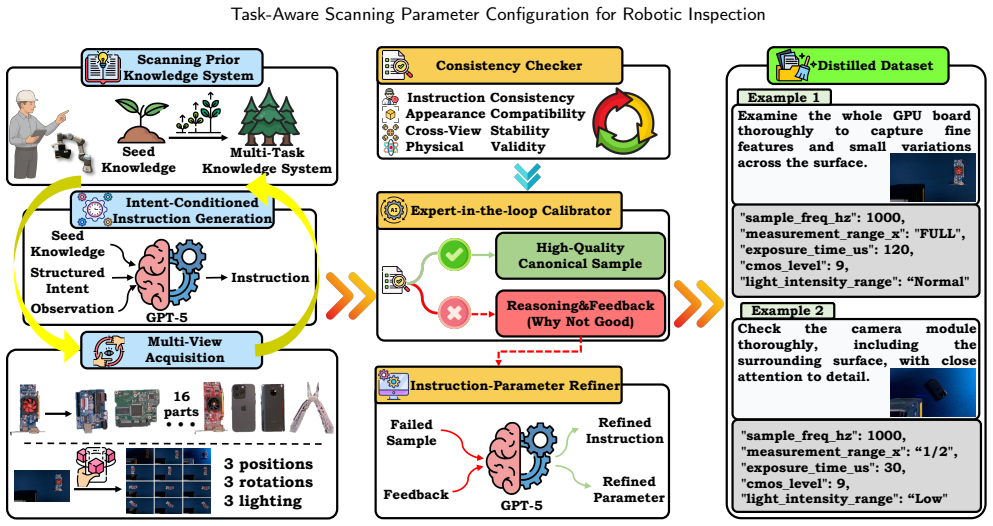

The paper introduces a new multimodal dataset (Instruct-Obs2Param) covering 16 objects and defines ScanHD as an HDC-based binding and associative lookup procedure. Reported performance (92.7% exact accuracy, 98.1% Win@1) is obtained by direct evaluation on cross-validation splits of that dataset. No equations, parameter fits, or self-citations are shown to reduce these accuracy figures to quantities already present in the training data or prior author work. The derivation chain consists of dataset collection followed by external benchmarking against baselines; the central claims remain falsifiable by new objects or lighting conditions outside the 16-object collection.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Oztemel, S
E. Oztemel, S. Gursev, Literature review of Industry 4.0 and related technologies,Journalofintelligentmanufacturing31(1)(2020)127– 182
2020
-
[2]
Papavasileiou, G
A. Papavasileiou, G. Michalos, S. Makris, Quality control in manufacturing–review and challenges on robotic applications, Inter- nationalJournalofComputerIntegratedManufacturing38(1)(2025) 79–115
2025
-
[3]
S.Rescsanski,R.Hebert,A.Haghighi,J.Tang,F.Imani,Towardsin- telligentcooperativeroboticsinadditivemanufacturing:Past,present, and future, Robotics and Computer-Integrated Manufacturing 93 (2025) 102925
2025
-
[4]
X. Guo, B. Zhu, M. Chi, C. Liu, Y. Wei, Q. Fang, Modeling and compensation of measurement errors in hand-eye system for heavy- load industrial robots with line laser sensor, Robotics and Computer- Integrated Manufacturing 98 (2026) 103155
2026
-
[5]
Dhiman, A
G. Dhiman, A. V. Kumar, R. Nirmalan, S. Sujitha, K. Srihari, N. Yu- varaj, P. Arulprakash, R. A. Raja, Multi-modal active learning with deep reinforcement learning for target feature extraction in multi- media image processing applications, Multimedia Tools and Appli- cations 82 (4) (2023) 5343–5367
2023
-
[6]
Jiang, B
W. Jiang, B. Lei, K. Daniilidis, Fisherrf: Active view selection and mapping with radiance fields using fisher information, in: European Conference on Computer Vision, Springer, 422–440, 2024
2024
-
[7]
Vutetakis, J
D. Vutetakis, J. Xiao, Active perception network for non-myopic online exploration and visual surface coverage, The International Journal of Robotics Research 44 (2) (2025) 247–272
2025
-
[8]
J. Liu, Q. Chen, J. Wang, S. Sun, X. Zhang, J. Du, J. Jiang, Z. Tian, S. Yu, W. Yan, Geometric error modeling and compensation for high precision composite optical measurement systems, Optics Express 31 (25) (2023) 42015–42035
2023
-
[9]
D. A. Maisano, L. Mastrogiacomo, F. Franceschini, S. Capizzi, G. Pischedda, D. Laurenza, G. Gomiero, G. Manca, Dimensional measurements in the shipbuilding industry: on-site comparison of a state-of-the-art laser tracker, total station and laser scanner, Produc- tion Engineering 17 (3) (2023) 625–642
2023
-
[10]
H. Chen, S. Huo, M. Muddassir, H.-Y. Lee, Y. Liu, J. Li, A. Duan, P. Zheng, D. Navarro-Alarcon, PSO-based optimal coverage path planning for surface defect inspection of 3C components with a roboticlinescanner,IEEETransactionsonInstrumentationandMea- surement
-
[11]
Naghavi Khanghah, Z
K. Naghavi Khanghah, Z. Chen, L. Romeo, Q. Yang, R. Malhotra, F. Imani, H. Xu, Multimodal Rag-Driven Anomaly Detection and Classification in Laser Powder Bed Fusion Using Large Language Models, in: International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, vol. 89220, American Society of Mechanical Engi...
2025
-
[12]
J.Xu,Q.Sun,Q.-L.Han,Y.Tang,WhenembodiedAImeetsIndustry 5.0: Human-centered smart manufacturing, IEEE/CAA Journal of Automatica Sinica 12 (3) (2025) 485–501
2025
-
[13]
Hoang, R
D. Hoang, R. Chen, G. Bollas, F. Imani, Hyperdimensional comput- ing for explainable information fusion and multi-task adaptation in advanced manufacturing, Information Fusion (2025) 103898
2025
-
[14]
Z. Chen, D. Hoang, F. J. Piran, R. Chen, F. Imani, Federated Hy- perdimensional Computing for hierarchical and distributed quality monitoring in smart manufacturing, Internet of Things 31 (2025) 101568
2025
-
[15]
Z. Chen, F. Imani, A multi-expert framework for enhancing multi- modallargelanguagemodelsinindustrialanomalydetection,Pattern Recognition (2025) 112752
2025
-
[16]
Y.Liu,W.Zhao,H.Liu,Y.Wang,X.Yue,Coveragepathplanningfor robotic quality inspection with control on measurement uncertainty, IEEE/ASMETransactionsonMechatronics27(5)(2022)3482–3493
2022
-
[17]
M.-K. Kim, J. C. Cheng, H. Sohn, C.-C. Chang, A framework for dimensional and surface quality assessment of precast concrete ele- ments using BIM and 3D laser scanning, Automation in construction 49 (2015) 225–238
2015
-
[18]
Bajcsy, Active perception, Proceedings of the IEEE 76 (8) (1988) 966–1005
R. Bajcsy, Active perception, Proceedings of the IEEE 76 (8) (1988) 966–1005
1988
-
[19]
S. Wang, Y. Tong, X. Shang, Z. Zhang, Hierarchical viewpoint planning for complex surfaces in industrial product inspection, IEEE/ASMETransactionsonMechatronics29(5)(2023)3289–3299
2023
-
[20]
L.Jin,X.Chen,J.Rückin,M.Popović,Neu-nbv:Nextbestviewplan- ningusinguncertaintyestimationinimage-basedneuralrendering,in: 2023 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), IEEE, 11305–11312, 2023
2023
-
[21]
O. S. Egwuche, A. Singh, A. E. Ezugwu, J. Greeff, M. O. Olusanya, L.Abualigah,Machinelearningforcoverageoptimizationinwireless sensor networks: a comprehensive review, Annals of Operations Research (2023) 1–67
2023
-
[22]
A.Gunatilake,L.Piyathilaka,A.Tran,V.K.Vishwanathan,K.Thiya- garajan,S.Kodagoda,Stereovisioncombinedwithlaserprofilingfor mapping of pipeline internal defects, IEEE Sensors Journal 21 (10) (2020) 11926–11934
2020
-
[23]
Torabi, S
M. Torabi, S. Mousavi G, D. Younesian, A new flexible laser beam profiler for the inspection of train wheels, Proceedings of the Insti- tution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit 235 (2) (2021) 215–225
2021
-
[24]
Z. Wang, L. Zhang, T. Fang, P. T. Mathiopoulos, X. Tong, H. Qu, Z. Xiao, F. Li, D. Chen, A multiscale and hierarchical feature extrac- tion method for terrestrial laser scanning point cloud classification, IEEETransactionsonGeoscienceandRemoteSensing53(5)(2014) 2409–2425
2014
-
[25]
B. Ai, S. Tian, H. Shi, Y. Wang, T. Pfaff, C. Tan, H. I. Christensen, H. Su, J. Wu, Y. Li, A review of learning-based dynamics models for robotic manipulation, Science Robotics 10 (106) (2025) eadt1497
2025
-
[26]
R. Shao, W. Li, L. Zhang, R. Zhang, Z. Liu, R. Chen, L. Nie, Large vlm-basedvision-language-actionmodelsforroboticmanipulation:A survey, arXiv preprint arXiv:2508.13073 . First Author et al.:Preprint submitted to ElsevierPage 19 of 20 Task-Aware Scanning Parameter Configuration for Robotic Inspection
work page internal anchor Pith review arXiv
-
[27]
Doveh, N
S. Doveh, N. Shabtay, E. Schwartz, H. Kuehne, R. Giryes, R. Feris, L.Karlinsky,J.Glass,A.Arbelle,S.Ullman,etal.,TeachingVLMsto LocalizeSpecificObjectsfromIn-contextExamples,in:Proceedings of the IEEE/CVF International Conference on Computer Vision, 9572–9582, 2025
2025
-
[28]
Engelbracht, R
T. Engelbracht, R. Zurbrügg, M. Pollefeys, H. Blum, Z. Bauer, Spot- light:Roboticsceneunderstandingthroughinteractionandaffordance detection, in: 2025 IEEE-RAS 24th International Conference on Humanoid Robots (Humanoids), IEEE, 1–8, 2025
2025
-
[29]
G.Sarch,L.Jang,M.Tarr,W.W.Cohen,K.Marino,K.Fragkiadaki, Vlm agents generate their own memories: Distilling experience into embodied programs of thought, Advances in Neural Information Processing Systems 37 (2024) 75942–75985
2024
- [30]
-
[31]
89213, American Society of Mechanical Engineers, V02BT02A051, 2025
Z.Chen,H.Chen,M.Imani,F.Imani,Canmultimodallargelanguage modelsbeguidedtoimproveindustrialanomalydetection?,in:Inter- national Design Engineering Technical Conferences and Computers and Information in Engineering Conference, vol. 89213, American Society of Mechanical Engineers, V02BT02A051, 2025
2025
-
[32]
O.Mees,L.Hermann,E.Rosete-Beas,W.Burgard,Calvin:Abench- markforlanguage-conditionedpolicylearningforlong-horizonrobot manipulation tasks, IEEE Robotics and Automation Letters 7 (3) (2022) 7327–7334
2022
-
[33]
B. Liu, Y. Zhu, C. Gao, Y. Feng, Q. Liu, Y. Zhu, P. Stone, Libero: Benchmarking knowledge transfer for lifelong robot learning, Ad- vances in Neural Information Processing Systems 36 (2023) 44776– 44791
2023
-
[34]
C. Li, R. Zhang, J. Wong, C. Gokmen, S. Srivastava, R. Martín- Martín, C. Wang, G. Levine, M. Lingelbach, J. Sun, et al., Behavior- 1k: A benchmark for embodied ai with 1,000 everyday activities and realistic simulation, in: Conference on Robot Learning, PMLR, 80– 93, 2023
2023
-
[35]
Kanerva, Hyperdimensional computing: An introduction to com- puting in distributed representation with high-dimensional random vectors, Cognitive computation 1 (2) (2009) 139–159
P. Kanerva, Hyperdimensional computing: An introduction to com- puting in distributed representation with high-dimensional random vectors, Cognitive computation 1 (2) (2009) 139–159
2009
-
[36]
Neubert, S
P. Neubert, S. Schubert, P. Protzel, An introduction to hyperdimen- sionalcomputingforrobotics,KI-KünstlicheIntelligenz33(4)(2019) 319–330
2019
-
[37]
Menon, A
A. Menon, A. Natarajan, L. I. G. Olascoaga, Y. Kim, B. Benedict, J. M. Rabaey, On the role of hyperdimensional computing for be- havioral prioritization in reactive robot navigation tasks, in: 2022 InternationalConferenceonRoboticsandAutomation(ICRA),IEEE, 7335–7341, 2022
2022
-
[38]
Neubert, S
P. Neubert, S. Schubert, P. Protzel, Learning vector symbolic archi- tectures for reactive robot behaviours
-
[39]
H. Kwon, K. Kim, J. Lee, H. Lee, J. Kim, J. Kim, T. Kim, Y. Kim, Y.Ni,M.Imani,etal.,Brain-inspiredhyperdimensionalcomputingin the wild: Lightweight symbolic learning for sensorimotor controls of wheeled robots, in: 2024 IEEE International Conference on Robotics and Automation (ICRA), IEEE, 5176–5182, 2024
2024
-
[40]
Keyence Corporation, LJ-X8200 High-Speed 2D/3D Laser Pro- filer,https://www.keyence.com/products/measure/laser-2d/lj-x8000/ models/lj-x8200/, accessed: May 5, 2025, 2025
2025
-
[41]
Hernández-Cano, N
A. Hernández-Cano, N. Matsumoto, E. Ping, M. Imani, Onlinehd: Robust, efficient, and single-pass online learning using hyperdimen- sional system, in: 2021 Design, Automation & Test in Europe Con- ference & Exhibition (DATE), IEEE, 56–61, 2021
2021
-
[42]
S. Bai, Y. Cai, R. Chen, K. Chen, X. Chen, Z. Cheng, L. Deng, W.Ding,C.Gao,C.Ge,W.Ge,Z.Guo,Q.Huang,J.Huang,F.Huang, B.Hui,S.Jiang,Z.Li,M.Li,M.Li,K.Li,Z.Lin,J.Lin,X.Liu,J.Liu, C.Liu,Y.Liu,D.Liu,S.Liu,D.Lu,R.Luo,C.Lv,R.Men,L.Meng, X. Ren, X. Ren, S. Song, Y. Sun, J. Tang, J. Tu, J. Wan, P. Wang, P. Wang, Q. Wang, Y. Wang, T. Xie, Y. Xu, H. Xu, J. Xu, Z. Yan...
work page internal anchor Pith review arXiv
