Inverse-designed release-free optomechanical crystal with high photon-phonon coupling

David Hambraeus , Paul Burger , Johan Kolvik , Philippe Tassin , Rapha\"el Van Laer This is my paper

Pith reviewed 2026-05-07 14:13 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph
keywords optomechanicsinverse designsilicon photonicsoptomechanical crystalsphoton-phonon couplingrelease-free devicesvacuum coupling rate
0
0 comments X

The pith

A release-free silicon optomechanical crystal reaches a vacuum coupling rate of 800 kHz through inverse design.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a release-free optomechanical crystal can match the strong photon-phonon coupling of suspended devices while remaining anchored to the substrate for better heat dissipation. This matters for applications that need both fast light-sound interactions and low noise from laser heating in quantum technologies and signal processing. The authors reach this performance by combining guided intuition with a new multiphysics inverse-design algorithm that simultaneously tunes optical and mechanical resonances. The fabricated device shows a vacuum optomechanical coupling rate of roughly 800 kHz and an optomechanical scattering rate of 1.1 kHz, nearly double prior release-free results. If the approach holds, it removes the previous trade-off between coupling strength and thermal robustness.

Core claim

The authors introduce a multiphysics inverse-design algorithm for resonant optomechanical structures and apply it to produce a release-free silicon optomechanical crystal. The resulting device exhibits a vacuum optomechanical coupling rate g_OM/(2π) ≈ 800 kHz, comparable to suspended state-of-the-art devices, together with an optomechanical scattering rate Γ_OM/(2π) = 1.1 kHz that is nearly twice as large as earlier release-free implementations. The design improves thermal anchoring without sacrificing coupling strength, thereby strengthening release-free optomechanical crystals as a platform for fast, low-noise classical and quantum optomechanics.

What carries the argument

A multiphysics inverse-design algorithm that co-optimizes optical and mechanical resonances and eigenmodes.

If this is right

  • Stronger photon-phonon interactions become possible in thermally robust, release-free structures.
  • The inverse-design framework extends to broader co-optimization of optical and mechanical properties.
  • Applications in classical signal processing and quantum technologies gain reduced parasitic laser heating.
  • Performance comparable to suspended devices is achieved without the fabrication challenges of full suspension.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same algorithm could support integrated circuits where multiple optomechanical elements share a common substrate and thermal environment.
  • Testing the device at single-photon or quantum-limited regimes would reveal whether the improved thermal anchoring translates into lower added noise.
  • Extending the method to other high-index materials could further increase coupling rates while retaining the release-free advantage.

Load-bearing premise

The fabricated device matches the designed geometry closely enough that its measured coupling rate equals the simulated vacuum rate without major fabrication deviations or measurement artifacts.

What would settle it

Fabricating the device and measuring a vacuum optomechanical coupling rate significantly below 800 kHz would show that the design did not translate accurately into the physical structure.

Figures

Figures reproduced from arXiv: 2605.03910 by David Hambraeus, Johan Kolvik, Paul Burger, Philippe Tassin, Rapha\"el Van Laer.

Figure 1
Figure 1. Figure 1: Release-free optomechanical crystal cavity with improved photon-phonon overlap. (a) The release-free OMC with X-HOPE design pattern showing the transverse component of the normalized electric field Ex of the optical mode (top) and the longitudinal normalized displacement uy of the mechanical mode (bottom). (b) Diagram of unit cell geometry. The basic cell is an elliptical hole with major and minor radii rx… view at source ↗
Figure 2
Figure 2. Figure 2: Inverse-design of the optomechanical cavity enhances the optomechanical scattering rate. (a) A diagram depicting the inverse design algorithm. (i) The geometry is imported into the simulation software. (ii) An eigenmode simulation is performed, yielding the eigenmode fields and frequencies. (iii) The gradient of the figure-of-merit w.r.t. the fields is computed. (iv) An adjoint simulation is performed, yie… view at source ↗
Figure 3
Figure 3. Figure 3: Measurement of inverse-designed X-HOPE cavity. (a) Spectral sweep of optical resonance. Lorentzian fit yields internal quality factor of 1.2 · 105 , with a total linewidth of κ = 2.37 GHz (b) Scanning electron micrograph of the device and measurement setup featuring a variable optical attenuator, electro-optic modulator, photodetector, spectrum analyzer, and vector network analyzer. (c) Mechanical spectrum… view at source ↗
Figure 4

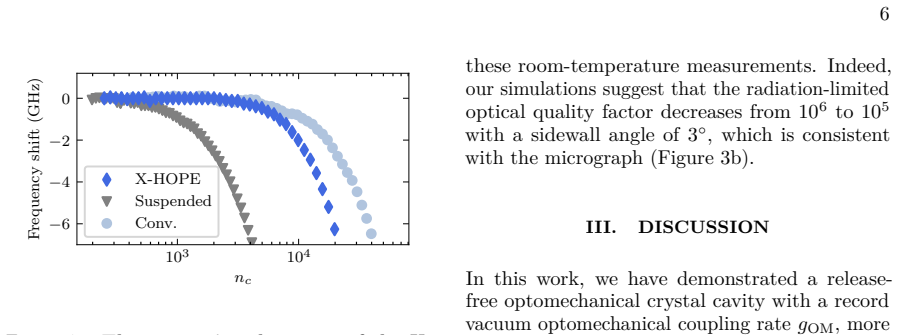

Figure 4. Figure 4: Thermo-optic robustness of the X￾HOPE cavity. Thermo-optic shift as function of number of intracavity photons nc. The X-HOPE￾design from this paper is compared with the conven￾tionally designed release-free implementation and a suspended OMC [20, 21]. the device optically and probe the mechanical re￾sponse with thermal sideband spectroscopy (Fig￾ure 3b) under ambient conditions (see methods section). The o… view at source ↗
read the original abstract

Interactions between light and mechanics provide a powerful interface between optical and microwave-frequency signals, with applications spanning classical signal processing and quantum technologies. High-performance optomechanical devices require both strong photon-phonon coupling and tolerance to parasitic laser heating. Release-free optomechanical crystals provide improved thermal anchoring compared to suspended nanobeams, but have so far exhibited weaker vacuum optomechanical coupling rates, leaving a trade-off between coupling strength and thermal robustness. Here, we largely close this gap: we design and experimentally demonstrate a release-free silicon optomechanical crystal with a record vacuum optomechanical coupling rate of about $g_\text{OM} / (2 \pi) = 800$ kHz, comparable to suspended state-of-the-art devices. The resulting optomechanical scattering rate $\Gamma_\text{OM}/(2 \pi)= 1.1$ kHz is nearly twice that of previous release-free implementations. This performance is achieved by combining physics-guided human intuition with a multiphysics inverse-design algorithm introduced here for resonant optomechanical structures. Beyond the specific device demonstrated, the inverse-design framework is applicable to co-optimizing optical and mechanical resonances and eigenmodes more broadly. These results strengthen release-free optomechanical crystals as a platform for fast, low-noise classical and quantum optomechanics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims to design and experimentally demonstrate a release-free silicon optomechanical crystal using a multiphysics inverse-design algorithm (combined with human intuition) that achieves a record vacuum optomechanical coupling rate g_OM/(2π) ≈ 800 kHz—comparable to suspended state-of-the-art devices—along with an optomechanical scattering rate Γ_OM/(2π) = 1.1 kHz that is nearly twice prior release-free implementations, while providing improved thermal anchoring.

Significance. If the experimental results hold, this work meaningfully advances release-free optomechanical crystals as a platform by largely eliminating the prior trade-off between strong photon-phonon coupling and thermal robustness. The multiphysics inverse-design framework for co-optimizing optical and mechanical resonances/eigenmodes is a broadly applicable methodological contribution. The manuscript supplies concrete numerical performance metrics and an experimental validation that strengthens applications in classical signal processing and quantum optomechanics.

minor comments (3)
  1. The abstract states the coupling rate as 'about 800 kHz' while the central claim is a record value; the main text (likely §4 or experimental results) should report the precise extracted value with uncertainty or error bars to substantiate the record assertion.
  2. A summary table comparing the achieved g_OM, Γ_OM, and relevant figures of merit against cited prior release-free and suspended devices would make the 'nearly twice' and 'comparable' statements more quantitative and verifiable.
  3. Figure captions and legends for mode profiles (optical and mechanical) should explicitly label axes, units, and simulation vs. measurement data to improve clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our work, including the recognition of the record vacuum optomechanical coupling rate achieved in a release-free platform and the broader applicability of the multiphysics inverse-design approach. We appreciate the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's derivation chain consists of a multiphysics inverse-design algorithm followed by device fabrication and experimental extraction of the vacuum optomechanical coupling rate g_OM from measured scattering rates. No load-bearing step reduces by construction to its own inputs via self-definition, fitted-parameter renaming, or a self-citation chain that substitutes for independent verification; the reported 800 kHz value and comparisons to prior release-free devices rest on external experimental data rather than internal normalization or ansatz smuggling.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review limits visibility into parameters or assumptions; relies on standard silicon optomechanics physics and fabrication assumptions.

axioms (1)
  • domain assumption Standard silicon refractive index, Young's modulus, and fabrication process tolerances hold for the designed geometry.
    Implicit in any silicon photonic design and inverse optimization.
