3D Human Face Reconstruction with 3DMM face model from RGB image

Zhangnan Jiang , Zichen Yang This is my paper

Pith reviewed 2026-05-07 02:38 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords 3D face reconstruction3D morphable modelsingle RGB imagelandmark detectionparameter regressionface modelingsoft rendering
0
0 comments X

The pith

A pipeline reconstructs usable 3D face geometry from one ordinary RGB photograph by regressing parameters of a 3D morphable model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to build a working system that creates a three-dimensional model of a person's face starting from a single color photograph. It chains together standard steps of detecting the face, locating key points on it, estimating the parameters of a statistical 3D face shape model, and then rendering the result. A reader would care because this removes the need for multiple images, depth sensors, or large labeled training sets that many other methods require. The approach deliberately accepts a coarse model that cannot show fine wrinkles or skin texture, focusing instead on overall shape and expression that can be obtained reliably.

Core claim

The authors demonstrate that a pipeline consisting of face detection, landmark detection, 3DMM parameter regression, and soft rendering can produce a 3D face model directly from a single RGB image. They note that while coarse morphable models cannot synthesize photo-realistic details such as wrinkles, the fitted model still supplies usable geometry for the reconstructed face.

What carries the argument

Regression of 3DMM model parameters from 2D landmarks, which solves for shape, expression, and camera parameters to align the statistical face model with the input image.

If this is right

  • The reconstruction runs on any standard RGB photo without requiring special capture setups.
  • Output meshes can be used immediately for visualization or basic animation once the parameters are obtained.
  • The method avoids the data-hungry training of end-to-end neural networks by relying on the pre-built 3DMM.
  • Soft rendering allows differentiable optimization or visualization of the fitted model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Adding a subsequent refinement stage could recover the fine details the coarse 3DMM omits, turning the pipeline into a two-stage detail-preserving system.
  • The same landmark-to-parameter regression could serve as a fast initialization for more advanced optimization-based or learning-based reconstructors.
  • Testing the pipeline across varied lighting, poses, and ethnicities would reveal how robust the landmark regression step remains outside controlled conditions.

Load-bearing premise

That fitting a coarse statistical 3D face model to detected landmarks will recover geometry accurate enough to be useful despite missing fine surface details.

What would settle it

Compare vertex positions of the output mesh against a ground-truth 3D scan of the same individual; systematic deviations larger than a few millimeters in key facial regions would show the reconstruction does not deliver reliable shape.

Figures

Figures reproduced from arXiv: 2605.03996 by Zhangnan Jiang, Zichen Yang.

Figure 1
Figure 1. Figure 1: Key points in BFM model visualization view at source ↗
Figure 2
Figure 2. Figure 2: BFM model visualization without lightning view at source ↗

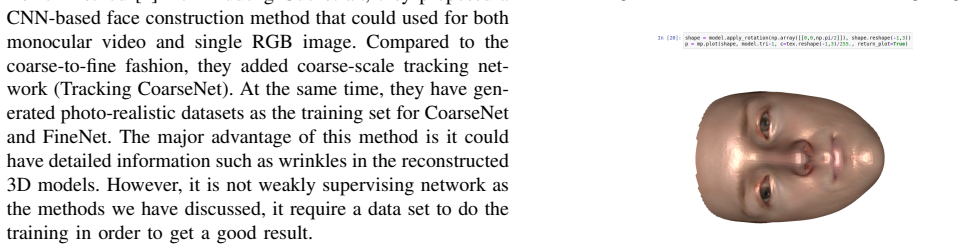

Figure 3
Figure 3. Figure 3: BFM model visualization with lightning image. By using this package, we could extract human face feature from both the input image and the rendered image. Following is our experiment using one input image, the human face feature could be extracted properly view at source ↗
Figure 4
Figure 4. Figure 4: Human face feature extracted from one single input image view at source ↗
Figure 5
Figure 5. Figure 5: Facial landmarks in 3D space extraction method provided by this python library. The method by default detects faces in the input by S3FD face detector [6], the landmarks across the face detected are labeled. In our implementation, we take landmarks across the center of the whole face, both eyebrows, both eyes, nose, nostrils, lips and teeth. D. Basel Face Model(BFM) There are a variety of 3D Morphable Mode… view at source ↗
Figure 6
Figure 6. Figure 6: Overview of our approach In this project, we use 50-layer RNN to complete the re￾gression. The model is pretrained on imageNet dataset[12]. In the original task, there are 1000 features to be extracted and output. In our approach, the total number of dimensions should be 257(80 for αid, 64 for αexp, 80 for αtex, 27 for γ, 3 for T, 1 for x, 1 for y and 1 for z). We modify the model structure by adding fully… view at source ↗
Figure 7
Figure 7. Figure 7: Face Reconstruction Results view at source ↗
Figure 8
Figure 8. Figure 8: Testing on our face images B. Reflection By doing this project, knowledge about neural network, computer graphics, and image feature extraction have been learned and applied. They could be summarized as following: 1) Human Feature Extraction: As for the part of feature extraction, we used package MTCNN[14] to do the work for us. We studied the structure and how it works. MTCNN is a framework that used for … view at source ↗
read the original abstract

Nowadays as convolution neural networks demonstrate its powerful problem-solving ability in the area of image processing, efforts have been made to reconstruct detailed face shapes from 2D face images or videos. However, to make the full use of CNN, a large number of labeled data is required to train the network. Coarse morphable face model has been used to synthesize labeled data. However, it is hard for coarse morphable face models to generate photo-realistic data with detail such as wrinkles. In this project, we present a pipeline that reconstructs a human face 3D model from a single RGB image. The pipeline includes face detection, landmark detection, regression of 3DMM model parameters, and soft rendering. Mentor: Zhipeng Fan (Email: zf606@nyu.edu) Code Repository: https://github.com/SeVEnMY/3d-face- reconstruction Code Reference: https://github.com/sicxu/Deep3DFaceRecon pytorch

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript describes a pipeline for 3D human face reconstruction from a single RGB image. The pipeline integrates standard components: face detection, landmark detection, regression of 3DMM parameters, and soft rendering. It explicitly builds on off-the-shelf 3D Morphable Models and references an existing public implementation (Deep3DFaceRecon), while acknowledging that coarse 3DMMs cannot synthesize high-frequency details such as wrinkles.

Significance. If the described implementation executes correctly, the work demonstrates a functional assembly of existing tools for coarse 3D face mesh recovery. However, because the central claim is limited to the existence of the pipeline and no novel algorithmic contribution, quantitative evaluation, ablation study, or performance metric is supplied, the potential significance for a computer-vision journal is low.

major comments (1)
  1. The manuscript provides no quantitative results, error metrics, ablation studies, or comparisons against baselines. Because the central claim concerns the reconstruction capability of the pipeline, the absence of any verification data leaves the claim as an untested existence statement rather than a substantiated technical result.
minor comments (1)
  1. The code repository link in the abstract contains a space (3d-face- reconstruction); this should be corrected for reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review. The manuscript describes a student project that assembles and documents an existing monocular 3D face reconstruction pipeline based on 3DMM regression. We did not claim algorithmic novelty, and we agree that the absence of quantitative evaluation limits its suitability as a research contribution to a computer-vision journal. Below we respond directly to the single major comment.

read point-by-point responses

  1. Referee: The manuscript provides no quantitative results, error metrics, ablation studies, or comparisons against baselines. Because the central claim concerns the reconstruction capability of the pipeline, the absence of any verification data leaves the claim as an untested existence statement rather than a substantiated technical result.

    Authors: We agree that the manuscript contains no quantitative evaluation, error metrics, ablation studies, or baseline comparisons. The central claim of the work is limited to the existence and successful assembly of a functional pipeline (face detection + landmark detection + 3DMM parameter regression + soft rendering) that reproduces the behavior of the referenced public implementation (Deep3DFaceRecon). Because the project did not generate new training data, train a new regressor, or collect ground-truth 3D scans, no new numerical results were produced. The text already states that coarse 3DMMs cannot synthesize high-frequency details; this limitation is acknowledged rather than claimed to be solved. If the manuscript is viewed as a research paper, the lack of verification data is a genuine weakness. If viewed as project documentation, the absence of metrics follows from the stated scope. We are prepared to add an explicit “Scope and Limitations” paragraph that removes any implication of a technical contribution beyond implementation. revision: partial

Circularity Check

0 steps flagged

Pipeline assembles external components; no derivation present

full rationale

The manuscript describes an engineering pipeline (face detection + landmark regression + 3DMM coefficient fitting + soft rendering) that re-uses publicly referenced networks and the Basel Face Model. No equations, parameter derivations, or predictions are offered; the central claim is satisfied simply by the existence of the assembled code. No self-citations appear, no fitted quantities are relabeled as predictions, and no uniqueness theorem is invoked. The work is therefore self-contained against external benchmarks and exhibits zero circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work rests on the pre-existing 3DMM statistical model, pre-trained landmark and face detectors, and the differentiable renderer from the referenced repository. No new free parameters, axioms, or invented entities are introduced by the authors.
