Binary Image-Based Intrusion Detection for Operational Technology Networks: Extending the SPHBI Methodology from IoT to Modbus TCP

Aamir Omar

arxiv: 2605.04250 · v2 · submitted 2026-05-05 · 💻 cs.CR · cs.NI

Binary Image-Based Intrusion Detection for Operational Technology Networks: Extending the SPHBI Methodology from IoT to Modbus TCP

Aamir Omar This is my paper

Pith reviewed 2026-05-08 17:29 UTC · model grok-4.3

classification 💻 cs.CR cs.NI

keywords intrusion detectionModbus TCPbinary imagesoperational technologynetwork securitymachine learningSCADAlightweight detection

0 comments

The pith

Adding eight application-layer bytes to binary packet images enables 98.1% accurate intrusion detection in Modbus TCP networks with only 63 parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the SPHBI method from IoT to Modbus TCP by testing five levels of protocol information depth on a large dataset of 11.4 million packets. It demonstrates that header-only approaches fail in uniform OT environments but minimal application data inclusion yields high binary and multiclass accuracy with tiny model sizes. This matters for OT networks because it allows real-time per-packet classification on constrained devices without heavy computation. If correct, it shows single-packet methods can cover most attack types except replays.

Core claim

Extending SPHBI to Modbus TCP reveals TCP/IP headers alone provide only 51.8% binary accuracy due to lack of heterogeneity in SCADA traffic. Incorporating eight bytes of application-layer information raises binary accuracy to 98.1% using a model with just 63 parameters. The best model achieves 94.4% multiclass accuracy on nine classes with 56,873 parameters, about 430 times smaller than ResNet50 approaches, and detects seven of eight attack types with over 94% recall while replay remains undetectable from single packets.

What carries the argument

The Single Packet Header Binary Image (SPHBI) approach, which transforms packet headers and limited payload bytes into binary images for classification by small convolutional networks, applied at varying protocol depths.

If this is right

TCP/IP headers prove insufficient for OT intrusion detection, unlike in IoT.
Minimal application data enables near-perfect binary detection with extremely low parameters suitable for edge devices.
Multiclass performance reaches 94.4% with a confidence interval of 92.9% to 95.9% across 10 random seeds.
Seven attack types are reliably detected while replay attacks require multi-packet analysis.
Models use far fewer parameters than image-based deep learning baselines like ResNet50.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar binary image methods may apply to other uniform-header protocols in industrial control systems.
Hybrid systems combining single-packet SPHBI with sequence analysis could handle replay attacks.
Deployment on actual OT hardware would test if the reported accuracies hold under live traffic variations.
The parameter efficiency suggests potential for on-device training or frequent updates in resource-limited settings.

Load-bearing premise

The CIC Modbus 2023 dataset represents typical real-world Modbus TCP traffic and the specific attack behaviors, with single-packet binary images providing enough information to distinguish attacks.

What would settle it

Evaluating the same models on a new Modbus TCP dataset collected from a different industrial environment or including more replay attack instances, and observing whether binary accuracy falls significantly below 98% or multiclass accuracy below 90%.

Figures

Figures reproduced from arXiv: 2605.04250 by Aamir Omar.

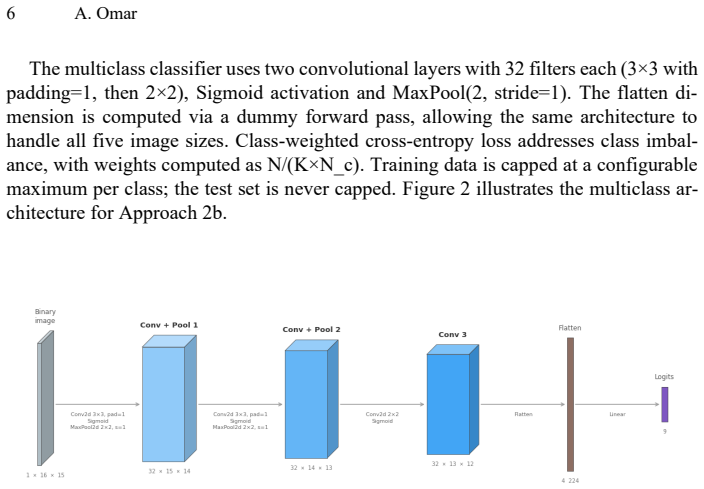

**Figure 2.** Figure 2: Multiclass CNN architecture for Approach 2b (16×15 input, 56,873 parameters) The original SPHBI multiclass classifier uses four convolutional layers with Sigmoid activation. When applied to input images larger than 8×8, this architecture suffered from vanishing gradients: training loss remained effectively constant across 100 epochs and the model collapsed to predicting the majority class. All approaches… view at source ↗

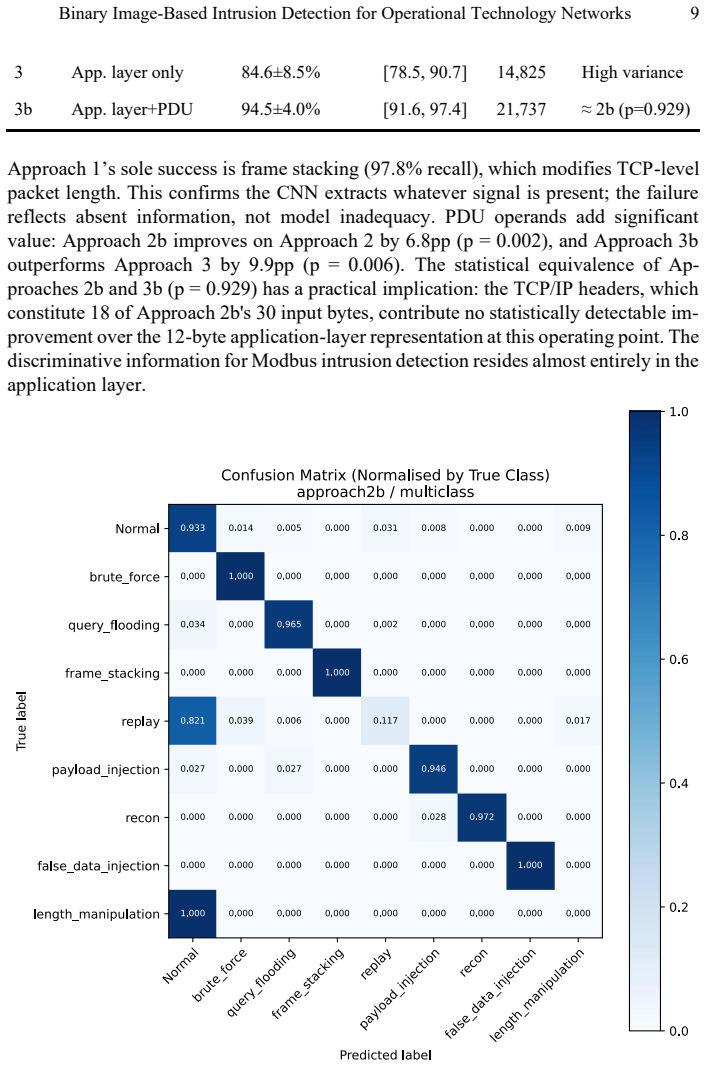

**Figure 4.** Figure 4: Normalised confusion matrix for Approach 2b multiclass (cap = 5,000). Rows represent true labels; columns represent predicted labels. Replay and length manipulation are the only classes with recall below 50% view at source ↗

**Figure 5.** Figure 5: Multiclass accuracy by training cap for Approaches 2b, 3 and 3b (10 seeds per point, shaded regions show 95% confidence intervals). 5.4 Hyperparameter Sensitivity A 2⁴ factorial experiment (32 single-seed runs) confirmed that binary classification is insensitive to training configuration (0.02pp spread). For multiclass, the factorial identified Sigmoid activation with batch normalisation as the best singl… view at source ↗

read the original abstract

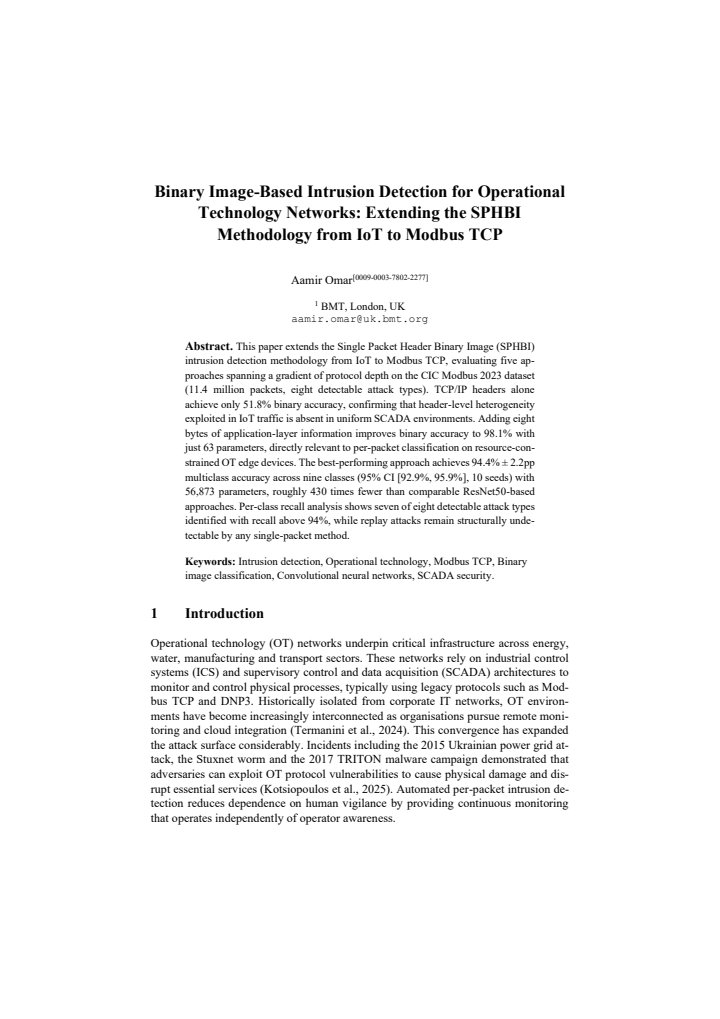

This paper extends the Single Packet Header Binary Image (SPHBI) intrusion detection methodology from IoT to Modbus TCP, evaluating five approaches spanning a gradient of protocol depth on the CIC Modbus 2023 dataset (11.4 million packets, eight detectable attack types). TCP/IP headers alone achieve only 51.8% binary accuracy, confirming that header-level heterogeneity exploited in IoT traffic is absent in uniform SCADA environments. Adding eight bytes of application-layer information improves binary accuracy to 98.1% with just 63 parameters, directly relevant to per-packet classification on resource-constrained OT edge devices. The best-performing approach achieves 94.4% +/- 2.2pp multiclass accuracy across nine classes (95% CI [92.9%, 95.9%], 10 seeds) with 56,873 parameters, roughly 430 times fewer than comparable ResNet50-based approaches. Per-class recall analysis shows seven of eight detectable attack types identified with recall above 94%, while replay attacks remain structurally undetectable by any single-packet method.
