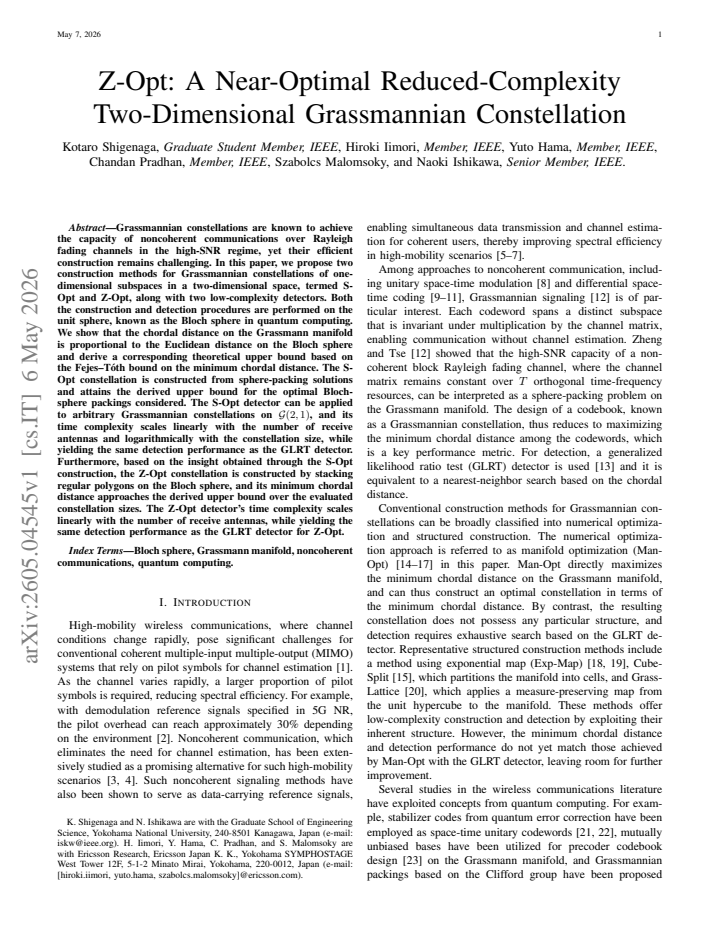

Z-Opt: A Near-Optimal Reduced-Complexity Two-Dimensional Grassmannian Constellation

Kotaro Shigenaga , Hiroki Iimori , Yuto Hama , Chandan Pradhan , Szabolcs Malomsoky , Naoki Ishikawa This is my paper

Pith reviewed 2026-05-08 17:05 UTC · model grok-4.3

classification 💻 cs.IT eess.SPmath.IT
keywords Grassmannian constellationBloch spherenoncoherent detectionsphere packingconstellation constructionlow complexity detectorRayleigh fading channel
0
0 comments X

The pith

Mapping Grassmannian constellation design to the Bloch sphere yields packings that reach or approach the theoretical maximum minimum distance, paired with simple detectors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Grassmannian constellations can achieve high capacity in noncoherent Rayleigh fading channels at high SNR, but building good ones and detecting them efficiently has been difficult. This paper maps the problem of placing one-dimensional subspaces in two-dimensional space to packing points on the Bloch sphere, where the relevant distance becomes ordinary Euclidean distance. Using this, the authors create an S-Opt constellation that matches the best known sphere-packing bound for several sizes and a Z-Opt version that stacks polygons to get close for more sizes. They also give detectors whose complexity grows only linearly with the number of receive antennas and that perform as well as the much slower optimal detector. If these constructions work as claimed, they make noncoherent communication more practical for systems with many antennas.

Core claim

By establishing that chordal distance on the Grassmann manifold is proportional to Euclidean distance on the Bloch sphere, the paper derives an upper bound from the Fejes-Tóth sphere-packing result. The S-Opt construction attains this bound for the packings considered, while the Z-Opt construction, formed by stacking regular polygons, approaches the bound for a range of constellation sizes. Both proposed detectors achieve identical error performance to the generalized likelihood ratio test detector while reducing computational complexity.

What carries the argument

The proportionality between chordal distance on the Grassmann manifold and Euclidean distance on the Bloch sphere, which allows direct use of sphere-packing solutions for constellation construction and simplified detection rules.

If this is right

  • For the evaluated sizes, S-Opt constellations achieve the maximum possible minimum chordal distance.
  • Z-Opt constellations provide near-maximal minimum distances without requiring full sphere-packing optimization.
  • The S-Opt detector runs in time linear in receive antennas and logarithmic in constellation size.
  • The Z-Opt detector runs in time linear in receive antennas.
  • Both detectors match the bit error rate of the optimal GLRT detector.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar distance mappings might allow optimal constructions in higher-dimensional Grassmann manifolds used in MIMO systems.
  • The regular-polygon stacking method offers a simple heuristic that could be tested on other manifolds or in three-dimensional subspaces.
  • If the detectors scale well, they could support larger constellations in fast-fading environments where coherent detection is impractical.
  • The explicit bound provides a concrete target for measuring how close any new 2D Grassmannian design comes to optimality.

Load-bearing premise

The Fejes-Tóth bound provides a tight limit on the minimum distance for the finite number of points used in these constructions, and the distance proportionality applies without approximation error.

What would settle it

Computing the actual minimum chordal distance for an S-Opt constellation of size 8 or 16 and finding it smaller than the reported upper bound, or measuring higher error rates for the Z-Opt detector than for GLRT on the same points.

Figures

Figures reproduced from arXiv: 2605.04545 by Chandan Pradhan, Hiroki Iimori, Kotaro Shigenaga, Naoki Ishikawa, Szabolcs Malomsoky, Yuto Hama.

Figure 2
Figure 2. Figure 2: Structure diagrams for B ∈ {4, 5}. The black dotted lines indicate candidate distances that may become minimal when optimizing θ. (a) B /∈ {5, 7} (b) B ∈ {5, 7} view at source ↗
Figure 3
Figure 3. Figure 3: Generalization of θ and the candidate distances that may become the minimum. be narrowed down. In view at source ↗
Figure 4
Figure 4. Figure 4: Structure diagrams for B ∈ {1, 2, 3}. closed form. The structure diagram is shown in view at source ↗
Figure 5
Figure 5. Figure 5: A low-complexity detector using the structure diagram for view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of the minimum chordal distance for each constellation. view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of SERs for each constellation at view at source ↗
Figure 8
Figure 8. Figure 8: SER comparison between the GLRT and S-Opt detectors at view at source ↗
Figure 9

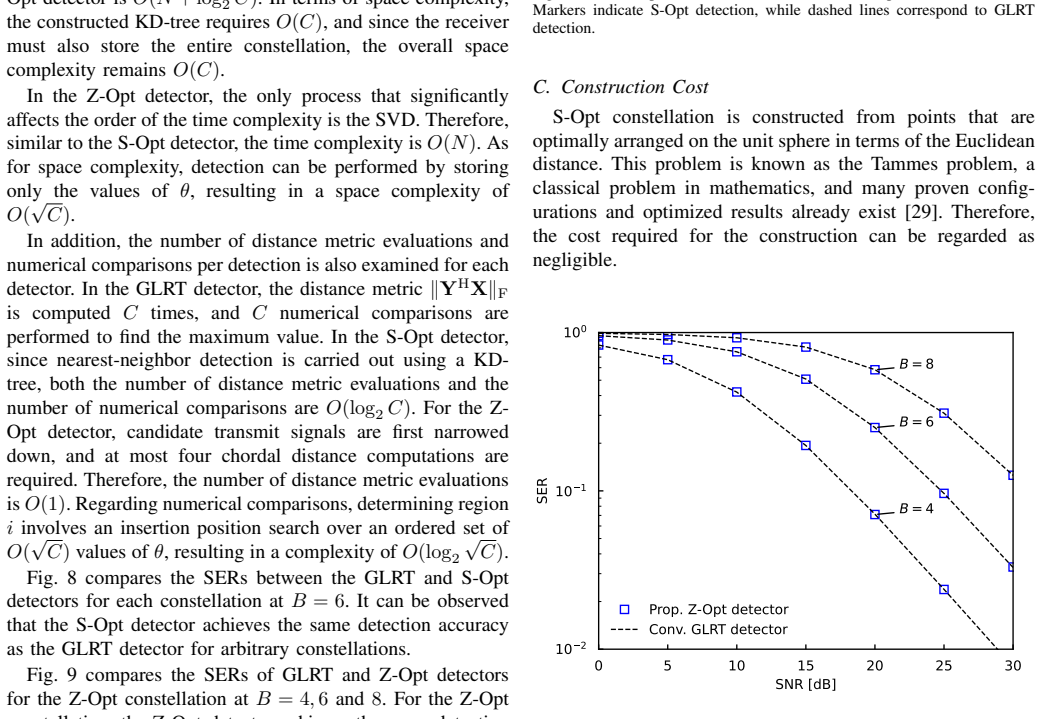

Figure 9. Figure 9: SER comparison between the GLRT and Z-Opt detectors for the Z view at source ↗
Figure 10

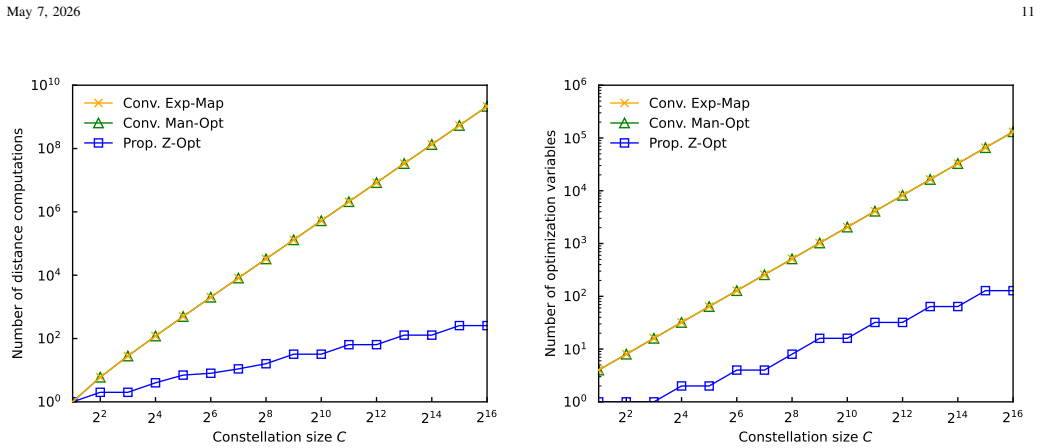

Figure 10. Figure 10: Distance-metric computations per objective-function evaluation for view at source ↗
read the original abstract

Grassmannian constellations are known to achieve the capacity of noncoherent communications over Rayleigh fading channels in the high-SNR regime, yet their efficient construction remains challenging. In this paper, we propose two construction methods for Grassmannian constellations of one-dimensional subspaces in a two-dimensional space, termed S-Opt and Z-Opt, along with two low-complexity detectors. Both the construction and detection procedures are performed on the unit sphere, known as the Bloch sphere in quantum computing. We show that the chordal distance on the Grassmann manifold is proportional to the Euclidean distance on the Bloch sphere and derive a corresponding theoretical upper bound based on the Fejes--T\'oth bound on the minimum chordal distance. The S-Opt constellation is constructed from sphere-packing solutions and attains the derived upper bound for the optimal Bloch-sphere packings considered. The S-Opt detector can be applied to arbitrary Grassmannian constellations on $\mathcal{G}(2,1)$, and its time complexity scales linearly with the number of receive antennas and logarithmically with the constellation size, while yielding the same detection performance as the GLRT detector. Furthermore, based on the insight obtained through the S-Opt construction, the Z-Opt constellation is constructed by stacking regular polygons on the Bloch sphere, and its minimum chordal distance approaches the derived upper bound over the evaluated constellation sizes. The Z-Opt detector's time complexity scales linearly with the number of receive antennas, while yielding the same detection performance as the GLRT detector for Z-Opt.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes S-Opt and Z-Opt constructions for one-dimensional Grassmannian constellations in two-dimensional complex space by mapping the problem to packings on the Bloch sphere. It establishes that the chordal distance on the Grassmann manifold is proportional to the Euclidean distance on the Bloch sphere, derives a corresponding upper bound from the Fejes-Tóth bound, shows that S-Opt attains this bound when using known optimal spherical codes, and that Z-Opt approaches the bound via explicit regular-polygon stacking. It further presents two low-complexity detectors (one applicable to arbitrary constellations on G(2,1)) whose performance matches that of the GLRT detector, with stated linear or linear-plus-logarithmic complexity scaling in the number of receive antennas and constellation size.

Significance. If the isometry, bound transfer, attainment claims, and detector equivalence hold, the work supplies concrete, near-optimal Grassmannian constellations together with practical detectors for the high-SNR noncoherent Rayleigh-fading setting. The reduction of the G(2,1) problem to spherical codes on the Bloch sphere is a clean insight that may aid both analysis and implementation; the explicit complexity scaling and GLRT equivalence are additional practical strengths.

minor comments (2)
  1. The abstract states that the Z-Opt minimum chordal distance 'approaches the derived upper bound over the evaluated constellation sizes' but does not list those sizes or reference the corresponding table/figure; adding this information would allow immediate assessment of the gap to optimality.
  2. The complexity statements (linear in receive antennas, logarithmic in constellation size for the S-Opt detector) are given only in the abstract; the main text should include explicit operation counts or pseudocode to make the scaling claims verifiable.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our work on S-Opt and Z-Opt constructions for one-dimensional Grassmannian constellations in two-dimensional space, including the Bloch-sphere mapping, chordal-distance isometry, Fejes-Tóth bound transfer, attainment claims, and the low-complexity GLRT-equivalent detectors. We are pleased with the recommendation for minor revision and will incorporate any editorial or minor technical suggestions in the revised manuscript.

Circularity Check

0 steps flagged

No significant circularity; derivation uses external bound via exact isometry

full rationale

The paper first proves an exact proportionality (isometry) between Grassmannian chordal distance and Bloch-sphere Euclidean distance, then transfers the external Fejes-Tóth bound directly as an upper bound on minimum chordal distance. S-Opt attains the bound by explicit construction from known optimal spherical codes; Z-Opt approaches it by polygon stacking informed by that construction. Detector equivalence to GLRT follows immediately from the shared inner-product metric. No step reduces to a fitted parameter renamed as prediction, no self-citation is load-bearing for the central claims, and no ansatz or uniqueness result is smuggled in from prior author work. The chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claims rest on the derived proportionality between chordal and Euclidean distances plus the external Fejes-Tóth bound; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Chordal distance on the Grassmann manifold is proportional to Euclidean distance on the Bloch sphere
    Stated as a derived result used to import sphere-packing bounds.
